SAXSdb — 1rrj

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1rrj
沉积日期 deposition_date	2003-12-08
结构标题 title	Structural Mechanisms of Camptothecin Resistance by Mutations in Human Topoisomerase I
关键词 keywords	human topoisomerase I, topotecan, camptothecin, ISOMERASE-DNA COMPLEX; ISOMERASE/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	29.08 Å
回转半径 Rg (电子) rg_electron	28.98 Å
零角强度 I(0) i0	126217000.00
分子量 molecular_weight	81152.0 kDa
排除体积 excluded_volume	98388 Å³
包络体积 envelope_volume	132690 Å³
水化壳体积 shell_volume	38411 Å³
包络直径 envelope_diameter	108.8 Å
壳层 Rg shell_rg	35.69 Å
包络 Rg envelope_rg	29.48 Å
形状 Rg shape_rg	28.94 Å
总 Rg total_rg	29.70 Å
总原子数 total_atoms	5656
残基数 n_residues	608
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	102.5 Å
Rg (实空间) rg_real	29.07 Å
Rg 误差 (实空间) rg_real_error	0.70 Å
I(0) (实空间) i0_real	1.2620e+08
I(0) 误差 (实空间) i0_real_error	1.9880e+06
Rg (倒空间) rg_reciprocal	29.08 Å
I(0) (倒空间) i0_reciprocal	126200000.0000
解质量估计 total_estimate	0.8552
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	35.4 Å
偏度 Skewness skewness	0.420
峰度 Kurtosis kurtosis	0.005
角度范围 angular_range	— – 0.2750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	19240000.0000
实空间数据点数 n_real_points	56
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.722; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.962; Smooth: 0.984

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	5'-D(APAPAPAPAPGPAPCPTPTGPGPAPAPAPAPAPTPTPTPTPT)-3'
分子量 formula_weight	6806.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	B
原子数 atom_count	6092

AAAAAGACTTGGAAAAATTTTT

Entity 2 polymer

描述 description	5'-D(APAPAPAPAPTPTPTPTPTPCPCPAPAPGPTPCPTPTPTPTPT)-3'
分子量 formula_weight	6690.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	C

AAAAATTTTTCCAAGTCTTTTT

Entity 3 polymer

描述 description	DNA topoisomerase I
分子量 formula_weight	66964.1 kDa
EC 编号 ec_number	5.99.1.2
突变 mutation	Asn722Ser
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

QKWKWWEEERYPEGIKWKFLEHKGPVFAPPYEPLPENVKFYYDGKVMKLSPKAEEVATFFAKMLDHEYTTKEIFRKNFFKDWRKEMTNEEKNIITNLSKCDFTQMSQYFKAQTEARKQMSKEEKLKIKEENEKLLKEYGFCIMDNHKERIANFKIEPPGLFRGRGNHPKMGMLKRRIMPEDIIINCSKDAKVPSPPPGHKWKEVRHDNKVTWLVSWTENIQGSIKYIMLNPSSRIKGEKDWQKYETARRLKKCVDKIRNQYREDWKSKEMKVRQRAVALYFIDKLALRAGNEKEEGETADTVGCCSLRVEHINLHPELDGQEYVVEFDFLGKDSIRYYNKVPVEKRVFKNLQLFMENKQPEDDLFDRLNTGILNKHLQDLMEGLTAKVFRTYNASITLQQQLKELTAPDENIPAKILSYNRANRAVAILCNHQRAPPKTFEKSMMNLQTKIDAKKEQLADARRDLKSAKADAKVMKDAKTKKVVESKKKAVQRLEEQLMKLEVQATDREENKQIALGTSKLSYLDPRITVAWCKKWGVPIEKIYNKTQREKFAWAIDMADEDYEF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 non-polymer

描述 description	2-(1-DIMETHYLAMINOMETHYL-2-HYDROXY-8-HYDROXYMETHYL-9-OXO-9,11-DIHYDRO-INDOLIZINO[1,2-B]QUINOLIN-7-YL)-2-HYDROXY-BUTYRIC ACID
分子量 formula_weight	439.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	(S)-10-[(DIMETHYLAMINO)METHYL]-4-ETHYL-4,9-DIHYDROXY-1H-PYRANO[3',4':6,7]INOLIZINO[1,2-B]-QUINOLINE-3,14(4H,12H)-DIONE
分子量 formula_weight	421.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	436

▼

6. 折叠分类 (SCOP + CATH) 7 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d1rrja1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.2 — Long alpha-hairpin
超家族 Superfamily superfamily	a.2.8 — Eukaryotic DNA topoisomerase I, dispensable insert domain
家族 Family family	a.2.8.1 — Eukaryotic DNA topoisomerase I, dispensable insert domain

结构域编号 domain_id	d1rrja2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.163 — DNA breaking-rejoining enzymes
超家族 Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
家族 Family family	d.163.1.2 — Eukaryotic DNA topoisomerase I, catalytic core

结构域编号 domain_id	d1rrja3
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.15 — Eukaryotic DNA topoisomerase I, N-terminal DNA-binding fragment
超家族 Superfamily superfamily	e.15.1 — Eukaryotic DNA topoisomerase I, N-terminal DNA-binding fragment
家族 Family family	e.15.1.1 — Eukaryotic DNA topoisomerase I, N-terminal DNA-binding fragment

CATH v4.4 (4 domains)

结构域编号 domain_id	1rrjA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	170 — Beta Complex
拓扑 Topology topology	11 — DNA Topoisomerase I; domain 2
同源超家族 H-superfamily homologous superfamily	10 — DNA Topoisomerase I, domain 2

结构域编号 domain_id	1rrjA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	41 — Yeast DNA topoisomerase - domain 1

结构域编号 domain_id	1rrjA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	15 — Topoisomerase I; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Topoisomerase I; Chain A, domain 3

结构域编号 domain_id	1rrjA04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	132 — Topoisomerase I; Chain A, domain 4
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	57.333 Å
晶胞边长 b length_b	115.354 Å
晶胞边长 c length_c	75.172 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	94.33 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.300 Å
最低分辨率 resolution_low	43.690 Å
R 因子 r_factor	0.2780
R_work r_work	0.2460
R_free r_free	0.2780

fit	/app/data/saxs_computation/rr/1rrj/1rrj.fit
pddf	/app/data/pr_computation/rr/1rrj/1rrj.pr.out
profile	/app/data/saxs_computation/rr/1rrj/1rrj.dat

Structural Mechanisms of Camptothecin Resistance by Mutations in Human Topoisomerase I

SAXS 散射曲线 SAXS Profile

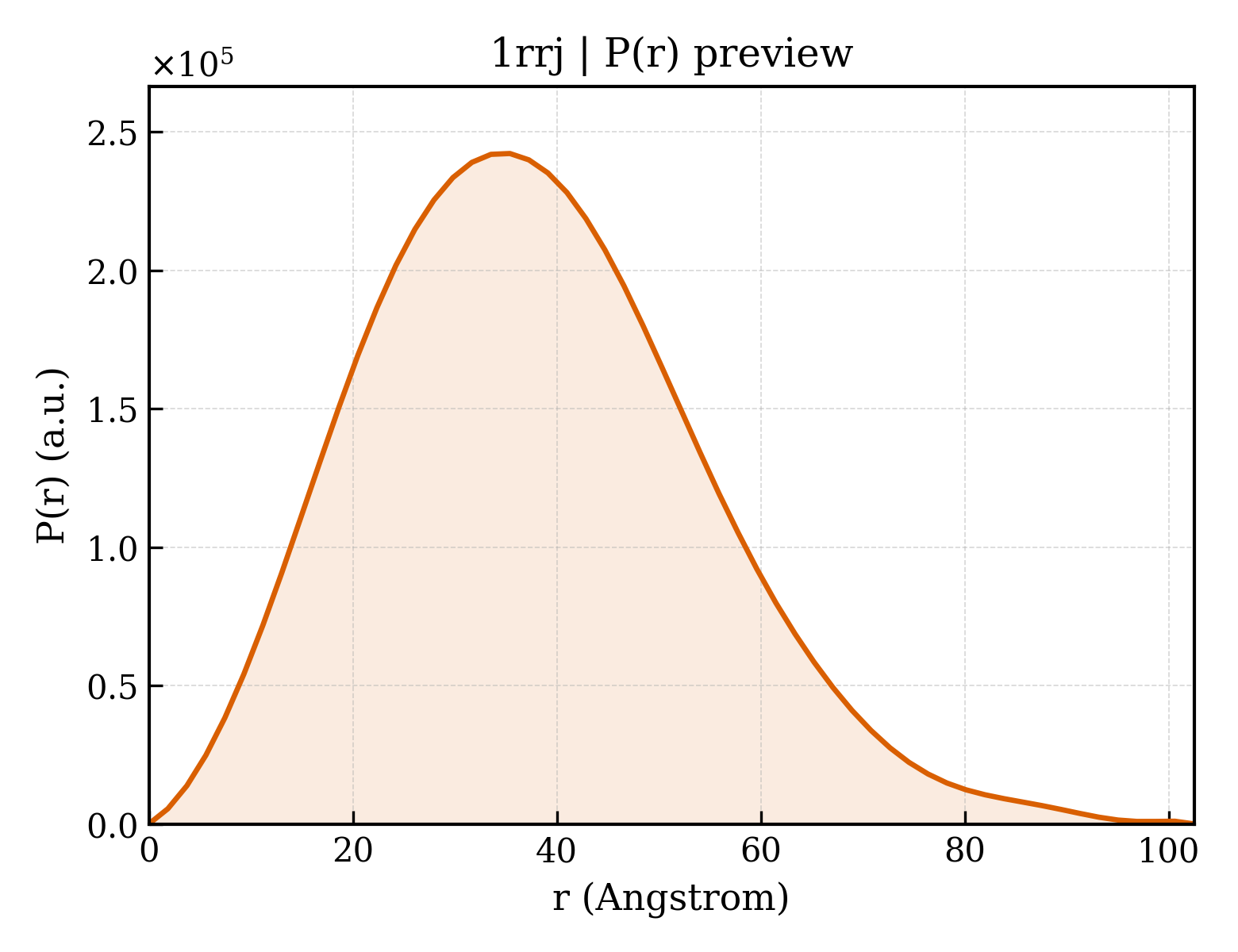

P(r) 距离分布 P(r) Distribution
