SAXSdb — 1ls2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Elongation Factor Tu

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–RNA Monomer Protein × 1 RNA 1 PDB declaration: dimeric（2） Consistent with all polymer counts	Chain A； UniProt 1–393	Not recorded	Phenylalanine transfer RNA × 1	ELECTRON MICROSCOPY cryo-EM buffer：Hepes-KOH buffer at pH 7.5；pH 7.5；Hepes-KOH buffer at pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；Rapid-freezing in liquid ethane	Resolution 16.80 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1LS2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1D8T CRYSTAL STRUCTURE OF ELONGATION FACTOR, TU (EF-TU-MGGDP) COMPLEXED WITH GE2270A, A THIAZOLYL PEPTIDE ANTIBIOTIC Deposited 1999-10-25	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–393（393 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ACT ACETATE ION × 19	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.6；TRIS-HCL, MAGNESIUM CHLORIDE, GDP, POLYETHYLENE GLYCOL 3350, AMMONIUM ACETATE, AMMONIUM CITRATE, PH 7.6, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 293.K	Resolution 2.35 Å R-free 0.246
1D8T CRYSTAL STRUCTURE OF ELONGATION FACTOR, TU (EF-TU-MGGDP) COMPLEXED WITH GE2270A, A THIAZOLYL PEPTIDE ANTIBIOTIC Deposited 1999-10-25	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–393（393 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ACT ACETATE ION × 11	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.6；TRIS-HCL, MAGNESIUM CHLORIDE, GDP, POLYETHYLENE GLYCOL 3350, AMMONIUM ACETATE, AMMONIUM CITRATE, PH 7.6, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 293.K	Resolution 2.35 Å R-free 0.246
1DG1 WHOLE, UNMODIFIED, EF-TU(ELONGATION FACTOR TU). Deposited 1999-11-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain G 1–394（394 aa） Chain H 1–394（394 aa）	Not recorded	MG MAGNESIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.75；298 K；PEG 3350, ammonium citrate, ammonium acetate, pH 5.75, VAPOR DIFFUSION, temperature 298.0K	Resolution 2.50 Å R-free 0.259
1EFC INTACT ELONGATION FACTOR FROM E.COLI Deposited 1998-11-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–394（393 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.05 Å R-free 0.268
1EFC INTACT ELONGATION FACTOR FROM E.COLI Deposited 1998-11-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–394（393 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.05 Å R-free 0.268
1EFU ELONGATION FACTOR COMPLEX EF-TU/EF-TS FROM ESCHERICHIA COLI Deposited 1996-07-09	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 9–393（385 aa） Chain C 9–393（385 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.7；pH 7.7	Resolution 2.50 Å R-free 0.283
1ETU STRUCTURAL DETAILS OF THE BINDING OF GUANOSINE DIPHOSPHATE TO ELONGATION FACTOR TU FROM E. COLI AS STUDIED BY X-RAY CRYSTALLOGRAPHY Deposited 1988-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–392（392 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.90 Å
1QZD EF-Tu.kirromycin coordinates fitted into the cryo-EM map of EF-Tu ternary complex (GDP.Kirromycin) bound 70S ribosome Deposited 2003-09-16	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–393（393 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer Polymix buffer；pH 7.5；Polymix buffer cryo-EM vitrification conditions Cryogen ETHANE；Rapid-freezing in liquid ethane	Resolution 10.00 Å
2BVN E. coli EF-Tu:GDPNP in complex with the antibiotic enacyloxin IIa Deposited 2005-06-30	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–393（393 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ENX ENACYLOXIN IIA × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；292 K；2 MICROL PROTEIN SOLUTION MIXED WITH 1 MICROL RESERVOIR SOLUTION (450 MM NACL. 22% PEG6000, 6% GLYCEROL, 7 MM MGCL2, 100 MM TRIS-HCL PH 7.5), SITTING DROP 19 DEG. C	Resolution 2.30 Å R-free 0.271
2BVN E. coli EF-Tu:GDPNP in complex with the antibiotic enacyloxin IIa Deposited 2005-06-30	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–393（393 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ENX ENACYLOXIN IIA × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；292 K；2 MICROL PROTEIN SOLUTION MIXED WITH 1 MICROL RESERVOIR SOLUTION (450 MM NACL. 22% PEG6000, 6% GLYCEROL, 7 MM MGCL2, 100 MM TRIS-HCL PH 7.5), SITTING DROP 19 DEG. C	Resolution 2.30 Å R-free 0.271
2HCJ Trypsin-modified Elongation Factor Tu in complex with tetracycline Deposited 2006-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 8–44（37 aa） Fragment：EF-Tu fragment, residues 8-44 Chain B 59–393（335 aa） Fragment：EF-Tu fragment, residues 59-393	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1 SO4 SULFATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 NA SODIUM ION × 3 TAC TETRACYCLINE × 1 GLV GLYOXYLIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；VAPOR DIFFUSION, SITTING DROP	Resolution 2.12 Å R-free 0.234
2HDN Trypsin-modified Elongation Factor Tu in complex with tetracycline at 2.8 Angstrom resolution Deposited 2006-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 8–44（37 aa） Fragment：EF-Tu fragment, residues 8-44 Chain B 59–393（335 aa） Fragment：EF-Tu fragment, residues 59-393	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 TAC TETRACYCLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；Multiple crystals were used to collect the native and each derivative data set. VAPOR DIFFUSION, SITTING DROP	Resolution 2.80 Å R-free 0.223
2HDN Trypsin-modified Elongation Factor Tu in complex with tetracycline at 2.8 Angstrom resolution Deposited 2006-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 8–44（37 aa） Fragment：EF-Tu fragment, residues 8-44 Chain D 59–393（335 aa） Fragment：EF-Tu fragment, residues 59-393	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 TAC TETRACYCLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；Multiple crystals were used to collect the native and each derivative data set. VAPOR DIFFUSION, SITTING DROP	Resolution 2.80 Å R-free 0.223
2HDN Trypsin-modified Elongation Factor Tu in complex with tetracycline at 2.8 Angstrom resolution Deposited 2006-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 8–44（37 aa） Fragment：EF-Tu fragment, residues 8-44 Chain F 59–393（335 aa） Fragment：EF-Tu fragment, residues 59-393	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 TAC TETRACYCLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；Multiple crystals were used to collect the native and each derivative data set. VAPOR DIFFUSION, SITTING DROP	Resolution 2.80 Å R-free 0.223
2HDN Trypsin-modified Elongation Factor Tu in complex with tetracycline at 2.8 Angstrom resolution Deposited 2006-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain G 8–44（37 aa） Fragment：EF-Tu fragment, residues 8-44 Chain H 59–393（335 aa） Fragment：EF-Tu fragment, residues 59-393	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 TAC TETRACYCLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；Multiple crystals were used to collect the native and each derivative data set. VAPOR DIFFUSION, SITTING DROP	Resolution 2.80 Å R-free 0.223
2HDN Trypsin-modified Elongation Factor Tu in complex with tetracycline at 2.8 Angstrom resolution Deposited 2006-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain I 8–44（37 aa） Fragment：EF-Tu fragment, residues 8-44 Chain J 59–393（335 aa） Fragment：EF-Tu fragment, residues 59-393	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 TAC TETRACYCLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；Multiple crystals were used to collect the native and each derivative data set. VAPOR DIFFUSION, SITTING DROP	Resolution 2.80 Å R-free 0.223
2HDN Trypsin-modified Elongation Factor Tu in complex with tetracycline at 2.8 Angstrom resolution Deposited 2006-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain K 8–44（37 aa） Fragment：EF-Tu fragment, residues 8-44 Chain L 59–393（335 aa） Fragment：EF-Tu fragment, residues 59-393	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 TAC TETRACYCLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；Multiple crystals were used to collect the native and each derivative data set. VAPOR DIFFUSION, SITTING DROP	Resolution 2.80 Å R-free 0.223
2HDN Trypsin-modified Elongation Factor Tu in complex with tetracycline at 2.8 Angstrom resolution Deposited 2006-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 7 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 8–44（37 aa） Fragment：EF-Tu fragment, residues 8-44 Chain B 59–393（335 aa） Fragment：EF-Tu fragment, residues 59-393 Chain C 8–44（37 aa） Fragment：EF-Tu fragment, residues 8-44 Chain D 59–393（335 aa） Fragment：EF-Tu fragment, residues 59-393	Not recorded	MG MAGNESIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 2 TAC TETRACYCLINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；Multiple crystals were used to collect the native and each derivative data set. VAPOR DIFFUSION, SITTING DROP	Resolution 2.80 Å R-free 0.223
2HDN Trypsin-modified Elongation Factor Tu in complex with tetracycline at 2.8 Angstrom resolution Deposited 2006-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 8 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain I 8–44（37 aa） Fragment：EF-Tu fragment, residues 8-44 Chain J 59–393（335 aa） Fragment：EF-Tu fragment, residues 59-393 Chain K 8–44（37 aa） Fragment：EF-Tu fragment, residues 8-44 Chain L 59–393（335 aa） Fragment：EF-Tu fragment, residues 59-393	Not recorded	MG MAGNESIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 2 TAC TETRACYCLINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；Multiple crystals were used to collect the native and each derivative data set. VAPOR DIFFUSION, SITTING DROP	Resolution 2.80 Å R-free 0.223
2HDN Trypsin-modified Elongation Factor Tu in complex with tetracycline at 2.8 Angstrom resolution Deposited 2006-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 9 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain E 8–44（37 aa） Fragment：EF-Tu fragment, residues 8-44 Chain F 59–393（335 aa） Fragment：EF-Tu fragment, residues 59-393 Chain G 8–44（37 aa） Fragment：EF-Tu fragment, residues 8-44 Chain H 59–393（335 aa） Fragment：EF-Tu fragment, residues 59-393	Not recorded	MG MAGNESIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 2 TAC TETRACYCLINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；Multiple crystals were used to collect the native and each derivative data set. VAPOR DIFFUSION, SITTING DROP	Resolution 2.80 Å R-free 0.223
3EP2 Model of Phe-tRNA(Phe) in the ribosomal pre-accommodated state revealed by cryo-EM Deposited 2008-09-29	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 3 PDB declaration: nonameric	Chain X 2–394（393 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.00 Å
3EQ3 Model of tRNA(Trp)-EF-Tu in the ribosomal pre-accommodated state revealed by cryo-EM Deposited 2008-09-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 3 PDB declaration: nonameric	Chain X 2–394（393 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；HiFi buffer (50 mM Tris-HCl pH 7.5, 70mM NH4Cl, 30 mM KCl, 3.5 mM MgCl2, 0.5 mM spermidine, 8mM putrescine, 2 mM DTT, 3.5 mM MgCl2) cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 9.00 Å
3EQ4 Model of tRNA(Leu)-EF-Tu in the ribosomal pre-accommodated state revealed by cryo-EM Deposited 2008-09-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 3 PDB declaration: nonameric	Chain X 2–394（393 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.3；Polymix buffer( 5 mM potassium phosphate (KH2PO4) pH 7.3, 5 mM NH4Cl, 95 mM KCl, 0.5 mM CaCl2, 8 mM putrescine, 1 mM spermidine, 1 mM DTE, 5 mM magnesium acetate) cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 12.00 Å
4V69 Ternary complex-bound E.coli 70S ribosome. Deposited 2008-12-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric	Chain AZ 2–394（393 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；Vitrification using FEI Vitrobot; blot 3 seconds before plunging with an offset of -1mm	Resolution 6.70 Å

13 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EFTU_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–393； UniProt 1–393

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ls2
Deposition date deposition_date	2002-05-16
Structure title title	Fitting of EF-Tu and tRNA in the Low Resolution Cryo-EM Map of an EF-Tu Ternary Complex (GDP and Kirromycin) Bound to E. coli 70S Ribosome
Keywords keywords	EF-Tu, ternary complex, cryo-EM, 70S E.coli ribosome, TRANSLATION-RNA COMPLEX; TRANSLATION/RNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.17 Å
Radius of gyration Rg (electron density) rg_electron	24.24 Å
Forward intensity I(0) i0	41115800.00
Molecular weight molecular_weight	44632.0 kDa
Excluded volume excluded_volume	52424 Å³
Envelope volume envelope_volume	59057 Å³
Hydration-shell volume shell_volume	20320 Å³
Envelope diameter envelope_diameter	106.7 Å
Shell Rg shell_rg	29.75 Å
Envelope Rg envelope_rg	29.04 Å
Shape Rg shape_rg	27.19 Å
Total Rg total_rg	24.66 Å
Total atoms total_atoms	76
Residues n_residues	76
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

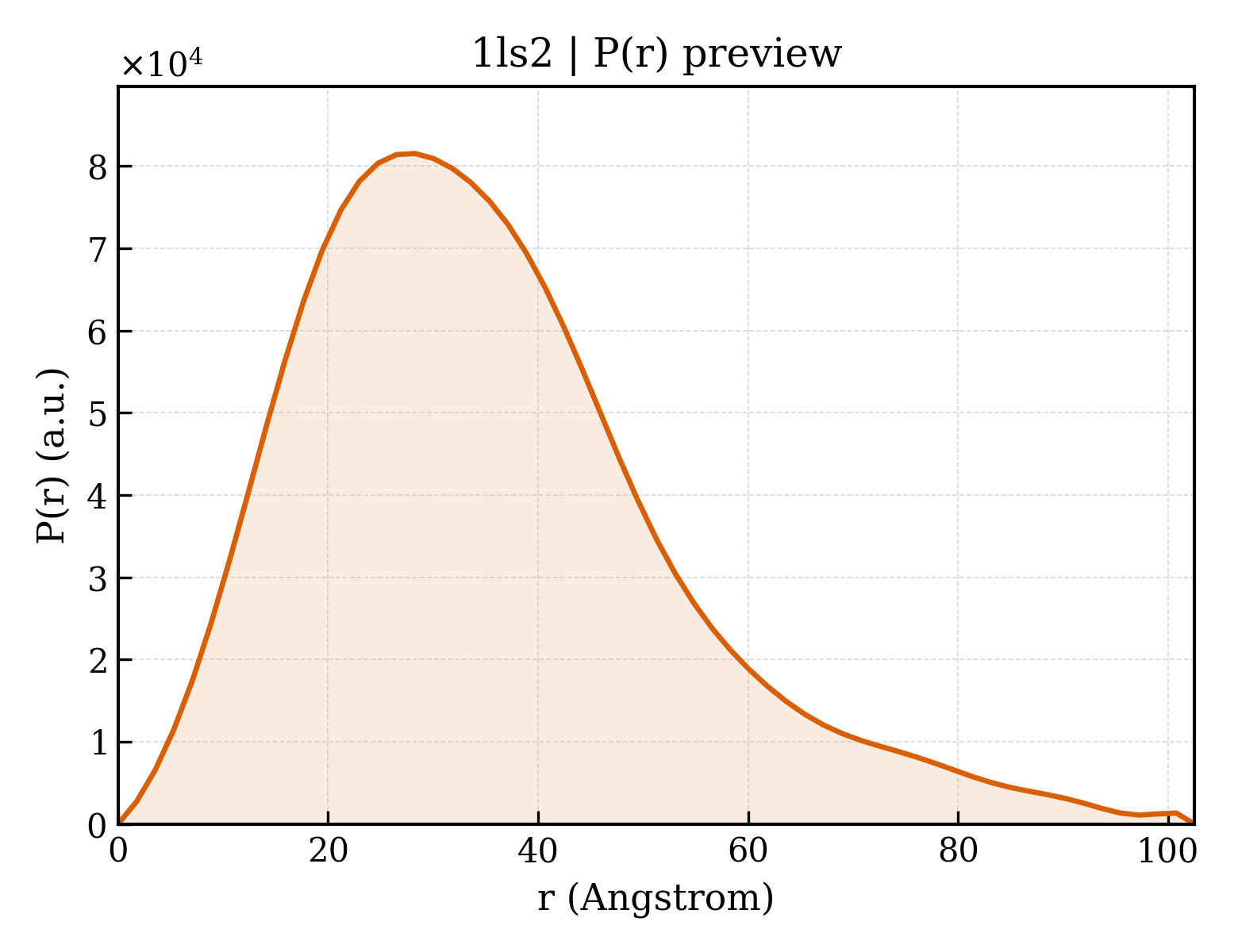

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	102.5 Å
Rg (real space) rg_real	27.60 Å
Rg uncertainty (real space) rg_real_error	0.91 Å
I(0) (real space) i0_real	4.1110e+07
I(0) uncertainty (real space) i0_real_error	6.9080e+05
Rg (reciprocal space) rg_reciprocal	27.46 Å
I(0) (reciprocal space) i0_reciprocal	41110000.0000
Solution quality estimate total_estimate	0.7870
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	28.3 Å
Skewness Skewness skewness	0.832
Kurtosis Kurtosis kurtosis	0.706
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	10440000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.511; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.714; Smooth: 0.979

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Phenylalanine transfer RNA
Molecular weight formula_weight	24518.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	B
Atom count atom_count	462

GCGGAUUUAGCUCAGUUGGGAGAGCGCCAGACUGAAGAUCUGGAGGUCCUGUGUUCGAUCCACAGAAUUCGCACCA

Entity 2 Entity 2 polymer

Description description	Elongation Factor Tu
Molecular weight formula_weight	43239.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

SKEKFERTKPHVNVGTIGHVDHGKTTLTAAITTVLAKTYGGAARAFDQIDNAPEEKARGITINTSHVEYDTPTRHYAHVDCPGHADYVKNMITGAAQMDGAILVVAATDGPMPQTREHILLGRQVGVPYIIVFLNKCDMVDDEELLELVEMEVRELLSQYDFPGDDTPIVRGSALKALEGDAEWEAKILELAGFLDSYIPEPERAIDKPFLLPIEDVFSISGRGTVVTGRVERGIIKVGEEVEIVGIKETQKSTCTGVEMFRKLLDEGRAGENVGVLLRGIKREEIERGQVLAKPGTIKPHTKFESEVYILSKDEGGRHTPFFKGYRPQFYFRTTDVTGTIELPEGVEMVMPGDNIKMVVTLIHPIAMDDGLRFAIREGGRTVGAGVVAKVLS

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ls2a_
Class class	i — Low resolution protein structures
Fold Fold fold	i.1 — Ribosome and ribosomal fragments
Superfamily Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
Family Family family	i.1.1.1 — Ribosome complexes

▶

8. Citations (6)

▶

Resolution resolution	16.800 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	16.80 Å
Resolution测定方法 resolution_method	reference based alignment
颗粒数 num_particles	7985

fit	/app/data/saxs_computation/ls/1ls2/1ls2.fit
pddf	/app/data/pr_computation/ls/1ls2/1ls2.pr.out
profile	/app/data/saxs_computation/ls/1ls2/1ls2.dat
