1m05

HLA B8 in complex with an Epstein Barr Virus determinant

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HLA class I histocompatibility antigen, B-8 B*0801 alpha chain

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） EBNA-3 nuclear protein × 1 （P12977） CADMIUM ION × 1 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） EBNA-3 nuclear protein × 1 （P12977） CADMIUM ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	1B08_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–277； UniProt 25–301 Author chain C； PDBConstruct 1–277； UniProt 25–301

Beta-2-microglobulin

Homo sapiens

UniProt P61769

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, B-8 B*0801 alpha chain × 1 （P30460） EBNA-3 nuclear protein × 1 （P12977） CADMIUM ION × 1 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, B-8 B*0801 alpha chain × 1 （P30460） EBNA-3 nuclear protein × 1 （P12977） CADMIUM ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B2MG_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–99； UniProt 21–119 Author chain D； PDBConstruct 1–99； UniProt 21–119

EBNA-3 nuclear protein

OrganismNot specified

UniProt P12977

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, B-8 B*0801 alpha chain × 1 （P30460） Beta-2-microglobulin × 1 （P61769） CADMIUM ION × 1 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, B-8 B*0801 alpha chain × 1 （P30460） Beta-2-microglobulin × 1 （P61769） CADMIUM ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EBN3_EBV
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–9； UniProt 193–200 Author chain F； PDBConstruct 1–9； UniProt 193–200

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1m05
Deposition date deposition_date	2002-06-11
Structure title title	HLA B8 in complex with an Epstein Barr Virus determinant
Keywords keywords	MHC class I, HLA B8, Epstein Barr virus, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1m05__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1m05__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

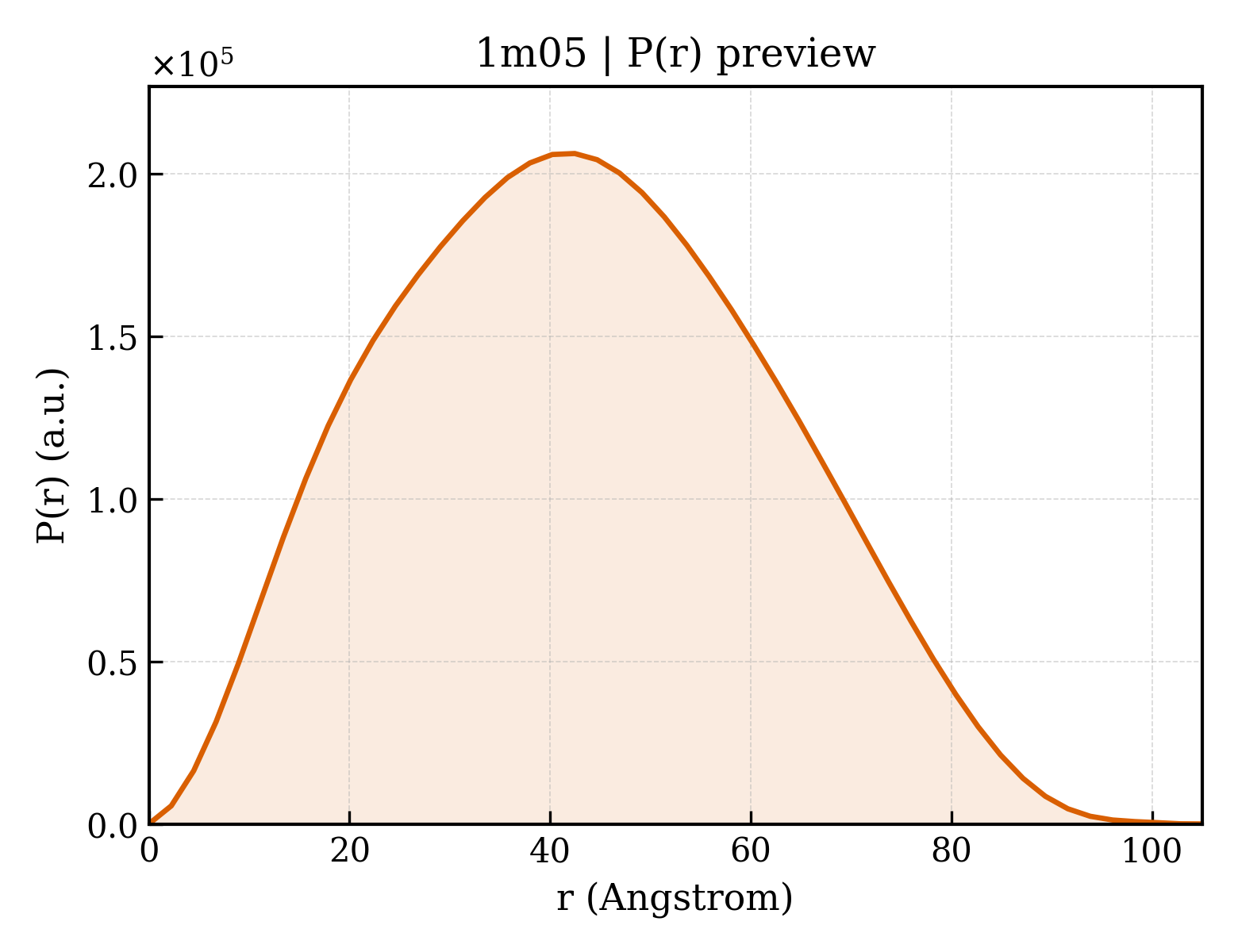

1m05__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.27 Å
Rg (electron density)	23.15 Å
Total Rg	23.98 Å
Atom count	3098
Residues	377
Excluded volume	53962 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1m05__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1m05__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	HLA class I histocompatibility antigen, B-8 B*0801 alpha chain
Molecular weight formula_weight	32015.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	6986

GSHSMRYFDTAMSRPGRGEPRFISVGYVDDTQFVRFDSDAASPREEPRAPWIEQEGPEYWDRNTQIFKTNTQTDRESLRNLRGYYNQSEAGSHTLQSMYGCDVGPDGRLLRGHNQYAYDGKDYIALNEDLRSWTAADTAAQITQRKWEAARVAEQDRAYLEGTCVEWLRRYLENGKDTLERADPPKTHVTHHPISDHEATLRCWALGFYPAEITLTWQRDGEDQTQDTELVETRPAGDRTFQKWAAVVVPSGEEQRYTCHVQHEGLPKPLTLRWEPS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Beta-2-microglobulin
Molecular weight formula_weight	11748.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

IQRTPKIQVYSRHPAENGKSNFLNCYVSGFHPSDIEVDLLKNGERIEKVEHSDLSFSKDWSFYLLYYTEFTPTEKDEYACRVNHVTLSQPKIVKWDRDM

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	EBNA-3 nuclear protein
Molecular weight formula_weight	1054.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

FLRGRAYGL

Entity 4 Entity 4 non-polymer

Description description	CADMIUM ION
Molecular weight formula_weight	112.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	794

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1m05a1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1m05a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d1m05b_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1m05c1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1m05c2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d1m05d_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (6 domains)

Domain ID domain_id	1m05A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	1m05A02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1m05B00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1m05C01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	1m05C02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1m05D00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	85.400 Å
Unit-cell length b length_b	90.100 Å
Unit-cell length c length_c	125.300 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.2420
R_free r_free	0.2830
