1m0o
Structure of Dialkylglycine Decarboxylase Complexed with 1-Amino-1-methylpropanephosphonate

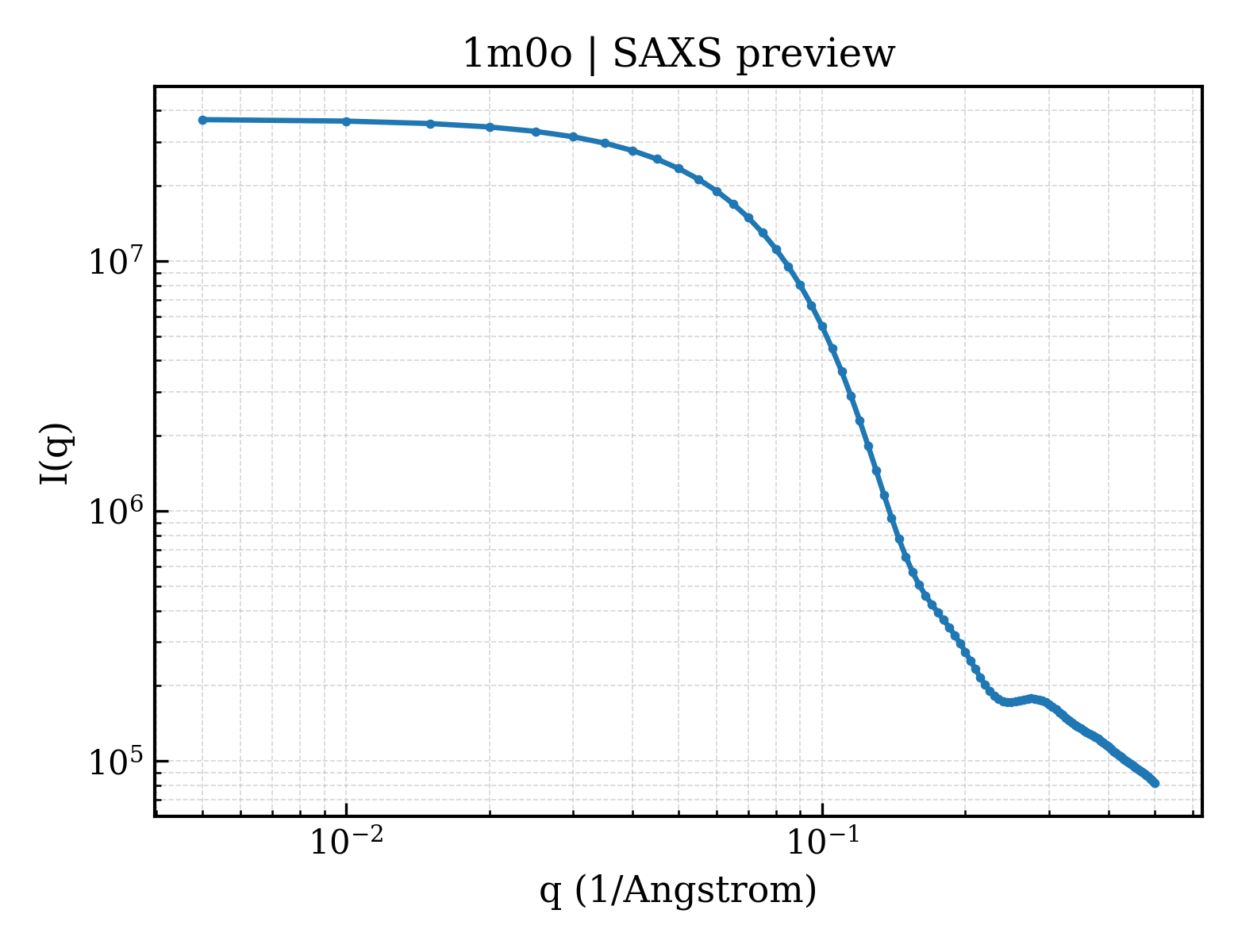

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1m0o |
| 沉积日期 deposition_date | 2002-06-13 |
| 结构标题 title | Structure of Dialkylglycine Decarboxylase Complexed with 1-Amino-1-methylpropanephosphonate |
| 关键词 keywords | Decarboxylase, pyridoxal phosphate, Lyase; LYASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 23.30 Å |
| 回转半径 Rg (电子) rg_electron | 22.12 Å |
| 零角强度 I(0) i0 | 36965400.00 |
| 分子量 molecular_weight | 46745.0 kDa |
| 排除体积 excluded_volume | 58538 ų |
| 包络体积 envelope_volume | 69668 ų |
| 水化壳体积 shell_volume | 25926 ų |
| 包络直径 envelope_diameter | 71.6 Å |
| 壳层 Rg shell_rg | 29.46 Å |
| 包络 Rg envelope_rg | 22.24 Å |
| 形状 Rg shape_rg | 22.14 Å |
| 总 Rg total_rg | 22.93 Å |
| 总原子数 total_atoms | 3278 |
| 残基数 n_residues | 431 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 69.9 Å |
| Rg (实空间) rg_real | 23.17 Å |
| Rg 误差 (实空间) rg_real_error | 0.32 Å |
| I(0) (实空间) i0_real | 3.6970e+07 |
| I(0) 误差 (实空间) i0_real_error | 4.6030e+05 |
| Rg (倒空间) rg_reciprocal | 23.20 Å |
| I(0) (倒空间) i0_reciprocal | 36970000.0000 |
| 解质量估计 total_estimate | 0.9124 |
| 解质量评级 solution_quality | EXCELLENT a EXCELLENT solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 28.0 Å |
| 偏度 Skewness skewness | 0.159 |
| 峰度 Kurtosis kurtosis | -0.498 |
| 角度范围 angular_range | — – 0.3400 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 5111000.0000 |
| 实空间数据点数 n_real_points | 66 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.960; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.989 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (5)
6. 折叠分类 (SCOP + CATH) 3 domains
SCOP 2.08 (1 domains)
| 结构域编号 domain_id | d1m0oa_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.67 — PLP-dependent transferase-like |
| 超家族 Superfamily superfamily | c.67.1 — PLP-dependent transferases |
| 家族 Family family | c.67.1.4 — GABA-aminotransferase-like |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 1m0oA01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 1150 — Aspartate Aminotransferase, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Aspartate Aminotransferase, domain 1 |
| 结构域编号 domain_id | 1m0oA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 640 — Aspartate Aminotransferase; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain) |
