SAXSdb — 1m0p

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

2,2-Dialkylglycine Decarboxylase

Burkholderia cepacia

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–433	Not recorded	K POTASSIUM ION × 4 NA SODIUM ION × 4 ELP (1R)-1-[((1E)-{3-HYDROXY-2-METHYL-5-[(PHOSPHONOOXY)METHYL]PYRIDIN-4-YL}METHYLENE)AMINO]-1-PHENYLETHYLPHOSPHONIC ACID × 4	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.4；15% PEG 4000, 0.20 - 0.40 M SODIUM PYRUVATE, 0.015 M MES-KOH (pH 6.4)	Resolution 2.60 Å R-free 0.230

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1M0P	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1D7R CRYSTAL STRUCTURE OF THE COMPLEX OF 2,2-DIALKYLGLYCINE DECARBOXYLASE WITH 5PA Deposited 1999-10-19	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–433（433 aa）	Not recorded	NA SODIUM ION × 4 K POTASSIUM ION × 4 5PA N-[3-HYDROXY-2-METHYL-5-PHOSPHONOOXYMETHYL-PYRIDIN-4-Y-LMETHYL]-1-AMINO-CYCLOPROPANECARBOXYLIC ACID × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；15% PEG 4000, 0.15 M SODIUM PYRUVATE, 0.03 M MES-KOH, pH 7.50, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å
1D7S CRYSTAL STRUCTURE OF THE COMPLEX OF 2,2-DIALKYLGLYCINE DECARBOXYLASE WITH DCS Deposited 1999-10-19	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–433（433 aa）	Not recorded	NA SODIUM ION × 4 K POTASSIUM ION × 4 DCS D-[3-HYDROXY-2-METHYL-5-PHOSPHONOOXYMETHYL-PYRIDIN-4-YLMETHYL]-N,O-CYCLOSERYLAMIDE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；15% PEG 4000, 0.15 M SODIUM PYRUVATE, 0.03 M MES-KOH , pH 7.50, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.05 Å
1D7U Crystal structure of the complex of 2,2-dialkylglycine decarboxylase with LCS Deposited 1999-10-19	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–433（433 aa）	Not recorded	NA SODIUM ION × 4 K POTASSIUM ION × 4 LCS [5-hydroxy-6-methyl-4-({[(4E)-3-oxo-1,2-oxazolidin-4-ylidene]amino}methyl)pyridin-3-yl]methyl dihydrogen phosphate × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；297 K；pH 7.50, VAPOR DIFFUSION, HANGING DROP, temperature 297K	Resolution 1.95 Å
1D7V CRYSTAL STRUCTURE OF THE COMPLEX OF 2,2-DIALKYLGLYCINE DECARBOXYLASE WITH NMA Deposited 1999-10-19	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–433（433 aa）	Not recorded	NA SODIUM ION × 4 K POTASSIUM ION × 4 NMA N-[3-HYDROXY-2-METHYL-5-PHOSPHONOOXYMETHYL-PYRIDIN-4-YLMETHYL]-2-METHYLALANINE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；pH 7.50, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å
1DGD AN ALKALI METAL ION SIZE-DEPENDENT SWITCH IN THE ACTIVE SITE STRUCTURE OF DIALKYLGLYCINE DECARBOXYLASE Deposited 1994-06-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–432（432 aa）	Not recorded	NA SODIUM ION × 4 LI LITHIUM ION × 4 PLP PYRIDOXAL-5'-PHOSPHATE × 4 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
1DGE AN ALKALI METAL ION SIZE-DEPENDENT SWITCH IN THE ACTIVE SITE STRUCTURE OF DIALKYLGLYCINE DECARBOXYLASE Deposited 1994-06-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–432（432 aa）	Not recorded	RB RUBIDIUM ION × 8 PLP PYRIDOXAL-5'-PHOSPHATE × 4 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
1DGE AN ALKALI METAL ION SIZE-DEPENDENT SWITCH IN THE ACTIVE SITE STRUCTURE OF DIALKYLGLYCINE DECARBOXYLASE Deposited 1994-06-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–432（432 aa）	Not recorded	RB RUBIDIUM ION × 4 PLP PYRIDOXAL-5'-PHOSPHATE × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
1DKA DIALKYLGLYCINE DECARBOXYLASE STRUCTURE: BIFUNCTIONAL ACTIVE SITE AND ALKALI METAL BINDING SITES Deposited 1993-06-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–432（432 aa）	Not recorded	NA SODIUM ION × 4 K POTASSIUM ION × 4 PLP PYRIDOXAL-5'-PHOSPHATE × 4 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.60 Å
1M0N Structure of Dialkylglycine Decarboxylase Complexed with 1-Aminocyclopentanephosphonate Deposited 2002-06-13	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–433（433 aa）	Not recorded	K POTASSIUM ION × 4 NA SODIUM ION × 4 HCP 1-[((1E)-{3-HYDROXY-2-METHYL-5-[(PHOSPHONOOXY)METHYL]PYRIDIN-4-YL}METHYLENE)AMINO]CYCLOPENTYLPHOSPHONIC ACID × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.4；15% PEG 4000, 0.2-0.4 M SODIUM PYRUVATE, 0.015 M MES-KOH (PH 6.4)	Resolution 2.20 Å R-free 0.239
1M0O Structure of Dialkylglycine Decarboxylase Complexed with 1-Amino-1-methylpropanephosphonate Deposited 2002-06-13	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–433（433 aa）	Not recorded	K POTASSIUM ION × 4 NA SODIUM ION × 4 MPM (1R)-1-[((1E)-{3-HYDROXY-2-METHYL-5-[(PHOSPHONOOXY)METHYL]PYRIDIN-4-YL}METHYLENE)AMINO]-1-METHYLPROPYLPHOSPHONIC ACID × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.4；15% PEG 4000, 0.20 - 0.40 M SODIUM PYRUVATE, 0.015 M MES-KOH (pH 6.4)	Resolution 2.40 Å R-free 0.201
1M0Q Structure of Dialkylglycine Decarboxylase Complexed with S-1-aminoethanephosphonate Deposited 2002-06-13	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–433（433 aa）	Not recorded	K POTASSIUM ION × 4 NA SODIUM ION × 4 EPC (1S)-1-[((1E)-{3-HYDROXY-2-METHYL-5-[(PHOSPHONOOXY)METHYL]PYRIDIN-4-YL}METHYLENE)AMINO]ETHYLPHOSPHONIC ACID × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.4；15% PEG 4000, 0.20 - 0.40 M SODIUM PYRUVATE, 0.015 M MES-KOH (pH 6.4)	Resolution 2.00 Å R-free 0.240
1Z3Z The crystal structure of a DGD mutant: Q52A Deposited 2005-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–432（431 aa）	Mutation：Q52A	NA SODIUM ION × 1 K POTASSIUM ION × 1 PLP PYRIDOXAL-5'-PHOSPHATE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG4K, MES, PLP, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.90 Å R-free 0.266
1ZC9 The crystal structure of dialkylglycine decarboxylase complex with pyridoxamine 5-phosphate Deposited 2005-04-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–432（432 aa）	Not recorded	K POTASSIUM ION × 1 NA SODIUM ION × 1 PMP 4'-DEOXY-4'-AMINOPYRIDOXAL-5'-PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；MES, PEG4000, PLP, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.237
1ZOB Crystal structure of dialkylglycine decarboxylases bound with calcium ion Deposited 2005-05-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–432（432 aa）	Not recorded	NA SODIUM ION × 1 CA CALCIUM ION × 1 PLP PYRIDOXAL-5'-PHOSPHATE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG4K, MES, PLP, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.75 Å R-free 0.277
1ZOB Crystal structure of dialkylglycine decarboxylases bound with calcium ion Deposited 2005-05-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–432（432 aa）	Not recorded	NA SODIUM ION × 4 CA CALCIUM ION × 4 PLP PYRIDOXAL-5'-PHOSPHATE × 4 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG4K, MES, PLP, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.75 Å R-free 0.277
1ZOD Crystal structure of dialkylglycine decarboxylase bound with cesium ion Deposited 2005-05-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–432（432 aa）	Not recorded	CS CESIUM ION × 1 NA SODIUM ION × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 PLP PYRIDOXAL-5'-PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；PEG4K, MES, PLP, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.80 Å R-free 0.226
1ZOD Crystal structure of dialkylglycine decarboxylase bound with cesium ion Deposited 2005-05-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–432（432 aa）	Not recorded	CS CESIUM ION × 4 NA SODIUM ION × 4 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 4 PLP PYRIDOXAL-5'-PHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；PEG4K, MES, PLP, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.80 Å R-free 0.226
2DKB DIALKYLGLYCINE DECARBOXYLASE STRUCTURE: BIFUNCTIONAL ACTIVE SITE AND ALKALI METAL BINDING SITES Deposited 1994-07-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–432（432 aa）	Not recorded	NA SODIUM ION × 4 PLP PYRIDOXAL-5'-PHOSPHATE × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å
2DKB DIALKYLGLYCINE DECARBOXYLASE STRUCTURE: BIFUNCTIONAL ACTIVE SITE AND ALKALI METAL BINDING SITES Deposited 1994-07-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–432（432 aa）	Not recorded	NA SODIUM ION × 8 PLP PYRIDOXAL-5'-PHOSPHATE × 4 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å

15 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DGDA_BURCE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–433； UniProt 1–433

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1m0p
Deposition date deposition_date	2002-06-13
Structure title title	Structure of Dialkylglycine Decarboxylase Complexed with 1-Amino-1-phenylethanephosphonate
Keywords keywords	Decarboxylase, Pyridoxal phosphate, Lyase; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.10 Å
Radius of gyration Rg (electron density) rg_electron	21.93 Å
Forward intensity I(0) i0	36869000.00
Molecular weight molecular_weight	46793.0 kDa
Excluded volume excluded_volume	58604 Å³
Envelope volume envelope_volume	68189 Å³
Hydration-shell volume shell_volume	25600 Å³
Envelope diameter envelope_diameter	71.2 Å
Shell Rg shell_rg	29.15 Å
Envelope Rg envelope_rg	22.07 Å
Shape Rg shape_rg	21.95 Å
Total Rg total_rg	22.73 Å
Total atoms total_atoms	3282
Residues n_residues	431
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	70.7 Å
Rg (real space) rg_real	22.97 Å
Rg uncertainty (real space) rg_real_error	0.36 Å
I(0) (real space) i0_real	3.6870e+07
I(0) uncertainty (real space) i0_real_error	4.9190e+05
Rg (reciprocal space) rg_reciprocal	23.00 Å
I(0) (reciprocal space) i0_reciprocal	36870000.0000
Solution quality estimate total_estimate	0.9089
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	28.3 Å
Skewness Skewness skewness	0.162
Kurtosis Kurtosis kurtosis	-0.496
Angular range angular_range	— – 0.3450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5225000.0000
Real-space data points n_real_points	66
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.944; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.988

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	2,2-Dialkylglycine Decarboxylase
Molecular weight formula_weight	46577.4 kDa
EC 编号 ec_number	4.1.1.64
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3420

MSLNDDATFWRNARHHLVRYGGTFEPMIIERAKGSFVYDADGRAILDFTSGQMSAVLGHCHPEIVSVIGEYAGKLDHLFSEMLSRPVVDLATRLANITPPGLDRALLLSTGAESNEAAIRMAKLVTGKYEIVGFAQSWHGMTGAAASATYSAGRKGVGPAAVGSFAIPAPFTYRPRFERNGAYDYLAELDYAFDLIDRQSSGNLAAFIAEPILSSGGIIELPDGYMAALKRKCEARGMLLILDEAQTGVGRTGTMFACQRDGVTPDILTLSKTLGAGLPLAAIVTSAAIEERAHELGYLFYTTHVSDPLPAAVGLRVLDVVQRDGLVARANVMGDRLRRGLLDLMERFDCIGDVRGRGLLLGVEIVKDRRTKEPADGLGAKITRECMNLGLSMNIVQLPGMGGVFRIAPPLTVSEDEIDLGLSLLGQAIERAL

来源 Source

来源生物 organism	Burkholderia cepacia
NCBI Class编号 ncbi_taxonomy_id	292
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	(1R)-1-[((1E)-{3-HYDROXY-2-METHYL-5-[(PHOSPHONOOXY)METHYL]PYRIDIN-4-YL}METHYLENE)AMINO]-1-PHENYLETHYLPHOSPHONIC ACID
Molecular weight formula_weight	430.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	138

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1m0pa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.4 — GABA-aminotransferase-like

CATH v4.4 (2 domains)

Domain ID domain_id	1m0pA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1m0pA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

▶

8. Citations (1)

▶

Unit-cell length a length_a	150.770 Å
Unit-cell length b length_b	150.770 Å
Unit-cell length c length_c	84.630 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 64 2 2
Space-group number int_tables_number	181
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1780
R_work r_work	0.1730
R_free r_free	0.2300

fit	/app/data/saxs_computation/m0/1m0p/1m0p.fit
pddf	/app/data/pr_computation/m0/1m0p/1m0p.pr.out
profile	/app/data/saxs_computation/m0/1m0p/1m0p.dat

Structure of Dialkylglycine Decarboxylase Complexed with 1-Amino-1-phenylethanephosphonate

1. Protein Identity and Related Structures Protein Identity & Related Structures

2,2-Dialkylglycine Decarboxylase

State in the Current Structure

Other States of the Same Protein in the Database

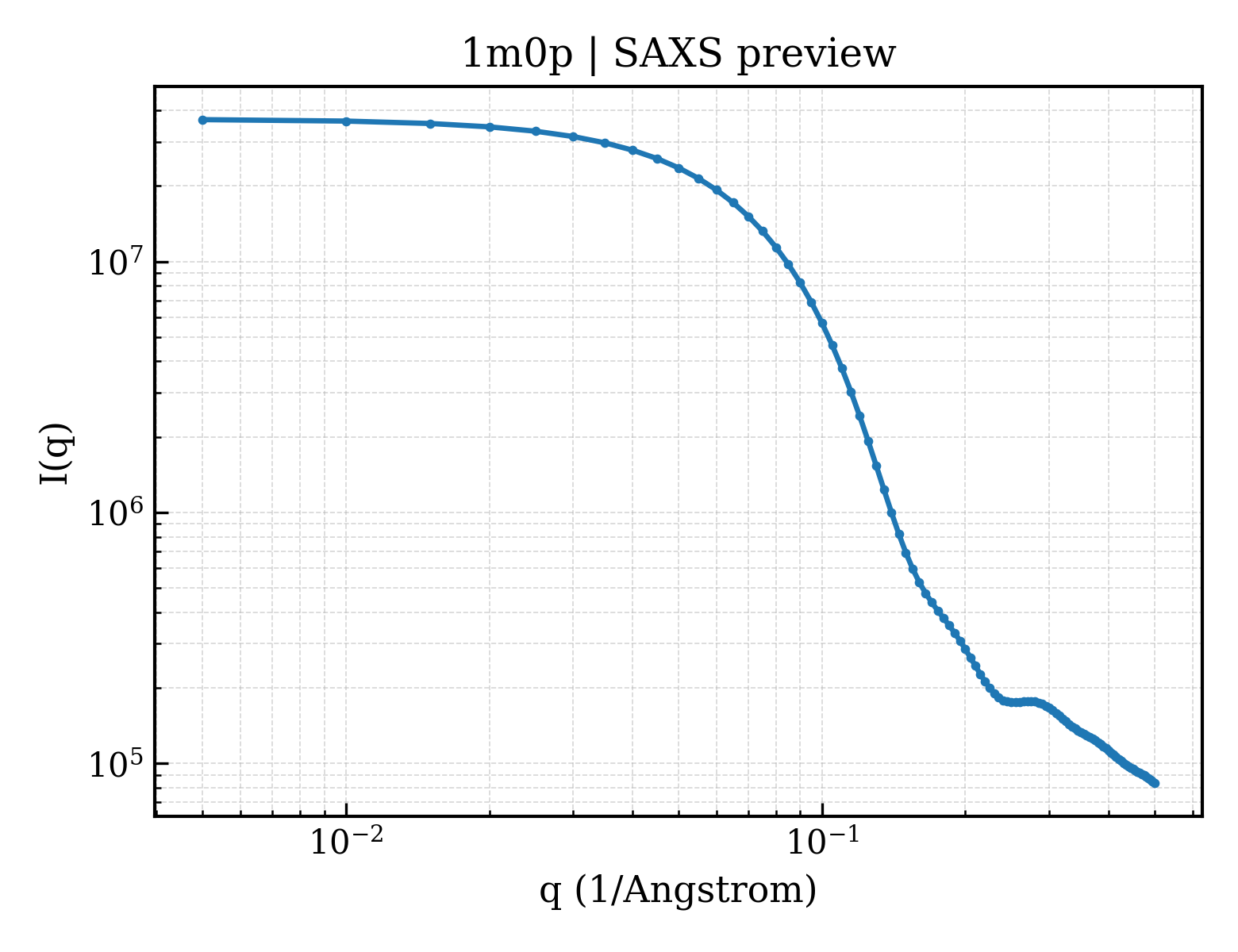

SAXS scattering curve SAXS Profile
