1d7u
Crystal structure of the complex of 2,2-dialkylglycine decarboxylase with LCS

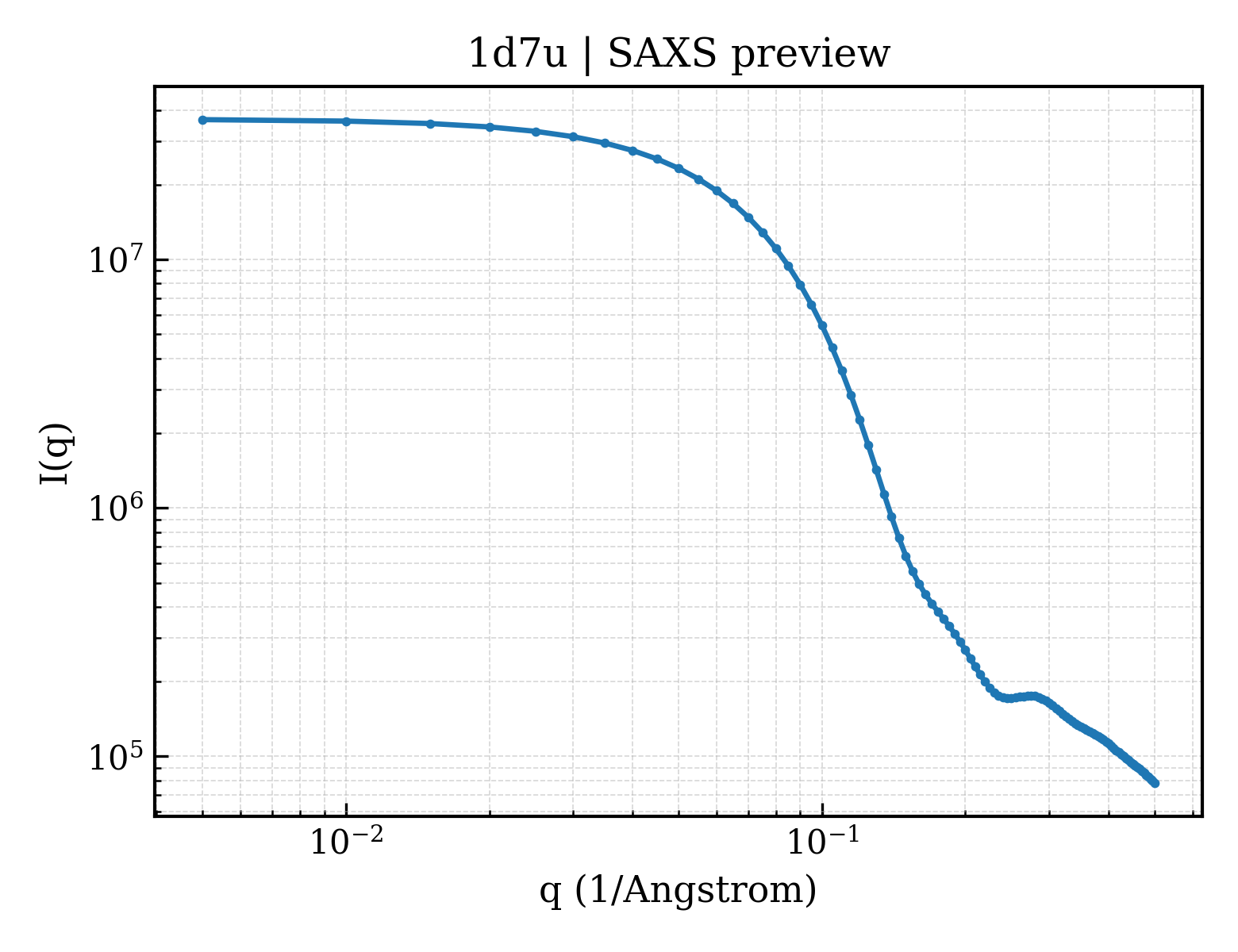

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1d7u |
| deposition_date | 1999-10-19 |
| title | Crystal structure of the complex of 2,2-dialkylglycine decarboxylase with LCS |
| keywords | ENZYME COMPLEXES, CATALYTIC MECHANISM, DECARBOXYLATION INHIBITOR, LYASE; LYASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 23.33 Å |
| rg_electron | 22.13 Å |
| i0 | 36734800.00 |
| molecular_weight | 46614.0 kDa |
| excluded_volume | 58390 ų |
| envelope_volume | 69864 ų |
| shell_volume | 25969 ų |
| envelope_diameter | 72.9 Å |
| shell_rg | 29.42 Å |
| envelope_rg | 22.28 Å |
| shape_rg | 22.15 Å |
| total_rg | 22.97 Å |
| total_atoms | 3270 |
| n_residues | 431 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 69.9 Å |
| rg_real | 23.20 Å |
| rg_real_error | 0.31 Å |
| i0_real | 3.6730e+07 |
| i0_real_error | 5.3260e+05 |
| rg_reciprocal | 23.23 Å |
| i0_reciprocal | 36740000.0000 |
| total_estimate | 0.9125 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 27.9 Å |
| skewness | 0.160 |
| kurtosis | -0.496 |
| angular_range | — – 0.3400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5228000.0000 |
| n_real_points | 66 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.960; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.989 |
