1m2o

Crystal Structure of the Sec23-Sar1 complex

Method: X-RAY DIFFRACTION D_max: 158.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

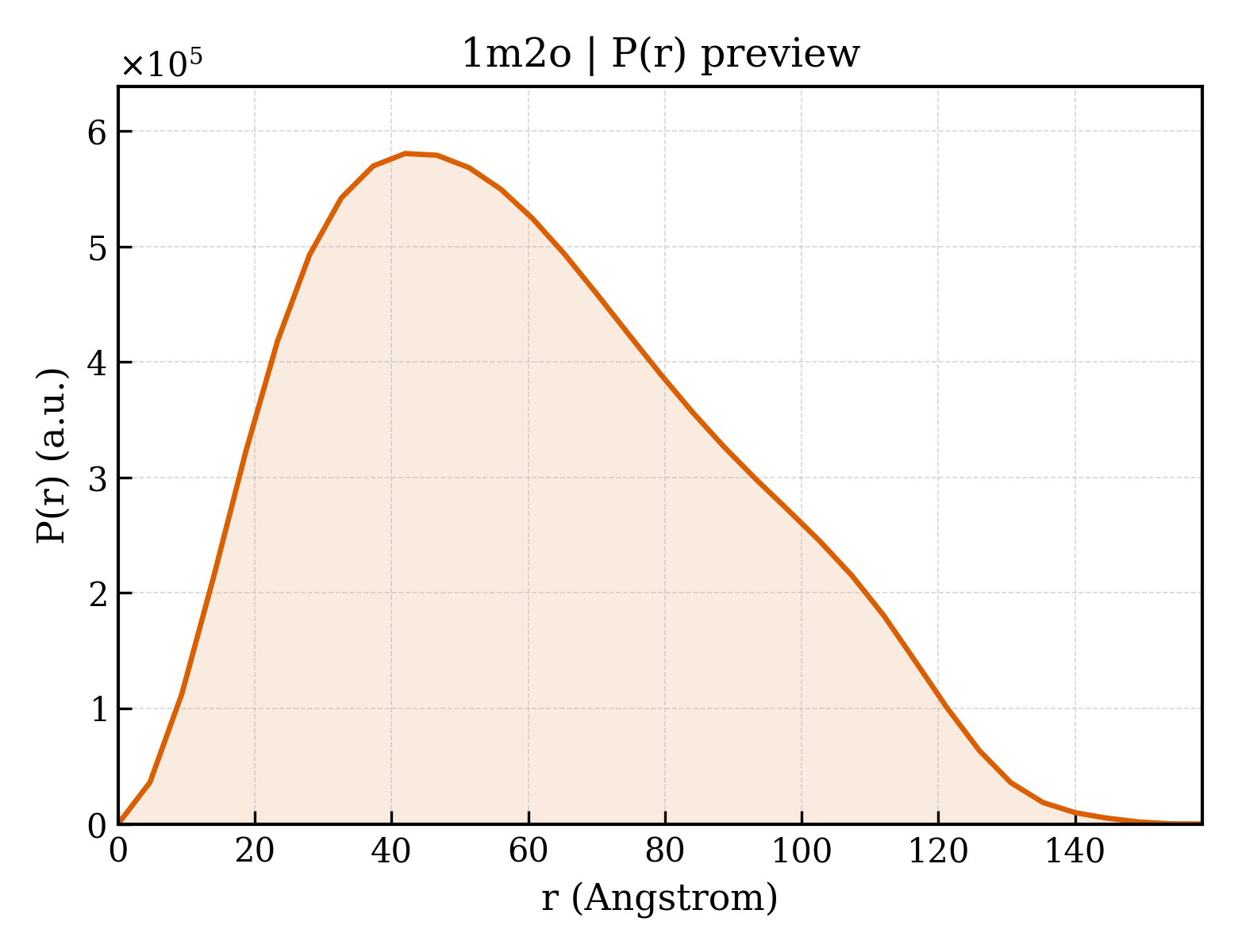

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1m2o
沉积日期 deposition_date	2002-06-24
结构标题 title	Crystal Structure of the Sec23-Sar1 complex
关键词 keywords	zinc-finger, beta barrel, vWA domain, gelsolin domain, PROTEIN TRANSPORT-SIGNALING PROTEIN COMPLEX; PROTEIN TRANSPORT/SIGNALING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	46.67 Å
回转半径 Rg (电子) rg_electron	46.41 Å
零角强度 I(0) i0	559606000.00
分子量 molecular_weight	197980.0 kDa
排除体积 excluded_volume	248440 Å³
包络体积 envelope_volume	331220 Å³
水化壳体积 shell_volume	60512 Å³
包络直径 envelope_diameter	162.8 Å
壳层 Rg shell_rg	49.14 Å
包络 Rg envelope_rg	46.10 Å
形状 Rg shape_rg	46.39 Å
总 Rg total_rg	46.57 Å
总原子数 total_atoms	13952
残基数 n_residues	1758
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	158.6 Å
Rg (实空间) rg_real	46.93 Å
Rg 误差 (实空间) rg_real_error	1.50 Å
I(0) (实空间) i0_real	5.5960e+08
I(0) 误差 (实空间) i0_real_error	9.8820e+06
Rg (倒空间) rg_reciprocal	46.67 Å
I(0) (倒空间) i0_reciprocal	559400000.0000
解质量估计 total_estimate	0.8660
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	42.0 Å
偏度 Skewness skewness	0.385
峰度 Kurtosis kurtosis	-0.604
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	76530000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.832; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.931; Smooth: 0.825

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	protein transport protein SEC23
分子量 formula_weight	85463.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	14123

MDFETNEDINGVRFTWNVFPSTRSDANSNVVPVGCLYTPLKEYDELNVAPYNPVVCSGPHCKSILNPYCVIDPRNSSWSCPICNSRNHLPPQYTNLSQENMPLELQSTTIEYITNKPVTVPPIFFFVVDLTSETENLDSLKESIITSLSLLPPNALIGLITYGNVVQLHDLSSETIDRCNVFRGDREYQLEALTEMLTGQKPTGPGGAASHLPNAMNKVTPFSLNRFFLPLEQVEFKLNQLLENLSPDQWSVPAGHRPLRATGSALNIASLLLQGCYKNIPARIILFASGPGTVAPGLIVNSELKDPLRSHHDIDSDHAQHYKKACKFYNQIAQRVAANGHTVDIFAGCYDQIGMSEMKQLTDSTGGVLLLTDAFSTAIFKQSYLRLFAKDEEGYLKMAFNGNMAVKTSKDLKVQGLIGHASAVKKTDANNISESEIGIGATSTWKMASLSPYHSYAIFFEIANTAANSNPMMSAPGSADRPHLAYTQFITTYQHSSGTNRIRVTTVANQLLPFGTPAIAASFDQEAAAVLMARIAVHKAETDDGADVIRWLDRTLIKLCQKYADYNKDDPQSFRLAPNFSLYPQFTYYLRRSQFLSVFNNSPDETAFYRHIFTREDTTNSLIMIQPTLTSFSMEDDPQPVLLDSISVKPNTILLLDTFFFILIYHGEQIAQWRKAGYQDDPQYADFKALLEEPKLEAAELLVDRFPLPRFIDTEAGGSQARFLLSKLNPSDNYQDMARGGSTIVLTDDVSLQNFMTHLQQVAVSGQA

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	GTP-binding protein SAR1
分子量 formula_weight	21472.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

MAGWDIFGWFRDVLASLGLWNKHGKLLFLGLDNAGKTTLLHMLKNDRLATLQPTWHPTSEELAIGNIKFTTFDLGGHIQARRLWKDYFPEVNGIVFLVDAADPERFDEARVELDALFNIAELKDVPFVILGNKIDAPNAVSEAELRSALGLLNTTGSQRIEGQRPVEVFMCSVVMRNGYLEAFQWLSQYI

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
分子量 formula_weight	522.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	171

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d1m2oa1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.71 — ERP29 C domain-like
超家族 Superfamily superfamily	a.71.2 — Helical domain of Sec23/24
家族 Family family	a.71.2.1 — Helical domain of Sec23/24

结构域编号 domain_id	d1m2oa2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
超家族 Superfamily superfamily	b.2.8 — beta-sandwich domain of Sec23/24
家族 Family family	b.2.8.1 — beta-sandwich domain of Sec23/24

结构域编号 domain_id	d1m2oa3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.62 — vWA-like
超家族 Superfamily superfamily	c.62.1 — vWA-like
家族 Family family	c.62.1.2 — Trunk domain of Sec23/24

结构域编号 domain_id	d1m2oa4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.109 — Gelsolin-like
超家族 Superfamily superfamily	d.109.2 — C-terminal, gelsolin-like domain of Sec23/24
家族 Family family	d.109.2.1 — C-terminal, gelsolin-like domain of Sec23/24

结构域编号 domain_id	d1m2oa5
类 Class class	g — Small proteins
折叠类型 Fold fold	g.41 — Rubredoxin-like
超家族 Superfamily superfamily	g.41.10 — Zn-finger domain of Sec23/24
家族 Family family	g.41.10.1 — Zn-finger domain of Sec23/24

结构域编号 domain_id	d1m2ob_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.8 — G proteins

结构域编号 domain_id	d1m2oc1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.71 — ERP29 C domain-like
超家族 Superfamily superfamily	a.71.2 — Helical domain of Sec23/24
家族 Family family	a.71.2.1 — Helical domain of Sec23/24

结构域编号 domain_id	d1m2oc2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
超家族 Superfamily superfamily	b.2.8 — beta-sandwich domain of Sec23/24
家族 Family family	b.2.8.1 — beta-sandwich domain of Sec23/24

结构域编号 domain_id	d1m2oc3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.62 — vWA-like
超家族 Superfamily superfamily	c.62.1 — vWA-like
家族 Family family	c.62.1.2 — Trunk domain of Sec23/24

结构域编号 domain_id	d1m2oc4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.109 — Gelsolin-like
超家族 Superfamily superfamily	d.109.2 — C-terminal, gelsolin-like domain of Sec23/24
家族 Family family	d.109.2.1 — C-terminal, gelsolin-like domain of Sec23/24

结构域编号 domain_id	d1m2oc5
类 Class class	g — Small proteins
折叠类型 Fold fold	g.41 — Rubredoxin-like
超家族 Superfamily superfamily	g.41.10 — Zn-finger domain of Sec23/24
家族 Family family	g.41.10.1 — Zn-finger domain of Sec23/24

结构域编号 domain_id	d1m2od_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.8 — G proteins

CATH v4.4 (12 domains)

结构域编号 domain_id	1m2oA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	1670 — beta-sandwich domain of Sec23/24

结构域编号 domain_id	1m2oA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	380 — Zn-finger domain of Sec23/24

结构域编号 domain_id	1m2oA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	410 — von Willebrand factor, type A domain

结构域编号 domain_id	1m2oA04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	730 — Sec23/Sec24 helical domain

结构域编号 domain_id	1m2oA05
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	20 — Severin
同源超家族 H-superfamily homologous superfamily	10 — Severin

结构域编号 domain_id	1m2oB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	1m2oC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	1670 — beta-sandwich domain of Sec23/24

结构域编号 domain_id	1m2oC02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	380 — Zn-finger domain of Sec23/24

结构域编号 domain_id	1m2oC03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	410 — von Willebrand factor, type A domain

结构域编号 domain_id	1m2oC04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	730 — Sec23/Sec24 helical domain

结构域编号 domain_id	1m2oC05
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	20 — Severin
同源超家族 H-superfamily homologous superfamily	10 — Severin

结构域编号 domain_id	1m2oD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	47.196 Å
晶胞边长 b length_b	151.158 Å
晶胞边长 c length_c	271.625 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	23.850 Å
R 因子 r_factor	0.2380
R_work r_work	0.2380
R_free r_free	0.2940

fit	/app/data/saxs_computation/m2/1m2o/1m2o.fit
pddf	/app/data/pr_computation/m2/1m2o/1m2o.pr.out
profile	/app/data/saxs_computation/m2/1m2o/1m2o.dat
