1m2v

Crystal Structure of the yeast Sec23/24 heterodimer

Method: X-RAY DIFFRACTION D_max: 146.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

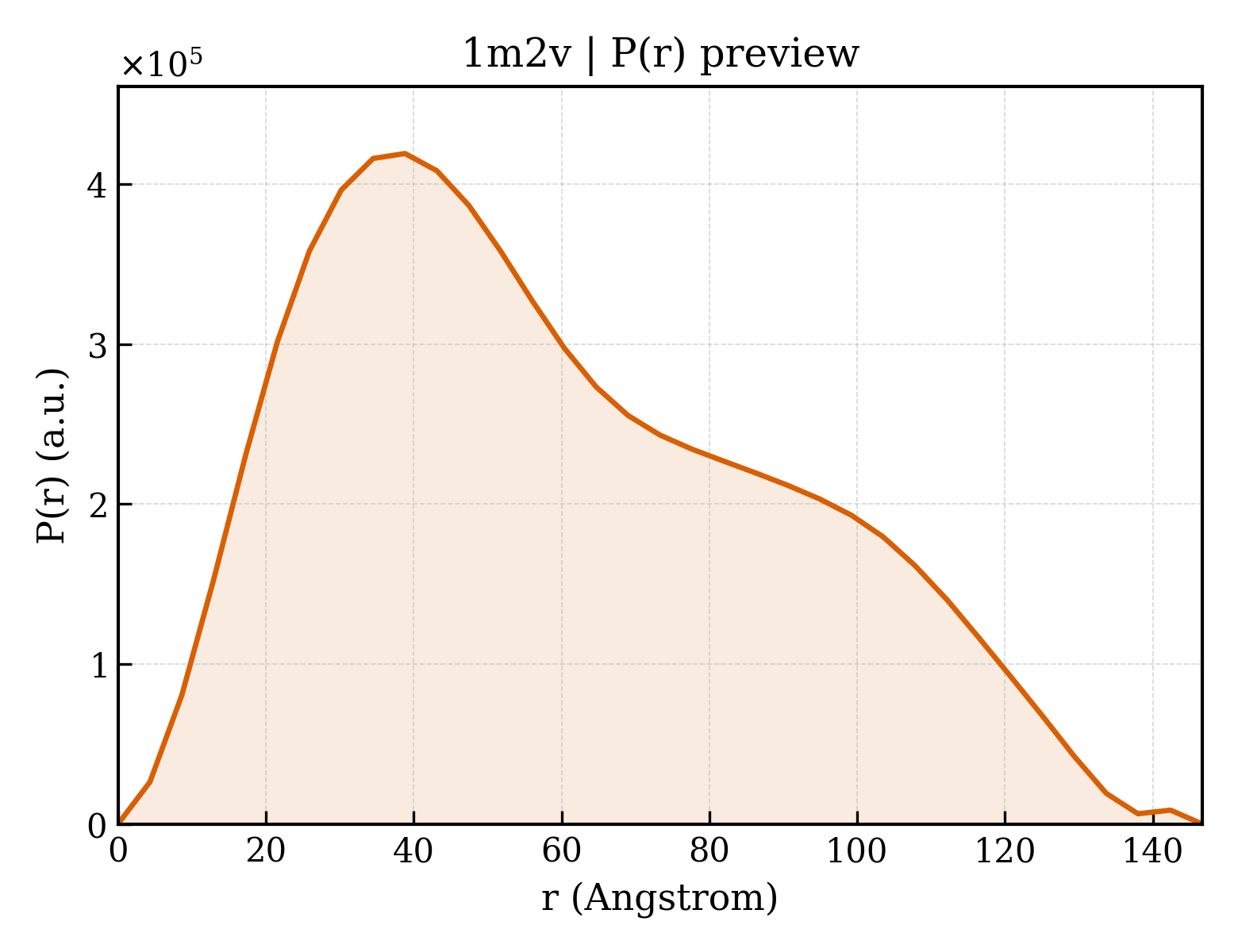

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1m2v
沉积日期 deposition_date	2002-06-25
结构标题 title	Crystal Structure of the yeast Sec23/24 heterodimer
关键词 keywords	zinc-finger, beta barrel, vWA domain, gelsolin domain, PROTEIN TRANSPORT; PROTEIN TRANSPORT
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	46.58 Å
回转半径 Rg (电子) rg_electron	46.87 Å
零角强度 I(0) i0	382441000.00
分子量 molecular_weight	163600.0 kDa
排除体积 excluded_volume	205580 Å³
包络体积 envelope_volume	276700 Å³
水化壳体积 shell_volume	51679 Å³
包络直径 envelope_diameter	158.8 Å
壳层 Rg shell_rg	47.16 Å
包络 Rg envelope_rg	46.98 Å
形状 Rg shape_rg	46.86 Å
总 Rg total_rg	46.90 Å
总原子数 total_atoms	11508
残基数 n_residues	1453
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	146.7 Å
Rg (实空间) rg_real	47.08 Å
Rg 误差 (实空间) rg_real_error	1.29 Å
I(0) (实空间) i0_real	3.8240e+08
I(0) 误差 (实空间) i0_real_error	7.1410e+06
Rg (倒空间) rg_reciprocal	46.59 Å
I(0) (倒空间) i0_reciprocal	382200000.0000
解质量估计 total_estimate	0.7819
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	38.8 Å
偏度 Skewness skewness	0.440
峰度 Kurtosis kurtosis	-0.736
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	42290000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.782; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.801; Smooth: 0.014

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	protein transport protein SEC23
分子量 formula_weight	85463.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	11577

MDFETNEDINGVRFTWNVFPSTRSDANSNVVPVGCLYTPLKEYDELNVAPYNPVVCSGPHCKSILNPYCVIDPRNSSWSCPICNSRNHLPPQYTNLSQENMPLELQSTTIEYITNKPVTVPPIFFFVVDLTSETENLDSLKESIITSLSLLPPNALIGLITYGNVVQLHDLSSETIDRCNVFRGDREYQLEALTEMLTGQKPTGPGGAASHLPNAMNKVTPFSLNRFFLPLEQVEFKLNQLLENLSPDQWSVPAGHRPLRATGSALNIASLLLQGCYKNIPARIILFASGPGTVAPGLIVNSELKDPLRSHHDIDSDHAQHYKKACKFYNQIAQRVAANGHTVDIFAGCYDQIGMSEMKQLTDSTGGVLLLTDAFSTAIFKQSYLRLFAKDEEGYLKMAFNGNMAVKTSKDLKVQGLIGHASAVKKTDANNISESEIGIGATSTWKMASLSPYHSYAIFFEIANTAANSNPMMSAPGSADRPHLAYTQFITTYQHSSGTNRIRVTTVANQLLPFGTPAIAASFDQEAAAVLMARIAVHKAETDDGADVIRWLDRTLIKLCQKYADYNKDDPQSFRLAPNFSLYPQFTYYLRRSQFLSVFNNSPDETAFYRHIFTREDTTNSLIMIQPTLTSFSMEDDPQPVLLDSISVKPNTILLLDTFFFILIYHGEQIAQWRKAGYQDDPQYADFKALLEEPKLEAAELLVDRFPLPRFIDTEAGGSQARFLLSKLNPSDNYQDMARGGSTIVLTDDVSLQNFMTHLQQVAVSGQA

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	protein transport protein SEC24
分子量 formula_weight	103733.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MSHHKKRVYPQAQLQYGQNATPLQQPAQFMPPQDPAAAGMSYGQMGMPPQGAVPSMGQQQFLTPAQEQLHQQIDQATTSMNDMHLHNVPLVDPNAYMQPQVPVQMGTPLQQQQQPMAAPAYGQPSAAMGQNMRPMNQLYPIDLLTELPPPITDLTLPPPPLVIPPERMLVPSELSNASPDYIRSTLNAVPKNSSLLKKSKLPFGLVIRPYQHLYDDIDPPPLNEDGLIVRCRRCRSYMNPFVTFIEQGRRWRCNFCRLANDVPMQMDQSDPNDPKSRYDRNEIKCAVMEYMAPKEYTLRQPPPATYCFLIDVSQSSIKSGLLATTINTLLQNLDSIPNHDERTRISILCVDNAIHYFKIPLDSENNEESADQINMMDIADLEEPFLPRPNSMVVSLKACRQNIETLLTKIPQIFQSNLITNFALGPALKSAYHLIGGVGGKIIVVSGTLPNLGIGKLQRRNESGVVNTSKETAQLLSCQDSFYKNFTIDCSKVQITVDLFLASEDYMDVASLSNLSRFTAGQTHFYPGFSGKNPNDIVKFSTEFAKHISMDFCMETVMRARGSTGLRMSRFYGHFFNRSSDLCAFSTMPRDQSYLFEVNVDESIMADYCYVQVAVLLSLNNSQRRIRIITLAMPTTESLAEVYASADQLAIASFYNSKAVEKALNSSLDDARVLINKSVQDILATYKKEIVVSNTAGGAPLRLCANLRMFPLLMHSLTKHMAFRSGIVPSDHRASALNNLESLPLKYLIKNIYPDVYSLHDMADEAGLPVQTEDGEATGTIVLPQPINATSSLFERYGLYLIDNGNELFLWMGGDAVPALVFDVFGTQDIFDIPIGKQEIPVVENSEFNQRVRNIINQLRNHDDVITYQSLYIVRGASLSEPVNHASAREVATLRLWASSTLVEDKILNNESYREFLQIMKARISK

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	69

▼

6. 折叠分类 (SCOP + CATH) 20 domains

SCOP 2.08 (10 domains)

结构域编号 domain_id	d1m2va1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.71 — ERP29 C domain-like
超家族 Superfamily superfamily	a.71.2 — Helical domain of Sec23/24
家族 Family family	a.71.2.1 — Helical domain of Sec23/24

结构域编号 domain_id	d1m2va2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
超家族 Superfamily superfamily	b.2.8 — beta-sandwich domain of Sec23/24
家族 Family family	b.2.8.1 — beta-sandwich domain of Sec23/24

结构域编号 domain_id	d1m2va3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.62 — vWA-like
超家族 Superfamily superfamily	c.62.1 — vWA-like
家族 Family family	c.62.1.2 — Trunk domain of Sec23/24

结构域编号 domain_id	d1m2va4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.109 — Gelsolin-like
超家族 Superfamily superfamily	d.109.2 — C-terminal, gelsolin-like domain of Sec23/24
家族 Family family	d.109.2.1 — C-terminal, gelsolin-like domain of Sec23/24

结构域编号 domain_id	d1m2va5
类 Class class	g — Small proteins
折叠类型 Fold fold	g.41 — Rubredoxin-like
超家族 Superfamily superfamily	g.41.10 — Zn-finger domain of Sec23/24
家族 Family family	g.41.10.1 — Zn-finger domain of Sec23/24

结构域编号 domain_id	d1m2vb1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.71 — ERP29 C domain-like
超家族 Superfamily superfamily	a.71.2 — Helical domain of Sec23/24
家族 Family family	a.71.2.1 — Helical domain of Sec23/24

结构域编号 domain_id	d1m2vb2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
超家族 Superfamily superfamily	b.2.8 — beta-sandwich domain of Sec23/24
家族 Family family	b.2.8.1 — beta-sandwich domain of Sec23/24

结构域编号 domain_id	d1m2vb3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.62 — vWA-like
超家族 Superfamily superfamily	c.62.1 — vWA-like
家族 Family family	c.62.1.2 — Trunk domain of Sec23/24

结构域编号 domain_id	d1m2vb4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.109 — Gelsolin-like
超家族 Superfamily superfamily	d.109.2 — C-terminal, gelsolin-like domain of Sec23/24
家族 Family family	d.109.2.1 — C-terminal, gelsolin-like domain of Sec23/24

结构域编号 domain_id	d1m2vb5
类 Class class	g — Small proteins
折叠类型 Fold fold	g.41 — Rubredoxin-like
超家族 Superfamily superfamily	g.41.10 — Zn-finger domain of Sec23/24
家族 Family family	g.41.10.1 — Zn-finger domain of Sec23/24

CATH v4.4 (10 domains)

结构域编号 domain_id	1m2vA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	1670 — beta-sandwich domain of Sec23/24

结构域编号 domain_id	1m2vA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	380 — Zn-finger domain of Sec23/24

结构域编号 domain_id	1m2vA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	410 — von Willebrand factor, type A domain

结构域编号 domain_id	1m2vA04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	730 — Sec23/Sec24 helical domain

结构域编号 domain_id	1m2vA05
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	20 — Severin
同源超家族 H-superfamily homologous superfamily	10 — Severin

结构域编号 domain_id	1m2vB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	730 — Sec23/Sec24 helical domain

结构域编号 domain_id	1m2vB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	1670 — beta-sandwich domain of Sec23/24

结构域编号 domain_id	1m2vB03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	380 — Zn-finger domain of Sec23/24

结构域编号 domain_id	1m2vB04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	410 — von Willebrand factor, type A domain

结构域编号 domain_id	1m2vB05
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	20 — Severin
同源超家族 H-superfamily homologous superfamily	10 — Severin

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	90.309 Å
晶胞边长 b length_b	126.371 Å
晶胞边长 c length_c	180.200 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.750 Å
最低分辨率 resolution_low	19.960 Å
R 因子 r_factor	0.2100
R_work r_work	0.2100
R_free r_free	0.2570

fit	/app/data/saxs_computation/m2/1m2v/1m2v.fit
pddf	/app/data/pr_computation/m2/1m2v/1m2v.pr.out
profile	/app/data/saxs_computation/m2/1m2v/1m2v.dat
