SAXSdb — 1m6u

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ndt80 protein

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SULFATE ION × 3 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 water × 1	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 4	SULFATE ION × 8 water × 4	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 4 water × 2	Consistent with protein count
5	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 6 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NDT80_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–272； UniProt 59–330 Author chain B； PDBConstruct 1–272； UniProt 59–330

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1m6u
Deposition date deposition_date	2002-07-17
Structure title title	Crystal Structure of a Novel DNA-binding domain from Ndt80, a Transcriptional Activator Required for Meiosis in Yeast
Keywords keywords	transcription activator, yeast protein, DNA-binding, meiosis; TRANSCRIPTION ACTIVATOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1m6u__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1m6u__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

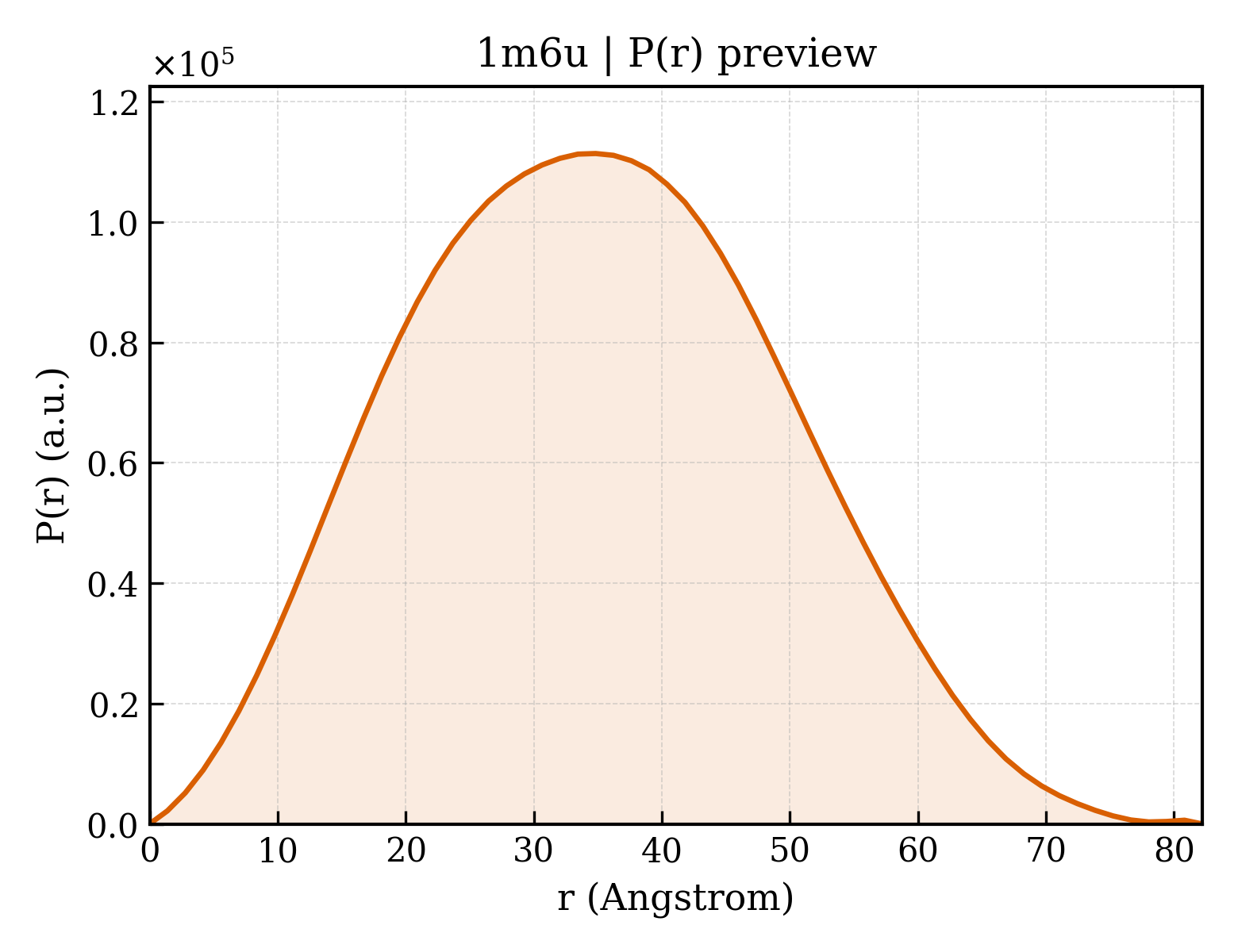

1m6u__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.95 Å
Rg (electron density)	19.50 Å
Total Rg	20.42 Å
Atom count	2124
Residues	265
Excluded volume	37553 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1m6u__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1m6u__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1m6u__assembly_3__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1m6u__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`1m6u__assembly_5__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Ndt80 protein
Molecular weight formula_weight	31307.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4187

STLQFKVGPPFELVRDYCPVVESHTGRTLDLRIIPRIDRGFDHIDEEWVGYKRNYFTLVSTFETANCDLDTFLKSSFDLLVEDSSVESRLRVQYFAIKIKAKNDDDDTEINLVQHTAKRDKGPQFCPSVCPLVPSPLPKHQIIREASNVRNITKTKKYDSTFYLHRNHVNYEEYGVDSLLFSYPEDSIQKVARYERVQFASSISVKKPFQQNKHFSLHVILGAVVDPDTFHGENPGIPYDELALKNGSKGMFVYLQEMKTPPLIIRGRSPSN

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	110

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1m6ua_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.7 — DNA-binding domain from NDT80

Domain ID domain_id	d1m6ub_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.7 — DNA-binding domain from NDT80

CATH v4.4 (2 domains)

Domain ID domain_id	1m6uA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1390 — NDT80 DNA-binding domain

Domain ID domain_id	1m6uB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1390 — NDT80 DNA-binding domain

▶

Unit-cell length a length_a	101.275 Å
Unit-cell length b length_b	64.897 Å
Unit-cell length c length_c	92.419 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	107.52 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	19.960 Å
R factor r_factor	—
R_work r_work	0.2260
R_free r_free	0.2700
