1m6x

Flpe-Holliday Junction Complex

Method: X-RAY DIFFRACTION D_max: 124.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

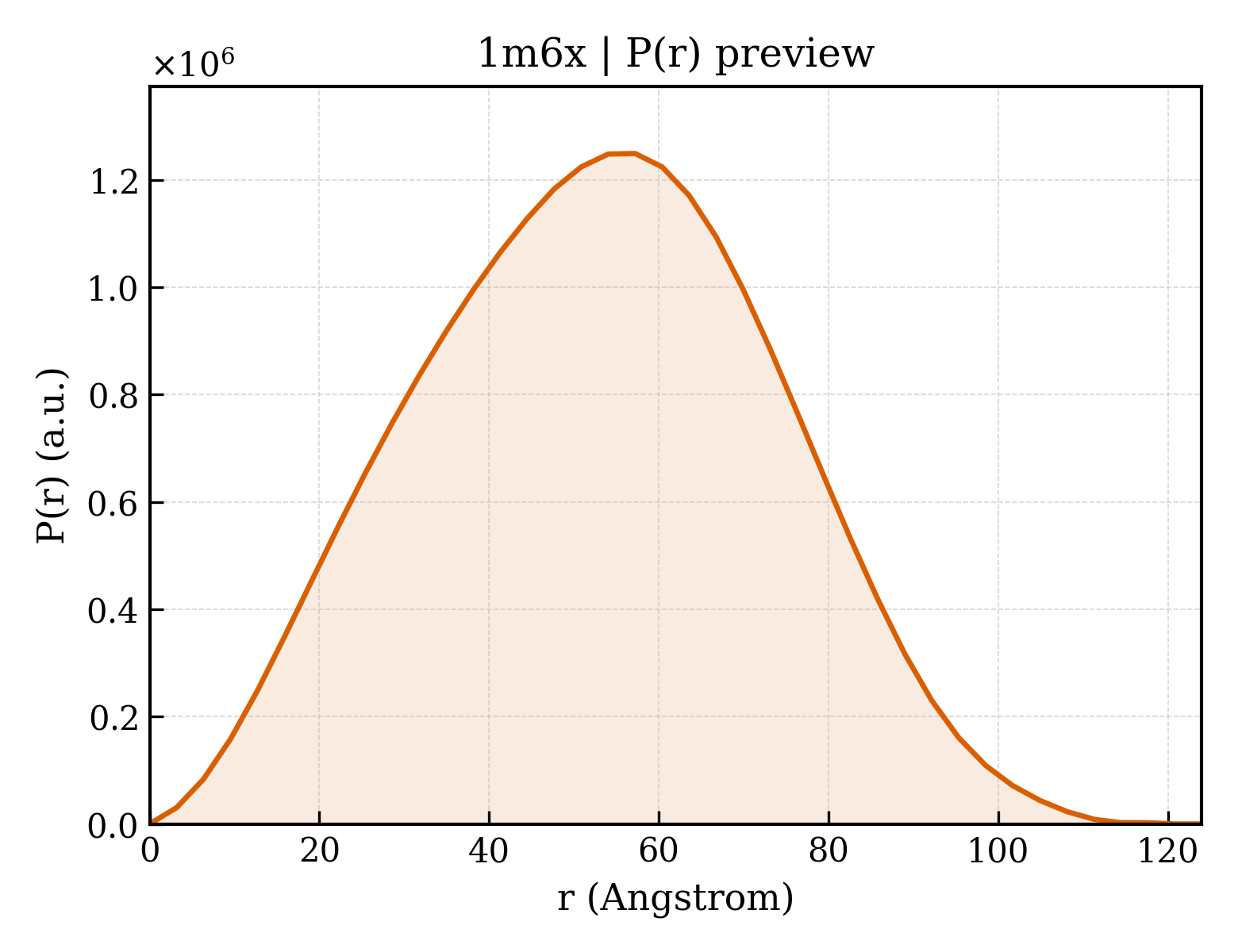

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1m6x
沉积日期 deposition_date	2002-07-17
结构标题 title	Flpe-Holliday Junction Complex
关键词 keywords	TYROSINE RECOMBINASE, PROTEIN-DNA COMPLEX, HOLLIDAY-JUNCTION, DOMAIN-SWAPPING, LIGASE, LYASE-DNA COMPLEX; LIGASE, LYASE/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	40.36 Å
回转半径 Rg (电子) rg_electron	39.75 Å
零角强度 I(0) i0	871747000.00
分子量 molecular_weight	224080.0 kDa
排除体积 excluded_volume	272510 Å³
包络体积 envelope_volume	371000 Å³
水化壳体积 shell_volume	74401 Å³
包络直径 envelope_diameter	124.5 Å
壳层 Rg shell_rg	48.40 Å
包络 Rg envelope_rg	38.57 Å
形状 Rg shape_rg	39.75 Å
总 Rg total_rg	40.14 Å
总原子数 total_atoms	15641
残基数 n_residues	1729
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	124.0 Å
Rg (实空间) rg_real	40.12 Å
Rg 误差 (实空间) rg_real_error	0.89 Å
I(0) (实空间) i0_real	8.7170e+08
I(0) 误差 (实空间) i0_real_error	1.4290e+07
Rg (倒空间) rg_reciprocal	40.36 Å
I(0) (倒空间) i0_reciprocal	872000000.0000
解质量估计 total_estimate	0.8950
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	57.2 Å
偏度 Skewness skewness	0.026
峰度 Kurtosis kurtosis	-0.529
角度范围 angular_range	— – 0.1950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	100800000.0000
实空间数据点数 n_real_points	40
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.910; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.929

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Symmetrized FRT site
分子量 formula_weight	3916.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	E,F
原子数 atom_count	15641

TAAGTTCCTATTC

Entity 2 polymer

描述 description	Symmetrized FRT site
分子量 formula_weight	6165.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	I,J

TTTAAAAGAATAGGAACTTC

Entity 3 polymer

描述 description	Symmetrized FRT site
分子量 formula_weight	10126.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	G,H

TAAGTTCCTATTCTTTAAAAGAATAGGAACTTC

Entity 4 polymer

描述 description	Flp recombinase
分子量 formula_weight	48667.7 kDa
突变 mutation	P2S, L33S, Y108N, S294P
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B

MSQFDILCKTPPKVLVRQFVERFERPSGEKIASCAAELTYLCWMITHNGTAIKRATFMSYNTIISNSLSFDIVNKSLQFKYKTQKATILEASLKKLIPAWEFTIIPYNGQKHQSDITDIVSSLQLQFESSEEADKGNSHSKKMLKALLSEGESIWEITEKILNSFEYTSRFTKTKTLYQFLFLATFINCGRFSDIKNVDPKSFKLVQNKYLGVIIQCLVTETKTSVSRHIYFFSARGRIDPLVYLDEFLRNSEPVLKRVNRTGNSSSNKQEYQLLKDNLVRSYNKALKKNAPYPIFAIKNGPKSHIGRHLMTSFLSMKGLTELTNVVGNWSDKRASAVARTTYTHQITAIPDHYFALVSRYYAYDPISKEMIALKDETNPIEEWQHIEQLKGSAEGSIRYPAWNGIISQEVLDYLSSYINRRI

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 5 polymer

描述 description	Flp recombinase
分子量 formula_weight	48747.7 kDa
突变 mutation	P2S, L33S, Y108N, S294P
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1m6xa1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.60 — SAM domain-like
超家族 Superfamily superfamily	a.60.9 — lambda integrase-like, N-terminal domain
家族 Family family	a.60.9.1 — lambda integrase-like, N-terminal domain

结构域编号 domain_id	d1m6xa2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.163 — DNA breaking-rejoining enzymes
超家族 Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
家族 Family family	d.163.1.1 — Lambda integrase-like, catalytic core

结构域编号 domain_id	d1m6xb1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.60 — SAM domain-like
超家族 Superfamily superfamily	a.60.9 — lambda integrase-like, N-terminal domain
家族 Family family	a.60.9.1 — lambda integrase-like, N-terminal domain

结构域编号 domain_id	d1m6xb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.163 — DNA breaking-rejoining enzymes
超家族 Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
家族 Family family	d.163.1.1 — Lambda integrase-like, catalytic core

结构域编号 domain_id	d1m6xc1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.60 — SAM domain-like
超家族 Superfamily superfamily	a.60.9 — lambda integrase-like, N-terminal domain
家族 Family family	a.60.9.1 — lambda integrase-like, N-terminal domain

结构域编号 domain_id	d1m6xc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.163 — DNA breaking-rejoining enzymes
超家族 Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
家族 Family family	d.163.1.1 — Lambda integrase-like, catalytic core

结构域编号 domain_id	d1m6xd1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.60 — SAM domain-like
超家族 Superfamily superfamily	a.60.9 — lambda integrase-like, N-terminal domain
家族 Family family	a.60.9.1 — lambda integrase-like, N-terminal domain

结构域编号 domain_id	d1m6xd2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.163 — DNA breaking-rejoining enzymes
超家族 Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
家族 Family family	d.163.1.1 — Lambda integrase-like, catalytic core

CATH v4.4 (8 domains)

结构域编号 domain_id	1m6xA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	300 — GMP Synthetase; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	80 — FLP Recombinase, lambda integrase-like, N-terminal domain (domain 1)

结构域编号 domain_id	1m6xA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	443 — hpI Integrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Intergrase catalytic core

结构域编号 domain_id	1m6xB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	300 — GMP Synthetase; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	80 — FLP Recombinase, lambda integrase-like, N-terminal domain (domain 1)

结构域编号 domain_id	1m6xB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	443 — hpI Integrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Intergrase catalytic core

结构域编号 domain_id	1m6xC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	300 — GMP Synthetase; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	80 — FLP Recombinase, lambda integrase-like, N-terminal domain (domain 1)

结构域编号 domain_id	1m6xC02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	443 — hpI Integrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Intergrase catalytic core

结构域编号 domain_id	1m6xD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	300 — GMP Synthetase; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	80 — FLP Recombinase, lambda integrase-like, N-terminal domain (domain 1)

结构域编号 domain_id	1m6xD02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	443 — hpI Integrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Intergrase catalytic core

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	79.779 Å
晶胞边长 b length_b	116.511 Å
晶胞边长 c length_c	142.425 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	97.26 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	37.470 Å
R 因子 r_factor	0.2390
R_work r_work	0.2390
R_free r_free	0.2810

fit	/app/data/saxs_computation/m6/1m6x/1m6x.fit
pddf	/app/data/pr_computation/m6/1m6x/1m6x.pr.out
profile	/app/data/saxs_computation/m6/1m6x/1m6x.dat
