SAXSdb — 1m7z

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nitric oxide synthase

Bacillus subtilis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	PROTOPORPHYRIN IX CONTAINING FE × 2 N-OMEGA-HYDROXY-L-ARGININE × 2 (6S)-5,6,7,8-TETRAHYDROFOLATE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NOSO_BACSU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 28–361； UniProt 1–336

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1m7z
Deposition date deposition_date	2002-07-23
Structure title title	Structure of Nitric Oxide Synthase Heme Protein from Bacillus Subtilis with N-Hydroxy-Arginine and Tetrahydrofolate Bound
Keywords keywords	oxygenase, tetrahydrofolate, pterin, bacteria, heme, hydroxy arginine, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1m7z__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1m7z__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

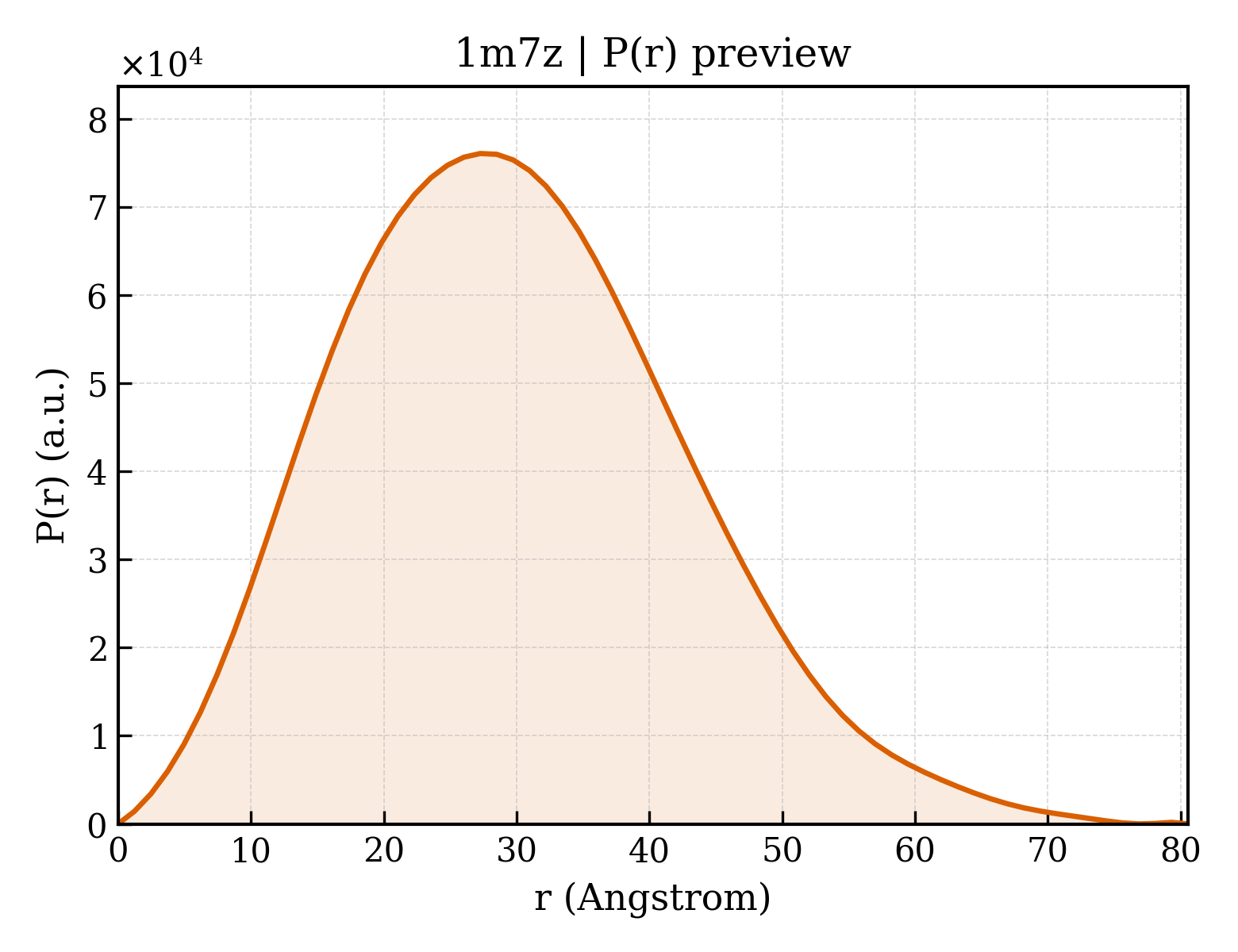

1m7z__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.86 Å
Rg (electron density)	29.99 Å
Total Rg	30.73 Å
Atom count	6042
Residues	722
Excluded volume	106530 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1m7z__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Nitric oxide synthase
Molecular weight formula_weight	41895.1 kDa
EC 编号 ec_number	1.14.13.39
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3225

GSHMEILWNEAKAFIAECYQELGKEEEVKDRLDSIKSEIDRTGSYVHTKEELEHGAKMAWRNSNRCIGRLFWNSLNVIDRRDVRTKEDVRDALFHHIETATNNGKIRPSITIFPPEEKGEKQVEIWNHQLIRYAGYEGERIGDPASRSLTAACEQLGWRGERTDFDLLPLIFRMRGDEQPVWYELPRSLVIEVPITHPDIEAFSDLELKWYGVPIISDMKLEVGGIHYNAAPFNGWYMGTEIGARNLADEKRYDKLKKVASVIGISTNYNTDLWKDQALVELNKAVLYSYKKQGVSIVDHHTAASQFKRFEEQEEEAGRKLTGDWTWLIPPISPAATHIFHRSYDNSIVKPNYFYQDKPYE

Source Source

Source organism organism	Bacillus subtilis
NCBI taxonomy ID ncbi_taxonomy_id	1423
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	N-OMEGA-HYDROXY-L-ARGININE
Molecular weight formula_weight	190.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	(6S)-5,6,7,8-TETRAHYDROFOLATE
Molecular weight formula_weight	445.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	204

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1m7za1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.174 — Nitric oxide (NO) synthase oxygenase domain
Superfamily Superfamily superfamily	d.174.1 — Nitric oxide (NO) synthase oxygenase domain
Family Family family	d.174.1.1 — Nitric oxide (NO) synthase oxygenase domain

Domain ID domain_id	d1m7za2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (3 domains)

Domain ID domain_id	1m7zA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	340 — Nitric Oxide Synthase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Nitric Oxide Synthase; Chain A, domain 1

Domain ID domain_id	1m7zA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	440 — Nitric Oxide Synthase;Heme Domain; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nitric Oxide Synthase;Heme Domain;Chain A domain 2

Domain ID domain_id	1m7zA03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1230 — Bovine Endothelial Nitric Oxide Synthase Heme Domain; Chain: A,domain 3
Homologous superfamily homologous superfamily	10 — Nitric Oxide Synthase; Chain A, domain 3

▶

Unit-cell length a length_a	81.085 Å
Unit-cell length b length_b	93.068 Å
Unit-cell length c length_c	62.769 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.140 Å
Low-resolution limit resolution_low	29.740 Å
R factor r_factor	—
R_work r_work	0.2120
R_free r_free	0.2390
