SAXSdb — 1m8b

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ovomucoid

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 130–185	Fragment：RESIDUES 130-185; KAZAL-LIKE 3 (INHIBIT CHYMOTRYPIN, ELASTASE, ETC.) Mutation：P14D	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 2.5；298 K；Ionic strength (raw mmCIF value) no salt added；Pressure ambient NMR sample composition：1 mM \| 90% H2O/10% D2O NMR sample composition：1 mM \| 100% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1M8B	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1M8C SOLUTION STRUCTURE OF THE T State OF TURKEY OVOMUCOID AT PH 2.5 Deposited 2002-07-24	Parsed fields agree	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 130–185（56 aa） Fragment：RESIDUES 130-185; KAZAL-LIKE 3 (INHIBIT CHYMOTRYPIN, ELASTASE, ETC.)	Mutation：P14D	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 2.5；298 K；Ionic strength (raw mmCIF value) no salt added；Pressure ambient NMR sample composition 1 mM \| 90% H2O/10% D2O NMR sample composition 1 mM \| 100% D2O	Resolution not provided
1PPF X-RAY CRYSTAL STRUCTURE OF THE COMPLEX OF HUMAN LEUKOCYTE ELASTASE (PMN ELASTASE) AND THE THIRD DOMAIN OF THE TURKEY OVOMUCOID INHIBITOR Deposited 1991-10-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 130–185（56 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IOVO_MELGA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–56； UniProt 130–185

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1m8b
Deposition date deposition_date	2002-07-24
Structure title title	Solution structure of the C State of turkey ovomucoid at pH 2.5
Keywords keywords	OMTKY3 CONFORMATIONAL TRANSITION CIS-TRANS ISOMERIZATION, HYDROLASE INHIBITOR; HYDROLASE INHIBITOR
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	10.45 Å
Radius of gyration Rg (electron density) rg_electron	10.53 Å
Forward intensity I(0) i0	234098000.00
Molecular weight molecular_weight	120420.0 kDa
Excluded volume excluded_volume	146970 Å³
Envelope volume envelope_volume	13370 Å³
Hydration-shell volume shell_volume	9464 Å³
Envelope diameter envelope_diameter	42.8 Å
Shell Rg shell_rg	17.76 Å
Envelope Rg envelope_rg	12.88 Å
Shape Rg shape_rg	10.52 Å
Total Rg total_rg	10.74 Å
Total atoms total_atoms	15100
Residues n_residues	1120
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

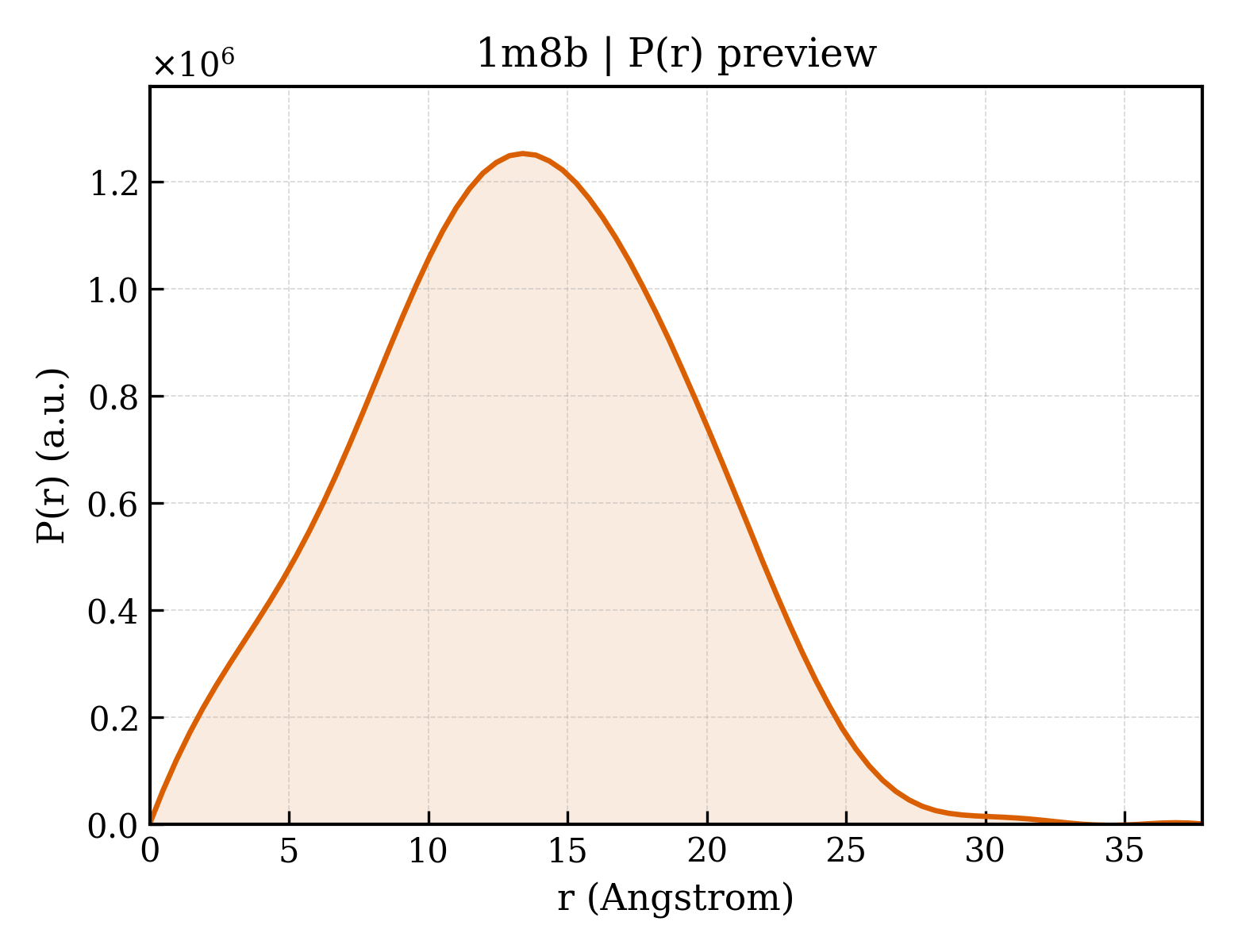

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	37.8 Å
Rg (real space) rg_real	10.39 Å
Rg uncertainty (real space) rg_real_error	0.38 Å
I(0) (real space) i0_real	2.3410e+08
I(0) uncertainty (real space) i0_real_error	2.6800e+06
Rg (reciprocal space) rg_reciprocal	10.39 Å
I(0) (reciprocal space) i0_reciprocal	234100000.0000
Solution quality estimate total_estimate	0.8496
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	13.4 Å
Skewness Skewness skewness	0.045
Kurtosis Kurtosis kurtosis	-0.423
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	36530.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.691; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.994

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1m8ba_
Class class	g — Small proteins
Fold Fold fold	g.68 — Kazal-type serine protease inhibitors
Superfamily Superfamily superfamily	g.68.1 — Kazal-type serine protease inhibitors
Family Family family	g.68.1.1 — Ovomucoid domain III-like

CATH v4.4 (1 domains)

Domain ID domain_id	1m8bA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	30 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	Ovomucoid
Molecular weight formula_weight	6044.8 kDa
Mutation mutation	P14D
Source method src_method	syn
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	15100

fit	/app/data/saxs_computation/m8/1m8b/1m8b.fit
pddf	/app/data/pr_computation/m8/1m8b/1m8b.pr.out
profile	/app/data/saxs_computation/m8/1m8b/1m8b.dat
