1. Protein Identity and Related Structures Protein Identity & Related Structures

huwentoxin-iv

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–35	Not recorded	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 4.5；300 K；Ionic strength (raw mmCIF value) 20；Pressure 1 NMR sample composition：5MM HUWENTOXIN-IV MMOL/L PHOSPHATE BUFFER; 90%H2O, 10%D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1MB6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2M4X Analysis of the structural and molecular basis of voltage-sensitive sodium channel inhibition by the spider toxin, Huwentoxin-IV (-TRTX-Hh2a). Deposited 2013-02-11	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 53–87（35 aa） Fragment：unp residues 53-87	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.7；25 K；Pressure ambient NMR sample composition 2 mM HWTX-IV, 20 mM sodium phosphate, 150 uM sodium azide, 100 uM EDTA, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2M4Z Analysis of the structural and molecular basis of voltage-sensitive sodium channel inhibition by the spider toxin, Huwentoxin-IV (-TRTX-Hh2a). Deposited 2013-02-12	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 53–87（35 aa） Fragment：unp residues 53-87	Mutation：A82W	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.7；298 K；Pressure ambient NMR sample composition 2 mM entity, 20 mM sodium phosphate, 150 uM sodium azide, 100 uM [U-2H] EDTA, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2M50 Analysis of the structural and molecular basis of voltage-sensitive sodium channel inhibition by the spider toxin, Huwentoxin-IV (-TRTX-Hh2a). Deposited 2013-02-12	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 53–87（35 aa） Fragment：unp residues 53-87	Mutation：A82K	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.7；298 K；Pressure ambient NMR sample composition 2 mM entity, 20 mM sodium phosphate, 150 uM sodium azide, 100 uM [U-99% 2H] EDTA, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
5T3M Solution structure of a triple mutant of HwTx-IV - a potent blocker of Nav1.7 Deposited 2016-08-25	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 53–87（35 aa） Fragment：residues 53-87	Mutation：E1G,E4G,Y33W	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；298 K；Ionic strength (raw mmCIF value) 20；Pressure 1 NMR sample composition 400 uM [U-99% 13C; U-99% 15N] [m3]-HwTx-IV, 20 mM sodium acetate, 5 % [U-100% 2H] D2O, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
5TLR Solution NMR structure of gHwTx-IV Deposited 2016-10-11	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 54–87（34 aa） Fragment：UNP residues 54-87	Mutation：E56G, Y58W, F85W Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4；298 K；Pressure ambient NMR measurement conditions pH 4；298 K；Pressure ambient NMR measurement conditions pH 4；283 K；Pressure ambient NMR sample composition 90 % H2O, 10 % D2O, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 100 % D2O, 100% D2O \| 100% D2O	Resolution not provided
6W6O NaChBac-Nav1.7VSDII chimera and HWTX-IV complex Deposited 2020-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain C 53–87（35 aa） Fragment：UNP residues 53-87 Chain E 53–87（35 aa） Fragment：UNP residues 53-87 Chain G 53–87（35 aa） Fragment：UNP residues 53-87 Chain I 53–87（35 aa） Fragment：UNP residues 53-87	Not recorded	POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 10 cryo-EM vitrification conditions Cryogen ETHANE；Blotted for 5 seconds before plunging	Resolution 3.20 Å
7K48 Structure of NavAb/Nav1.7-VS2A chimera trapped in the resting state by tarantula toxin m3-Huwentoxin-IV Deposited 2020-09-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain E 53–87（35 aa） Chain F 53–87（35 aa） Chain G 53–87（35 aa） Chain H 53–87（35 aa）	Mutation：E1G, E4G, Y33W Mutation：E1G, E4G, Y33W Mutation：E1G, E4G, Y33W Mutation：E1G, E4G, Y33W	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；Blot for 2.5-4.0 seconds before plunging	Resolution 3.60 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TXH4_ORNHU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–35； UniProt 1–35

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1mb6
Deposition date deposition_date	2002-08-02
Structure title title	Three dimensional solution structure of huwentoxin-IV by 2D 1H-NMR
Keywords keywords	containing a double-stranded beta-sheet and four beta-turns, TOXIN; TOXIN
Experimental Method method	SOLUTION NMR

▼

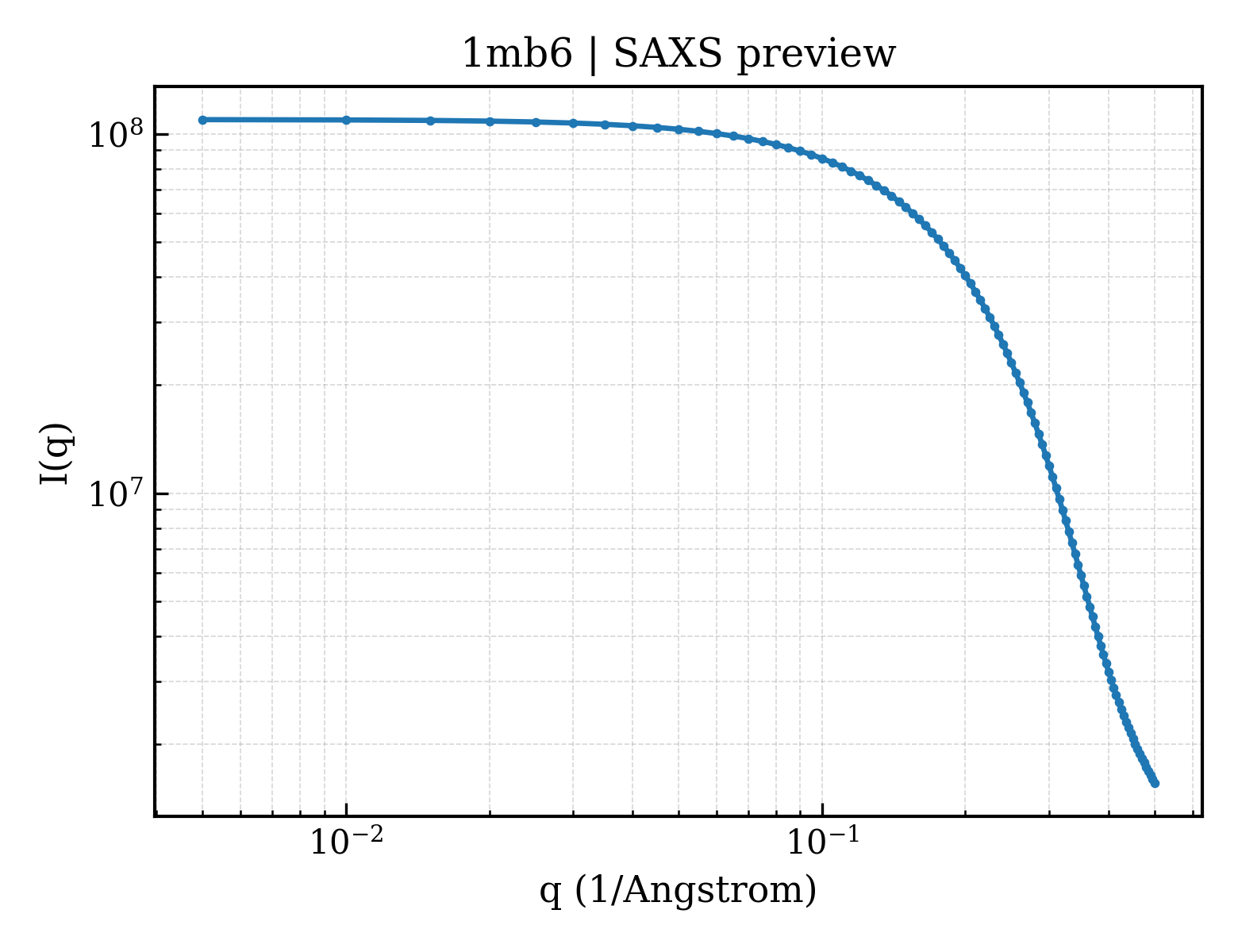

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	8.65 Å
Radius of gyration Rg (electron density) rg_electron	9.01 Å
Forward intensity I(0) i0	109546000.00
Molecular weight molecular_weight	82358.0 kDa
Excluded volume excluded_volume	101150 Å³
Envelope volume envelope_volume	12015 Å³
Hydration-shell volume shell_volume	9202 Å³
Envelope diameter envelope_diameter	33.8 Å
Shell Rg shell_rg	16.84 Å
Envelope Rg envelope_rg	11.36 Å
Shape Rg shape_rg	9.01 Å
Total Rg total_rg	9.29 Å
Total atoms total_atoms	11280
Residues n_residues	700
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

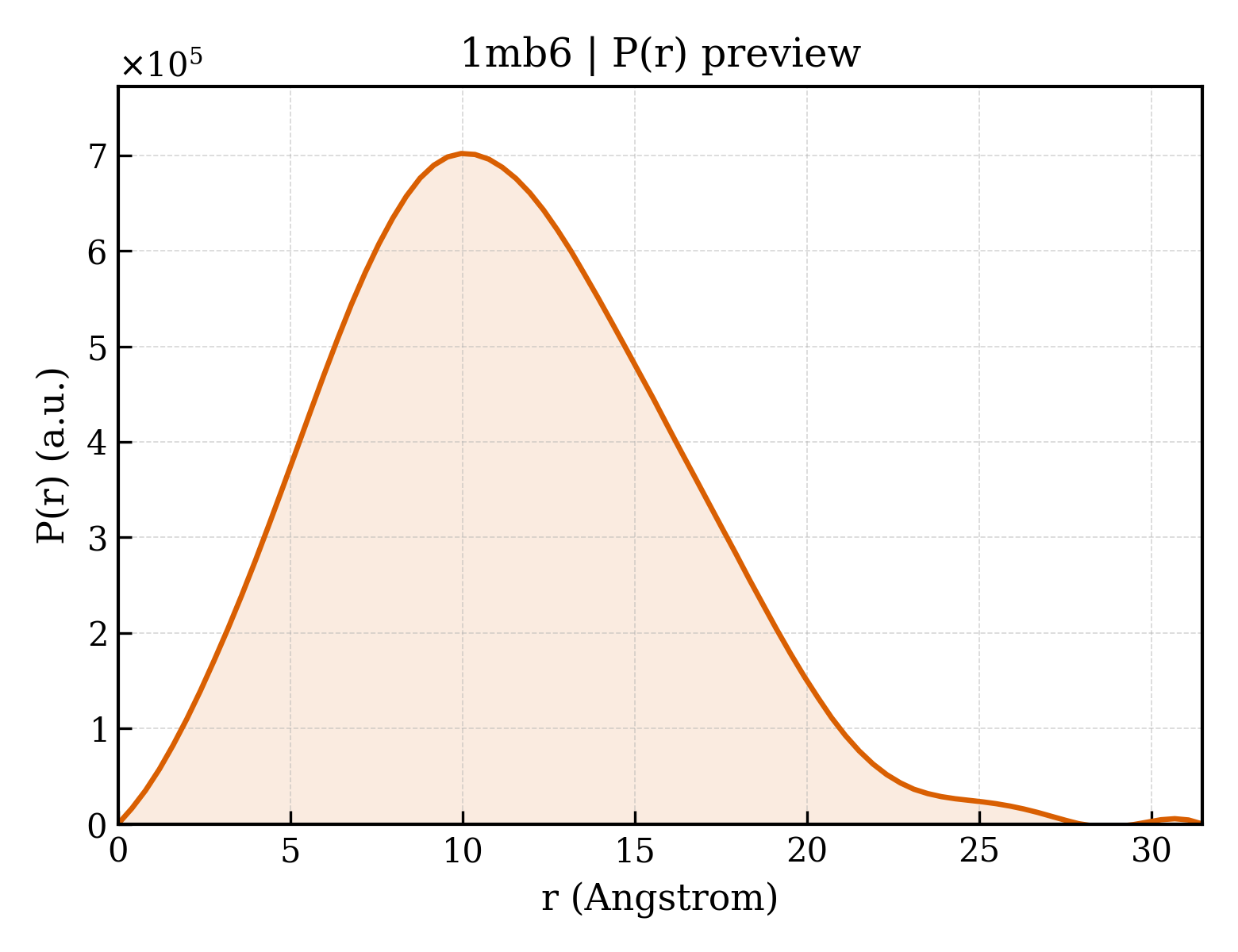

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	31.5 Å
Rg (real space) rg_real	8.64 Å
Rg uncertainty (real space) rg_real_error	0.37 Å
I(0) (real space) i0_real	1.0950e+08
I(0) uncertainty (real space) i0_real_error	1.1870e+06
Rg (reciprocal space) rg_reciprocal	8.64 Å
I(0) (reciprocal space) i0_reciprocal	109500000.0000
Solution quality estimate total_estimate	0.8395
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	10.0 Å
Skewness Skewness skewness	0.339
Kurtosis Kurtosis kurtosis	-0.130
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	31530.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.692; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.893; Smooth: 0.941

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1mb6a_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.6 — omega toxin-like
Family Family family	g.3.6.2 — Spider toxins

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	huwentoxin-iv
Molecular weight formula_weight	4120.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	11280

fit	/app/data/saxs_computation/mb/1mb6/1mb6.fit
pddf	/app/data/pr_computation/mb/1mb6/1mb6.pr.out
profile	/app/data/saxs_computation/mb/1mb6/1mb6.dat
