SAXSdb — 1mhw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cathepsin L

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	4-biphenylacetyl-Cys-(D)Arg-Tyr-N-(2-phenylethyl) amide × 2 water × 4	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	4-biphenylacetyl-Cys-(D)Arg-Tyr-N-(2-phenylethyl) amide × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CATL_HUMAN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–175； UniProt 114–288 Author chain B； PDBConstruct 1–175； UniProt 114–288 Author chain C； PDBConstruct 1–42； UniProt 292–333 Author chain D； PDBConstruct 1–42； UniProt 292–333

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1mhw
Deposition date deposition_date	2002-08-21
Structure title title	Design of non-covalent inhibitors of human cathepsin L. From the 96-residue proregion to optimized tripeptides
Keywords keywords	CATHEPSIN L, CYSTEINE PROTEASE, HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1mhw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1mhw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

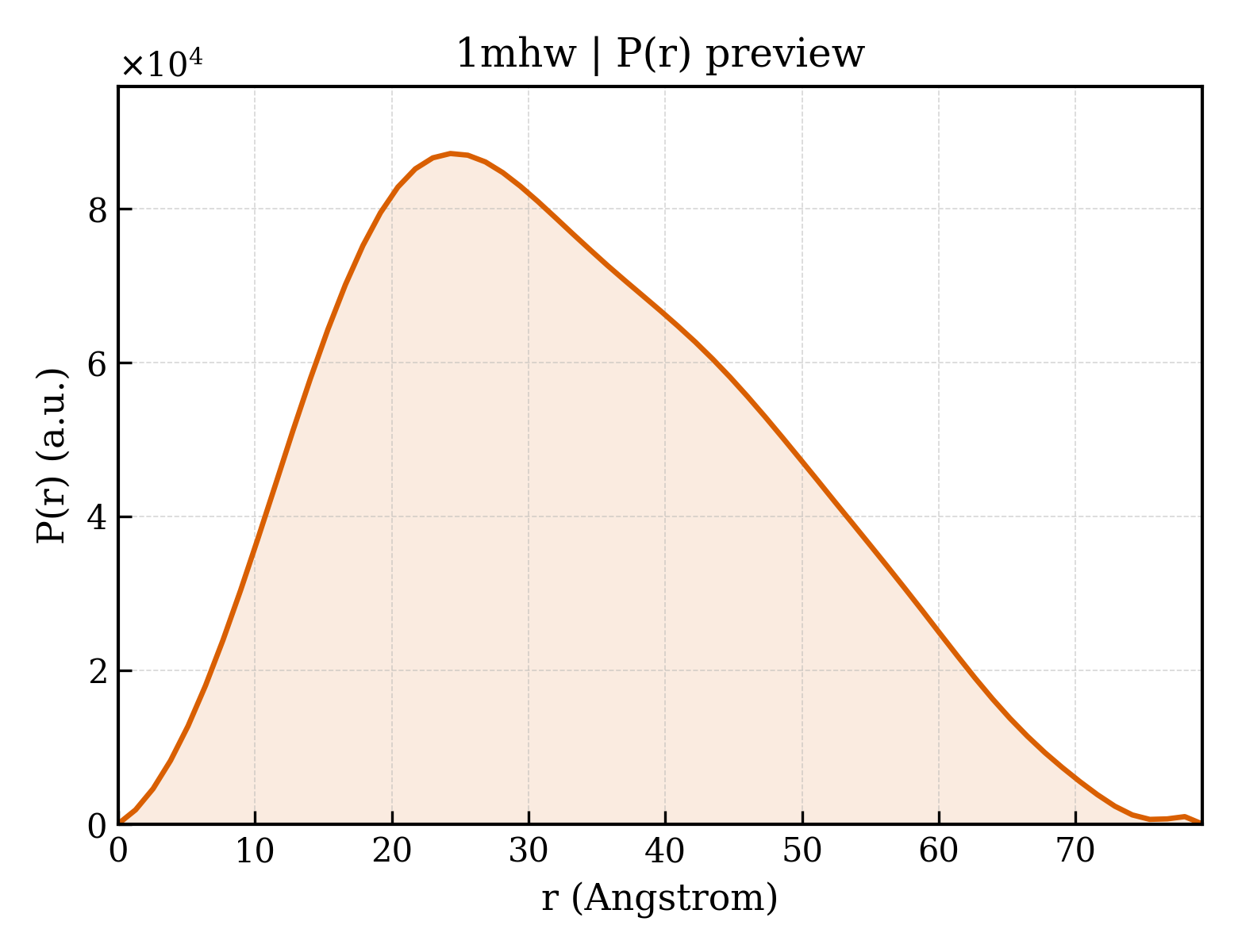

1mhw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.44 Å
Rg (electron density)	16.34 Å
Total Rg	17.36 Å
Atom count	1739
Residues	217
Excluded volume	30533 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1mhw__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1mhw__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Cathepsin L
Molecular weight formula_weight	19127.0 kDa
EC 编号 ec_number	3.4.22.15
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4007

APRSVDWREKGYVTPVKNQGQCGSCWAFSATGALEGQMFRKTGRLISLSEQNLVDCSGPQGNEGCNGGLMDYAFQYVQDNGGLDSEESYPYEATEESCKYNPKYSVANDTGFVDIPKQEKALMKAVATVGPISVAIDAGHESFLFYKEGIYFEPDCSSEDMDHGVLVVGYGFEST

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Pichia pastoris

Entity 2 Entity 2 polymer

Description description	Cathepsin L
Molecular weight formula_weight	4783.4 kDa
EC 编号 ec_number	3.4.22.15
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

NNKYWLVKNSWGEEWGMGGYVKMAKDRRNHCGIASAASYPTV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Pichia pastoris

Entity 3 Entity 3 polymer

Description description	4-biphenylacetyl-Cys-(D)Arg-Tyr-N-(2-phenylethyl) amide
Molecular weight formula_weight	739.9 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H

XCRYX

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	525

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1mhw.1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.3 — Cysteine proteinases
Superfamily Superfamily superfamily	d.3.1 — Cysteine proteinases
Family Family family	d.3.1.1 — Papain-like

Domain ID domain_id	d1mhw.2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.3 — Cysteine proteinases
Superfamily Superfamily superfamily	d.3.1 — Cysteine proteinases
Family Family family	d.3.1.1 — Papain-like

CATH v4.4 (4 domains)

Domain ID domain_id	1mhwA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	70 — Cathepsin B; Chain A
Homologous superfamily homologous superfamily	10 — Cysteine proteinases

Domain ID domain_id	1mhwB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	70 — Cathepsin B; Chain A
Homologous superfamily homologous superfamily	10 — Cysteine proteinases

Domain ID domain_id	1mhwC00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	170 — Cysteine proteinases. Chain C

Domain ID domain_id	1mhwD00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	170 — Cysteine proteinases. Chain C

▶

Unit-cell length a length_a	51.522 Å
Unit-cell length b length_b	58.632 Å
Unit-cell length c length_c	151.445 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	45.000 Å
R factor r_factor	—
R_work r_work	0.1846
R_free r_free	0.2295

Design of non-covalent inhibitors of human cathepsin L. From the 96-residue proregion to optimized tripeptides
