1mjq

METHIONINE REPRESSOR MUTANT (Q44K) PLUS COREPRESSOR (S-ADENOSYL METHIONINE) COMPLEXED TO AN ALTERED MET CONSENSUS OPERATOR SEQUENCE

Method: X-RAY DIFFRACTION D_max: 169.5 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1mjq
沉积日期 deposition_date	1998-01-30
结构标题 title	METHIONINE REPRESSOR MUTANT (Q44K) PLUS COREPRESSOR (S-ADENOSYL METHIONINE) COMPLEXED TO AN ALTERED MET CONSENSUS OPERATOR SEQUENCE
关键词 keywords	;TRANSCRIPTION REGULATION, METJ, METHIONINE REPRESSOR, SHEET-HELIX-HELIX, S-ADENOSYL METHIONINE, DNA, COMPLEX (TRANSCRIPTION REGULATION-DNA), TRANSCRIPTION-DNA COMPLEX ;; TRANSCRIPTION/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	51.02 Å
回转半径 Rg (电子) rg_electron	51.56 Å
零角强度 I(0) i0	280287000.00
分子量 molecular_weight	122510.0 kDa
排除体积 excluded_volume	146150 Å³
包络体积 envelope_volume	226660 Å³
水化壳体积 shell_volume	36589 Å³
包络直径 envelope_diameter	166.9 Å
壳层 Rg shell_rg	56.49 Å
包络 Rg envelope_rg	49.14 Å
形状 Rg shape_rg	51.59 Å
总 Rg total_rg	51.61 Å
总原子数 total_atoms	8520
残基数 n_residues	907
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

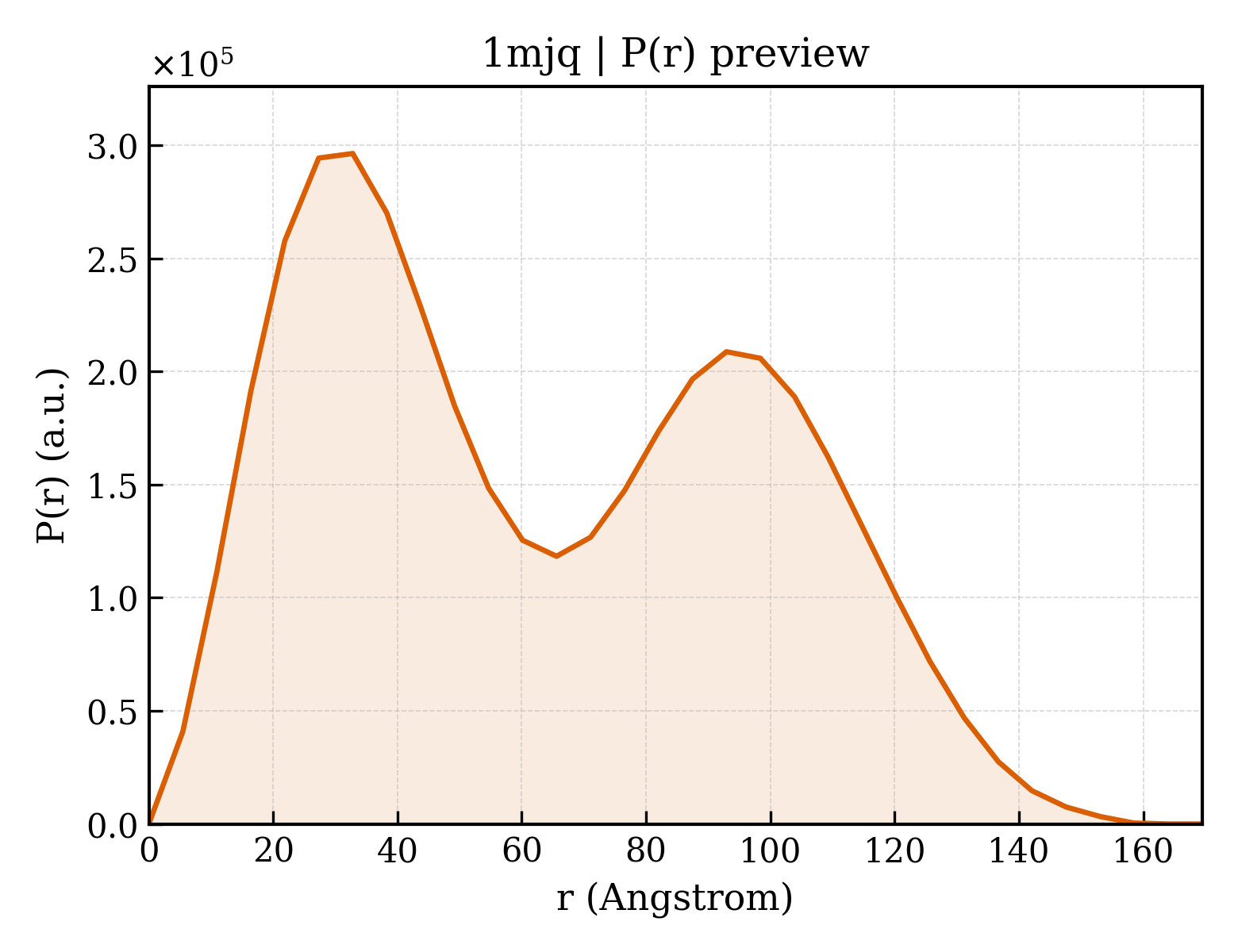

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	169.5 Å
Rg (实空间) rg_real	51.38 Å
Rg 误差 (实空间) rg_real_error	2.34 Å
I(0) (实空间) i0_real	2.8030e+08
I(0) 误差 (实空间) i0_real_error	5.2500e+06
Rg (倒空间) rg_reciprocal	50.68 Å
I(0) (倒空间) i0_reciprocal	280000000.0000
解质量估计 total_estimate	0.6310
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	32.8 Å
偏度 Skewness skewness	0.261
峰度 Kurtosis kurtosis	-1.137
角度范围 angular_range	— – 0.1550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	11360000.0000
实空间数据点数 n_real_points	32
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.117; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.179; Smooth: 0.668

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	MUTATED MET CONSENSUS OPERATOR DUPLEX
分子量 formula_weight	5817.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	E,F,K,L
原子数 atom_count	8706

TTAGATATCTAGATATCTA

Entity 2 polymer

描述 description	METHIONINE REPRESSOR
分子量 formula_weight	12028.6 kDa
突变 mutation	Q44K
来源方法 src_method	man
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,G,H,I,J

AEWSGEYISPYAEHGKKSEQVKKITVSIPLKVLKILTDERTRRKVNNLRHATNSELLCEAFLHAFTGQPLPDDADLRKERSDEIPEAAKEIMREMGINPETWEY

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	S-ADENOSYLMETHIONINE
分子量 formula_weight	398.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	186

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1mjqa_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.43 — Ribbon-helix-helix
超家族 Superfamily superfamily	a.43.1 — Ribbon-helix-helix
家族 Family family	a.43.1.5 — Met repressor, MetJ (MetR)

结构域编号 domain_id	d1mjqb_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.43 — Ribbon-helix-helix
超家族 Superfamily superfamily	a.43.1 — Ribbon-helix-helix
家族 Family family	a.43.1.5 — Met repressor, MetJ (MetR)

结构域编号 domain_id	d1mjqc_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.43 — Ribbon-helix-helix
超家族 Superfamily superfamily	a.43.1 — Ribbon-helix-helix
家族 Family family	a.43.1.5 — Met repressor, MetJ (MetR)

结构域编号 domain_id	d1mjqd_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.43 — Ribbon-helix-helix
超家族 Superfamily superfamily	a.43.1 — Ribbon-helix-helix
家族 Family family	a.43.1.5 — Met repressor, MetJ (MetR)

结构域编号 domain_id	d1mjqg_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.43 — Ribbon-helix-helix
超家族 Superfamily superfamily	a.43.1 — Ribbon-helix-helix
家族 Family family	a.43.1.5 — Met repressor, MetJ (MetR)

结构域编号 domain_id	d1mjqh_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.43 — Ribbon-helix-helix
超家族 Superfamily superfamily	a.43.1 — Ribbon-helix-helix
家族 Family family	a.43.1.5 — Met repressor, MetJ (MetR)

结构域编号 domain_id	d1mjqi_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.43 — Ribbon-helix-helix
超家族 Superfamily superfamily	a.43.1 — Ribbon-helix-helix
家族 Family family	a.43.1.5 — Met repressor, MetJ (MetR)

结构域编号 domain_id	d1mjqj_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.43 — Ribbon-helix-helix
超家族 Superfamily superfamily	a.43.1 — Ribbon-helix-helix
家族 Family family	a.43.1.5 — Met repressor, MetJ (MetR)

CATH v4.4 (8 domains)

结构域编号 domain_id	1mjqA00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	140 — MET Apo-Repressor, subunit A
同源超家族 H-superfamily homologous superfamily	10 — MET Apo-Repressor, subunit A

结构域编号 domain_id	1mjqB00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	140 — MET Apo-Repressor, subunit A
同源超家族 H-superfamily homologous superfamily	10 — MET Apo-Repressor, subunit A

结构域编号 domain_id	1mjqC00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	140 — MET Apo-Repressor, subunit A
同源超家族 H-superfamily homologous superfamily	10 — MET Apo-Repressor, subunit A

结构域编号 domain_id	1mjqD00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	140 — MET Apo-Repressor, subunit A
同源超家族 H-superfamily homologous superfamily	10 — MET Apo-Repressor, subunit A

结构域编号 domain_id	1mjqG00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	140 — MET Apo-Repressor, subunit A
同源超家族 H-superfamily homologous superfamily	10 — MET Apo-Repressor, subunit A

结构域编号 domain_id	1mjqH00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	140 — MET Apo-Repressor, subunit A
同源超家族 H-superfamily homologous superfamily	10 — MET Apo-Repressor, subunit A

结构域编号 domain_id	1mjqI00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	140 — MET Apo-Repressor, subunit A
同源超家族 H-superfamily homologous superfamily	10 — MET Apo-Repressor, subunit A

结构域编号 domain_id	1mjqJ00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	140 — MET Apo-Repressor, subunit A
同源超家族 H-superfamily homologous superfamily	10 — MET Apo-Repressor, subunit A

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	119.420 Å
晶胞边长 b length_b	119.420 Å
晶胞边长 c length_c	84.830 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 32
空间群编号 int_tables_number	145
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	27.300 Å
R 因子 r_factor	0.2230
R_work r_work	0.2230
R_free r_free	0.2680
