SAXSdb — 1mjx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

INORGANIC PYROPHOSPHATASE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	SULFATE ION × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IPYR_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–175； UniProt 1–175 Author chain B； PDBConstruct 1–175； UniProt 1–175

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1mjx
Deposition date deposition_date	1997-02-08
Structure title title	STRUCTURE OF INORGANIC PYROPHOSPHATASE MUTANT D65N
Keywords keywords	HYDROLASE, ACID ANHYDRIDE HYDROLASE, MUTATION; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1mjx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1mjx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

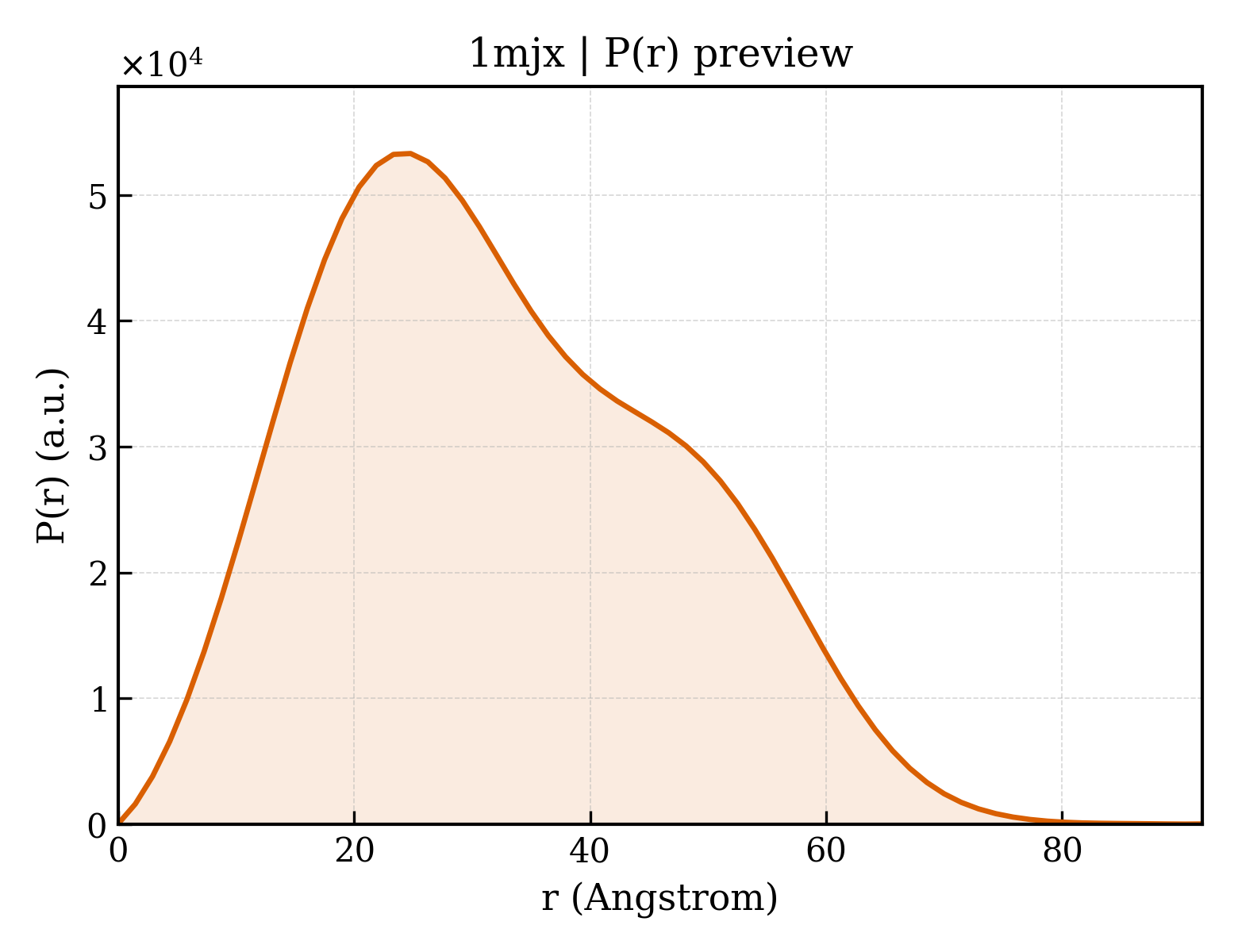

1mjx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.48 Å
Rg (electron density)	28.98 Å
Total Rg	29.91 Å
Atom count	8316
Residues	1050
Excluded volume	148800 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1mjx__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	INORGANIC PYROPHOSPHATASE
Molecular weight formula_weight	19596.3 kDa
EC 编号 ec_number	3.6.1.1
Mutation mutation	D65N
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2943

SLLNVPAGKDLPEDIYVVIEIPANADPIKYEIDKESGALFVDRFMSTAMFYPCNYGYINHTLSLNGDPVDVLVPTPYPLQPGSVIRCRPVGVLKMTDEAGEDAKLVAVPHSKLSKEYDHIKDVNDLPELLKAQIAHFFEHYKDLEKGKWVKVEGWENAEAAKAEIVASFERAKNK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	171

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1mjxa_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.5 — Inorganic pyrophosphatase
Family Family family	b.40.5.1 — Inorganic pyrophosphatase

Domain ID domain_id	d1mjxb_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.5 — Inorganic pyrophosphatase
Family Family family	b.40.5.1 — Inorganic pyrophosphatase

CATH v4.4 (2 domains)

Domain ID domain_id	1mjxA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	80 — Inorganic Pyrophosphatase
Homologous superfamily homologous superfamily	10 — Inorganic pyrophosphatase

Domain ID domain_id	1mjxB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	80 — Inorganic Pyrophosphatase
Homologous superfamily homologous superfamily	10 — Inorganic pyrophosphatase

▶

Unit-cell length a length_a	110.200 Å
Unit-cell length b length_b	110.200 Å
Unit-cell length c length_c	155.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	—
R_work r_work	0.1900
R_free r_free	0.2630

STRUCTURE OF INORGANIC PYROPHOSPHATASE MUTANT D65N
