SAXSdb — 1mjy

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

INORGANIC PYROPHOSPHATASE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	water × 6	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 12	water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IPYR_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–175； UniProt 1–175 Author chain B； PDBConstruct 1–175； UniProt 1–175

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1mjy
Deposition date deposition_date	1997-02-08
Structure title title	STRUCTURE OF INORGANIC PYROPHOSPHATASE MUTANT D70N
Keywords keywords	HYDROLASE, ACID ANHYDRIDE HYDROLASE, MUTATION; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1mjy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1mjy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

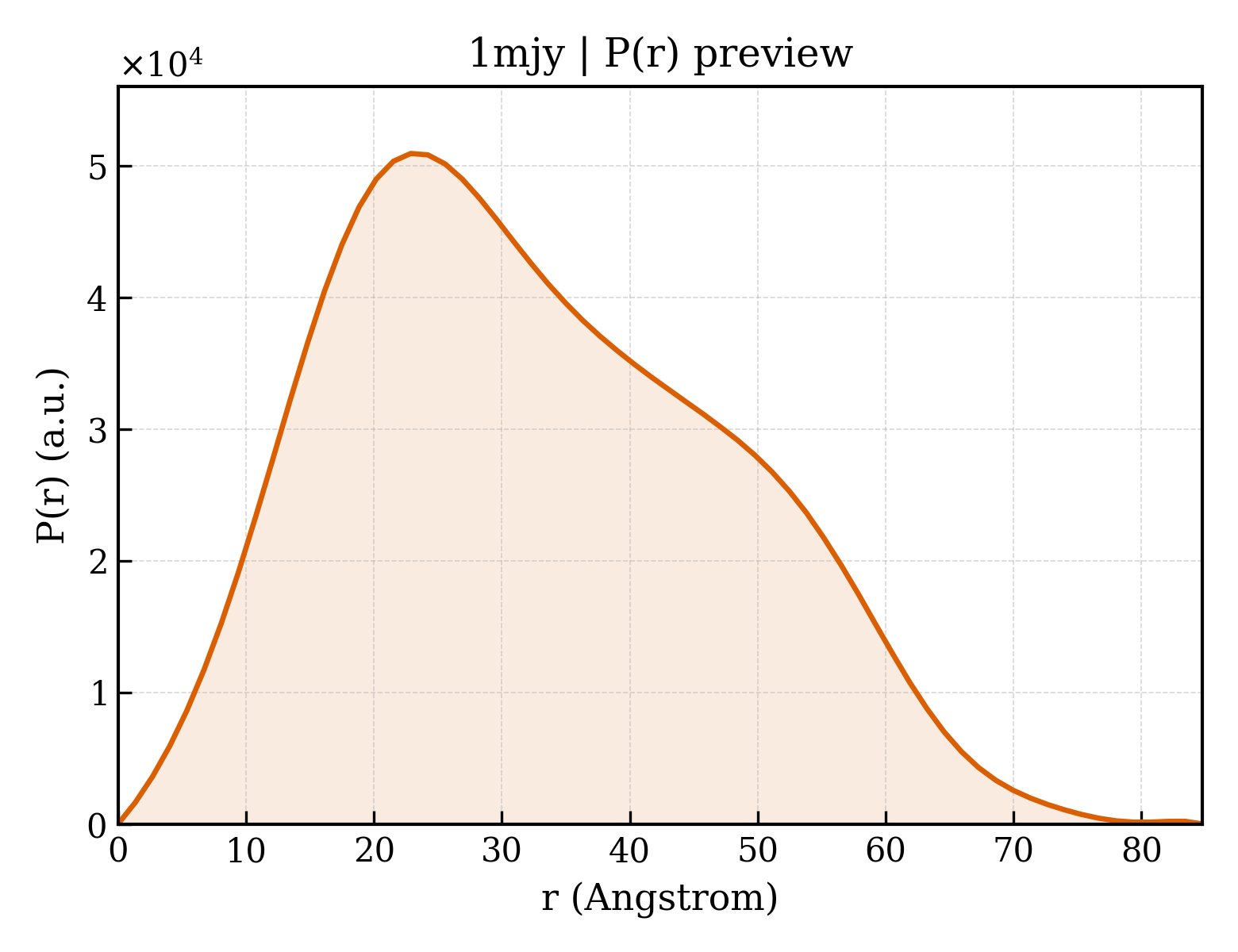

1mjy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.41 Å
Rg (electron density)	28.93 Å
Total Rg	29.90 Å
Atom count	8280
Residues	1050
Excluded volume	148200 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1mjy__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1mjy__assembly_2__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1mjya_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.5 — Inorganic pyrophosphatase
Family Family family	b.40.5.1 — Inorganic pyrophosphatase

Domain ID domain_id	d1mjyb_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.5 — Inorganic pyrophosphatase
Family Family family	b.40.5.1 — Inorganic pyrophosphatase

CATH v4.4 (2 domains)

Domain ID domain_id	1mjyA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	80 — Inorganic Pyrophosphatase
Homologous superfamily homologous superfamily	10 — Inorganic pyrophosphatase

Domain ID domain_id	1mjyB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	80 — Inorganic Pyrophosphatase
Homologous superfamily homologous superfamily	10 — Inorganic pyrophosphatase

▶

Unit-cell length a length_a	104.483 Å
Unit-cell length b length_b	104.483 Å
Unit-cell length c length_c	172.953 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	—
R_work r_work	0.1640
R_free r_free	0.2310

Description description	INORGANIC PYROPHOSPHATASE
Molecular weight formula_weight	19584.3 kDa
EC 编号 ec_number	3.6.1.1
Mutation mutation	D70N
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2975

STRUCTURE OF INORGANIC PYROPHOSPHATASE MUTANT D70N

1. Protein Identity and Related Structures Protein Identity & Related Structures

INORGANIC PYROPHOSPHATASE

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1mjy__assembly_1__model_1

1mjy__assembly_1__model_1 | I(q)

1mjy__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

7. Citations (2)

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	215
