1mow
E-DreI
SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1mow |
| 沉积日期 deposition_date | 2002-09-10 |
| 结构标题 title | E-DreI |
| 关键词 keywords | LAGLIDADG, homing, engineering, design, endonuclease, Hydrolase-DNA COMPLEX; Hydrolase/DNA |
| 实验方法 method | X-RAY DIFFRACTION |

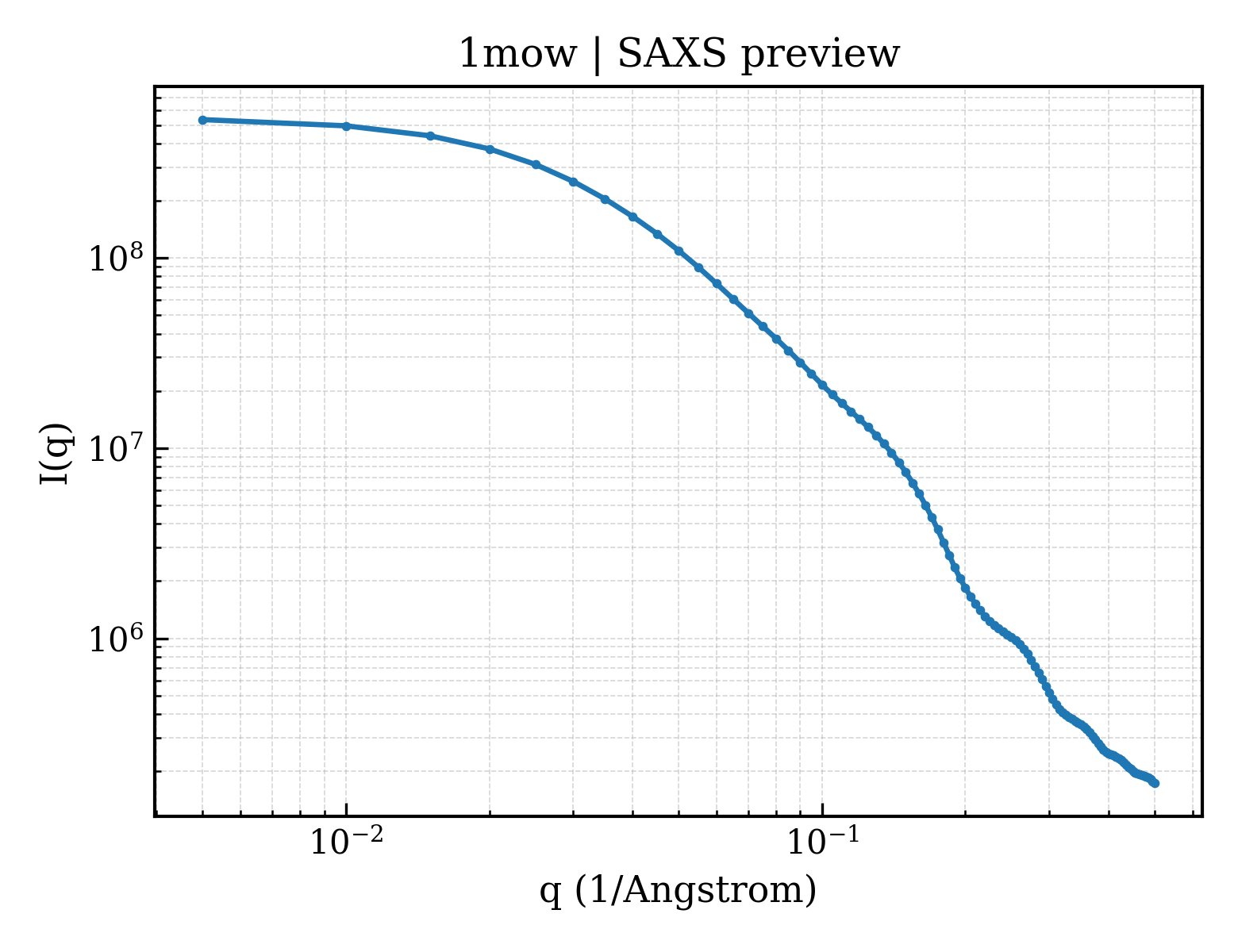

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 54.22 Å |
| 回转半径 Rg (电子) rg_electron | 54.96 Å |
| 零角强度 I(0) i0 | 547443000.00 |
| 分子量 molecular_weight | 148780.0 kDa |
| 排除体积 excluded_volume | 167470 ų |
| 包络体积 envelope_volume | 267810 ų |
| 水化壳体积 shell_volume | 49060 ų |
| 包络直径 envelope_diameter | 217.6 Å |
| 壳层 Rg shell_rg | 44.48 Å |
| 包络 Rg envelope_rg | 55.75 Å |
| 形状 Rg shape_rg | 54.96 Å |
| 总 Rg total_rg | 54.60 Å |
| 总原子数 total_atoms | 10263 |
| 残基数 n_residues | 1147 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |

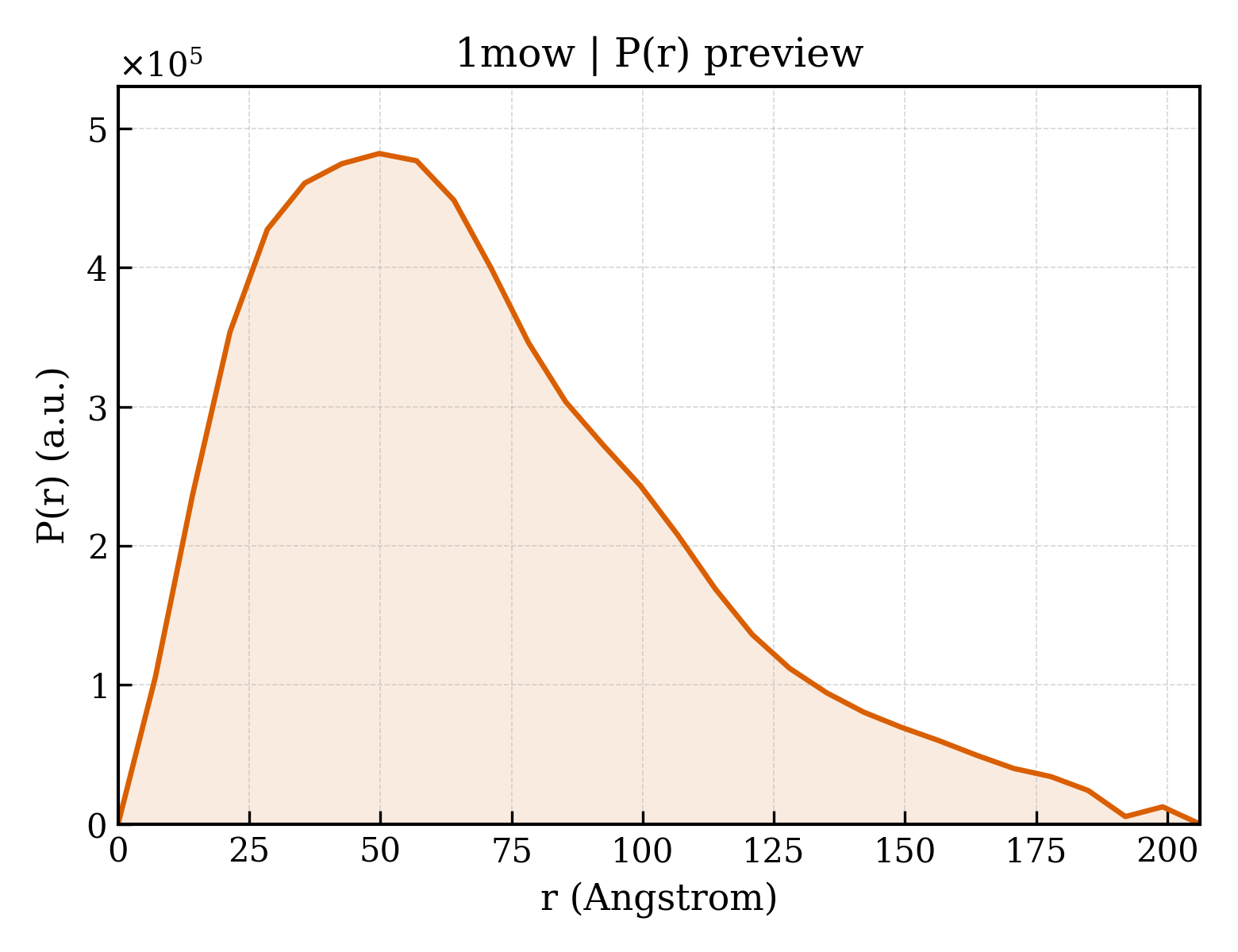

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 206.2 Å |
| Rg (实空间) rg_real | 55.30 Å |
| Rg 误差 (实空间) rg_real_error | 3.55 Å |
| I(0) (实空间) i0_real | 5.4740e+08 |
| I(0) 误差 (实空间) i0_real_error | 1.3230e+07 |
| Rg (倒空间) rg_reciprocal | 53.35 Å |
| I(0) (倒空间) i0_reciprocal | 545900000.0000 |
| 解质量估计 total_estimate | 0.7225 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 49.8 Å |
| 偏度 Skewness skewness | 0.800 |
| 峰度 Kurtosis kurtosis | 0.249 |
| 角度范围 angular_range | — – 0.1450 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 9541000.0000 |
| 实空间数据点数 n_real_points | 30 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.479; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.469; Smooth: 0.493 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (7)
6. 折叠分类 (SCOP + CATH) 16 domains
SCOP 2.08 (8 domains)
| 结构域编号 domain_id | d1mowa1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.95 — Homing endonuclease-like |
| 超家族 Superfamily superfamily | d.95.2 — Homing endonucleases |
| 家族 Family family | d.95.2.1 — Group I mobile intron endonuclease |
| 结构域编号 domain_id | d1mowa2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.95 — Homing endonuclease-like |
| 超家族 Superfamily superfamily | d.95.2 — Homing endonucleases |
| 家族 Family family | d.95.2.1 — Group I mobile intron endonuclease |
| 结构域编号 domain_id | d1mowd1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.95 — Homing endonuclease-like |
| 超家族 Superfamily superfamily | d.95.2 — Homing endonucleases |
| 家族 Family family | d.95.2.1 — Group I mobile intron endonuclease |
| 结构域编号 domain_id | d1mowd2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.95 — Homing endonuclease-like |
| 超家族 Superfamily superfamily | d.95.2 — Homing endonucleases |
| 家族 Family family | d.95.2.1 — Group I mobile intron endonuclease |
| 结构域编号 domain_id | d1mowg1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.95 — Homing endonuclease-like |
| 超家族 Superfamily superfamily | d.95.2 — Homing endonucleases |
| 家族 Family family | d.95.2.1 — Group I mobile intron endonuclease |
| 结构域编号 domain_id | d1mowg2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.95 — Homing endonuclease-like |
| 超家族 Superfamily superfamily | d.95.2 — Homing endonucleases |
| 家族 Family family | d.95.2.1 — Group I mobile intron endonuclease |
| 结构域编号 domain_id | d1mowj1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.95 — Homing endonuclease-like |
| 超家族 Superfamily superfamily | d.95.2 — Homing endonucleases |
| 家族 Family family | d.95.2.1 — Group I mobile intron endonuclease |
| 结构域编号 domain_id | d1mowj2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.95 — Homing endonuclease-like |
| 超家族 Superfamily superfamily | d.95.2 — Homing endonucleases |
| 家族 Family family | d.95.2.1 — Group I mobile intron endonuclease |
CATH v4.4 (8 domains)
| 结构域编号 domain_id | 1mowA01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 28 — Endonuclease I-creI |
| 同源超家族 H-superfamily homologous superfamily | 10 — Homing endonucleases |
| 结构域编号 domain_id | 1mowA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 28 — Endonuclease I-creI |
| 同源超家族 H-superfamily homologous superfamily | 10 — Homing endonucleases |
| 结构域编号 domain_id | 1mowD01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 28 — Endonuclease I-creI |
| 同源超家族 H-superfamily homologous superfamily | 10 — Homing endonucleases |
| 结构域编号 domain_id | 1mowD02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 28 — Endonuclease I-creI |
| 同源超家族 H-superfamily homologous superfamily | 10 — Homing endonucleases |
| 结构域编号 domain_id | 1mowG01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 28 — Endonuclease I-creI |
| 同源超家族 H-superfamily homologous superfamily | 10 — Homing endonucleases |
| 结构域编号 domain_id | 1mowG02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 28 — Endonuclease I-creI |
| 同源超家族 H-superfamily homologous superfamily | 10 — Homing endonucleases |
| 结构域编号 domain_id | 1mowJ01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 28 — Endonuclease I-creI |
| 同源超家族 H-superfamily homologous superfamily | 10 — Homing endonucleases |
| 结构域编号 domain_id | 1mowJ02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 28 — Endonuclease I-creI |
| 同源超家族 H-superfamily homologous superfamily | 10 — Homing endonucleases |
