1. Protein Identity and Related Structures Protein Identity & Related Structures

RecA protein

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 7	ADENOSINE-5'-DIPHOSPHATE × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RECA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–352； UniProt 1–352 Author chain B； PDBConstruct 1–352； UniProt 1–352 Author chain C； PDBConstruct 1–352； UniProt 1–352 Author chain D； PDBConstruct 1–352； UniProt 1–352 Author chain E； PDBConstruct 1–352； UniProt 1–352 Author chain F； PDBConstruct 1–352； UniProt 1–352 Author chain G； PDBConstruct 1–352； UniProt 1–352

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1n03
Deposition date deposition_date	2002-10-10
Structure title title	Model for Active RecA Filament
Keywords keywords	helical polymer, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1n03__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1n03__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

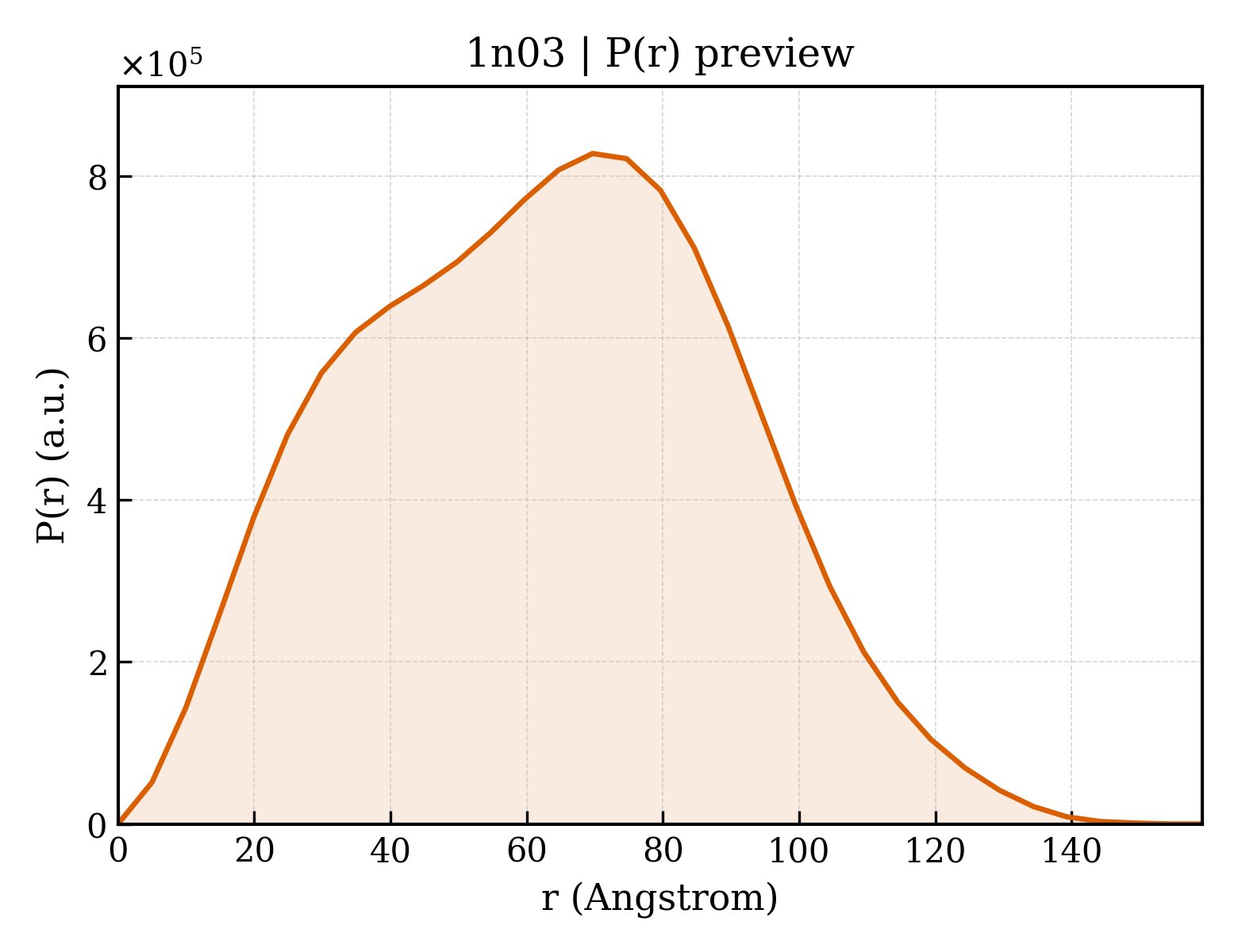

1n03__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	48.56 Å
Rg (electron density)	48.26 Å
Total Rg	48.38 Å
Atom count	189
Residues	0
Excluded volume	284000 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1n03__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (7 domains)

Domain ID domain_id	d1n03a_
Class class	i — Low resolution protein structures
Fold Fold fold	i.2 — Helicase
Superfamily Superfamily superfamily	i.2.1 — Helicase
Family Family family	i.2.1.1 — Helicase

Domain ID domain_id	d1n03b_
Class class	i — Low resolution protein structures
Fold Fold fold	i.2 — Helicase
Superfamily Superfamily superfamily	i.2.1 — Helicase
Family Family family	i.2.1.1 — Helicase

Domain ID domain_id	d1n03c_
Class class	i — Low resolution protein structures
Fold Fold fold	i.2 — Helicase
Superfamily Superfamily superfamily	i.2.1 — Helicase
Family Family family	i.2.1.1 — Helicase

Domain ID domain_id	d1n03d_
Class class	i — Low resolution protein structures
Fold Fold fold	i.2 — Helicase
Superfamily Superfamily superfamily	i.2.1 — Helicase
Family Family family	i.2.1.1 — Helicase

Domain ID domain_id	d1n03e_
Class class	i — Low resolution protein structures
Fold Fold fold	i.2 — Helicase
Superfamily Superfamily superfamily	i.2.1 — Helicase
Family Family family	i.2.1.1 — Helicase

Domain ID domain_id	d1n03f_
Class class	i — Low resolution protein structures
Fold Fold fold	i.2 — Helicase
Superfamily Superfamily superfamily	i.2.1 — Helicase
Family Family family	i.2.1.1 — Helicase

Domain ID domain_id	d1n03g_
Class class	i — Low resolution protein structures
Fold Fold fold	i.2 — Helicase
Superfamily Superfamily superfamily	i.2.1 — Helicase
Family Family family	i.2.1.1 — Helicase

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	20.00 Å
Resolution测定Method resolution_method	Iterative Helical Real Space Reconstruction method (Egelman, Ultramicroscopy 85, 225-234, 2000) was used.
颗粒数 num_particles	60000

Description description	RecA protein
Molecular weight formula_weight	37885.1 kDa
Source method src_method	nat
Copy count entity_count	7

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G
Atom count atom_count	2310

Model for Active RecA Filament

1. Protein Identity and Related Structures Protein Identity & Related Structures

RecA protein

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1n03__assembly_1__model_1

1n03__assembly_1__model_1 | I(q)

1n03__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

6. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (7 domains)

7. Citations (1)

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	7
