SAXSdb — 8trg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein RecA

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 1	LexA repressor × 2 （P0A7C2） DNA (27-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MAGNESIUM ION × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RECA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 27–379； UniProt 1–353 Author chain B； PDBConstruct 27–379； UniProt 1–353 Author chain C； PDBConstruct 27–379； UniProt 1–353 Author chain D； PDBConstruct 27–379； UniProt 1–353 Author chain E； PDBConstruct 27–379； UniProt 1–353 Author chain F； PDBConstruct 27–379； UniProt 1–353 Author chain G； PDBConstruct 27–379； UniProt 1–353 Author chain H； PDBConstruct 27–379； UniProt 1–353

LexA repressor

Escherichia coli

UniProt P0A7C2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 1	Protein RecA × 8 （P0A7G6） DNA (27-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MAGNESIUM ION × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LEXA_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain I； PDBConstruct 4–205； UniProt 1–202 Author chain J； PDBConstruct 4–205； UniProt 1–202

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8trg
Deposition date deposition_date	2023-08-09
Structure title title	Structure of full-length LexA bound to a RecA filament
Keywords keywords	Damage response, signal transduction, SIGNALING PROTEIN, SIGNALING PROTEIN-DNA complex; SIGNALING PROTEIN/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8trg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8trg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

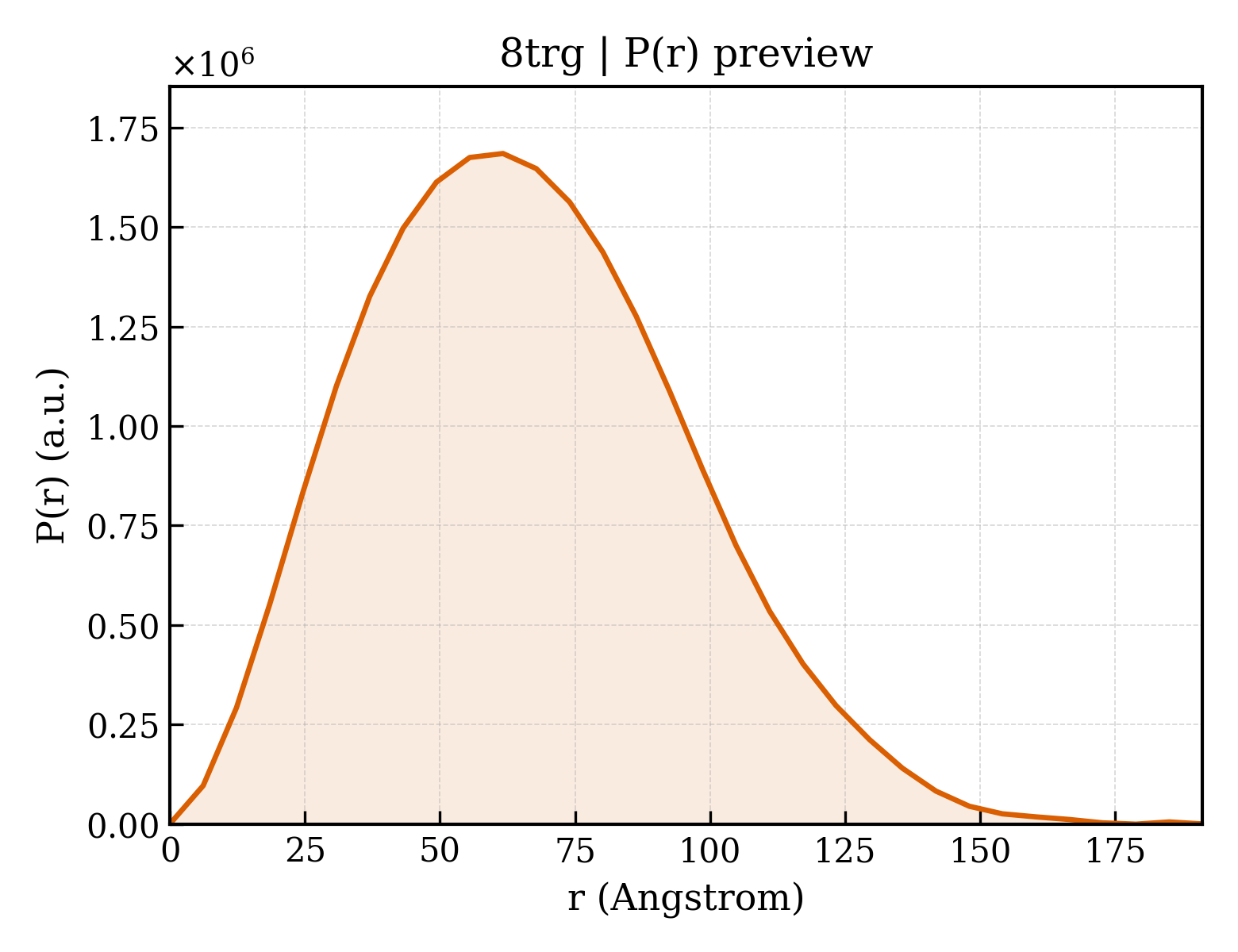

8trg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	50.97 Å
Rg (electron density)	51.01 Å
Total Rg	51.03 Å
Atom count	45897
Residues	2941
Excluded volume	406520 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8trg__assembly_1__model_1`	11-meric （11）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Protein RecA
Molecular weight formula_weight	41119.6 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	45897

MGSSHHHHHHHHHHHHSSGENLYFQGMAIDENKQKALAAALGQIEKQFGKGSIMRLGEDRSMDVETISTGSLSLDIALGAGGLPMGRIVEIYGPESSGKTTLTLQVIAAAQREGKTCAFIDAEHALDPIYARKLGVDIDNLLCSQPDTGEQALEICDALARSGAVDVIVVDSVAALTPKAEIEGEIGDSHMGLAARMMSQAMRKLAGNLKQSNTLLIFINQIRMKIGVMFGNPETTTGGNALKFYASVRLDIRRIGAVKEGENVVGSETRVKVVKNKIAAPFKQAEFQILYGEGINFYGELVDLGVKEKLIEKAGAWYSYKGEKIGQGKANATAWLKDNPETAKEIEKKVRELLLSNPNSTPDFSVDDSEGVAETNEDF

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	LexA repressor
Molecular weight formula_weight	22612.9 kDa
Mutation mutation	K156A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,J

GSHMKALTARQQEVFDLIRDHISQTGMPPTRAEIAQRLGFRSPNAAEEHLKALARKGVIEIVSGASRGIRLLQEEEEGLPLVGRVAAGEPLLAQQHIEGHYQVDPSLFKPNADFLLRVSGMSMKDIGIMDGDLLAVHKTQDVRNGQVVVARIDDEVTVARLKKQGNKVELLPENSEFKPIVVDLRQQSFTIEGLAVGVIRNGDWL

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	DNA (27-MER)
Molecular weight formula_weight	8618.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	L

TGGTGGTGGTGGTGGTGGTGGTGGTGG

Entity 4 Entity 4 non-polymer

Description description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	8

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.93 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	233920
