SAXSdb — 1jhf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

LEXA REPRESSOR

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LEXA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–202； UniProt 1–202 Author chain B； PDBConstruct 1–202； UniProt 1–202

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jhf
Deposition date deposition_date	2001-06-27
Structure title title	LEXA G85D MUTANT
Keywords keywords	LexA SOS repressor, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jhf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1jhf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

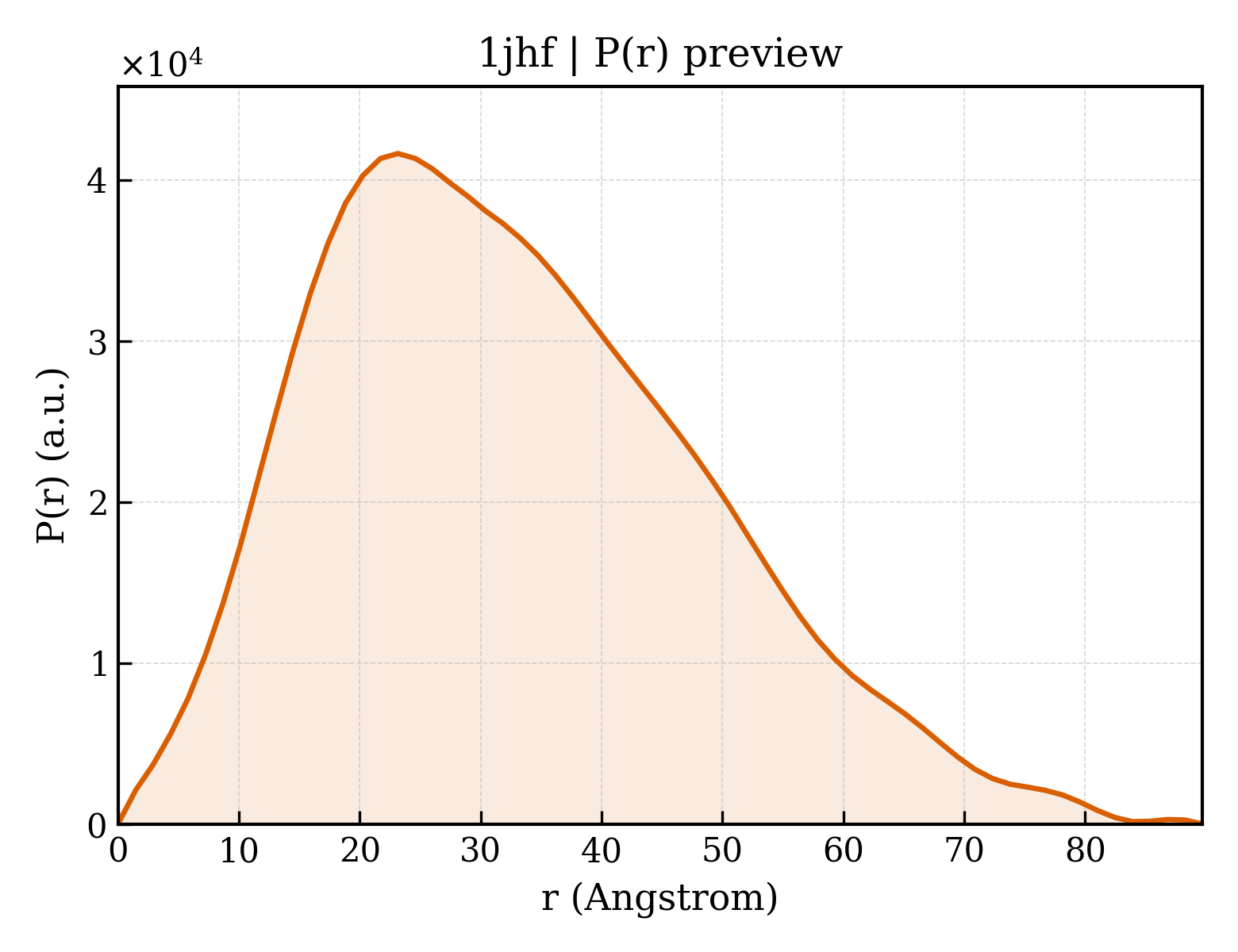

1jhf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.52 Å
Rg (electron density)	24.76 Å
Total Rg	25.48 Å
Atom count	2399
Residues	308
Excluded volume	42855 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jhf__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	LEXA REPRESSOR
Molecular weight formula_weight	22446.7 kDa
EC 编号 ec_number	3.4.21.88
Mutation mutation	G85D
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2561

MKALTARQQEVFDLIRDHISQTGMPPTRAEIAQRLGFRSPNAAEEHLKALARKGVIEIVSGASRGIRLLQEEEEGLPLVGRVAADEPLLAQQHIEGHYQVDPSLFKPNADFLLRVSGMSMKDIGIMDGDLLAVHKTQDVRNGQVVVARIDDEVTVKRLKKQGNKVELLPENSEFKPIVVDLRQQSFTIEGLAVGVIRNGDWL

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	162

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1jhfa1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.2 — LexA repressor, N-terminal DNA-binding domain

Domain ID domain_id	d1jhfa2
Class class	b — All beta proteins
Fold Fold fold	b.87 — LexA/Signal peptidase
Superfamily Superfamily superfamily	b.87.1 — LexA/Signal peptidase
Family Family family	b.87.1.1 — LexA-related

Domain ID domain_id	d1jhfb_
Class class	b — All beta proteins
Fold Fold fold	b.87 — LexA/Signal peptidase
Superfamily Superfamily superfamily	b.87.1 — LexA/Signal peptidase
Family Family family	b.87.1.1 — LexA-related

CATH v4.4 (3 domains)

Domain ID domain_id	1jhfA01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	109 — Umud Fragment, subunit A
Homologous superfamily homologous superfamily	10 — Umud Fragment, subunit A

Domain ID domain_id	1jhfA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	1jhfB00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	109 — Umud Fragment, subunit A
Homologous superfamily homologous superfamily	10 — Umud Fragment, subunit A

▶

Unit-cell length a length_a	90.020 Å
Unit-cell length b length_b	90.020 Å
Unit-cell length c length_c	102.820 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	—
R_work r_work	0.2400
R_free r_free	0.2630
