SAXSdb — 1n5z

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Peroxisomal membrane protein PAS20

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	14-mer peptide from Peroxisomal membrane protein PEX14 × 1 （P53112） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	14-mer peptide from Peroxisomal membrane protein PEX14 × 1 （P53112） water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 4	14-mer peptide from Peroxisomal membrane protein PEX14 × 2 （P53112） water × 4	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 4	14-mer peptide from Peroxisomal membrane protein PEX14 × 2 （P53112） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PEX13_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–92； UniProt 299–386 Author chain B； PDBConstruct 5–92； UniProt 299–386

14-mer peptide from Peroxisomal membrane protein PEX14

OrganismNot specified

UniProt P53112

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Peroxisomal membrane protein PAS20 × 1 （P80667） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Peroxisomal membrane protein PAS20 × 1 （P80667） water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 4	Peroxisomal membrane protein PAS20 × 2 （P80667） water × 4	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 4	Peroxisomal membrane protein PAS20 × 2 （P80667） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PEX14_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain P； PDBConstruct 1–14； UniProt 83–96 Author chain Q； PDBConstruct 1–14； UniProt 83–96

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1n5z
Deposition date deposition_date	2002-11-08
Structure title title	Complex structure of Pex13p SH3 domain with a peptide of Pex14p
Keywords keywords	SH3 domain, PxxP motif, Protein transport; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1n5z__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

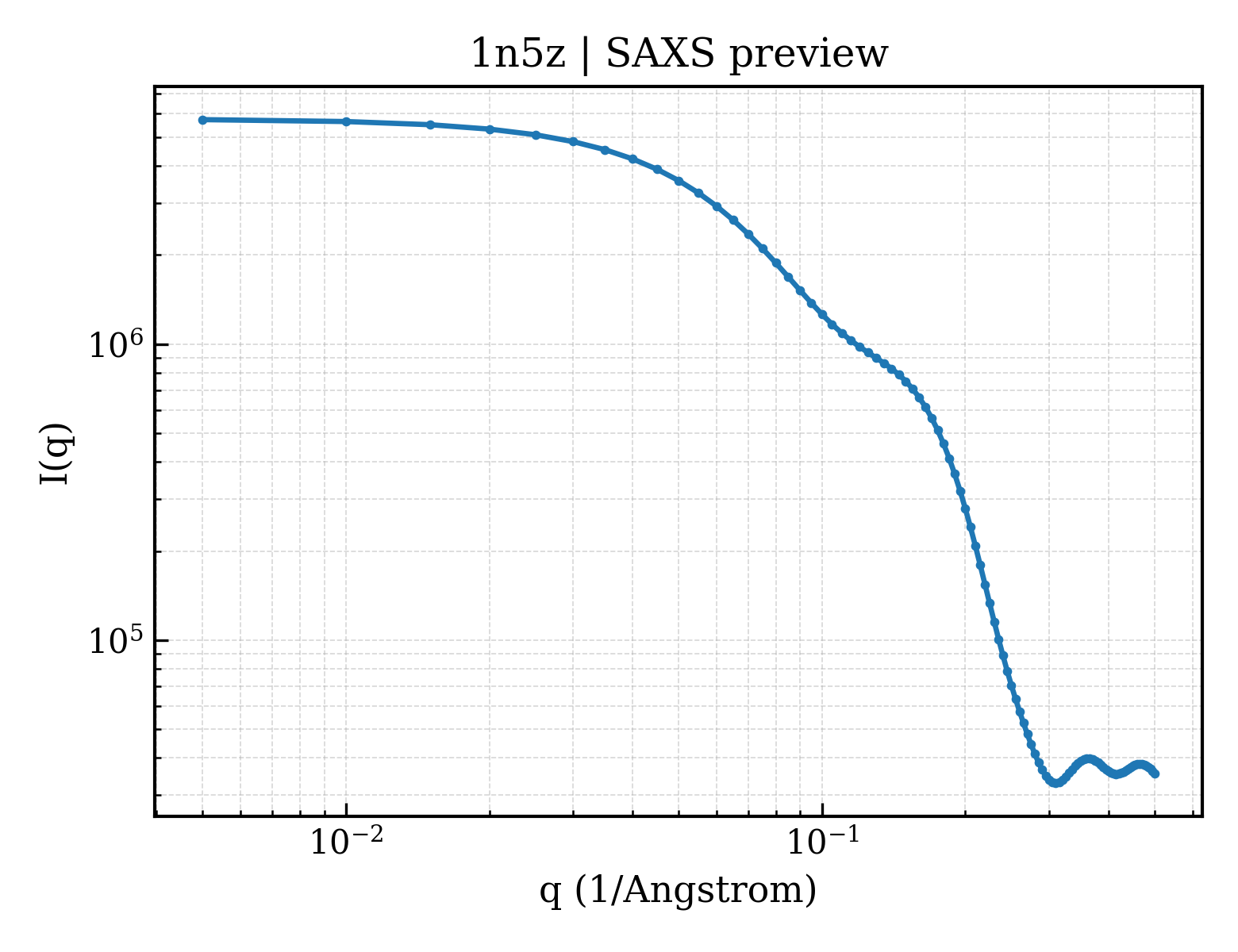

1n5z__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

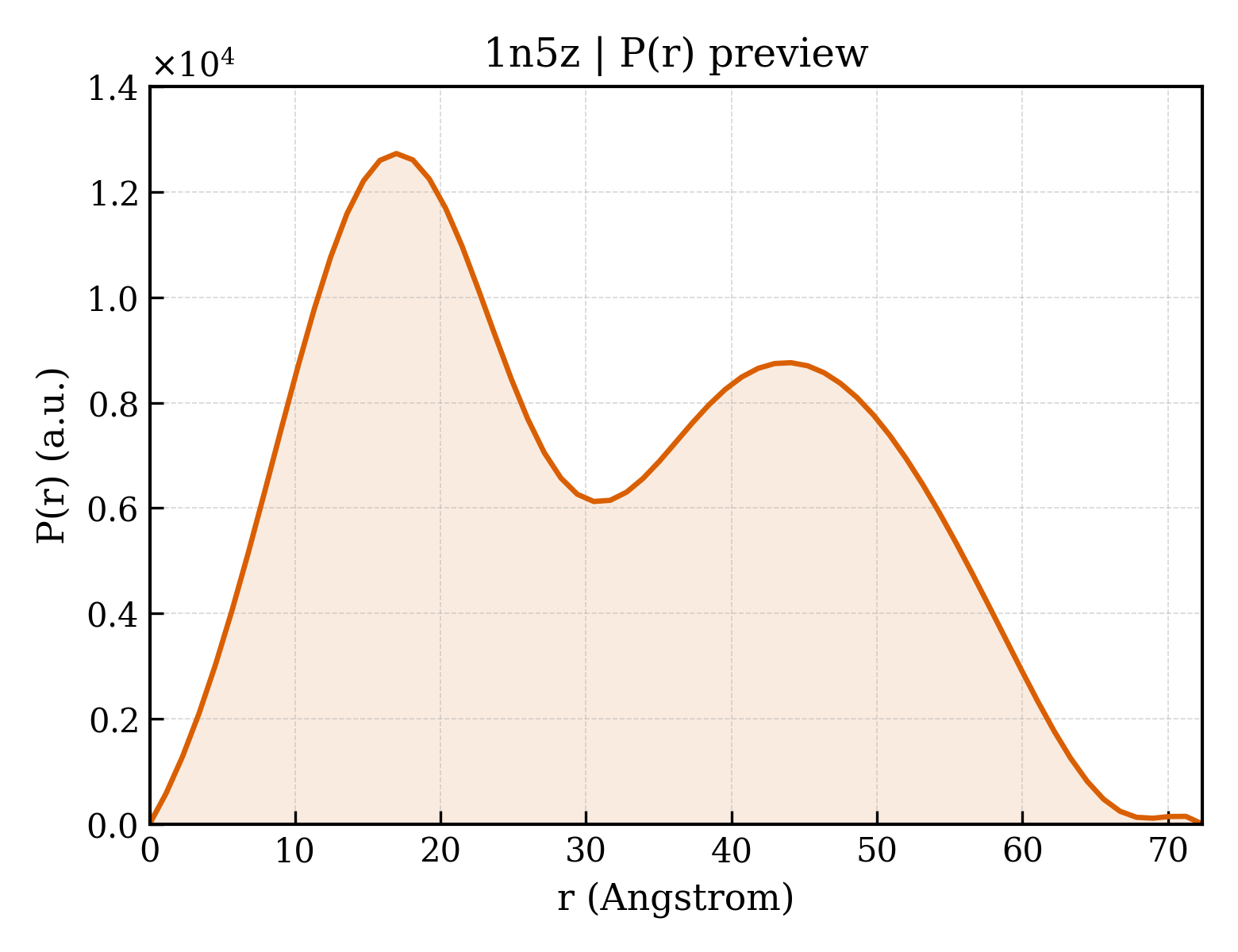

1n5z__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	13.64 Å
Rg (electron density)	12.23 Å
Total Rg	13.87 Å
Atom count	668
Residues	81
Excluded volume	12029 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1n5z__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1n5z__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1n5z__assembly_3__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1n5z__assembly_4__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Peroxisomal membrane protein PAS20
Molecular weight formula_weight	10782.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1344

ISEFGSEPIDPSKLEFARALYDFVPENPEMEVALKKGDLMAILSKKDPLGRDSDWWKVRTKNGNIGYIPYNYIEIIKRRKKIEHVDDETRTH

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	14-mer peptide from Peroxisomal membrane protein PEX14
Molecular weight formula_weight	1695.9 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P,Q

EAMPPTLPHRDWKD

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	18

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1n5za_
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.2 — SH3-domain
Family Family family	b.34.2.1 — SH3-domain

Domain ID domain_id	d1n5zb_
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.2 — SH3-domain
Family Family family	b.34.2.1 — SH3-domain

CATH v4.4 (2 domains)

Domain ID domain_id	1n5zA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

Domain ID domain_id	1n5zB00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

▶

Unit-cell length a length_a	50.350 Å
Unit-cell length b length_b	63.204 Å
Unit-cell length c length_c	66.935 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	0.2457
R_work r_work	0.2443
R_free r_free	0.2731
