1n73

Fibrin D-Dimer, Lamprey complexed with the PEPTIDE LIGAND: GLY-HIS-ARG-PRO-AMIDE

Method: X-RAY DIFFRACTION D_max: 226.0 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

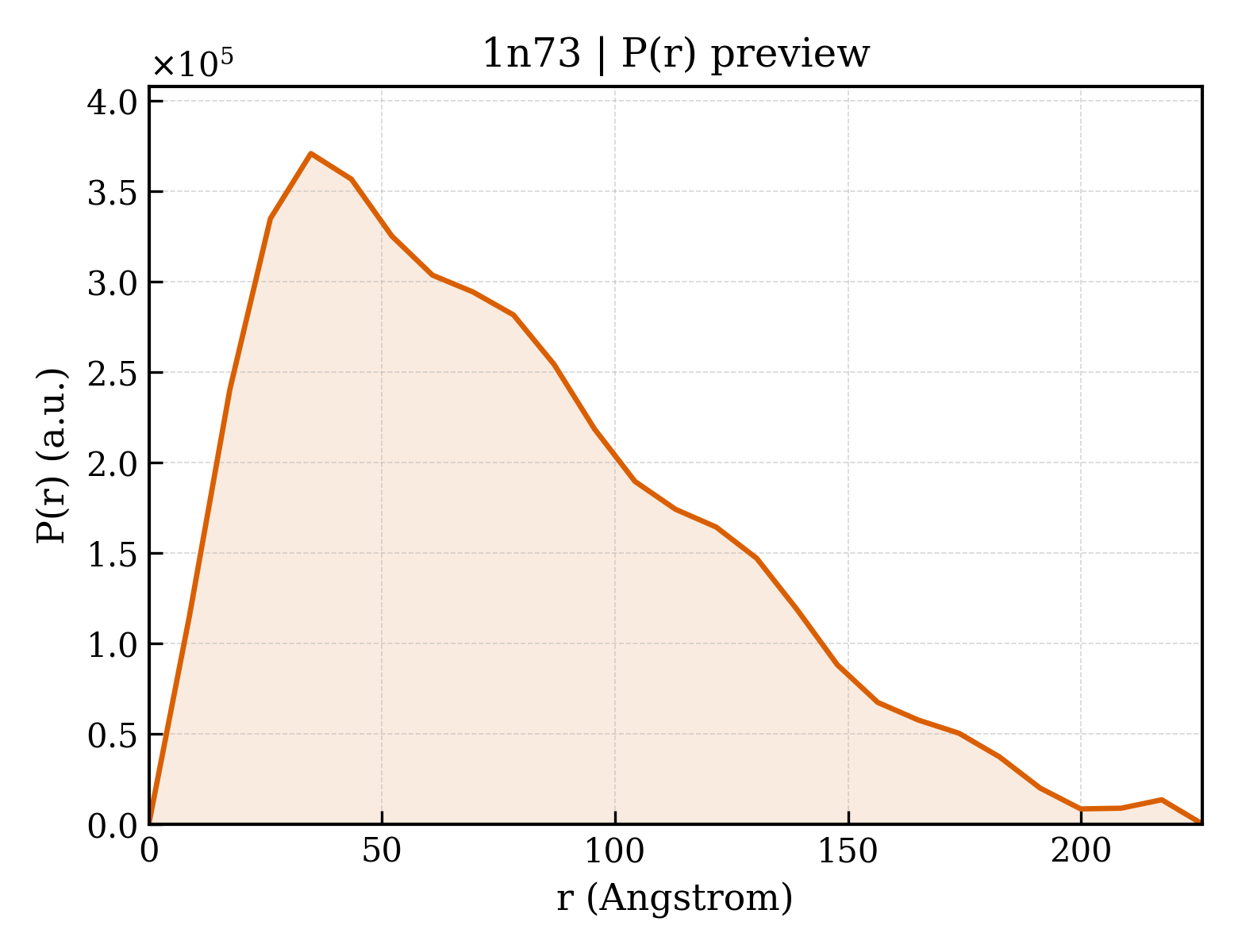

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1n73
沉积日期 deposition_date	2002-11-12
结构标题 title	Fibrin D-Dimer, Lamprey complexed with the PEPTIDE LIGAND: GLY-HIS-ARG-PRO-AMIDE
关键词 keywords	isopeptide cross-linked chains; protein-peptide complex, BLOOD CLOTTING; BLOOD CLOTTING
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	60.02 Å
回转半径 Rg (电子) rg_electron	62.63 Å
零角强度 I(0) i0	463290000.00
分子量 molecular_weight	171100.0 kDa
排除体积 excluded_volume	210870 Å³
包络体积 envelope_volume	307270 Å³
水化壳体积 shell_volume	49794 Å³
包络直径 envelope_diameter	257.3 Å
壳层 Rg shell_rg	46.47 Å
包络 Rg envelope_rg	64.98 Å
形状 Rg shape_rg	62.48 Å
总 Rg total_rg	62.60 Å
总原子数 total_atoms	12039
残基数 n_residues	1471
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	226.0 Å
Rg (实空间) rg_real	61.40 Å
Rg 误差 (实空间) rg_real_error	3.14 Å
I(0) (实空间) i0_real	4.6310e+08
I(0) 误差 (实空间) i0_real_error	1.0870e+07
Rg (倒空间) rg_reciprocal	58.75 Å
I(0) (倒空间) i0_reciprocal	461200000.0000
解质量估计 total_estimate	0.6881
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	34.8 Å
偏度 Skewness skewness	0.685
峰度 Kurtosis kurtosis	-0.142
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0019
最高正则化参数 α highest_alpha	9455000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.315; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.370; Smooth: 0.626

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Fibrin alpha-1 chain
分子量 formula_weight	14074.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D
原子数 atom_count	12039

AVSDTSGQTLNEHNELEVRYSEVLRELERRIIHLQRRINMQLQQLTLLQHNIKTQVSQILRVEVDIDVALRACKGSCARYLEYRLDKEKNLQLEKAASYIANLKFERFEEVVVEETLNR

Entity 2 polymer

描述 description	Fibrin beta chain
分子量 formula_weight	37061.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,E

SSTHVNAQKEIENRYKEVKIRIESTVAGSLRSMKSVLEHLRAKMQRMEEAIKTQKELCSAPCTVNCRVPVVSGMHCEDIYRNGGRTSEAYYIQPDLFSEPYKVFCDMESHGGGWTVVQNRVDGSSNFARDWNTYKAEFGNIAFGNGKSICNIPGEYWLGTKTVHQLTKQHTQQVLFDMSDWEGSSVYAQYASFRPENEAQGYRLWVEDYSGNAGNALLEGATQLMGDNRTMTIHNGMQFSTFDRDNDNWNPGDPTKHCSREDAGGWWYNRCHAANPNGRYYWGGIYTKEQADYGTDDGVVWMNWKGSWYSMRQMAMKLRPKWP

Entity 3 polymer

描述 description	Fibrin gamma chain
分子量 formula_weight	38167.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,F

DSGQKTVQKILEEVRILEQIGVSHDAQIQELSEMWRVNQQFVTRLQQQLVDIRQTCSRSCQDTTANKISPITGKDCQQVVDNGGKDSGLYYIKPLKAKQPFLVFCEIENGNGWTVIQHRHDGSVNFTRDWVSYREGFGYLAPTLTTEFWLGNEKIHLLTGQQAYRLRIDLTDWENTHRYADYGHFKLTPESDEYRLFYSMYLDGDAGNAFDGFDFGDDPQDKFYTTHLGMLFSTPERDNDKYEGSCAEQDGSGWWMNRCHAGHLNGKYYFGGNYRKTDVEFPYDDGIIWATWHDRWYSLKMTTMKLLPMGRDLSGHGGQQQSKGNSRGDN

Entity 4 polymer

描述 description	peptide ligand: Gly-his-Arg-Pro-amide
分子量 formula_weight	467.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H,I,J

GHRP

Entity 5 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	4

Entity 6 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (10 domains)

结构域编号 domain_id	d1n73a_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

结构域编号 domain_id	d1n73b1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.171 — Fibrinogen C-terminal domain-like
超家族 Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
家族 Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

结构域编号 domain_id	d1n73b2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

结构域编号 domain_id	d1n73c1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.171 — Fibrinogen C-terminal domain-like
超家族 Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
家族 Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

结构域编号 domain_id	d1n73c2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

结构域编号 domain_id	d1n73d_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

结构域编号 domain_id	d1n73e1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.171 — Fibrinogen C-terminal domain-like
超家族 Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
家族 Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

结构域编号 domain_id	d1n73e2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

结构域编号 domain_id	d1n73f1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.171 — Fibrinogen C-terminal domain-like
超家族 Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
家族 Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

结构域编号 domain_id	d1n73f2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

CATH v4.4 (14 domains)

结构域编号 domain_id	1n73A00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1n73B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

结构域编号 domain_id	1n73B02
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

结构域编号 domain_id	1n73B03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1n73C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

结构域编号 domain_id	1n73C02
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

结构域编号 domain_id	1n73C03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1n73D00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1n73E01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

结构域编号 domain_id	1n73E02
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

结构域编号 domain_id	1n73E03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1n73F01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

结构域编号 domain_id	1n73F02
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

结构域编号 domain_id	1n73F03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	50 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	49.732 Å
晶胞边长 b length_b	99.302 Å
晶胞边长 c length_c	120.732 Å
晶胞夹角 α angle_alpha	99.58 °
晶胞夹角 β angle_beta	101.46 °
晶胞夹角 γ angle_gamma	92.36 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2600
R_work r_work	0.2580
R_free r_free	0.2890

fit	/app/data/saxs_computation/n7/1n73/1n73.fit
pddf	/app/data/pr_computation/n7/1n73/1n73.pr.out
profile	/app/data/saxs_computation/n7/1n73/1n73.dat
