1nqt

Crystal structure of bovine Glutamate dehydrogenase-ADP complex

Method: X-RAY DIFFRACTION D_max: 210.7 Å Quality: REASONABLE

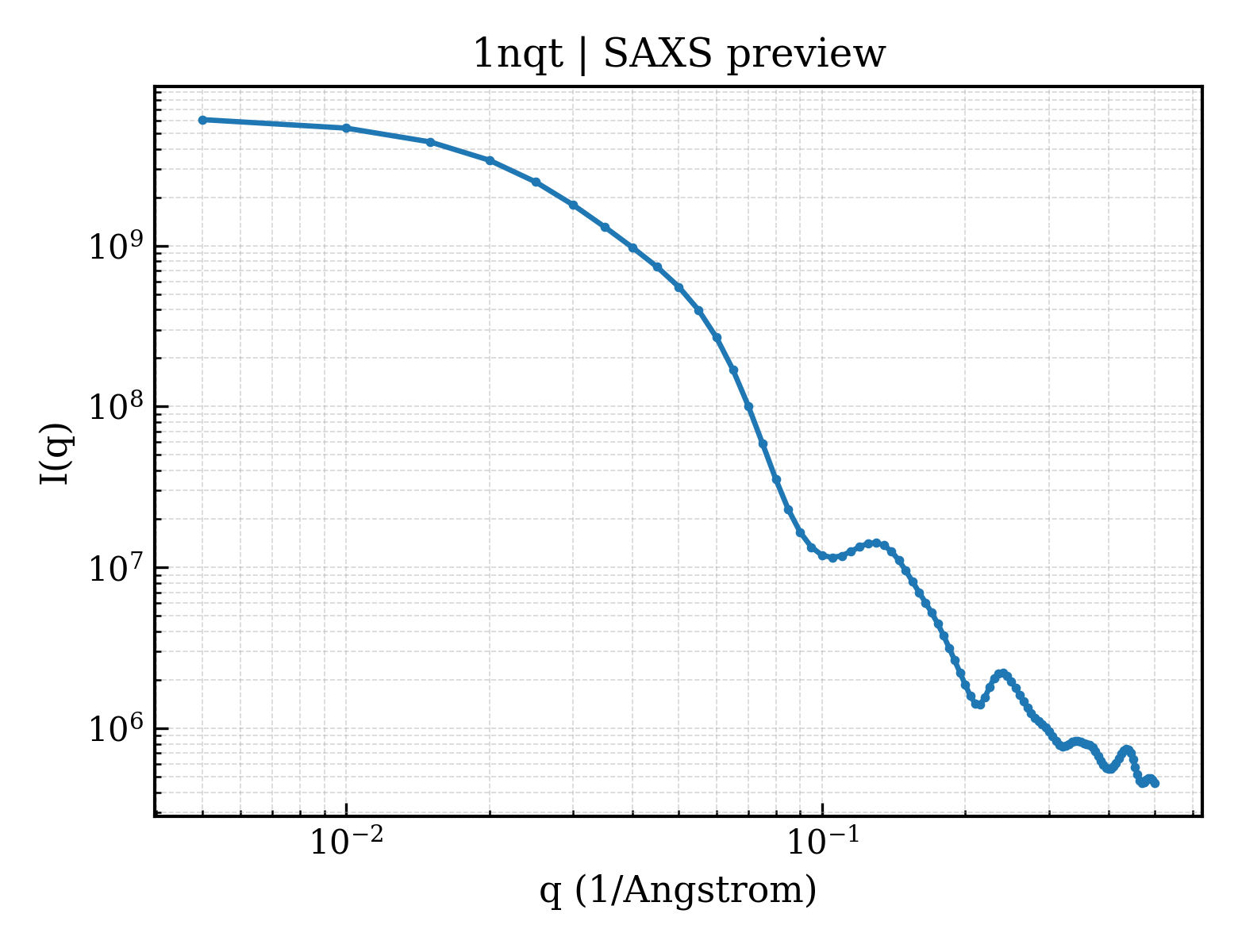

SAXS 散射曲线 SAXS Profile

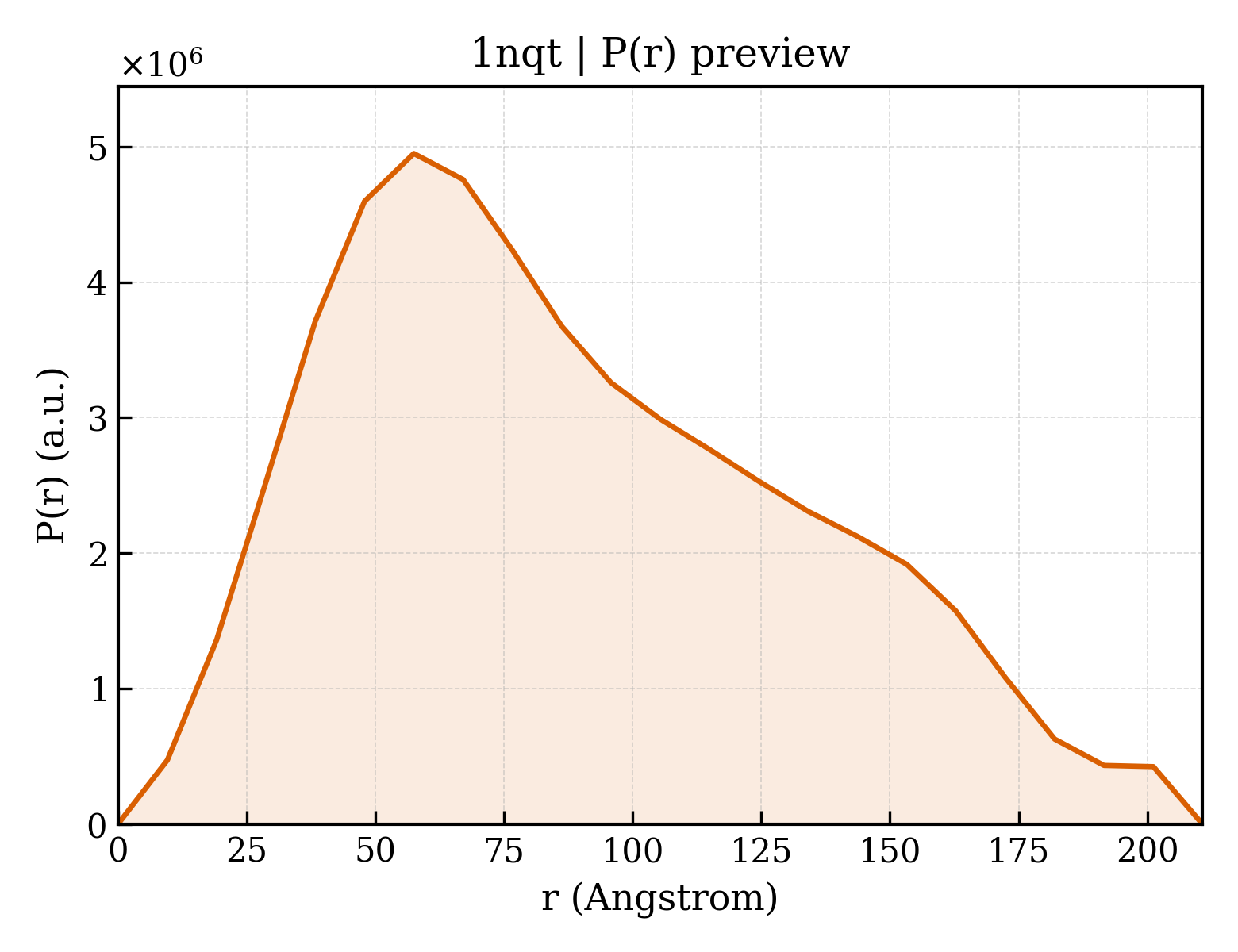

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1nqt
沉积日期 deposition_date	2003-01-23
结构标题 title	Crystal structure of bovine Glutamate dehydrogenase-ADP complex
关键词 keywords	glutamate dehydrogenase-ADP complex, dimer of two hexamers, regulation, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	69.69 Å
回转半径 Rg (电子) rg_electron	70.27 Å
零角强度 I(0) i0	6320980000.00
分子量 molecular_weight	665570.0 kDa
排除体积 excluded_volume	830040 Å³
包络体积 envelope_volume	1154300 Å³
水化壳体积 shell_volume	139140 Å³
包络直径 envelope_diameter	251.5 Å
壳层 Rg shell_rg	65.71 Å
包络 Rg envelope_rg	69.95 Å
形状 Rg shape_rg	70.26 Å
总 Rg total_rg	70.22 Å
总原子数 total_atoms	46812
残基数 n_residues	5952
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	210.7 Å
Rg (实空间) rg_real	69.50 Å
Rg 误差 (实空间) rg_real_error	1.14 Å
I(0) (实空间) i0_real	6.2970e+09
I(0) 误差 (实空间) i0_real_error	1.1820e+08
Rg (倒空间) rg_reciprocal	68.27 Å
I(0) (倒空间) i0_reciprocal	6299000000.0000
解质量估计 total_estimate	0.5769
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	57.5 Å
偏度 Skewness skewness	0.480
峰度 Kurtosis kurtosis	-0.588
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.0347
最高正则化参数 α highest_alpha	2230000000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.825; Stabil: 0.998; Sysdev: 0.006; Positv: 1.000; Valcen: 0.989; Smooth: 0.008

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

▼

6. 折叠分类 (SCOP + CATH) 60 domains

SCOP 2.08 (24 domains)

结构域编号 domain_id	d1nqta1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nqta2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nqtb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nqtb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nqtc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nqtc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nqtd1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nqtd2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nqte1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nqte2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nqtf1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nqtf2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nqtg1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nqtg2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nqth1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nqth2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nqti1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nqti2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nqtj1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nqtj2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nqtk1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nqtk2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nqtl1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nqtl2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

CATH v4.4 (36 domains)

结构域编号 domain_id	1nqtA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nqtA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nqtA03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nqtB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nqtB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nqtB03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nqtC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nqtC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nqtC03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nqtD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nqtD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nqtD03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nqtE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nqtE02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nqtE03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nqtF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nqtF02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nqtF03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nqtG01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nqtG02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nqtG03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nqtH01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nqtH02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nqtH03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nqtI01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nqtI02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nqtI03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nqtJ01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nqtJ02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nqtJ03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nqtK01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nqtK02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nqtK03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nqtL01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nqtL02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nqtL03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	96.460 Å
晶胞边长 b length_b	171.930 Å
晶胞边长 c length_c	439.680 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	48

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	3.500 Å
最低分辨率 resolution_low	19.970 Å
R 因子 r_factor	0.2071
R_work r_work	0.2070
R_free r_free	0.2760

描述 description	Glutamate dehydrogenase 1
分子量 formula_weight	55111.6 kDa
EC 编号 ec_number	1.4.1.3
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L
原子数 atom_count	46812

Crystal structure of bovine Glutamate dehydrogenase-ADP complex

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (2)

Entity 1 polymer

聚合体 Polymer

Entity 2 non-polymer

6. 折叠分类 (SCOP + CATH) 60 domains

SCOP 2.08 (24 domains)

CATH v4.4 (36 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

fit	/app/data/saxs_computation/nq/1nqt/1nqt.fit
pddf	/app/data/pr_computation/nq/1nqt/1nqt.pr.out
profile	/app/data/saxs_computation/nq/1nqt/1nqt.dat
