1nr7

Crystal structure of apo bovine glutamate dehydrogenase

Method: X-RAY DIFFRACTION D_max: 211.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

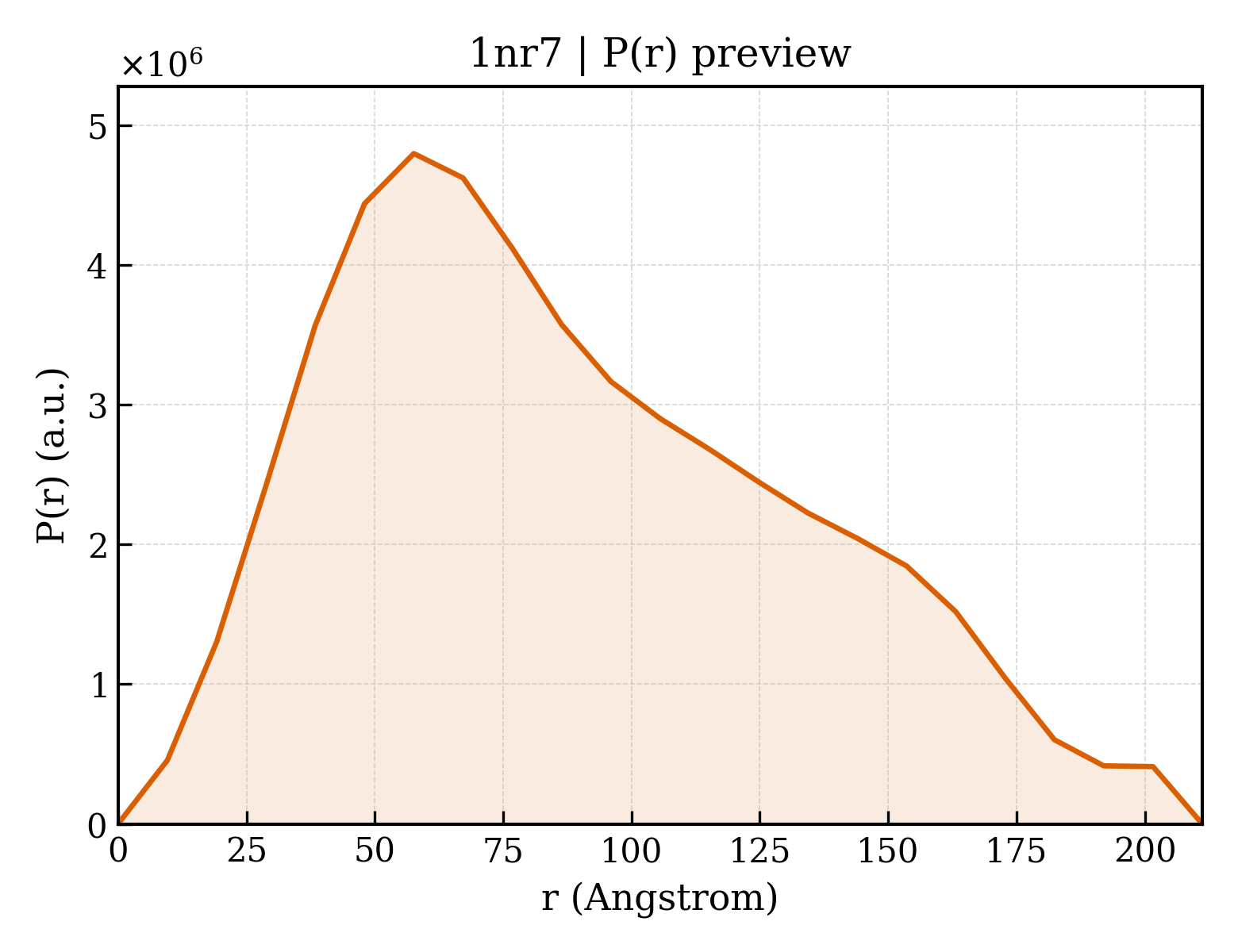

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1nr7
沉积日期 deposition_date	2003-01-23
结构标题 title	Crystal structure of apo bovine glutamate dehydrogenase
关键词 keywords	apo bovine glutamate dehydrogenase regulation allostery, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	69.85 Å
回转半径 Rg (电子) rg_electron	70.38 Å
零角强度 I(0) i0	6129220000.00
分子量 molecular_weight	660440.0 kDa
排除体积 excluded_volume	825760 Å³
包络体积 envelope_volume	1153800 Å³
水化壳体积 shell_volume	139080 Å³
包络直径 envelope_diameter	251.9 Å
壳层 Rg shell_rg	65.85 Å
包络 Rg envelope_rg	69.96 Å
形状 Rg shape_rg	70.37 Å
总 Rg total_rg	70.35 Å
总原子数 total_atoms	46488
残基数 n_residues	5952
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	211.2 Å
Rg (实空间) rg_real	69.65 Å
Rg 误差 (实空间) rg_real_error	1.05 Å
I(0) (实空间) i0_real	6.1050e+09
I(0) 误差 (实空间) i0_real_error	1.1460e+08
Rg (倒空间) rg_reciprocal	68.43 Å
I(0) (倒空间) i0_reciprocal	6108000000.0000
解质量估计 total_estimate	0.8067
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	57.6 Å
偏度 Skewness skewness	0.481
峰度 Kurtosis kurtosis	-0.581
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.0379
最高正则化参数 α highest_alpha	2337000000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.826; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.009

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (1)

▼

6. 折叠分类 (SCOP + CATH) 60 domains

SCOP 2.08 (24 domains)

结构域编号 domain_id	d1nr7a1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nr7a2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nr7b1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nr7b2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nr7c1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nr7c2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nr7d1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nr7d2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nr7e1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nr7e2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nr7f1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nr7f2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nr7g1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nr7g2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nr7h1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nr7h2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nr7i1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nr7i2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nr7j1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nr7j2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nr7k1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nr7k2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

结构域编号 domain_id	d1nr7l1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1nr7l2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.1 — Aminoacid dehydrogenases

CATH v4.4 (36 domains)

结构域编号 domain_id	1nr7A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nr7A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nr7A03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nr7B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nr7B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nr7B03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nr7C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nr7C02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nr7C03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nr7D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nr7D02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nr7D03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nr7E01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nr7E02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nr7E03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nr7F01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nr7F02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nr7F03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nr7G01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nr7G02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nr7G03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nr7H01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nr7H02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nr7H03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nr7I01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nr7I02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nr7I03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nr7J01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nr7J02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nr7J03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nr7K01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nr7K02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nr7K03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	1nr7L01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1nr7L02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1nr7L03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	140 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	96.460 Å
晶胞边长 b length_b	172.060 Å
晶胞边长 c length_c	440.750 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	48

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	3.300 Å
最低分辨率 resolution_low	19.990 Å
R 因子 r_factor	0.2181
R_work r_work	0.2180
R_free r_free	0.3010

描述 description	Glutamate dehydrogenase 1
分子量 formula_weight	55111.6 kDa
EC 编号 ec_number	1.4.1.3
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L
原子数 atom_count	46488

Crystal structure of apo bovine glutamate dehydrogenase

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (1)

Entity 1 polymer

聚合体 Polymer

6. 折叠分类 (SCOP + CATH) 60 domains

SCOP 2.08 (24 domains)

CATH v4.4 (36 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/nr/1nr7/1nr7.fit
pddf	/app/data/pr_computation/nr/1nr7/1nr7.pr.out
profile	/app/data/saxs_computation/nr/1nr7/1nr7.dat
