SAXSdb — 1oe9

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1oe9
沉积日期 deposition_date	2003-03-21
结构标题 title	Crystal structure of Myosin V motor with essential light chain-nucleotide-free
关键词 keywords	;ATPASE-MYOSIN COMPLEX, UNCONVENTIONAL MYOSIN, MYOSIN V, CHICKEN, MOLECULAR MOTOR, ATPASE, ELC, IQ MOTIF, MUSCLE PROTEIN, ATP-BINDING ;; ATPASE/MYOSIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.11 Å
回转半径 Rg (电子) rg_electron	36.16 Å
零角强度 I(0) i0	146454000.00
分子量 molecular_weight	98314.0 kDa
排除体积 excluded_volume	123520 Å³
包络体积 envelope_volume	162150 Å³
水化壳体积 shell_volume	40143 Å³
包络直径 envelope_diameter	135.4 Å
壳层 Rg shell_rg	39.07 Å
包络 Rg envelope_rg	36.44 Å
形状 Rg shape_rg	36.14 Å
总 Rg total_rg	36.44 Å
总原子数 total_atoms	6924
残基数 n_residues	870
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	131.2 Å
Rg (实空间) rg_real	36.49 Å
Rg 误差 (实空间) rg_real_error	1.23 Å
I(0) (实空间) i0_real	1.4650e+08
I(0) 误差 (实空间) i0_real_error	2.3690e+06
Rg (倒空间) rg_reciprocal	36.26 Å
I(0) (倒空间) i0_reciprocal	146400000.0000
解质量估计 total_estimate	0.7959
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	35.8 Å
偏度 Skewness skewness	0.600
峰度 Kurtosis kurtosis	-0.207
角度范围 angular_range	— – 0.2200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	18670000.0000
实空间数据点数 n_real_points	45
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.593; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.655; Smooth: 0.910

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	MYOSIN VA
分子量 formula_weight	91607.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	7263

MAASELYTKYARVWIPDPEEVWKSAELLKDYKPGDKVLQLRLEEGKDLEYCLDPKTKELPPLRNPDILVGENDLTALSYLHEPAVLHNLKVRFIDSKLIYTYCGIVLVAINPYEQLPIYGEDIINAYSGQNMGDMDPHIFAVAEEAYKQMARDERNQSIIVSGESGAGKTVSAKYAMRYFATVSGSASEANVEEKVLASNPIMESIGNAKTTRNDNSSRFGKYIEIGFDKRYRIIGANMRTYLLEKSRVVFQAEEERNYHIFYQLCASAALPEFKTLRLGNANYFHYTKQGGSPVIDGIDDAKEMVNTRQACTLLGISDSYQMGIFRILAGILHLGNVEFASRDSDSCAIPPKHDPLTIFCDLMGVDYEEMAHWLCHRKLATATETYIKPISKLHAINARDALAKHIYANLFNWIVDHVNKALHSTVKQHSFIGVLDIYGFETFEINSFEQFCINYANEKLQQQFNMHVFKLEQEEYMKEQIPWTLIDFYDNQPCINLIEAKMGVLDLLDEECKMPKGSDDTWAQKLYNTHLNKCALFEKPRLSNKAFIIKHFADKVEYQCEGFLEKNKDTVYEEQIKVLKSSKKFKLLPELFQDEEKAISPTSATPSGRVPLSRTPVKPAKARPGQTSKEHKKTVGHQFRNSLHLLMETLNATTPHYVRCIKPNDFKFPFTFDEKRAVQQLRACGVLETIRISAAGFPSRWTYQEFFSRYRVLMKQKDVLSDRKQTCKNVLEKLILDKDKYQFGKTKIFFRAGQVAYLEKIRADKLRAACIRIQKTIRGWLMRKKYMRMRRGDA

来源 Source

来源生物 organism	GALLUS GALLUS
通用名 common_name	CHICKEN
NCBI 分类编号 ncbi_taxonomy_id	9031
宿主生物 host_organism	SPODOPTERA FRUGIPERDA

Entity 2 polymer

描述 description	MYOSIN LIGHT CHAIN 1, SLOW-TWITCH MUSCLE A ISOFORM
分子量 formula_weight	17090.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MIEFNKDQLEEFKEAFELFDRVGDGKILYSQCGDVMRALGQNPTNAEVLKVLGNPKSDELKSRRVDFETFLPMLQAVAKNRGQGTYEDYLEGFRVFDKEGNGKVMGAELRHVLTTLGEKMTEEEVETVLAGHEDSNGCINYEAFLKHILSV

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	SPODOPTERA FRUGIPERDA

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	333

▼

6. 折叠分类 (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d1oe9a1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.34 — SH3-like barrel
超家族 Superfamily superfamily	b.34.3 — Myosin S1 fragment, N-terminal domain
家族 Family family	b.34.3.1 — Myosin S1 fragment, N-terminal domain

结构域编号 domain_id	d1oe9a2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.9 — Motor proteins

结构域编号 domain_id	d1oe9b_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.39 — EF Hand-like
超家族 Superfamily superfamily	a.39.1 — EF-hand
家族 Family family	a.39.1.5 — Calmodulin-like

CATH v4.4 (2 domains)

结构域编号 domain_id	1oe9B01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	1oe9B02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	53.933 Å
晶胞边长 b length_b	98.247 Å
晶胞边长 c length_c	111.378 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	101.43 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.050 Å
最低分辨率 resolution_low	40.000 Å
R 因子 r_factor	0.2220
R_work r_work	0.2200
R_free r_free	0.2640

fit	/app/data/saxs_computation/oe/1oe9/1oe9.fit
pddf	/app/data/pr_computation/oe/1oe9/1oe9.pr.out
profile	/app/data/saxs_computation/oe/1oe9/1oe9.dat

Crystal structure of Myosin V motor with essential light chain-nucleotide-free

SAXS 散射曲线 SAXS Profile

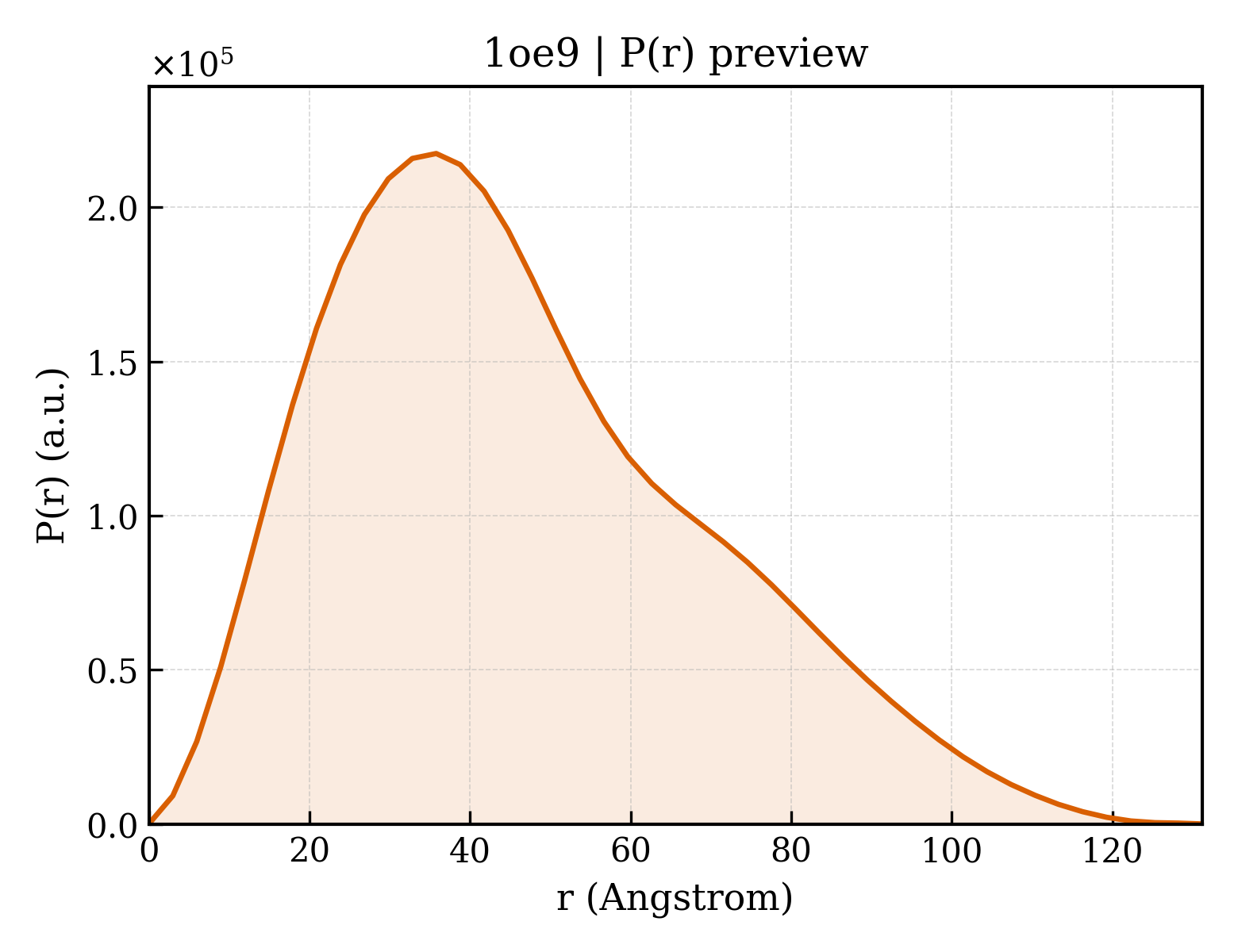

P(r) 距离分布 P(r) Distribution
