SAXSdb — 2dfs

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Myosin-5A

Gallus gallus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	Calmodulin × 12 （P62204）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MYO5A_CHICK
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1080； UniProt 1–1080 Author chain M； PDBConstruct 1–1080； UniProt 1–1080

Calmodulin

Mus musculus

UniProt P62204

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	Myosin-5A × 2 （Q02440）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CALM_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–148； UniProt 1–148 Author chain C； PDBConstruct 1–148； UniProt 1–148 Author chain D； PDBConstruct 1–148； UniProt 1–148 Author chain E； PDBConstruct 1–148； UniProt 1–148 Author chain F； PDBConstruct 1–148； UniProt 1–148 Author chain G； PDBConstruct 1–148； UniProt 1–148 Author chain N； PDBConstruct 1–148； UniProt 1–148 Author chain O； PDBConstruct 1–148； UniProt 1–148 Author chain P； PDBConstruct 1–148； UniProt 1–148 Author chain Q； PDBConstruct 1–148； UniProt 1–148 Author chain R； PDBConstruct 1–148； UniProt 1–148 Author chain S； PDBConstruct 1–148； UniProt 1–148

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2dfs
Deposition date deposition_date	2006-03-03
Structure title title	3-D structure of Myosin-V inhibited state
Keywords keywords	myosin-V, inhibited state, calmodulin, cryoelectron tomography, CONTRACTILE PROTEIN-TRANSPORT PROTEIN COMPLEX; CONTRACTILE PROTEIN/TRANSPORT PROTEIN
Experimental Method method	ELECTRON CRYSTALLOGRAPHY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2dfs__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2dfs__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

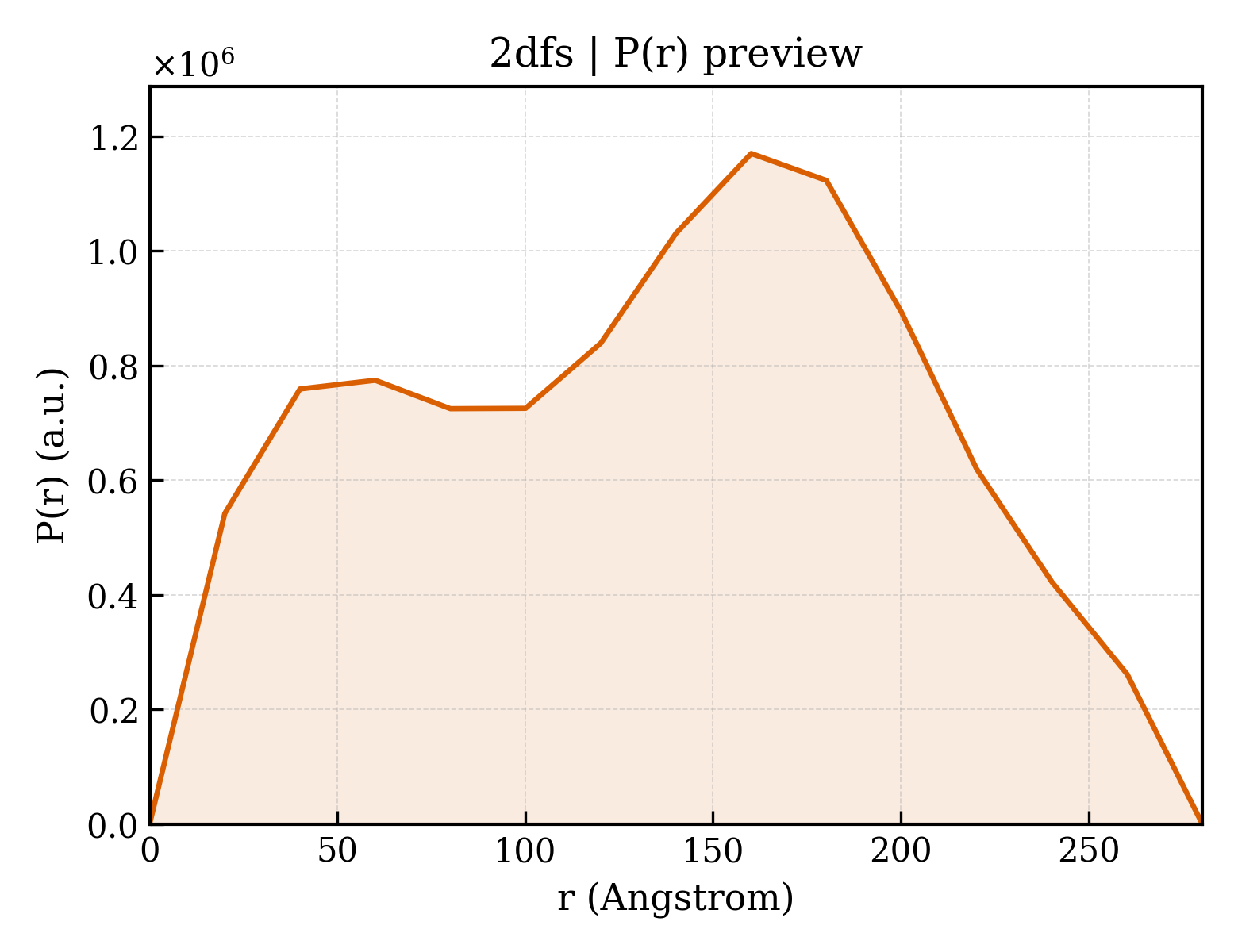

2dfs__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	109.10 Å
Total Rg	109.00 Å
Atom count	29614
Residues	3668
Excluded volume	524640 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2dfs__assembly_1__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Myosin-5A
Molecular weight formula_weight	126415.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,M
Atom count atom_count	29614

MAASELYTKYARVWIPDPEEVWKSAELLKDYKPGDKVLQLRLEEGKDLEYCLDPKTKELPPLRNPDILVGENDLTALSYLHEPAVLHNLKVRFIDSKLIYTYCGIVLVAINPYEQLPIYGEDIINAYSGQNMGDMDPHIFAVAEEAYKQMARDERNQSIIVSGESGAGKTVSAKYAMRYFATVSGSASEANVEEKVLASNPIMESIGNAKTTRNDNSSRFGKYIEIGFDKRYRIIGANMRTYLLEKSRVVFQAEEERNYHIFYQLCASAALPEFKTLRLGNANYFHYTKQGGSPVIDGIDDAKEMVNTRQACTLLGISDSYQMGIFRILAGILHLGNVEFASRDSDSCAIPPKHDPLTIFCDLMGVDYEEMAHWLCHRKLATATETYIKPISKLHAINARDALAKHIYANLFNWIVDHVNKALHSTVKQHSFIGVLDIYGFETFEINSFEQFCINYANEKLQQQFNMHVFKLEQEEYMKEQIPWTLIDFYDNQPCINLIEAKMGVLDLLDEECKMPKGSDDTWAQKLYNTHLNKCALFEKPRLSNKAFIIKHFADKVEYQCEGFLEKNKDTVYEEQIKVLKSSKKFKLLPELFQDEEKAISPTSATPSGRVPLSRTPVKPAKARPGQTSKEHKKTVGHQFRNSLHLLMETLNATTPHYVRCIKPNDFKFPFTFDEKRAVQQLRACGVLETIRISAAGFPSRWTYQEFFSRYRVLMKQKDVLSDRKQTCKNVLEKLILDKDKYQFGKTKIFFRAGQVAYLEKIRADKLRAACIRIQKTIRGWLMRKKYMRMRRAAITIQRYVRGHQARCYATFLRRTRAAIIIQKFQRMYVVRKRYQCMRDATIALQALLRGYLVRNKYQMMLREHKSIIIQKHVRGWLARVHYHRTLKAIVYLQCCYRRMMAKRELKKLKIEARSVERYKKLHIGLENKIMQLQRKIDEQNKEYKSLLEKMNNLEITYSTETEKLRSDVERLRMSEEEAKNATNRVLSLQEEIAKLRKELHQTQTEKKTIEEWADKYKHETEQLVSELKEQNTLLKTEKEELNRRIHDQAKEITETMEKKLVEETKQLELDLNDERLRYQ

Source Source

Source organism organism	Gallus gallus
Common name common_name	chicken
NCBI taxonomy ID ncbi_taxonomy_id	9031
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Calmodulin
Molecular weight formula_weight	16721.3 kDa
Source method src_method	man
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C,D,E,F,G,N,O,P,Q,R,S

ADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAK

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Spodoptera frugiperda

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d2dfsb1
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

Domain ID domain_id	d2dfsc1
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

Domain ID domain_id	d2dfsd1
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

Domain ID domain_id	d2dfse1
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

Domain ID domain_id	d2dfsf1
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

Domain ID domain_id	d2dfsg1
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

Domain ID domain_id	d2dfsn1
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

Domain ID domain_id	d2dfso1
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

Domain ID domain_id	d2dfsp1
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

Domain ID domain_id	d2dfsq1
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

Domain ID domain_id	d2dfsr1
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

Domain ID domain_id	d2dfss1
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

▶

Unit-cell length a length_a	653.000 Å
Unit-cell length b length_b	653.000 Å
Unit-cell length c length_c	200.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	72

Space group space_group	P 6
Space-group number int_tables_number	168
Crystal system crystal_system	—

Resolution resolution	24.00 Å
Resolution测定Method resolution_method	electron tomography and 3-D average
颗粒数 num_particles	4029

3-D structure of Myosin-V inhibited state
