SAXSdb — 1ofc

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ISWI PROTEIN

DROSOPHILA MELANOGASTER

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	alpha-D-glucopyranose × 1 4-deoxy-alpha-D-glucopyranose × 1 GLYCEROL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ISWI_DROME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain X； PDBConstruct 4–304； UniProt 691–991

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ofc
Deposition date deposition_date	2003-04-10
Structure title title	nucleosome recognition module of ISWI ATPase
Keywords keywords	NUCLEAR PROTEIN, CHROMATIN REMODELING FACTOR, ISWI, ATPASE, SANT DOMAIN, NUCLEOSOME RECOGNITION; NUCLEAR PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ofc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ofc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

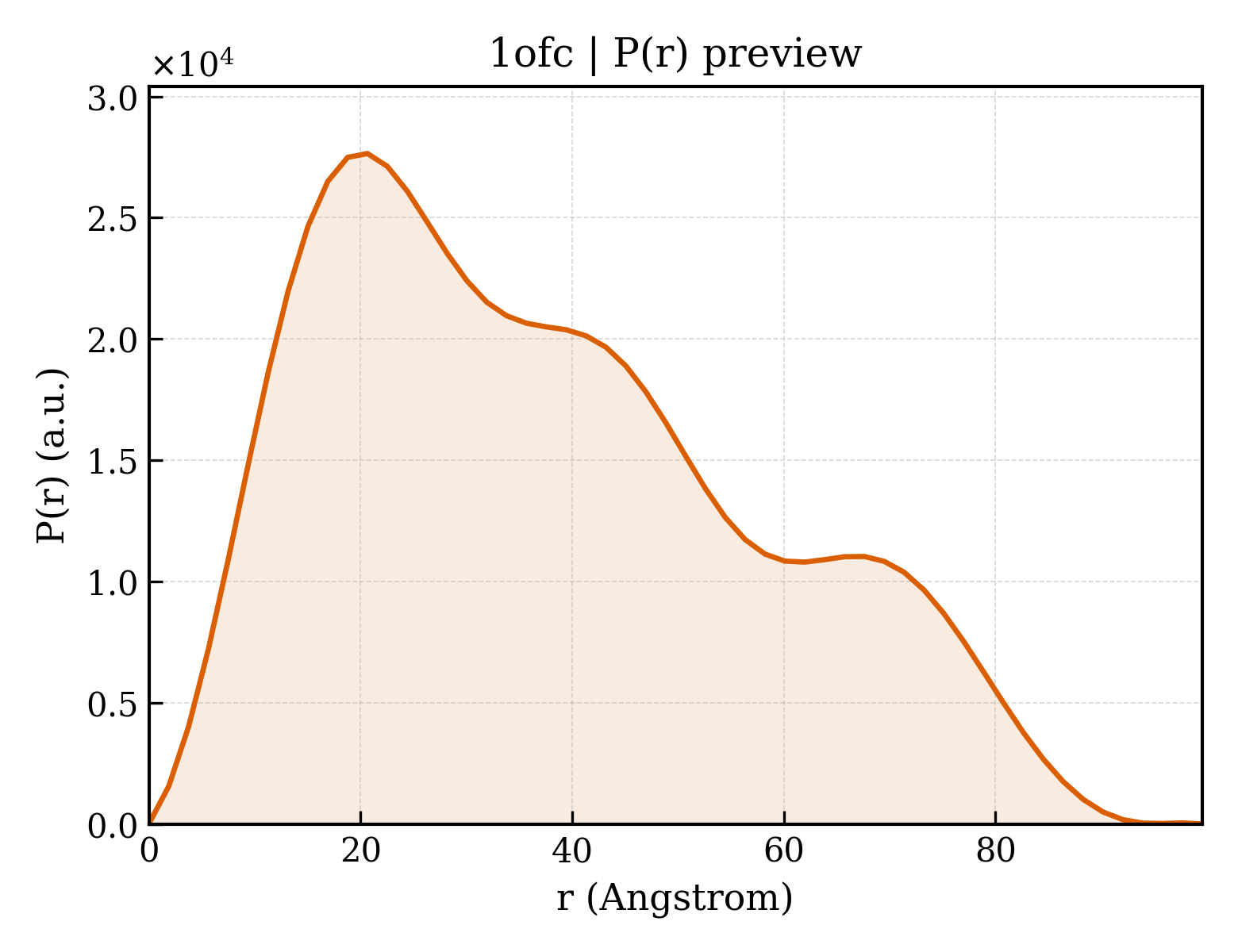

1ofc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.71 Å
Rg (electron density)	29.90 Å
Total Rg	30.23 Å
Atom count	2207
Residues	267
Excluded volume	39230 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ofc__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	ISWI PROTEIN
Molecular weight formula_weight	35885.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X
Atom count atom_count	2291

GAMERKANYAVDAYFREALRVSEPKAPKAPRPPKQPIVQDFQFFPPRLFELLDQEIYYFRKTVGYKVPKNTELGSDATKVQREEQRKIDEAEPLTEEEIQEKENLLSQGFTAWTKRDFNQFIKANEKYGRDDIDNIAKDVEGKTPEEVIEYNAVFWERCTELQDIERIMGQIERGEGKIQRRLSIKKALDQKMSRYRAPFHQLRLQYGNNKGKNYTEIEDRFLVCMLHKLGFDKENVYEELRAAIRASPQFRFDWFIKSRTALELQRRCNTLITLIERENIELEEKERAEKKKKAPKGSVSAGS

Source Source

Source organism organism	DROSOPHILA MELANOGASTER
Common name common_name	FRUIT FLY
NCBI taxonomy ID ncbi_taxonomy_id	7227
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	alpha-D-glucopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	4-deoxy-alpha-D-glucopyranose
Molecular weight formula_weight	164.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	48

▼

6. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1ofcx1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.1 — Homeodomain-like
Family Family family	a.4.1.3 — Myb/SANT domain

Domain ID domain_id	d1ofcx2
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.1 — Homeodomain-like
Family Family family	a.4.1.13 — SLIDE domain

Domain ID domain_id	d1ofcx3
Class class	a — All alpha proteins
Fold Fold fold	a.187 — HAND domain of the nucleosome remodeling ATPase ISWI
Superfamily Superfamily superfamily	a.187.1 — HAND domain of the nucleosome remodeling ATPase ISWI
Family Family family	a.187.1.1 — HAND domain of the nucleosome remodeling ATPase ISWI

CATH v4.4 (4 domains)

Domain ID domain_id	1ofcX01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1040 — N-(1-d-carboxylethyl)-l-norvaline Dehydrogenase; domain 2
Homologous superfamily homologous superfamily	30 — ISWI, HAND domain

Domain ID domain_id	1ofcX02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

Domain ID domain_id	1ofcX03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	1190 — iswi atpase

Domain ID domain_id	1ofcX04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

▶

Unit-cell length a length_a	109.470 Å
Unit-cell length b length_b	66.340 Å
Unit-cell length c length_c	82.830 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	124.41 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	18.800 Å
R factor r_factor	0.2195
R_work r_work	0.2177
R_free r_free	0.2534
