SAXSdb — 1ogq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

POLYGALACTURONASE INHIBITING PROTEIN

PHASEOLUS VULGARIS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ACETATE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PGI2_PHAVU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–313； UniProt 30–342

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ogq
Deposition date deposition_date	2003-05-08
Structure title title	The crystal structure of PGIP (polygalacturonase inhibiting protein), a leucine rich repeat protein involved in plant defense
Keywords keywords	POLYGALACTURONASE INHIBITING PROTEIN, INHIBITOR; INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ogq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ogq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

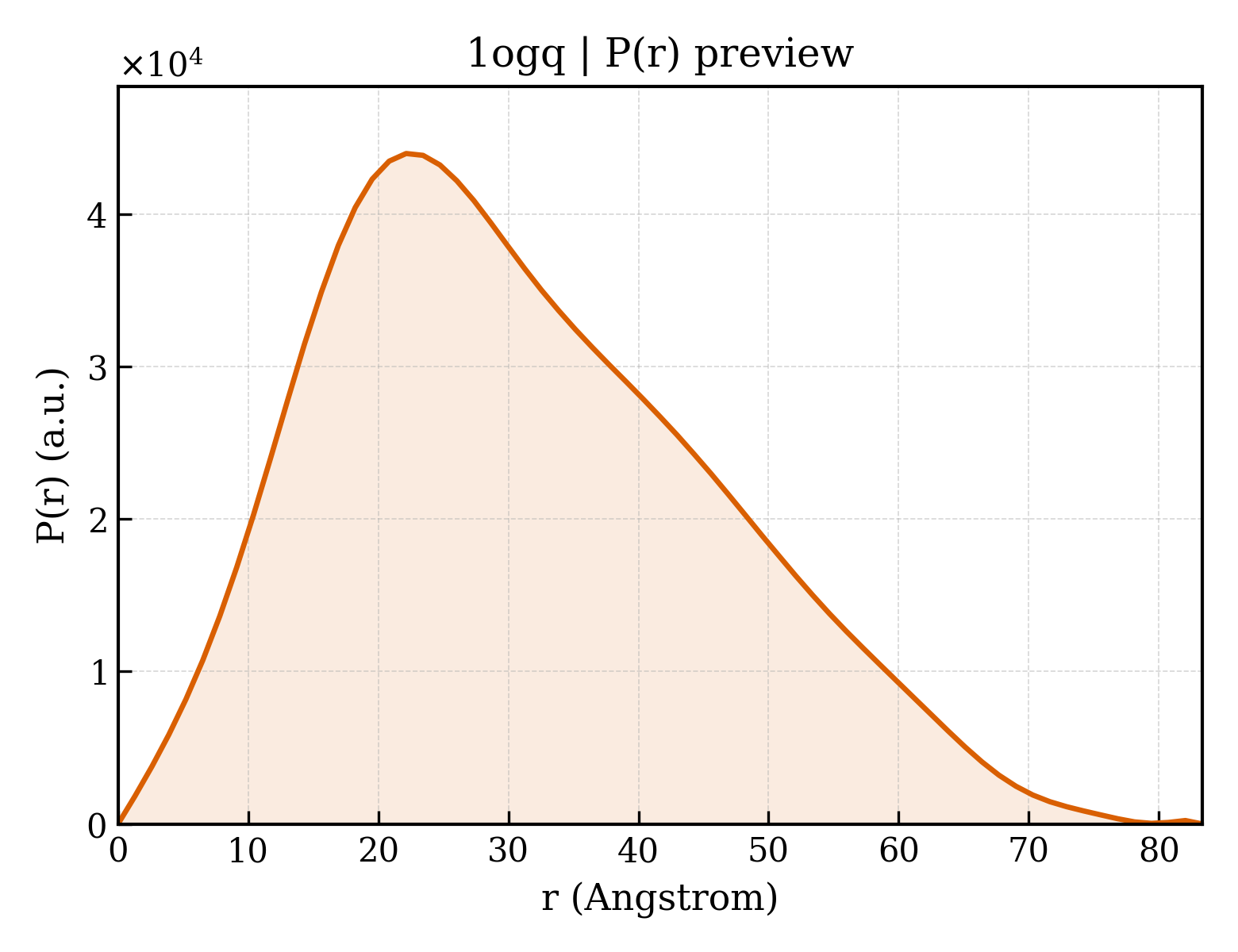

1ogq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.18 Å
Rg (electron density)	23.29 Å
Total Rg	24.24 Å
Atom count	2452
Residues	313
Excluded volume	43961 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ogq__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	POLYGALACTURONASE INHIBITING PROTEIN
Molecular weight formula_weight	34022.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2772

ELCNPQDKQALLQIKKDLGNPTTLSSWLPTTDCCNRTWLGVLCDTDTQTYRVNNLDLSGLNLPKPYPIPSSLANLPYLNFLYIGGINNLVGPIPPAIAKLTQLHYLYITHTNVSGAIPDFLSQIKTLVTLDFSYNALSGTLPPSISSLPNLVGITFDGNRISGAIPDSYGSFSKLFTSMTISRNRLTGKIPPTFANLNLAFVDLSRNMLEGDASVLFGSDKNTQKIHLAKNSLAFDLGKVGLSKNLNGLDLRNNRIYGTLPQGLTQLKFLHSLNVSFNNLCGEIPQGGNLQRFDVSAYANNKCLCGSPLPACT

Source Source

Source organism organism	PHASEOLUS VULGARIS
Common name common_name	KIDNEY BEAN
NCBI taxonomy ID ncbi_taxonomy_id	3885
Host organism host_organism	NICOTIANA BENTHAMIANA

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	320

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ogqa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Superfamily Superfamily superfamily	c.10.2 — L domain-like
Family Family family	c.10.2.8 — Polygalacturonase inhibiting protein PGIP

CATH v4.4 (1 domains)

Domain ID domain_id	1ogqA00
Class class	3 — Alpha Beta
Architecture architecture	80 — Alpha-Beta Horseshoe
Topology topology	10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Homologous superfamily homologous superfamily	10 — Ribonuclease Inhibitor

▶

Unit-cell length a length_a	134.840 Å
Unit-cell length b length_b	65.450 Å
Unit-cell length c length_c	34.640 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	—
R_work r_work	0.1900
R_free r_free	0.2400
