SAXSdb — 1ojm

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HYALURONATE LYASE

STREPTOCOCCUS PNEUMONIAE

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Monomer Protein × 1 其他Polymer 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 291–1009	Fragment：HYALURONATE LYASE, RESIDUES 287-1009	4-deoxy-alpha-L-threo-hex-4-enopyranuronic acid-(1-3)-2-acetamido-2-deoxy-beta-D-galactopyranose × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6；3.5M AMMONIUM SULFATE, 200MM SODIUM CACODYLATE, PH 6.0	Resolution 1.78 Å R-free 0.224

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1OJM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1C82 MECHANISM OF HYALURONAN BINDING AND DEGRADATION: STRUCTURE OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE IN COMPLEX WITH HYALURONIC ACID DISACCHARIDE AT 1.7 A RESOLUTION Deposited 2000-04-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 168–892（725 aa）	Not recorded	CAC CACODYLATE ION × 2 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6；293 K；AMMONIUM SULFATE, SODIUM CACODYLATE, pH 6.0, EVAPORATION, temperature 293K	Resolution 1.70 Å R-free 0.257
1EGU CRYSTAL STRUCTURE OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE AT 1.56 A RESOLUTION Deposited 2000-02-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 168–898（731 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；62% Saturated Ammonium Sulfate, 100 mM Sodium Cacodylate pH6.00, 100 mM Sodium Chloride, 10 mM EDTA, 2% dioxane , VAPOR DIFFUSION, HANGING DROP, temperature 295.0K	Resolution 1.56 Å R-free 0.236
1F9G CRYSTAL STRUCTURE OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE COCRYSTALLIZED WITH ASCORBIC ACID Deposited 2000-07-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 168–892（725 aa）	Not recorded	ASC ASCORBIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；ammonium sulfate, sodium cacodylate, dioxane, sodium chloride, ascorbic acid , pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.252
1N7N Streptococcus pneumoniae Hyaluronate Lyase W292A Mutant Deposited 2002-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 170–890（721 aa）	Mutation：W292A mutant	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；AMMONIUM SULFATE, SODIUM CACODYLATE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.55 Å R-free 0.209
1N7O Streptococcus pneumoniae Hyaluronate Lyase F343V Mutant Deposited 2002-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 170–890（721 aa）	Mutation：F343V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；294 K；AMMONIUM SULFATE, SODIUM CACODYLATE , pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.50 Å R-free 0.211
1N7P Streptococcus pneumoniae Hyaluronate Lyase W292A/F343V Double Mutant Deposited 2002-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 170–890（721 aa）	Mutation：W292A/F343V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；294 K；AMMONIUM SULFATE, SODIUM CACODYLATE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.55 Å R-free 0.234
1OJN SPECIFICITY AND MECHANISM OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE: COMPLEX OF THE TYR408PHE MUTANT WITH 6-SULPHATED CHONDROITIN DISACCHARIDE Deposited 2003-07-11	Different construct Different mutation/modification Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 285–1009（725 aa） Fragment：HYALURONATE LYASE, RESIDUES 285-1009	Mutation：YES	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；3.5M AMMONIUM SULFATE, 200MM SODIUM CACODYLATE, PH 6.0	Resolution 1.60 Å R-free 0.209
1OJO SPECIFICITY AND MECHANISM OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE: COMPLEX OF THE TYR408PHE MUTANT WITH 4-SULPHATED CHONDROITIN DISACCHARIDE Deposited 2003-07-11	Different construct Different mutation/modification Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 285–1009（725 aa） Fragment：HYALURONATE LYASE, RESIDUES 285-1009	Mutation：YES	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；3.5M AMMONIUM SULFATE, 200MM SODIUM CACODYLATE, PH 6.0	Resolution 1.75 Å R-free 0.219
1OJP SPECIFICITY AND MECHANISM OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE: COMPLEX WITH 6-SULPHATED CHONDROITIN DISACCHARIDE Deposited 2003-07-11	Different construct Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 285–1009（725 aa） Fragment：HYALURONATE LYASE, RESIDUES 285-1009	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；3.5M AMMONIUM SULFATE, 200MM SODIUM CACODYLATE, PH 6.0	Resolution 1.90 Å R-free 0.221
1W3Y Crystal structure of S. pneumoniae hyaluronate lyase in complex with palmitoyl-vitamin C Deposited 2004-07-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 297–1021（725 aa）	Not recorded	PVC (2E,4R,5S)-2,3,4,5-TETRAHYDROXY-6-(PALMITOYLOXY)HEX-2-ENOIC ACID × 1 XYL Xylitol × 2 SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；62% SATURATED AMMONIUM SULFATE, 100 MM SODIUM CACODYLATE PH6.00, 100 MM SODIUM CHLORIDE, 10 MM EDTA, 2% DIOXANE	Resolution 1.65 Å R-free 0.210
2BRP Crystal structure of S. pneumoniae hyaluronate lyase in complex with W249b Deposited 2005-05-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 285–1009（725 aa）	Not recorded	SIE SULFAMIC ACID 1-DECYL-2-(4-SULFAMOYLOXYPHENYL)-1H-INDOL-6-YL ESTER × 1 XLS D-xylose × 3 SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.00	Resolution 2.00 Å R-free 0.202
2BRV Crystal structure of Streptococcus Pneumoniae Hyaluronate Lyase from 70percent saturated malonate. Deposited 2005-05-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 285–1009（725 aa）	Not recorded	MLA MALONIC ACID × 6	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.6；pH 7.60	Resolution 3.30 Å R-free 0.327
2BRW Crystal structure of Streptococcus Pneumoniae Hyaluronate Lyase from 30percent PEGMME. Deposited 2005-05-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 285–1009（725 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；30% POLYETHYLENE GLYCOL MONOMETHYL ETHER (PEGMME) 2000, 0.1 M MES BUFFER, PH 6.5	Resolution 2.80 Å R-free 0.277
2BRW Crystal structure of Streptococcus Pneumoniae Hyaluronate Lyase from 30percent PEGMME. Deposited 2005-05-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 285–1009（725 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；30% POLYETHYLENE GLYCOL MONOMETHYL ETHER (PEGMME) 2000, 0.1 M MES BUFFER, PH 6.5	Resolution 2.80 Å R-free 0.277
4D0Q Hyaluronan Binding Module of the Streptococcal Pneumoniae Hyaluronate Lyase Deposited 2014-04-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 54–212（159 aa） Fragment：HYALURONAN BINDING DOMAIN, RESIDUES 54-212	Not recorded	EDO 1,2-ETHANEDIOL × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；292 K；BY THE SITTING DROP VAPOUR DIFFUSION METHOD BY MIXING EQUAL AMOUNTS OF THE PROTEIN SOLUTION WITH A MOTHER LIQUOR CONSISTING OF 18% (W/V) POLYETHYLENE GLYCOL 3,350 AND 0.1 M SODIUM ACETATE (PH 5.5) AT 292 K.	Resolution 1.20 Å R-free 0.159

14 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HYSA_STRPN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–723； UniProt 291–1009

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ojm
Deposition date deposition_date	2003-07-11
Structure title title	SPECIFICITY AND MECHANISM OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE: COMPLEX WITH UNSULPHATED CHONDROITIN DISACCHARIDE
Keywords keywords	LYASE, PROTEIN-CARBOHYDRATE COMPLEX; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.34 Å
Radius of gyration Rg (electron density) rg_electron	27.52 Å
Forward intensity I(0) i0	115034000.00
Molecular weight molecular_weight	82968.0 kDa
Excluded volume excluded_volume	102950 Å³
Envelope volume envelope_volume	121480 Å³
Hydration-shell volume shell_volume	36386 Å³
Envelope diameter envelope_diameter	96.2 Å
Shell Rg shell_rg	35.48 Å
Envelope Rg envelope_rg	27.68 Å
Shape Rg shape_rg	27.50 Å
Total Rg total_rg	28.32 Å
Total atoms total_atoms	5837
Residues n_residues	722
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	92.1 Å
Rg (real space) rg_real	28.32 Å
Rg uncertainty (real space) rg_real_error	0.49 Å
I(0) (real space) i0_real	1.1500e+08
I(0) uncertainty (real space) i0_real_error	1.5070e+06
Rg (reciprocal space) rg_reciprocal	28.33 Å
I(0) (reciprocal space) i0_reciprocal	115000000.0000
Solution quality estimate total_estimate	0.8882
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	32.9 Å
Skewness Skewness skewness	0.370
Kurtosis Kurtosis kurtosis	-0.345
Angular range angular_range	— – 0.2800 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	30530000.0000
Real-space data points n_real_points	57
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.857; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.975

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	HYALURONATE LYASE
Molecular weight formula_weight	83403.8 kDa
EC 编号 ec_number	4.2.2.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6514

VKDTYTDRLDDWNGIIAGNQYYDSKNDQMAKLNQELEGKVADSLSSISSQADRIYLWEKFSNYKTSANLTATYRKLEEMAKQVTNPSSRYYQDETVVRTVRDSMEWMHKHVYNSEKSIVGNWWDYEIGTPRAINNTLSLMKEYFSDEEIKKYTDVIEKFVPDPEHFRKTTDNPFKALGGNLVDMGRVKVIAGLLRKDDQEISSTIRSIEQVFKLVDQGEGFYQDGSYIDHTNVAYTGAYGNVLIDGLSQLLPVIQKTKNPIDKDKMQTMYHWIDKSFAPLLVNGELMDMSRGRSISRANSEGHVAAVEVLRGIHRIADMSEGETKQRLQSLVKTIVQSDSYYDVFKNLKTYKDISLMQSLLSDAGVASVPRTSYLSAFNKMDKTAMYNAEKGFGFGLSLFSSRTLNYEHMNKENKRGWYTSDGMFYLYNGDLSHYSDGYWPTVNPYKMPGTTETDAKRADSDTGKVLPSAFVGTSKLDDANATATMDFTNWNQTLTAHKSWFMLKDKIAFLGSNIQNTSTDTAATTIDQRKLESSNPYKVYVNDKEASLTEQEKDYPETQSVFLESSDSKKNIGYFFFKKSSISMSKALQKGAWKDINEGQSDKEVENEFLTISQAHKQNGDSYGYMLIPNVDRATFNQMIKELESSLIENNETLQSVYDAKQGVWGIVKYDDSVSTISNQFQVLKRGVYTIRKEGDEYKIAYYNPETQESAPDQEVFKKLEQHHHHHH

来源 Source

来源生物 organism	STREPTOCOCCUS PNEUMONIAE
NCBI Class编号 ncbi_taxonomy_id	1313
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 branched

Description description	4-deoxy-alpha-L-threo-hex-4-enopyranuronic acid-(1-3)-2-acetamido-2-deoxy-beta-D-galactopyranose
Molecular weight formula_weight	379.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	571

▼

7. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1ojma1
Class class	a — All alpha proteins
Fold Fold fold	a.102 — alpha/alpha toroid
Superfamily Superfamily superfamily	a.102.3 — Chondroitin AC/alginate lyase
Family Family family	a.102.3.2 — Hyaluronate lyase-like catalytic, N-terminal domain

Domain ID domain_id	d1ojma2
Class class	b — All beta proteins
Fold Fold fold	b.24 — Hyaluronate lyase-like, C-terminal domain
Superfamily Superfamily superfamily	b.24.1 — Hyaluronate lyase-like, C-terminal domain
Family Family family	b.24.1.1 — Hyaluronate lyase-like, C-terminal domain

Domain ID domain_id	d1ojma3
Class class	b — All beta proteins
Fold Fold fold	b.30 — Supersandwich
Superfamily Superfamily superfamily	b.30.5 — Galactose mutarotase-like
Family Family family	b.30.5.2 — Hyaluronate lyase-like, central domain

Domain ID domain_id	d1ojma4
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (3 domains)

Domain ID domain_id	1ojmA01
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	98 — Beta-galactosidase; Chain A, domain 5
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1ojmA02
Class class	1 — Mainly Alpha
Architecture architecture	50 — Alpha/alpha barrel
Topology topology	10 — Glycosyltransferase
Homologous superfamily homologous superfamily	100 — Chondroitin AC/alginate lyase

Domain ID domain_id	1ojmA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	220 — Chondroitinase Ac; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Polysaccharide lyase family 8-like, C-terminal

▶

8. Citations (2)

▶

Unit-cell length a length_a	83.656 Å
Unit-cell length b length_b	104.266 Å
Unit-cell length c length_c	98.786 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.780 Å
Low-resolution limit resolution_low	40.380 Å
R factor r_factor	0.2030
R_work r_work	0.2030
R_free r_free	0.2240

fit	/app/data/saxs_computation/oj/1ojm/1ojm.fit
pddf	/app/data/pr_computation/oj/1ojm/1ojm.pr.out
profile	/app/data/saxs_computation/oj/1ojm/1ojm.dat

SPECIFICITY AND MECHANISM OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE: COMPLEX WITH UNSULPHATED CHONDROITIN DISACCHARIDE

1. Protein Identity and Related Structures Protein Identity & Related Structures

HYALURONATE LYASE

State in the Current Structure

Other States of the Same Protein in the Database

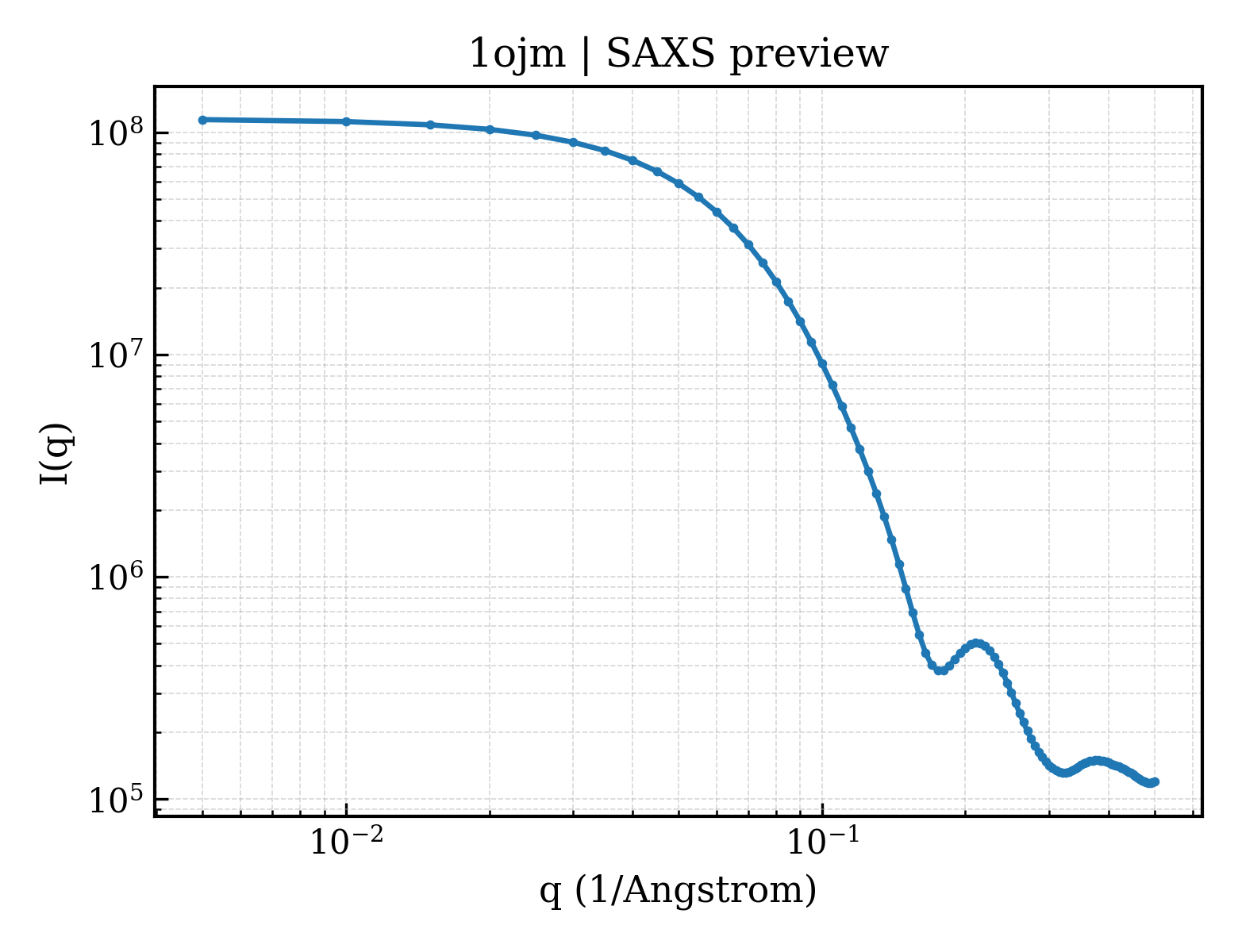

SAXS scattering curve SAXS Profile
