SAXSdb — 1w3y

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HYALURONATE LYASE

STREPTOCOCCUS PNEUMONIAE

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 297–1021	Not recorded	PVC (2E,4R,5S)-2,3,4,5-TETRAHYDROXY-6-(PALMITOYLOXY)HEX-2-ENOIC ACID × 1 XYL Xylitol × 2 SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6；62% SATURATED AMMONIUM SULFATE, 100 MM SODIUM CACODYLATE PH6.00, 100 MM SODIUM CHLORIDE, 10 MM EDTA, 2% DIOXANE	Resolution 1.65 Å R-free 0.210

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1W3Y	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1C82 MECHANISM OF HYALURONAN BINDING AND DEGRADATION: STRUCTURE OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE IN COMPLEX WITH HYALURONIC ACID DISACCHARIDE AT 1.7 A RESOLUTION Deposited 2000-04-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 168–892（725 aa）	Not recorded	CAC CACODYLATE ION × 2 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6；293 K；AMMONIUM SULFATE, SODIUM CACODYLATE, pH 6.0, EVAPORATION, temperature 293K	Resolution 1.70 Å R-free 0.257
1EGU CRYSTAL STRUCTURE OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE AT 1.56 A RESOLUTION Deposited 2000-02-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 168–898（731 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；62% Saturated Ammonium Sulfate, 100 mM Sodium Cacodylate pH6.00, 100 mM Sodium Chloride, 10 mM EDTA, 2% dioxane , VAPOR DIFFUSION, HANGING DROP, temperature 295.0K	Resolution 1.56 Å R-free 0.236
1F9G CRYSTAL STRUCTURE OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE COCRYSTALLIZED WITH ASCORBIC ACID Deposited 2000-07-10	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 168–892（725 aa）	Not recorded	ASC ASCORBIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；ammonium sulfate, sodium cacodylate, dioxane, sodium chloride, ascorbic acid , pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.252
1N7N Streptococcus pneumoniae Hyaluronate Lyase W292A Mutant Deposited 2002-11-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 170–890（721 aa）	Mutation：W292A mutant	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；AMMONIUM SULFATE, SODIUM CACODYLATE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.55 Å R-free 0.209
1N7O Streptococcus pneumoniae Hyaluronate Lyase F343V Mutant Deposited 2002-11-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 170–890（721 aa）	Mutation：F343V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；294 K；AMMONIUM SULFATE, SODIUM CACODYLATE , pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.50 Å R-free 0.211
1N7P Streptococcus pneumoniae Hyaluronate Lyase W292A/F343V Double Mutant Deposited 2002-11-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 170–890（721 aa）	Mutation：W292A/F343V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；294 K；AMMONIUM SULFATE, SODIUM CACODYLATE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.55 Å R-free 0.234
1OJM SPECIFICITY AND MECHANISM OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE: COMPLEX WITH UNSULPHATED CHONDROITIN DISACCHARIDE Deposited 2003-07-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 291–1009（719 aa） Fragment：HYALURONATE LYASE, RESIDUES 287-1009	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；3.5M AMMONIUM SULFATE, 200MM SODIUM CACODYLATE, PH 6.0	Resolution 1.78 Å R-free 0.224
1OJN SPECIFICITY AND MECHANISM OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE: COMPLEX OF THE TYR408PHE MUTANT WITH 6-SULPHATED CHONDROITIN DISACCHARIDE Deposited 2003-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 285–1009（725 aa） Fragment：HYALURONATE LYASE, RESIDUES 285-1009	Mutation：YES	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；3.5M AMMONIUM SULFATE, 200MM SODIUM CACODYLATE, PH 6.0	Resolution 1.60 Å R-free 0.209
1OJO SPECIFICITY AND MECHANISM OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE: COMPLEX OF THE TYR408PHE MUTANT WITH 4-SULPHATED CHONDROITIN DISACCHARIDE Deposited 2003-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 285–1009（725 aa） Fragment：HYALURONATE LYASE, RESIDUES 285-1009	Mutation：YES	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；3.5M AMMONIUM SULFATE, 200MM SODIUM CACODYLATE, PH 6.0	Resolution 1.75 Å R-free 0.219
1OJP SPECIFICITY AND MECHANISM OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE: COMPLEX WITH 6-SULPHATED CHONDROITIN DISACCHARIDE Deposited 2003-07-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 285–1009（725 aa） Fragment：HYALURONATE LYASE, RESIDUES 285-1009	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；3.5M AMMONIUM SULFATE, 200MM SODIUM CACODYLATE, PH 6.0	Resolution 1.90 Å R-free 0.221
2BRP Crystal structure of S. pneumoniae hyaluronate lyase in complex with W249b Deposited 2005-05-10	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 285–1009（725 aa）	Not recorded	SIE SULFAMIC ACID 1-DECYL-2-(4-SULFAMOYLOXYPHENYL)-1H-INDOL-6-YL ESTER × 1 XLS D-xylose × 3 SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.00	Resolution 2.00 Å R-free 0.202
2BRV Crystal structure of Streptococcus Pneumoniae Hyaluronate Lyase from 70percent saturated malonate. Deposited 2005-05-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 285–1009（725 aa）	Not recorded	MLA MALONIC ACID × 6	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.6；pH 7.60	Resolution 3.30 Å R-free 0.327
2BRW Crystal structure of Streptococcus Pneumoniae Hyaluronate Lyase from 30percent PEGMME. Deposited 2005-05-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 285–1009（725 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；30% POLYETHYLENE GLYCOL MONOMETHYL ETHER (PEGMME) 2000, 0.1 M MES BUFFER, PH 6.5	Resolution 2.80 Å R-free 0.277
2BRW Crystal structure of Streptococcus Pneumoniae Hyaluronate Lyase from 30percent PEGMME. Deposited 2005-05-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 285–1009（725 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；30% POLYETHYLENE GLYCOL MONOMETHYL ETHER (PEGMME) 2000, 0.1 M MES BUFFER, PH 6.5	Resolution 2.80 Å R-free 0.277
4D0Q Hyaluronan Binding Module of the Streptococcal Pneumoniae Hyaluronate Lyase Deposited 2014-04-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 54–212（159 aa） Fragment：HYALURONAN BINDING DOMAIN, RESIDUES 54-212	Not recorded	EDO 1,2-ETHANEDIOL × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；292 K；BY THE SITTING DROP VAPOUR DIFFUSION METHOD BY MIXING EQUAL AMOUNTS OF THE PROTEIN SOLUTION WITH A MOTHER LIQUOR CONSISTING OF 18% (W/V) POLYETHYLENE GLYCOL 3,350 AND 0.1 M SODIUM ACETATE (PH 5.5) AT 292 K.	Resolution 1.20 Å R-free 0.159

14 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HYSA_STRPN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–725； UniProt 297–1021

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1w3y
Deposition date deposition_date	2004-07-21
Structure title title	Crystal structure of S. pneumoniae hyaluronate lyase in complex with palmitoyl-vitamin C
Keywords keywords	(ALFA5/ALFA5) BARREL, LYASE, PEPTIDOGLYCAN-ANCHOR; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.37 Å
Radius of gyration Rg (electron density) rg_electron	27.55 Å
Forward intensity I(0) i0	116119000.00
Molecular weight molecular_weight	83363.0 kDa
Excluded volume excluded_volume	103490 Å³
Envelope volume envelope_volume	122650 Å³
Hydration-shell volume shell_volume	36733 Å³
Envelope diameter envelope_diameter	95.7 Å
Shell Rg shell_rg	35.45 Å
Envelope Rg envelope_rg	27.66 Å
Shape Rg shape_rg	27.54 Å
Total Rg total_rg	28.33 Å
Total atoms total_atoms	5862
Residues n_residues	721
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	90.7 Å
Rg (real space) rg_real	28.35 Å
Rg uncertainty (real space) rg_real_error	0.52 Å
I(0) (real space) i0_real	1.1610e+08
I(0) uncertainty (real space) i0_real_error	1.5530e+06
Rg (reciprocal space) rg_reciprocal	28.36 Å
I(0) (reciprocal space) i0_reciprocal	116100000.0000
Solution quality estimate total_estimate	0.7172
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	32.4 Å
Skewness Skewness skewness	0.366
Kurtosis Kurtosis kurtosis	-0.342
Angular range angular_range	— – 0.2800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	30950000.0000
Real-space data points n_real_points	57
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.879; Stabil: 1.000; Sysdev: 0.242; Positv: 1.000; Valcen: 0.999; Smooth: 0.956

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	HYALURONATE LYASE
Molecular weight formula_weight	83561.9 kDa
EC 编号 ec_number	4.2.2.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6471

ASVKDTYTDRLDDWNGIIAGNQYYDSKNDQMAKLNQELEGKVADSLSSISSQADRIYLWEKFSNYKTSANLTATYRKLEEMAKQVTNPSSRYYQDETVVRTVRDSMEWMHKHVYNSEKSIVGNWWDYEIGTPRAINNTLSLMKEYFSDEEIKKYTDVIEKFVPDPEHFRKTTDNPFKALGGNLVDMGRVKVIAGLLRKDDQEISSTIRSIEQVFKLVDQGEGFYQDGSYIDHTNVAYTGAYGNVLIDGLSQLLPVIQKTKNPIDKDKMQTMYHWIDKSFAPLLVNGELMDMSRGRSISRANSEGHVAAVEVLRGIHRIADMSEGETKQRLQSLVKTIVQSDSYYDVFKNLKTYKDISLMQSLLSDAGVASVPRTSYLSAFNKMDKTAMYNAEKGFGFGLSLFSSRTLNYEHMNKENKRGWYTSDGMFYLYNGDLSHYSDGYWPTVNPYKMPGTTETDAKRADSDTGKVLPSAFVGTSKLDDANATATMDFTNWNQTLTAHKSWFMLKDKIAFLGSNIQNTSTDTAATTIDQRKLESSNPYKVYVNDKEASLTEQEKDYPETQSVFLESSDSKKNIGYFFFKKSSISMSKALQKGAWKDINEGQSDKEVENEFLTISQAHKQNGDSYGYMLIPNVDRATFNQMIKELESSLIENNETLQSVYDAKQGVWGIVKYDDSVSTISNQFQVLKRGVYTIRKEGDEYKIAYYNPETQESAPDQEVFKKLEQHHHHHH

来源 Source

来源生物 organism	STREPTOCOCCUS PNEUMONIAE
NCBI Class编号 ncbi_taxonomy_id	1313
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	(2E,4R,5S)-2,3,4,5-TETRAHYDROXY-6-(PALMITOYLOXY)HEX-2-ENOIC ACID
Molecular weight formula_weight	432.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	Xylitol
Molecular weight formula_weight	152.1 kDa
Source method src_method	man
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	564

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1w3ya1
Class class	a — All alpha proteins
Fold Fold fold	a.102 — alpha/alpha toroid
Superfamily Superfamily superfamily	a.102.3 — Chondroitin AC/alginate lyase
Family Family family	a.102.3.2 — Hyaluronate lyase-like catalytic, N-terminal domain

Domain ID domain_id	d1w3ya2
Class class	b — All beta proteins
Fold Fold fold	b.24 — Hyaluronate lyase-like, C-terminal domain
Superfamily Superfamily superfamily	b.24.1 — Hyaluronate lyase-like, C-terminal domain
Family Family family	b.24.1.1 — Hyaluronate lyase-like, C-terminal domain

Domain ID domain_id	d1w3ya3
Class class	b — All beta proteins
Fold Fold fold	b.30 — Supersandwich
Superfamily Superfamily superfamily	b.30.5 — Galactose mutarotase-like
Family Family family	b.30.5.2 — Hyaluronate lyase-like, central domain

CATH v4.4 (3 domains)

Domain ID domain_id	1w3yA01
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	98 — Beta-galactosidase; Chain A, domain 5
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1w3yA02
Class class	1 — Mainly Alpha
Architecture architecture	50 — Alpha/alpha barrel
Topology topology	10 — Glycosyltransferase
Homologous superfamily homologous superfamily	100 — Chondroitin AC/alginate lyase

Domain ID domain_id	1w3yA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	220 — Chondroitinase Ac; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Polysaccharide lyase family 8-like, C-terminal

▶

8. Citations (1)

▶

Unit-cell length a length_a	84.131 Å
Unit-cell length b length_b	102.714 Å
Unit-cell length c length_c	102.410 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.650 Å
Low-resolution limit resolution_low	45.910 Å
R factor r_factor	0.1924
R_work r_work	0.1924
R_free r_free	0.2100

fit	/app/data/saxs_computation/w3/1w3y/1w3y.fit
pddf	/app/data/pr_computation/w3/1w3y/1w3y.pr.out
profile	/app/data/saxs_computation/w3/1w3y/1w3y.dat

Crystal structure of S. pneumoniae hyaluronate lyase in complex with palmitoyl-vitamin C

1. Protein Identity and Related Structures Protein Identity & Related Structures

HYALURONATE LYASE

State in the Current Structure

Other States of the Same Protein in the Database

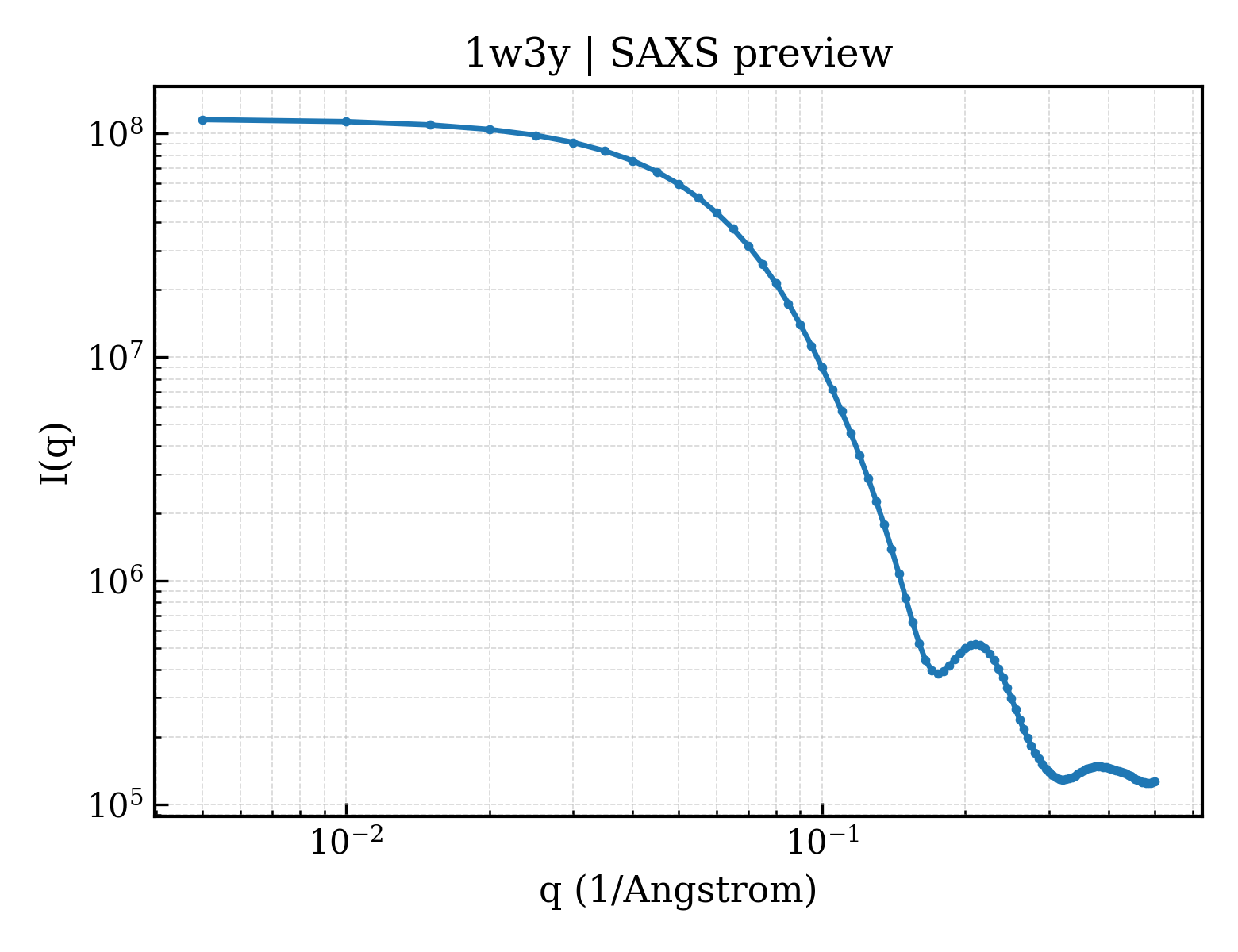

SAXS scattering curve SAXS Profile
