1c82

;MECHANISM OF HYALURONAN BINDING AND DEGRADATION: STRUCTURE OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE IN COMPLEX WITH HYALURONIC ACID DISACCHARIDE AT 1.7 A RESOLUTION ;

Method: X-RAY DIFFRACTION Dmax: 90.6 Å Quality: GOOD

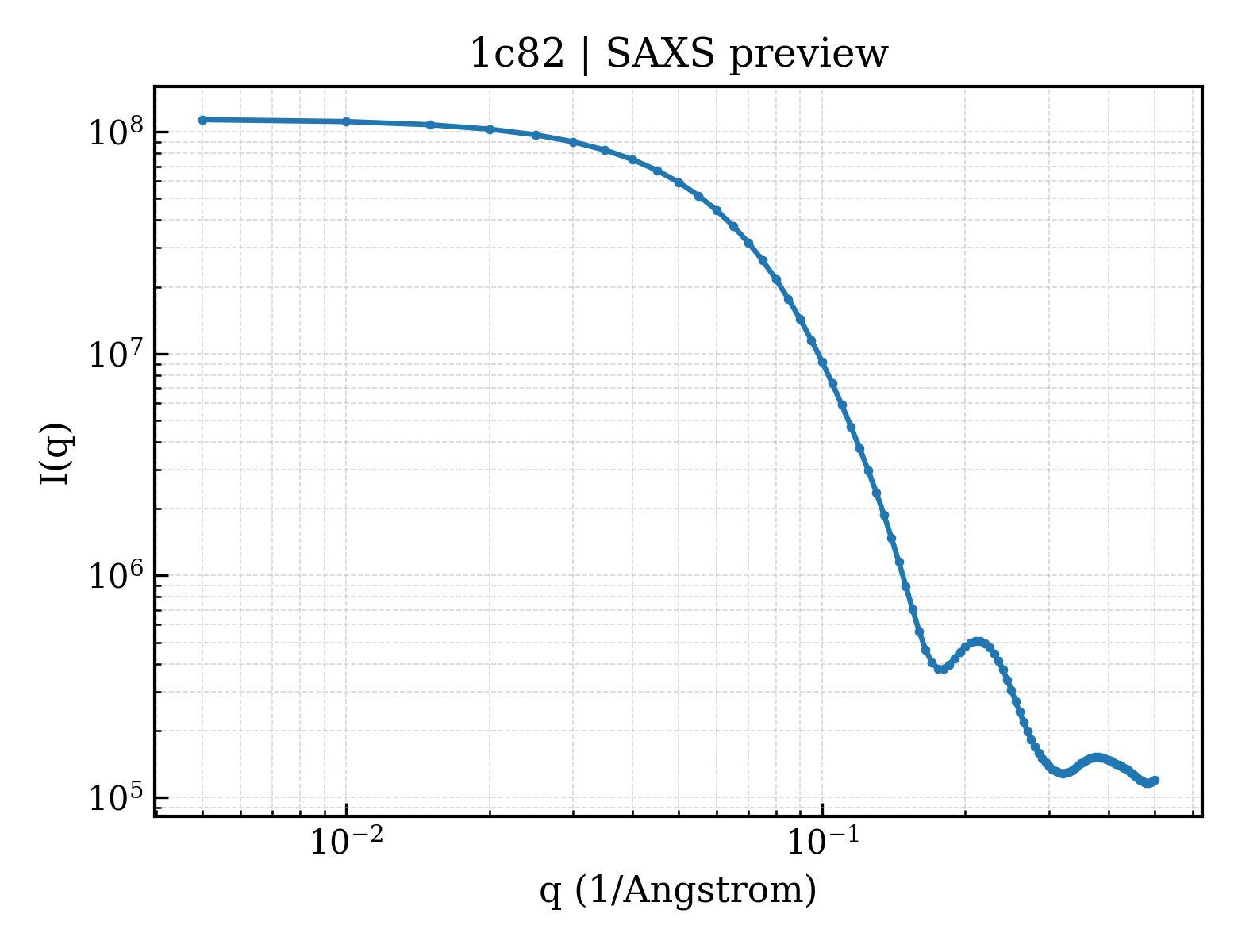

SAXS Profile

SAXS profile for 1c82

P(r) Distribution

P(r) distribution for 1c82
▼

1. Structure Basics

entry_id1c82
deposition_date2000-04-05
title;MECHANISM OF HYALURONAN BINDING AND DEGRADATION: STRUCTURE OF STREPTOCOCCUS PNEUMONIAE HYALURONATE LYASE IN COMPLEX WITH HYALURONIC ACID DISACCHARIDE AT 1.7 A RESOLUTION ;
keywordsPROTEIN-CARBOHYDRATE COMPLEX, LYASE; LYASE
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier28.08 Å
rg_electron27.30 Å
i0114298000.00
molecular_weight82985.0 kDa
excluded_volume103090 ų
envelope_volume120360 ų
shell_volume36304 ų
envelope_diameter94.8 Å
shell_rg35.27 Å
envelope_rg27.42 Å
shape_rg27.30 Å
total_rg28.06 Å
total_atoms5834
n_residues719
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax90.6 Å
rg_real28.05 Å
rg_real_error0.61 Å
i0_real1.1430e+08
i0_real_error1.6610e+06
rg_reciprocal28.06 Å
i0_reciprocal114300000.0000
total_estimate0.8873
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary32.4 Å
skewness0.359
kurtosis-0.351
angular_range— – 0.2800 Å−1
current_alpha0.0000
highest_alpha29820000.0000
n_real_points57
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.867; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.931
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

▶

6. Citations (2)

▶

7. Files & Curves (10)
