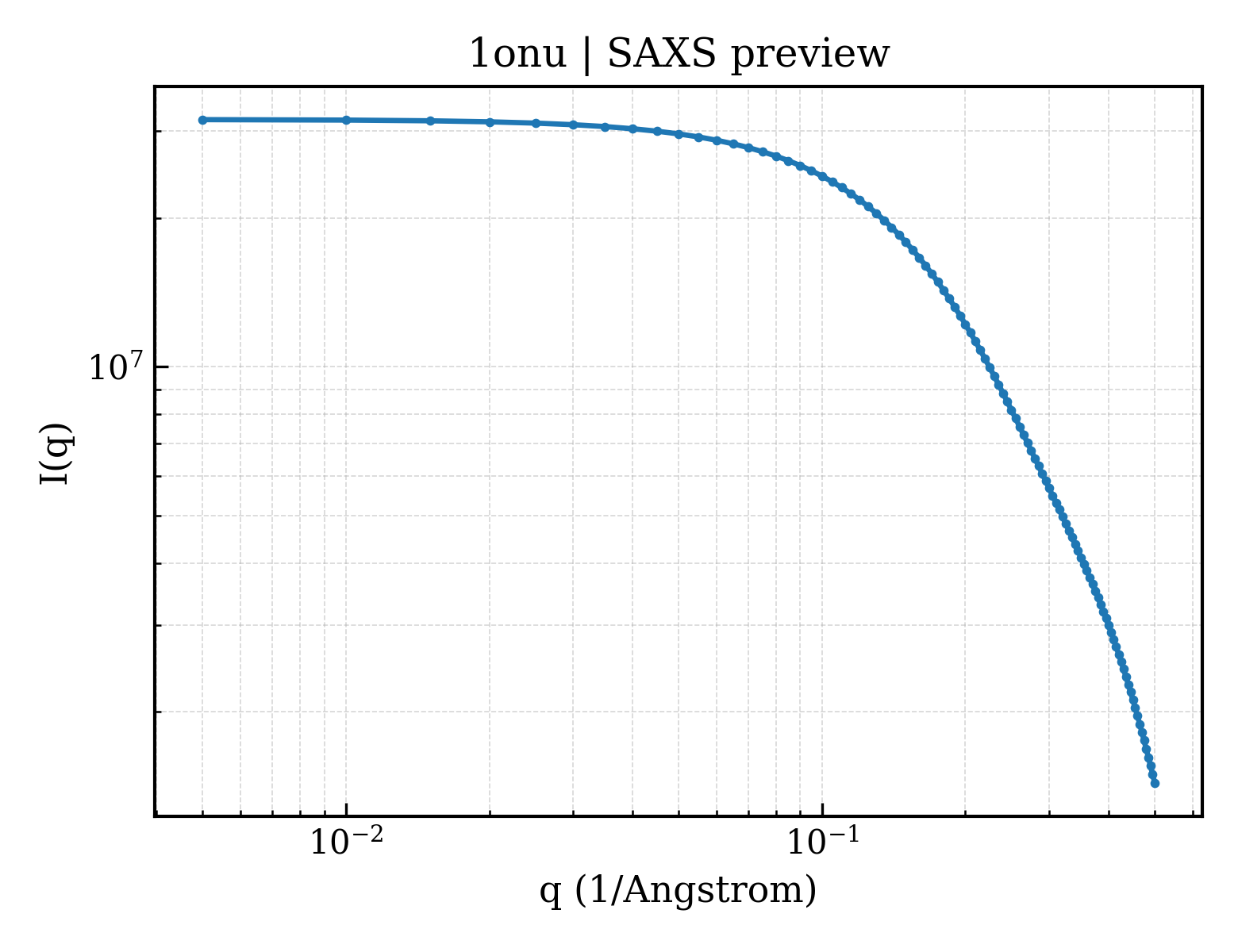

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 1onu |
| 沉积日期 deposition_date | 1996-08-27 |
| 结构标题 title | NMDA RECEPTOR ANTAGONIST, CONANTOKIN-G, NMR, 17 STRUCTURES |
| 关键词 keywords | NMDA RECEPTOR, ANTAGONIST, CONANTOKIN-T; ANTAGONIST |
| 实验方法 method | SOLUTION NMR |
| 回转半径 Rg (Guinier) rg_guinier | 8.87 Å |
| 回转半径 Rg (电子) rg_electron | 8.63 Å |
| 零角强度 I(0) i0 | 31639500.00 |
| 分子量 molecular_weight | 38594.0 kDa |
| 排除体积 excluded_volume | 45139 ų |
| 包络体积 envelope_volume | 7149 ų |
| 水化壳体积 shell_volume | 6391 ų |
| 包络直径 envelope_diameter | 36.9 Å |
| 壳层 Rg shell_rg | 15.08 Å |
| 包络 Rg envelope_rg | 10.75 Å |
| 形状 Rg shape_rg | 8.60 Å |
| 总 Rg total_rg | 9.01 Å |
| 总原子数 total_atoms | 4896 |
| 残基数 n_residues | 204 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 24.2 Å |
| Rg (实空间) rg_real | 8.55 Å |
| Rg 误差 (实空间) rg_real_error | 0.03 Å |
| I(0) (实空间) i0_real | 3.0510e+07 |
| I(0) 误差 (实空间) i0_real_error | 1.9460e+05 |
| Rg (倒空间) rg_reciprocal | 9.00 Å |
| I(0) (倒空间) i0_reciprocal | 31640000.0000 |
| 解质量估计 total_estimate | 0.6611 |
| 解质量评级 solution_quality |
REASONABLE
a REASONABLE solution
|
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 8.3 Å |
| 偏度 Skewness skewness | 0.351 |
| 峰度 Kurtosis kurtosis | -0.711 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 7.4480 |
| 最高正则化参数 α highest_alpha | 2620.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.995;
Stabil: 0.952;
Sysdev: 0.000;
Positv: 1.000;
Valcen: 0.754;
Smooth: 0.000
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 1.000 Å |
| 晶胞边长 b length_b | 1.000 Å |
| 晶胞边长 c length_c | 1.000 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 90.00 ° |
| 晶胞夹角 γ angle_gamma | 90.00 ° |
| 晶胞分子数 Z z_pdb | 1 |
对称性 Symmetry
| 空间群 space_group | P 1 |
| 空间群编号 int_tables_number | 1 |
| 晶系 crystal_system | — |
Entity 1
polymer
| 描述 description | CONANTOKIN-G |
| 分子量 formula_weight | 2265.2 kDa |
| 来源方法 src_method | man |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polypeptide(L) |
| 链编号 strand_id | A |
| 原子数 atom_count | 4896 |
GEEELQENQELIREKSNX
来源 Source
| 来源生物 organism | Conus geographus |
| 通用名 common_name | geography cone |
| NCBI 分类编号 ncbi_taxonomy_id | 6491 |
SCOP 2.08 (1 domains)
| 结构域编号 domain_id | d1onua_ |
| 类 Class class | j — Peptides |
| 折叠类型 Fold fold | j.31 — Conantokin |
| 超家族 Superfamily superfamily | j.31.1 — Conantokin |
| 家族 Family family | j.31.1.1 — Conantokin G (conatoxin G) |
Determination of the solution structures of conantokin-G and conantokin-T by CD and NMR spectroscopy.
J.Biol.Chem. (1997)
Files (7)
- pr_distribution /app/data/pr_computation/on/1onu/pr_distribution.json
- pr_output /app/data/pr_computation/on/1onu/1onu.pr.out
- pr_plot /app/data/visualization/pr_computation/on/1onu/1onu_pr_distribution.png
- saxs_curve_dat /app/data/saxs_computation/on/1onu/1onu.dat
- saxs_fit /app/data/saxs_computation/on/1onu/1onu.fit
- saxs_log /app/data/saxs_computation/on/1onu/1onu.log
- saxs_plot /app/data/visualization/saxs_computation/on/1onu/1onu_saxs_profile.png
Curves (3)
| fit |
/app/data/saxs_computation/on/1onu/1onu.fit |
| pddf |
/app/data/pr_computation/on/1onu/1onu.pr.out |
| profile |
/app/data/saxs_computation/on/1onu/1onu.dat |
