SAXSdb — 1ooj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Calmodulin CMD-1

Caenorhabditis elegans

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–149	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.7；295 K；PH 5.7, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 295.0K, RESERVOIR: MPD, PEG3350, DIOXANE, 5 MM CACL2, 50 MM CITRATE, PH 5.7, PROTEIN STOCK: 5 MG/ML IN 5 MM CACL2, 5 MM CACODYLATE, PH 6, DROPS: 5 MICROLITERS OF PROTEIN STOCK SOLUTION, 5 MICROLITERS OF RESERVOIR.	Resolution 2.11 Å R-free 0.271

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1OOJ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5H7D Crystal structure of the YgjG-protein A-Zpa963-calmodulin complex Deposited 2016-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain E 13–75（63 aa） Fragment：RESIDUES 104-156,157-219 (UNP RESIDUES 13-75) Chain F 13–75（63 aa） Fragment：RESIDUES 104-156,157-219 (UNP RESIDUES 13-75) Chain G 13–75（63 aa） Fragment：RESIDUES 104-156,157-219 (UNP RESIDUES 13-75) Chain H 13–75（63 aa） Fragment：RESIDUES 104-156,157-219 (UNP RESIDUES 13-75)	Not recorded	CA CALCIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；296 K；0.1M HEPES pH 7.5, 20.7% PEG 300, 99mM calcium chloride	Resolution 2.57 Å R-free 0.241
5H7D Crystal structure of the YgjG-protein A-Zpa963-calmodulin complex Deposited 2016-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain K 13–75（63 aa） Fragment：RESIDUES 104-156,157-219 (UNP RESIDUES 13-75) Chain L 13–75（63 aa） Fragment：RESIDUES 104-156,157-219 (UNP RESIDUES 13-75) Chain O 13–75（63 aa） Fragment：RESIDUES 104-156,157-219 (UNP RESIDUES 13-75) Chain P 13–75（63 aa） Fragment：RESIDUES 104-156,157-219 (UNP RESIDUES 13-75)	Not recorded	CA CALCIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；296 K；0.1M HEPES pH 7.5, 20.7% PEG 300, 99mM calcium chloride	Resolution 2.57 Å R-free 0.241

1 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CALM_CAEEL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–149； UniProt 1–149

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ooj
Deposition date deposition_date	2003-03-03
Structure title title	Structural genomics of Caenorhabditis elegans : Calmodulin
Keywords keywords	;Structural genomics, Calmodulin, PSI, Protein Structure Initiative, Southeast Collaboratory for Structural Genomics, SECSG, METAL BINDING PROTEIN ;; METAL BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.83 Å
Radius of gyration Rg (electron density) rg_electron	22.24 Å
Forward intensity I(0) i0	5179590.00
Molecular weight molecular_weight	16055.0 kDa
Excluded volume excluded_volume	19627 Å³
Envelope volume envelope_volume	26367 Å³
Hydration-shell volume shell_volume	10890 Å³
Envelope diameter envelope_diameter	69.9 Å
Shell Rg shell_rg	26.43 Å
Envelope Rg envelope_rg	21.50 Å
Shape Rg shape_rg	22.23 Å
Total Rg total_rg	22.83 Å
Total atoms total_atoms	1115
Residues n_residues	141
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

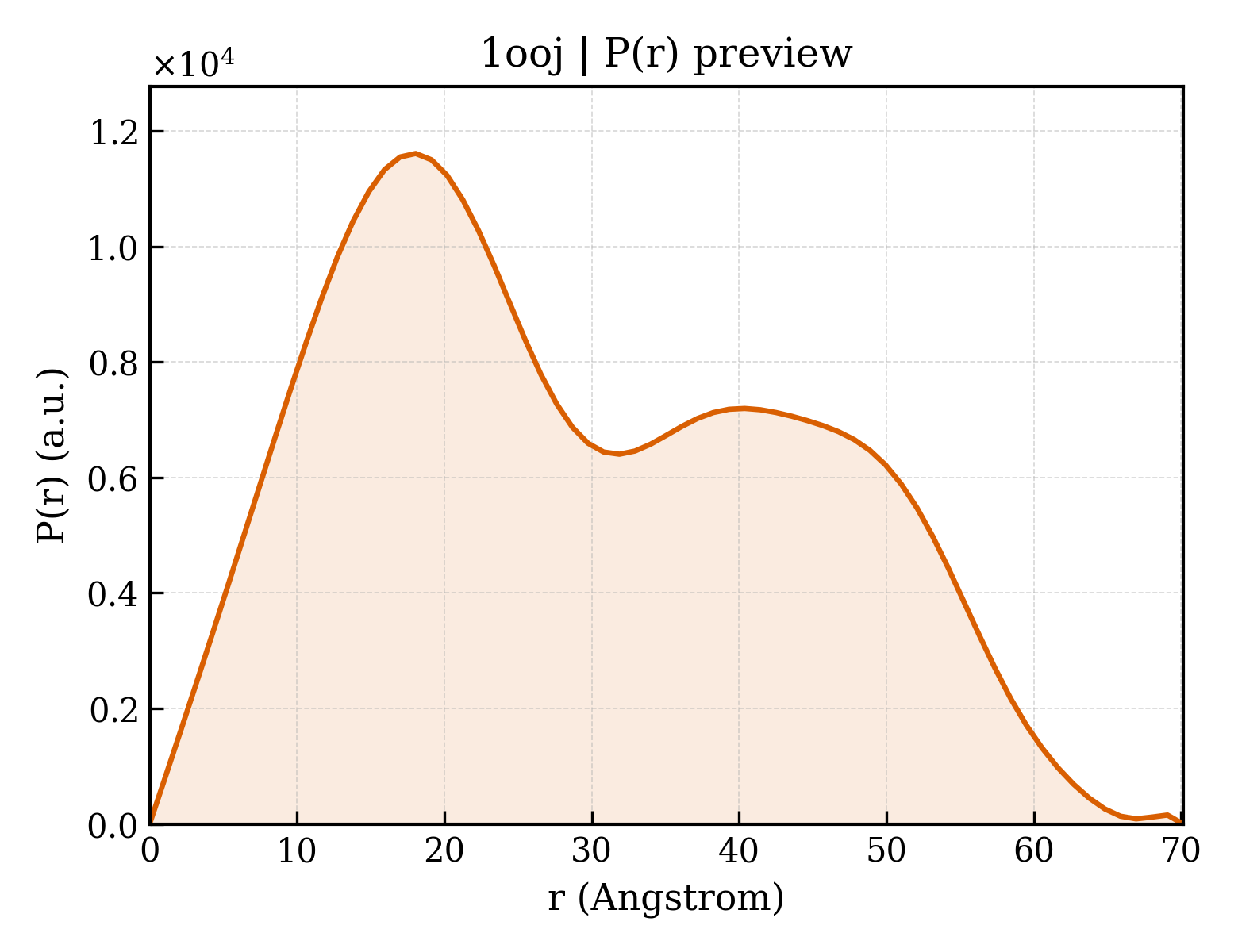

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	70.1 Å
Rg (real space) rg_real	23.02 Å
Rg uncertainty (real space) rg_real_error	0.57 Å
I(0) (real space) i0_real	5.1800e+06
I(0) uncertainty (real space) i0_real_error	6.6070e+04
Rg (reciprocal space) rg_reciprocal	22.98 Å
I(0) (reciprocal space) i0_reciprocal	5179000.0000
Solution quality estimate total_estimate	0.8094
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	18.1 Å
Skewness Skewness skewness	0.289
Kurtosis Kurtosis kurtosis	-0.975
Angular range angular_range	— – 0.3500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	283900.0000
Real-space data points n_real_points	67
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.704; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.519; Smooth: 0.889

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Calmodulin CMD-1
Molecular weight formula_weight	16839.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1206

MADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGFISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVTMMTTK

来源 Source

来源生物 organism	Caenorhabditis elegans
NCBI Class编号 ncbi_taxonomy_id	6239
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	91

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ooja_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

CATH v4.4 (2 domains)

Domain ID domain_id	1oojA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

Domain ID domain_id	1oojA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

▶

8. Citations (1)

▶

Unit-cell length a length_a	103.394 Å
Unit-cell length b length_b	23.997 Å
Unit-cell length c length_c	60.770 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	112.14 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.110 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2230
R_work r_work	0.2120
R_free r_free	0.2710

fit	/app/data/saxs_computation/oo/1ooj/1ooj.fit
pddf	/app/data/pr_computation/oo/1ooj/1ooj.pr.out
profile	/app/data/saxs_computation/oo/1ooj/1ooj.dat
