1op8

Crystal Structure of Human Granzyme A

Method: X-RAY DIFFRACTION D_max: 145.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

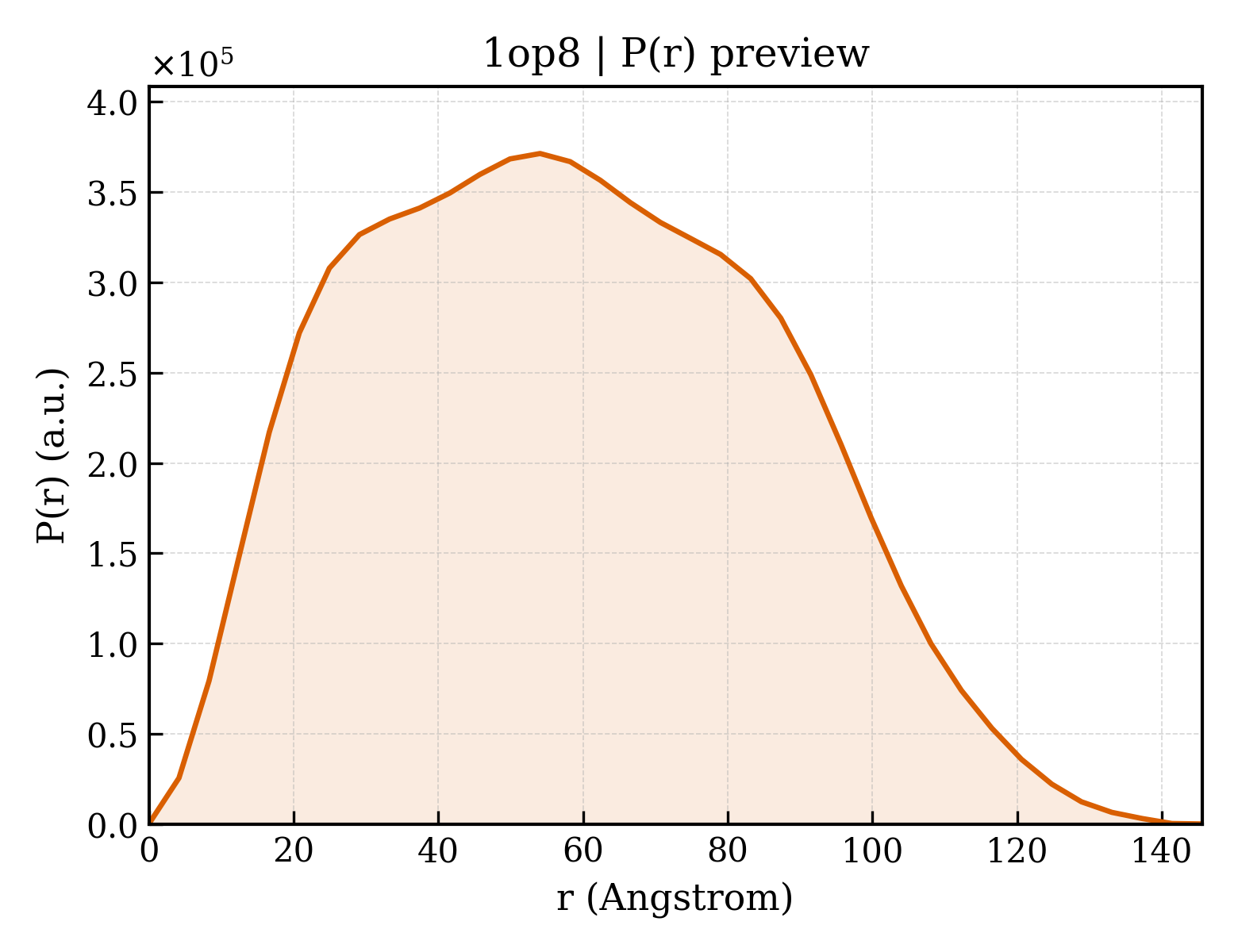

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1op8
沉积日期 deposition_date	2003-03-05
结构标题 title	Crystal Structure of Human Granzyme A
关键词 keywords	Granzyme A, Serine proteinase, Apoptosis, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.54 Å
回转半径 Rg (电子) rg_electron	45.46 Å
零角强度 I(0) i0	375920000.00
分子量 molecular_weight	156120.0 kDa
排除体积 excluded_volume	194640 Å³
包络体积 envelope_volume	272440 Å³
水化壳体积 shell_volume	53287 Å³
包络直径 envelope_diameter	148.7 Å
壳层 Rg shell_rg	45.82 Å
包络 Rg envelope_rg	44.92 Å
形状 Rg shape_rg	45.45 Å
总 Rg total_rg	45.51 Å
总原子数 total_atoms	10903
残基数 n_residues	1350
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	145.6 Å
Rg (实空间) rg_real	45.60 Å
Rg 误差 (实空间) rg_real_error	1.26 Å
I(0) (实空间) i0_real	3.7590e+08
I(0) 误差 (实空间) i0_real_error	6.9710e+06
Rg (倒空间) rg_reciprocal	45.54 Å
I(0) (倒空间) i0_reciprocal	375900000.0000
解质量估计 total_estimate	0.8610
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	54.1 Å
偏度 Skewness skewness	0.198
峰度 Kurtosis kurtosis	-0.742
角度范围 angular_range	— – 0.1750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	15470000.0000
实空间数据点数 n_real_points	36
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.928; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.903; Smooth: 0.501

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Granzyme A
分子量 formula_weight	25855.1 kDa
EC 编号 ec_number	3.4.21.78
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F
原子数 atom_count	11608

IIGGNEVTPHSRPYMVLLSLDRKTICAGALIAKDWVLTAAHCNLNKRSQVILGAHSITREEPTKQIMLVKKEFPYPCYDPATREGDLKLLQLTEKAKINKYVTILHLPKKGDDVKPGTMCQVAGWGRTHNSASWSDTLREVNITIIDRKVCNDRNHYNFNPVIGMNMVCAGSLRGGRDSCNGDSGSPLLCEGVFRGVTSFGLENKCGDPRGPGVYILLSKKHLNWIIMTIKGAV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	705

▼

6. 折叠分类 (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1op8a_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.47 — Trypsin-like serine proteases
超家族 Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
家族 Family family	b.47.1.2 — Eukaryotic proteases

结构域编号 domain_id	d1op8b_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.47 — Trypsin-like serine proteases
超家族 Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
家族 Family family	b.47.1.2 — Eukaryotic proteases

结构域编号 domain_id	d1op8c_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.47 — Trypsin-like serine proteases
超家族 Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
家族 Family family	b.47.1.2 — Eukaryotic proteases

结构域编号 domain_id	d1op8d_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.47 — Trypsin-like serine proteases
超家族 Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
家族 Family family	b.47.1.2 — Eukaryotic proteases

结构域编号 domain_id	d1op8e_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.47 — Trypsin-like serine proteases
超家族 Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
家族 Family family	b.47.1.2 — Eukaryotic proteases

结构域编号 domain_id	d1op8f_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.47 — Trypsin-like serine proteases
超家族 Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
家族 Family family	b.47.1.2 — Eukaryotic proteases

CATH v4.4 (12 domains)

结构域编号 domain_id	1op8A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1op8A02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1op8B01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1op8B02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1op8C01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1op8C02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1op8D01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1op8D02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1op8E01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1op8E02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1op8F01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

结构域编号 domain_id	1op8F02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	49.480 Å
晶胞边长 b length_b	94.550 Å
晶胞边长 c length_c	94.870 Å
晶胞夹角 α angle_alpha	117.12 °
晶胞夹角 β angle_beta	100.25 °
晶胞夹角 γ angle_gamma	100.12 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	—
R_work r_work	0.2182
R_free r_free	0.2843
