1ort

ORNITHINE TRANSCARBAMOYLASE FROM PSEUDOMONAS AERUGINOSA

Method: X-RAY DIFFRACTION D_max: 141.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

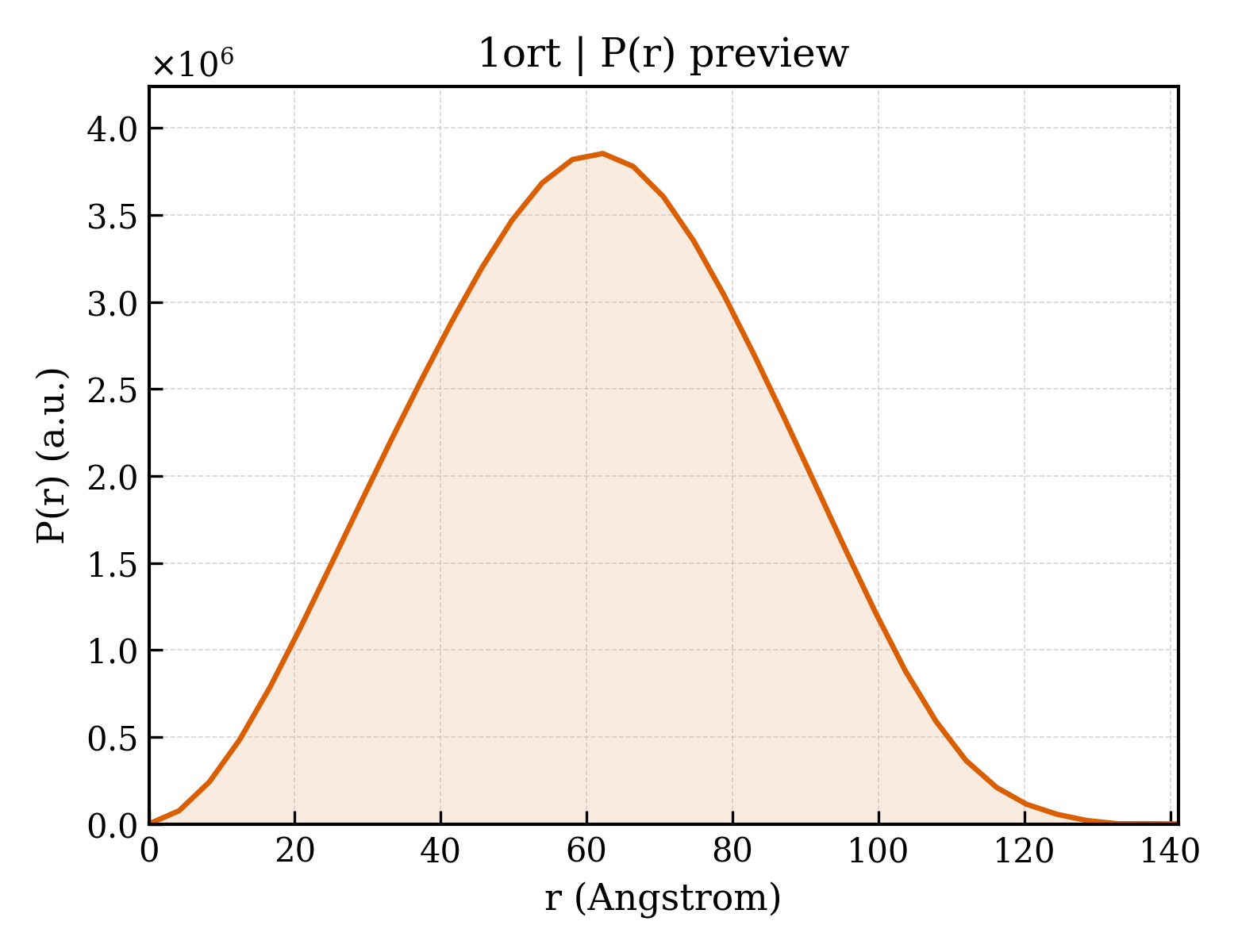

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ort
沉积日期 deposition_date	1995-08-24
结构标题 title	ORNITHINE TRANSCARBAMOYLASE FROM PSEUDOMONAS AERUGINOSA
关键词 keywords	TRANSFERASE, ORNITHINE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	46.65 Å
回转半径 Rg (电子) rg_electron	46.07 Å
零角强度 I(0) i0	2997940000.00
分子量 molecular_weight	454800.0 kDa
排除体积 excluded_volume	567710 Å³
包络体积 envelope_volume	715670 Å³
水化壳体积 shell_volume	118850 Å³
包络直径 envelope_diameter	144.2 Å
壳层 Rg shell_rg	57.43 Å
包络 Rg envelope_rg	45.83 Å
形状 Rg shape_rg	46.09 Å
总 Rg total_rg	46.33 Å
总原子数 total_atoms	31968
残基数 n_residues	4020
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	141.1 Å
Rg (实空间) rg_real	46.23 Å
Rg 误差 (实空间) rg_real_error	0.61 Å
I(0) (实空间) i0_real	2.9980e+09
I(0) 误差 (实空间) i0_real_error	5.2890e+07
Rg (倒空间) rg_reciprocal	46.64 Å
I(0) (倒空间) i0_reciprocal	2999000000.0000
解质量估计 total_estimate	0.8857
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	62.2 Å
偏度 Skewness skewness	0.045
峰度 Kurtosis kurtosis	-0.513
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	648400000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.905; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.948; Smooth: 0.846

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (1)

▼

6. 折叠分类 (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

结构域编号 domain_id	d1orta1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1orta2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1ortb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1ortb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1ortc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1ortc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1ortd1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1ortd2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1orte1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1orte2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1ortf1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1ortf2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1ortg1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1ortg2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1orth1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1orth2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1orti1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1orti2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1ortj1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1ortj2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1ortk1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1ortk2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1ortl1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1ortl2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

CATH v4.4 (24 domains)

结构域编号 domain_id	1ortA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortE02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortF02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortG01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortG02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortH01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortH02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortI01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortI02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortJ01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortJ02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortK01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortK02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortL01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1ortL02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	110.360 Å
晶胞边长 b length_b	126.420 Å
晶胞边长 c length_c	134.540 Å
晶胞夹角 α angle_alpha	85.07 °
晶胞夹角 β angle_beta	59.24 °
晶胞夹角 γ angle_gamma	111.97 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	5.500 Å
R 因子 r_factor	0.2160
R_work r_work	0.2160
R_free r_free	—

描述 description	ORNITHINE TRANSCARBAMOYLASE
分子量 formula_weight	37958.2 kDa
EC 编号 ec_number	2.1.3.3
突变 mutation	E105G
来源方法 src_method	man
拷贝数 entity_count	12

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L
原子数 atom_count	31968

ORNITHINE TRANSCARBAMOYLASE FROM PSEUDOMONAS AERUGINOSA

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (1)

Entity 1 polymer

聚合体 Polymer

来源 Source

6. 折叠分类 (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

CATH v4.4 (24 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)

来源生物 organism	Pseudomonas aeruginosa
NCBI 分类编号 ncbi_taxonomy_id	287

fit	/app/data/saxs_computation/or/1ort/1ort.fit
pddf	/app/data/pr_computation/or/1ort/1ort.pr.out
profile	/app/data/saxs_computation/or/1ort/1ort.dat
