SAXSdb — 1otc

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1otc
沉积日期 deposition_date	1998-11-25
结构标题 title	THE O. NOVA TELOMERE END BINDING PROTEIN COMPLEXED WITH SINGLE STRAND DNA
关键词 keywords	;SINGLE STRAND DNA BINDING PROTEIN, PROTEIN DNA INTERACTIONS, PROTEIN PROTEIN INTERACTIONS, OLIGONUCLEOTIDE AND OLIGOSACCHARIDE BINDING FOLD, OB FOLD, TELOMERES, PROTEIN-DNA COMPLEX ;; PROTEIN/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	29.54 Å
回转半径 Rg (电子) rg_electron	28.91 Å
零角强度 I(0) i0	105525000.00
分子量 molecular_weight	80156.0 kDa
排除体积 excluded_volume	99894 Å³
包络体积 envelope_volume	125480 Å³
水化壳体积 shell_volume	36345 Å³
包络直径 envelope_diameter	101.5 Å
壳层 Rg shell_rg	36.14 Å
包络 Rg envelope_rg	29.02 Å
形状 Rg shape_rg	28.88 Å
总 Rg total_rg	29.65 Å
总原子数 total_atoms	5657
残基数 n_residues	684
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	102.0 Å
Rg (实空间) rg_real	29.50 Å
Rg 误差 (实空间) rg_real_error	1.06 Å
I(0) (实空间) i0_real	1.0550e+08
I(0) 误差 (实空间) i0_real_error	1.8990e+06
Rg (倒空间) rg_reciprocal	29.52 Å
I(0) (倒空间) i0_reciprocal	105500000.0000
解质量估计 total_estimate	0.7950
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	30.2 Å
偏度 Skewness skewness	0.289
峰度 Kurtosis kurtosis	-0.502
角度范围 angular_range	— – 0.2700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	34470000.0000
实空间数据点数 n_real_points	55
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.786; Stabil: 0.996; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	;DNA (5'-D(GPGPGPGPTPTPTPTPGPGPGPG)-3') ;
分子量 formula_weight	3805.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	D
原子数 atom_count	5680

GGGGTTTTGGGG

Entity 2 polymer

描述 description	PROTEIN (TELOMERE-BINDING PROTEIN ALPHA SUBUNIT)
分子量 formula_weight	56168.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MSTAAKQNRSTSRVSKKKTAAPKEGAAKKSDKGHKYEYVELAKASLTSAQPQHFYAVVIDATFPYKTNQERYICSLKIVDPTLYLKQQKGAGDASDYATLVLYAKRFEDLPIIHRAGDIIRVHRATLRLYNGQRQFNANVFYSSSWALFSTDKRSVTQEINNQDAVSDTTPFSFSSKHATIEKNEISILQNLRKWANQYFSSYSVISSDMYTALNKAQAQKGDFDVVAKILQVHELDEYTNELKLKDASGQVFYTLSLKLKFPHVRTGEVVRIRSATYDETSTQKKVLILSHYSNIITFIQSSKLAKELRAKIQDDHSVEVASLKKNVSLNAVVLTEVDKKHAALPSTSLQDLFHHADSDKELQAQDTFRTQFYVTKIEPSDVKEWVKGYDRKTKKSSSLKGASGKGDNIFQVQFLVKDASTQLNNNTYRVLLYTQDGLGANFFNVKADNLHKNADARKKLEDSAELLTKFNSYVDAVVERRNGFYLIKDTKLIY

来源 Source

来源生物 organism	Sterkiella nova
NCBI 分类编号 ncbi_taxonomy_id	200597
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	PROTEIN (TELOMERE-BINDING PROTEIN BETA SUBUNIT)
分子量 formula_weight	28716.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MSKGASAPQQQSAFKQLYTELFNNEGDFSKVSSNLKKPLKCYVKESYPHFLVTDGYFFVAPYFTKEAVNEFHAKFPNVNIVDLTDKVIVINNWSLELRRVNSAEVFTSYANLEARLIVHSFKPNLQERLNPTRYPVNLFRDDEFKTTIQHFRHTALQAAINKTVKGDNLVDISKVADAAGKKGKVDAGIVKASASKGDEFSDFSFKEGNTATLKIADIFVQEKGKDALNKAADHTDGAKVKGGAKGKGKAAAKAAKGKKL

来源 Source

来源生物 organism	Sterkiella nova
NCBI 分类编号 ncbi_taxonomy_id	200597
宿主生物 host_organism	Escherichia coli

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	23

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1otca1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
家族 Family family	b.40.4.3 — Single strand DNA-binding domain, SSB

结构域编号 domain_id	d1otca2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
家族 Family family	b.40.4.3 — Single strand DNA-binding domain, SSB

结构域编号 domain_id	d1otca3
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
家族 Family family	b.40.4.3 — Single strand DNA-binding domain, SSB

结构域编号 domain_id	d1otcb_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
家族 Family family	b.40.4.3 — Single strand DNA-binding domain, SSB

CATH v4.4 (4 domains)

结构域编号 domain_id	1otcA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	140 — Nucleic acid-binding proteins

结构域编号 domain_id	1otcA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	140 — Nucleic acid-binding proteins

结构域编号 domain_id	1otcA03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	140 — Nucleic acid-binding proteins

结构域编号 domain_id	1otcB00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	200 — Telomere-binding Protein Beta Subunit; Chain B
同源超家族 H-superfamily homologous superfamily	10 — Telomere-binding Protein Beta Subunit; Chain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	94.500 Å
晶胞边长 b length_b	94.500 Å
晶胞边长 c length_c	426.200 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 61 2 2
空间群编号 int_tables_number	178
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2510
R_work r_work	0.2510
R_free r_free	0.2920

fit	/app/data/saxs_computation/ot/1otc/1otc.fit
pddf	/app/data/pr_computation/ot/1otc/1otc.pr.out
profile	/app/data/saxs_computation/ot/1otc/1otc.dat

THE O. NOVA TELOMERE END BINDING PROTEIN COMPLEXED WITH SINGLE STRAND DNA

SAXS 散射曲线 SAXS Profile

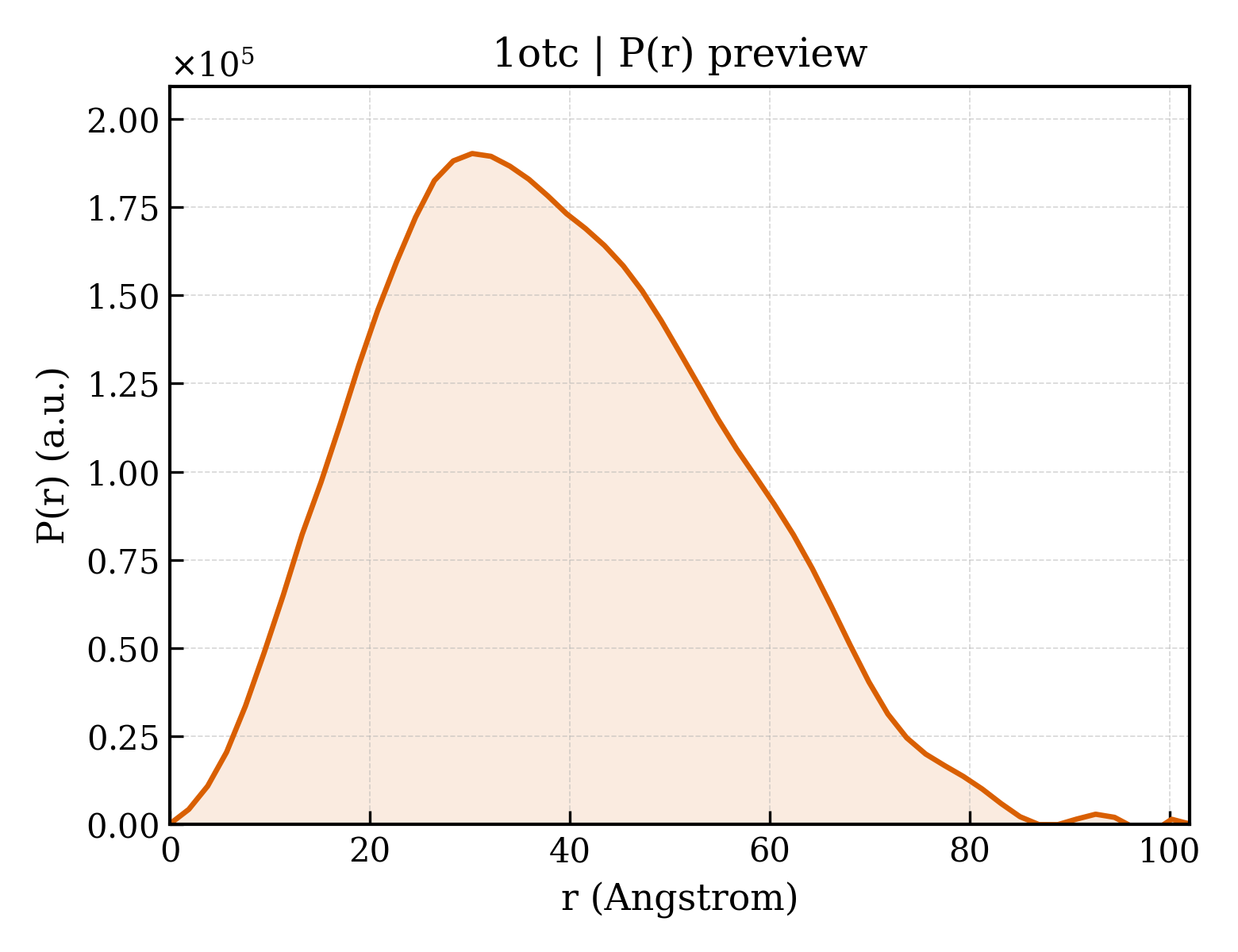

P(r) 距离分布 P(r) Distribution
