SAXSdb — 1ph3

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ph3
沉积日期 deposition_date	2003-05-29
结构标题 title	CRYSTAL STRUCTURE OF THE OXYTRICHA NOVA TELOMERE END-BINDING PROTEIN COMPLEXED WITH NONCOGNATE SSDNA GGGGTTTTGGTG
关键词 keywords	;SINGLE STRAND DNA BINDING PROTEIN, PROTEIN DNA INTERACTIONS, SEQUENCE SPECIFICITY, NONCOGNATE, OLIGONUCLEOTIDE AND OLIGOSACCHARIDE BINDING FOLD, OB FOLD, TELOMERES, PROTEIN/DNA, DNA binding protein-DNA COMPLEX ;; DNA binding protein/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	31.96 Å
回转半径 Rg (电子) rg_electron	30.75 Å
零角强度 I(0) i0	140173000.00
分子量 molecular_weight	88315.0 kDa
排除体积 excluded_volume	108020 Å³
包络体积 envelope_volume	138930 Å³
水化壳体积 shell_volume	38238 Å³
包络直径 envelope_diameter	112.3 Å
壳层 Rg shell_rg	37.16 Å
包络 Rg envelope_rg	30.74 Å
形状 Rg shape_rg	30.67 Å
总 Rg total_rg	31.52 Å
总原子数 total_atoms	6200
残基数 n_residues	712
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	106.2 Å
Rg (实空间) rg_real	31.97 Å
Rg 误差 (实空间) rg_real_error	0.91 Å
I(0) (实空间) i0_real	1.4020e+08
I(0) 误差 (实空间) i0_real_error	2.2280e+06
Rg (倒空间) rg_reciprocal	31.97 Å
I(0) (倒空间) i0_reciprocal	140200000.0000
解质量估计 total_estimate	0.6658
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	36.1 Å
偏度 Skewness skewness	0.331
峰度 Kurtosis kurtosis	-0.336
角度范围 angular_range	— – 0.2500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	14420000.0000
实空间数据点数 n_real_points	51
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.889; Stabil: 1.000; Sysdev: 0.062; Positv: 1.000; Valcen: 0.993; Smooth: 0.804

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	5'-D(GPGPGPGPTPTPTPTPGPGPGPGP*T)-3'
分子量 formula_weight	4109.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	G,H
原子数 atom_count	6703

GGGGTTTTGGGGT

Entity 2 polymer

描述 description	5'-D(GPGPGPGPTPTPTPTPGPGPTPG)-3'
分子量 formula_weight	3780.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	D

GGGGTTTTGGTG

Entity 3 polymer

描述 description	Telomere-binding protein alpha subunit
分子量 formula_weight	52460.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

YEYVELAKASLTSAQPQHFYAVVIDATFPYKTNQERYICSLKIVDPTLYLKQQKGAGDASDYATLVLYAKRFEDLPIIHRAGDIIRVHRATLRLYNGQRQFNANVFYSSSWALFSTDKRSVTQEINNQDAVSDTTPFSFSSKHATIEKNEISILQNLRKWANQYFSSYSVISSDMYTALNKAQAQKGDFDVVAKILQVHELDEYTNELKLKDASGQVFYTLSLKLKFPHVRTGEVVRIRSATYDETSTQKKVLILSHYSNIITFIQSSKLAKELRAKIQDDHSVEVASLKKNVSLNAVVLTEVDKKHAALPSTSLQDLFHHADSDKELQAQDTFRTQFYVTKIEPSDVKEWVKGYDRKTKKSSSLKGASGKGDNIFQVQFLVKDASTQLNNNTYRVLLYTQDGLGANFFNVKADNLHKNADARKKLEDSAELLTKFNSYVDAVVERRNGFYLIKDTKLIY

来源 Source

来源生物 organism	Sterkiella nova
NCBI 分类编号 ncbi_taxonomy_id	200597
宿主生物 host_organism	Escherichia coli

Entity 4 polymer

描述 description	Telomere-binding protein beta subunit
分子量 formula_weight	24487.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

QQQSAFKQLYTELFNNEGDFSKVSSNLKKPLKCYVKESYPHFLVTDGYFFVAPYFTKEAVNEFHAKFPNVNIVDLTDKVIVINNWSLELRRVNSAEVFTSYANLEARLIVHSFKPNLQERLNPTRYPVNLFRDDEFKTTIQHFRHTALQAAINKTVKGDNLVDISKVADAAGKKGKVDAGIVKASASKGDEFSDFSFKEGNTATLKIADIFVQEKG

来源 Source

来源生物 organism	Sterkiella nova
NCBI 分类编号 ncbi_taxonomy_id	200597
宿主生物 host_organism	Escherichia coli

Entity 5 non-polymer

描述 description	SODIUM ION
分子量 formula_weight	23.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	503

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1ph3a1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
家族 Family family	b.40.4.3 — Single strand DNA-binding domain, SSB

结构域编号 domain_id	d1ph3a2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
家族 Family family	b.40.4.3 — Single strand DNA-binding domain, SSB

结构域编号 domain_id	d1ph3a3
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
家族 Family family	b.40.4.3 — Single strand DNA-binding domain, SSB

结构域编号 domain_id	d1ph3b_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
家族 Family family	b.40.4.3 — Single strand DNA-binding domain, SSB

CATH v4.4 (4 domains)

结构域编号 domain_id	1ph3A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	140 — Nucleic acid-binding proteins

结构域编号 domain_id	1ph3A02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	140 — Nucleic acid-binding proteins

结构域编号 domain_id	1ph3A03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	140 — Nucleic acid-binding proteins

结构域编号 domain_id	1ph3B00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	200 — Telomere-binding Protein Beta Subunit; Chain B
同源超家族 H-superfamily homologous superfamily	10 — Telomere-binding Protein Beta Subunit; Chain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	93.636 Å
晶胞边长 b length_b	93.636 Å
晶胞边长 c length_c	423.111 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 61 2 2
空间群编号 int_tables_number	178
晶系 crystal_system	—

分辨率 resolution	2.300 Å
最低分辨率 resolution_low	24.820 Å
R 因子 r_factor	0.2300
R_work r_work	0.2300
R_free r_free	0.2630

fit	/app/data/saxs_computation/ph/1ph3/1ph3.fit
pddf	/app/data/pr_computation/ph/1ph3/1ph3.pr.out
profile	/app/data/saxs_computation/ph/1ph3/1ph3.dat

CRYSTAL STRUCTURE OF THE OXYTRICHA NOVA TELOMERE END-BINDING PROTEIN COMPLEXED WITH NONCOGNATE SSDNA GGGGTTTTGGTG

SAXS 散射曲线 SAXS Profile

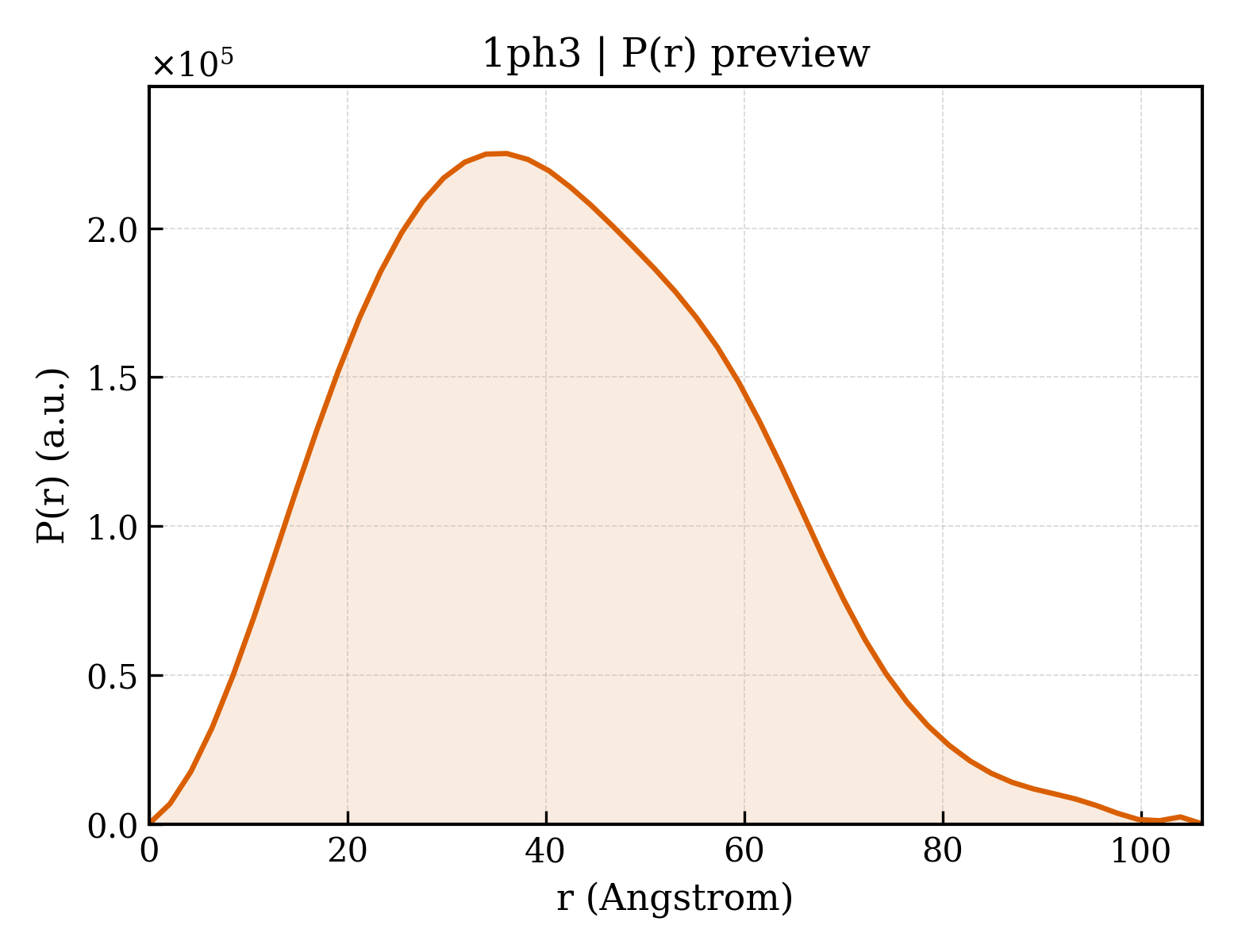

P(r) 距离分布 P(r) Distribution
