1ots

Structure of the Escherichia coli ClC Chloride channel and Fab Complex

Method: X-RAY DIFFRACTION D_max: 133.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

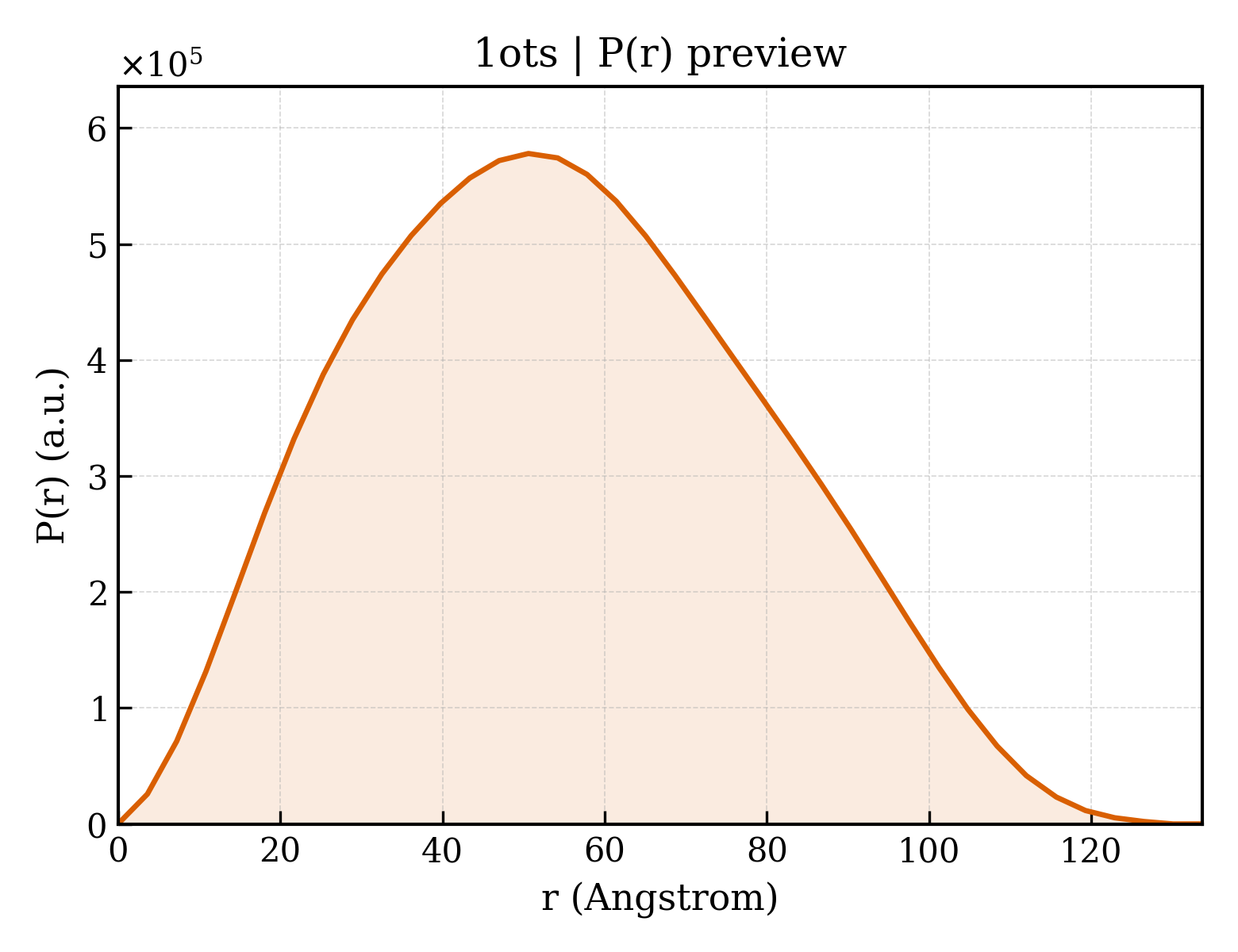

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ots
沉积日期 deposition_date	2003-03-22
结构标题 title	Structure of the Escherichia coli ClC Chloride channel and Fab Complex
关键词 keywords	ClC Chloride channel, Fab complex, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	42.47 Å
回转半径 Rg (电子) rg_electron	41.72 Å
零角强度 I(0) i0	480482000.00
分子量 molecular_weight	187840.0 kDa
排除体积 excluded_volume	238380 Å³
包络体积 envelope_volume	305200 Å³
水化壳体积 shell_volume	61094 Å³
包络直径 envelope_diameter	138.4 Å
壳层 Rg shell_rg	46.75 Å
包络 Rg envelope_rg	41.40 Å
形状 Rg shape_rg	41.69 Å
总 Rg total_rg	42.06 Å
总原子数 total_atoms	13227
残基数 n_residues	1749
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	133.7 Å
Rg (实空间) rg_real	42.42 Å
Rg 误差 (实空间) rg_real_error	1.14 Å
I(0) (实空间) i0_real	4.8050e+08
I(0) 误差 (实空间) i0_real_error	8.7350e+06
Rg (倒空间) rg_reciprocal	42.47 Å
I(0) (倒空间) i0_reciprocal	480500000.0000
解质量估计 total_estimate	0.8932
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	50.6 Å
偏度 Skewness skewness	0.208
峰度 Kurtosis kurtosis	-0.616
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	31710000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.969; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.702

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Voltage-gated ClC-type chloride channel eriC
分子量 formula_weight	49658.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	13654

MKTDTPSLETPQAARLRRRQLIRQLLERDKTPLAILFMAAVVGTLVGLAAVAFDKGVAWLQNQRMGALVHTADNYPLLLTVAFLCSAVLAMFGYFLVRKYAPEAGGSGIPEIEGALEDQRPVRWWRVLPVKFFGGLGTLGGGMVLGREGPTVQIGGNIGRMVLDIFRLKGDEARHTLLATGAAAGLAAAFNAPLAGILFIIEEMRPQFRYTLISIKAVFIGVIMSTIMYRIFNHEVALIDVGKLSDAPLNTLWLYLILGIIFGIFGPIFNKWVLGMQDLLHRVHGGNITKWVLMGGAIGGLCGLLGFVAPATSGGGFNLIPIATAGNFSMGMLVFIFVARVITTLLCFSSGAPGGIFAPMLALGTVLGTAFGMVAVELFPQYHLEAGTFAIAGMGALLAASIRAPLTGIILVLEMTDNYQLILPMIITGLGATLLAQFTGGKPLYSAILARTLAKQEAEQLARSK

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	Fab fragment (heavy chain)
分子量 formula_weight	23823.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,E

EVRLLESGGGLVQPGGSLKLSCAASGFDYSRYWMSWVRQAPGKGLKWIGEINPVSSTINYTPSLKDKFIISRDNAKDTLYLQISKVRSEDTALYYCARLYYGYGYWYFDVWGAGTTVTVSSAKTTPPSVYPLAPGSAAAAASMVTLGCLVKGYFPEPVTVTWNSGSLAAGVHTFPAVLQAALYTLSSSVTVPSSSWPSETVTCNVAHPASSTKVDKKIVPRA

Entity 3 polymer

描述 description	Fab fragment (light chain)
分子量 formula_weight	23088.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,F

DIVLTQSPAIMSAAPGDKVTMTCSASSSVSYIHWYQQKSGTSPKRWIYDTSKLTSGVPVRFSGSGSGTSYSLTINTMEAEDAATYYCQQWSSHPQTFGGGTKLEILRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRA

Entity 4 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	427

▼

6. 折叠分类 (SCOP + CATH) 20 domains

SCOP 2.08 (10 domains)

结构域编号 domain_id	d1otsa_
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.20 — Clc chloride channel
超家族 Superfamily superfamily	f.20.1 — Clc chloride channel
家族 Family family	f.20.1.1 — Clc chloride channel

结构域编号 domain_id	d1otsb_
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.20 — Clc chloride channel
超家族 Superfamily superfamily	f.20.1 — Clc chloride channel
家族 Family family	f.20.1.1 — Clc chloride channel

结构域编号 domain_id	d1otsc1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1otsc2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1otsd1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1otsd2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1otse1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1otse2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1otsf1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1otsf2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (10 domains)

结构域编号 domain_id	1otsA00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3080 — Clc chloride channel
同源超家族 H-superfamily homologous superfamily	10 — Clc chloride channel

结构域编号 domain_id	1otsB00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3080 — Clc chloride channel
同源超家族 H-superfamily homologous superfamily	10 — Clc chloride channel

结构域编号 domain_id	1otsC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1otsC02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1otsD01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1otsD02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1otsE01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1otsE02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1otsF01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1otsF02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	229.936 Å
晶胞边长 b length_b	93.870 Å
晶胞边长 c length_c	168.536 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	131.72 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.510 Å
最低分辨率 resolution_low	24.580 Å
R 因子 r_factor	0.2640
R_work r_work	0.2640
R_free r_free	0.2990

fit	/app/data/saxs_computation/ot/1ots/1ots.fit
pddf	/app/data/pr_computation/ot/1ots/1ots.pr.out
profile	/app/data/saxs_computation/ot/1ots/1ots.dat
