1ott

Structure of the Escherichia coli ClC Chloride channel E148A mutant and Fab Complex

Method: X-RAY DIFFRACTION D_max: 134.0 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

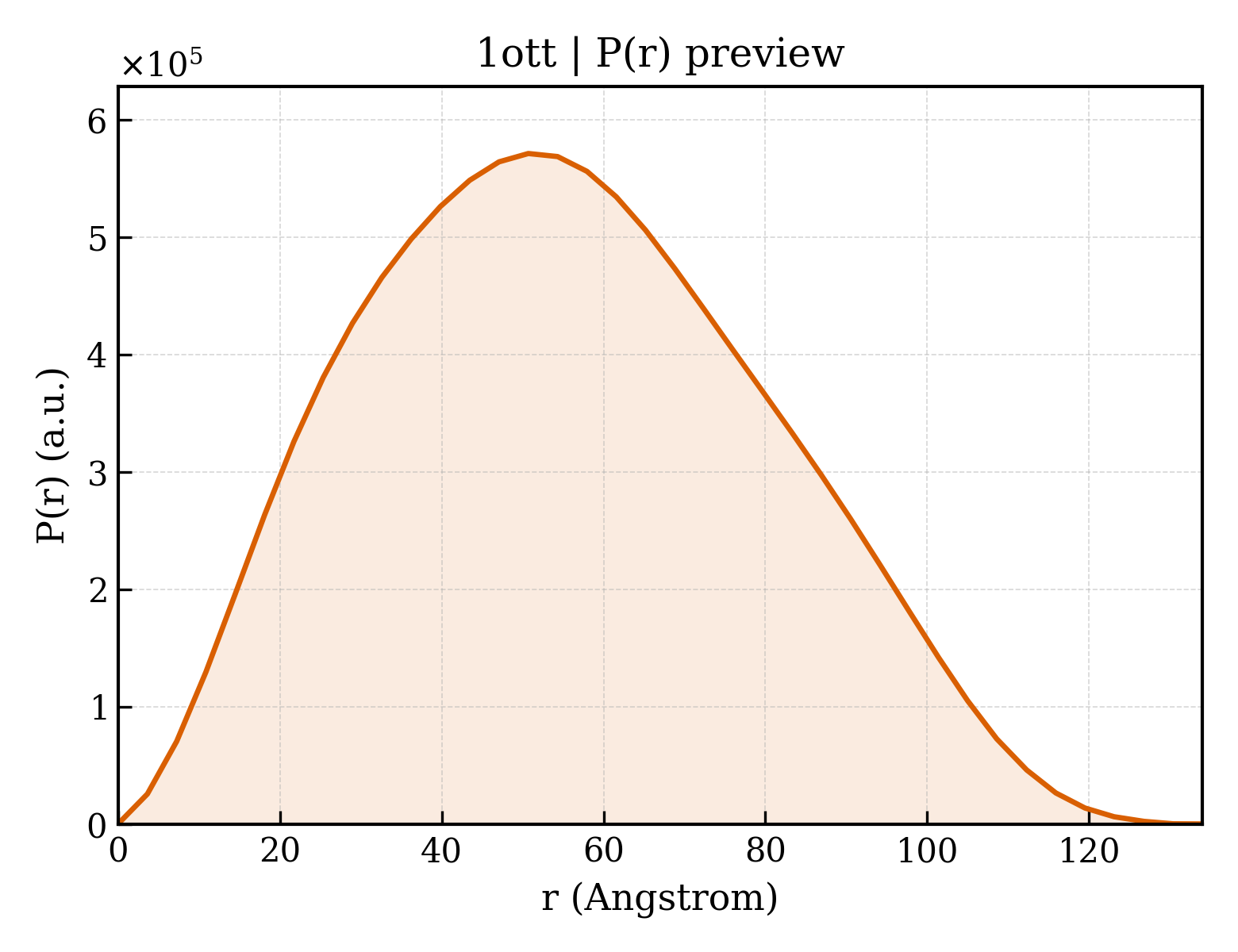

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ott
沉积日期 deposition_date	2003-03-23
结构标题 title	Structure of the Escherichia coli ClC Chloride channel E148A mutant and Fab Complex
关键词 keywords	chloride channel, Fab complex, ion channel, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	42.88 Å
回转半径 Rg (电子) rg_electron	42.13 Å
零角强度 I(0) i0	480085000.00
分子量 molecular_weight	187800.0 kDa
排除体积 excluded_volume	238310 Å³
包络体积 envelope_volume	308280 Å³
水化壳体积 shell_volume	61248 Å³
包络直径 envelope_diameter	139.3 Å
壳层 Rg shell_rg	46.99 Å
包络 Rg envelope_rg	41.76 Å
形状 Rg shape_rg	42.11 Å
总 Rg total_rg	42.46 Å
总原子数 total_atoms	13221
残基数 n_residues	1749
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	134.0 Å
Rg (实空间) rg_real	42.82 Å
Rg 误差 (实空间) rg_real_error	0.96 Å
I(0) (实空间) i0_real	4.8010e+08
I(0) 误差 (实空间) i0_real_error	8.2410e+06
Rg (倒空间) rg_reciprocal	42.88 Å
I(0) (倒空间) i0_reciprocal	480100000.0000
解质量估计 total_estimate	0.6767
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	50.7 Å
偏度 Skewness skewness	0.204
峰度 Kurtosis kurtosis	-0.623
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	32640000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.974; Stabil: 1.000; Sysdev: 0.083; Positv: 1.000; Valcen: 1.000; Smooth: 0.621

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Voltage-gated ClC-type chloride channel eriC
分子量 formula_weight	49600.7 kDa
突变 mutation	E148A
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	13221

MKTDTPSLETPQAARLRRRQLIRQLLERDKTPLAILFMAAVVGTLVGLAAVAFDKGVAWLQNQRMGALVHTADNYPLLLTVAFLCSAVLAMFGYFLVRKYAPEAGGSGIPEIEGALEDQRPVRWWRVLPVKFFGGLGTLGGGMVLGRAGPTVQIGGNIGRMVLDIFRLKGDEARHTLLATGAAAGLAAAFNAPLAGILFIIEEMRPQFRYTLISIKAVFIGVIMSTIMYRIFNHEVALIDVGKLSDAPLNTLWLYLILGIIFGIFGPIFNKWVLGMQDLLHRVHGGNITKWVLMGGAIGGLCGLLGFVAPATSGGGFNLIPIATAGNFSMGMLVFIFVARVITTLLCFSSGAPGGIFAPMLALGTVLGTAFGMVAVELFPQYHLEAGTFAIAGMGALLAASIRAPLTGIILVLEMTDNYQLILPMIITGLGATLLAQFTGGKPLYSAILARTLAKQEAEQLARSK

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	Fab fragment (Heavy chain)
分子量 formula_weight	23823.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,E

EVRLLESGGGLVQPGGSLKLSCAASGFDYSRYWMSWVRQAPGKGLKWIGEINPVSSTINYTPSLKDKFIISRDNAKDTLYLQISKVRSEDTALYYCARLYYGYGYWYFDVWGAGTTVTVSSAKTTPPSVYPLAPGSAAAAASMVTLGCLVKGYFPEPVTVTWNSGSLAAGVHTFPAVLQAALYTLSSSVTVPSSSWPSETVTCNVAHPASSTKVDKKIVPRA

Entity 3 polymer

描述 description	Fab fragment (Light chain)
分子量 formula_weight	23088.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,F

DIVLTQSPAIMSAAPGDKVTMTCSASSSVSYIHWYQQKSGTSPKRWIYDTSKLTSGVPVRFSGSGSGTSYSLTINTMEAEDAATYYCQQWSSHPQTFGGGTKLEILRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRA

Entity 4 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▼

6. 折叠分类 (SCOP + CATH) 20 domains

SCOP 2.08 (10 domains)

结构域编号 domain_id	d1otta_
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.20 — Clc chloride channel
超家族 Superfamily superfamily	f.20.1 — Clc chloride channel
家族 Family family	f.20.1.1 — Clc chloride channel

结构域编号 domain_id	d1ottb_
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.20 — Clc chloride channel
超家族 Superfamily superfamily	f.20.1 — Clc chloride channel
家族 Family family	f.20.1.1 — Clc chloride channel

结构域编号 domain_id	d1ottc1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1ottc2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1ottd1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1ottd2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1otte1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1otte2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1ottf1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1ottf2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (10 domains)

结构域编号 domain_id	1ottA00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3080 — Clc chloride channel
同源超家族 H-superfamily homologous superfamily	10 — Clc chloride channel

结构域编号 domain_id	1ottB00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3080 — Clc chloride channel
同源超家族 H-superfamily homologous superfamily	10 — Clc chloride channel

结构域编号 domain_id	1ottC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1ottC02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1ottD01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1ottD02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1ottE01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1ottE02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1ottF01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1ottF02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	231.614 Å
晶胞边长 b length_b	95.719 Å
晶胞边长 c length_c	169.819 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	131.45 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	24.990 Å
R 因子 r_factor	0.2960
R_work r_work	0.2960
R_free r_free	0.3380
