1ou6

Biosynthetic thiolase from Zoogloea ramigera in complex with acetyl-O-pantetheine-11-pivalate

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Acetyl-CoA acetyltransferase

Zoogloea ramigera

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	SULFATE ION × 4 PANTOTHENYL-AMINOETHANOL-ACETATE PIVALIC ACID × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	THIL_ZOORA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–392； UniProt 1–391 Author chain B； PDBConstruct 1–392； UniProt 1–391 Author chain C； PDBConstruct 1–392； UniProt 1–391 Author chain D； PDBConstruct 1–392； UniProt 1–391

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ou6
Deposition date deposition_date	2003-03-24
Structure title title	Biosynthetic thiolase from Zoogloea ramigera in complex with acetyl-O-pantetheine-11-pivalate
Keywords keywords	thiolase fold, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ou6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ou6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

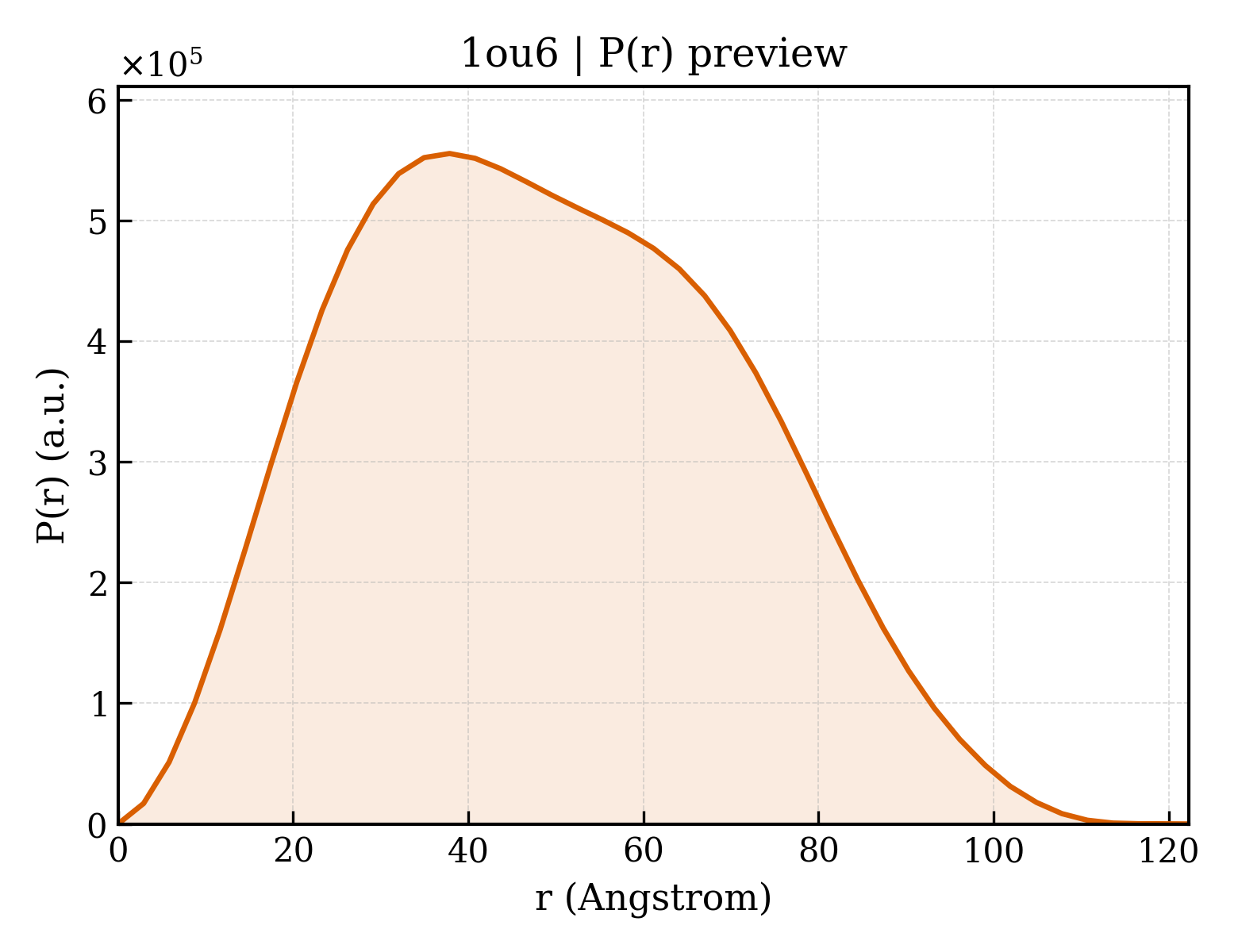

1ou6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.92 Å
Rg (electron density)	37.42 Å
Total Rg	37.82 Å
Atom count	11410
Residues	1564
Excluded volume	202210 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ou6__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Acetyl-CoA acetyltransferase
Molecular weight formula_weight	40557.2 kDa
EC 编号 ec_number	2.3.1.9
Mutation mutation	Cys89 hydroxylated
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	12967

STPSIVIASAARTAVGSFNGAFANTPAHELGATVISAVLERAGVAAGEVNEVILGQVLPAGEGQNPARQAAMKAGVPQEATAWGMNQLCGSGLRAVALGMQQIATGDASIIVAGGMESMSMAPHCAHLRGGVKMGDFKMIDTMIKDGLTDAFYGYHMGTTAENVAKQWQLSRDEQDAFAVASQNKAEAAQKDGRFKDEIVPFIVKGRKGDITVDADEYIRHGATLDSMAKLRPAFDKEGTVTAGNASGLNDGAAAALLMSEAEASRRGIQPLGRIVSWATVGVDPKVMGTGPIPASRKALERAGWKIGDLDLVEANEAFAAQACAVNKDLGWDPSIVNVNGGAIAIGHPIGASGARILNTLLFEMKRRGARKGLATLCIGGGMGVAMCIESL

Source Source

Source organism organism	Zoogloea ramigera
NCBI taxonomy ID ncbi_taxonomy_id	350
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	PANTOTHENYL-AMINOETHANOL-ACETATE PIVALIC ACID
Molecular weight formula_weight	388.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1557

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1ou6a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.1 — Thiolase-related

Domain ID domain_id	d1ou6a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.1 — Thiolase-related

Domain ID domain_id	d1ou6b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.1 — Thiolase-related

Domain ID domain_id	d1ou6b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.1 — Thiolase-related

Domain ID domain_id	d1ou6c1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.1 — Thiolase-related

Domain ID domain_id	d1ou6c2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.1 — Thiolase-related

Domain ID domain_id	d1ou6d1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.1 — Thiolase-related

Domain ID domain_id	d1ou6d2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.1 — Thiolase-related

CATH v4.4 (8 domains)

Domain ID domain_id	1ou6A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	1ou6A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	1ou6B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	1ou6B02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	1ou6C01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	1ou6C02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	1ou6D01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	1ou6D02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

▶

Unit-cell length a length_a	84.380 Å
Unit-cell length b length_b	78.950 Å
Unit-cell length c length_c	148.820 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.96 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.070 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1631
R_work r_work	0.1608
R_free r_free	0.2117
