1p6s

Solution Structure of the Pleckstrin Homology Domain of Human Protein Kinase B beta (Pkb/Akt)

Method: SOLUTION NMR Dmax: 51.2 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RAC-beta serine/threonine protein kinase

Homo sapiens

UniProt P31751

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 1–111 Fragment：Pleckstrin Homology Domain (residues 1-111) No other associated polymer SOLUTION NMR NMR measurement conditions：pH 7.4；286 K；Ionic strength (raw mmCIF value) 0.3；Pressure ambient NMR measurement conditions：pH 7.4；286 K；Ionic strength (raw mmCIF value) 0.3；Pressure ambient NMR sample composition：0.4mM PKBbeta-PH U-15N,13C; 10mM Tris-HCl; 300mM NaCl; 0.1mM Benzamidine; 0.1mM EDTA; 4mM Inositol-1,4,5-trisphosphate; 90% H2O, 10% D2O | 90% H2O/10% D2O NMR sample composition：0.4mM PKBbeta-PH U-15N; 10mM Tris-HCl; 300mM NaCl; 0.1mM Benzamidine; 0.1mM EDTA; 4mM Inositol-1,4,5-trisphosphate; 90% H2O, 10% D2O | 90% H2O/10% D2O Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1P6S Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1GZK Molecular mechanism for the regulation of protein kinase B/Akt by hydrophobic motif phosphorylation Deposited 2002-05-23 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 146–460（315 aa） Fragment：KINASE DOMAIN, RESIDUES (146 - 460)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；10MG/ML PROTEIN, 30% PEG4K, 0.2 M LITHIUM SULPHATE, 0.1 M TRIS, pH 7.50
Resolution 2.30 Å R-free 0.319
1GZN Structure of PKB kinase domain Deposited 2002-05-24 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 146–480（335 aa） Fragment：KINASE DOMAIN AND HYDROPHOBIC MOTIF, RESIDUES 146-480
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；30% PEG 8K, 0.2 M LITHIUM SULPHATE 0.1 M TRIS, 10 MG/ML PROTEIN, pH 7.50
Resolution 2.50 Å R-free 0.319
1GZO Structure of protein kinase B unphosphorylated Deposited 2002-05-24 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 146–460（315 aa） Fragment：KINASE DOMAIN WITHOUT HYDROPHOBIC MOTIF, RESIDUES 146-460
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；30% PEG 8000, 0.2 M LITHIUM SULPHATE, 0.1 M TRIS, 10MG/ML PROTEIN, pH 7.50
Resolution 2.75 Å R-free 0.310
1MRV crystal structure of an inactive Akt2 kinase domain Deposited 2002-09-18 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 143–481（339 aa） Fragment：kinase domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；Li2SO4, PEG4000, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.295
1MRY crystal structure of an inactive akt2 kinase domain Deposited 2002-09-18 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 143–481（339 aa） Fragment：kinase domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；Li2SO4, PEG 4000, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.272
1O6K Structure of activated form of PKB kinase domain S474D with GSK3 peptide and AMP-PNP Deposited 2002-10-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 146–481（336 aa） Fragment：KINASE DOMAIN, RESIDUES 146-481
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MN MANGANESE (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；10 MG/ML PROTEIN 20 PEG 4K, 10% ISOPROPONAL, 5 MM DTT, pH 7.50
Resolution 1.70 Å R-free 0.234
1O6L Crystal structure of an activated Akt/protein kinase B (PKB-PIF chimera) ternary complex with AMP-PNP and GSK3 peptide Deposited 2002-10-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 146–467（322 aa） Fragment：KINASE DOMAIN, RESIDUES 146 - 467
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MN MANGANESE (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；10 MG/ML PROTEIN, 20% (W/V) POLYETHYLENE, GLYCOL 4000, 10% (V/V) ISOPROPANOL, 0.1 M HEPES (PH 7.5), 5 MM DTT
Resolution 1.60 Å R-free 0.227
2JDO STRUCTURE OF PKB-BETA (AKT2) COMPLEXED WITH ISOQUINOLINE-5-SULFONIC ACID (2-(2-(4-CHLOROBENZYLOXY) ETHYLAMINO)ETHYL)AMIDE Deposited 2007-01-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 146–467（322 aa） Fragment：KINASE CATALYTIC DOMAIN, RESIDUES 146-467
Non-standard monomer：Yes (specific site not provided by mmCIF) I5S ISOQUINOLINE-5-SULFONIC ACID (2-(2-(4-CHLOROBENZYLOXY)ETHYLAMINO)ETHYL)AMIDE × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.80 Å R-free 0.210
2JDR STRUCTURE OF PKB-BETA (AKT2) COMPLEXED WITH THE INHIBITOR A-443654 Deposited 2007-01-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 146–467（322 aa） Fragment：KINASE CATALYTIC DOMAIN, RESIDUES 146-467
Non-standard monomer：Yes (specific site not provided by mmCIF) L20 (2S)-1-(1H-INDOL-3-YL)-3-{[5-(3-METHYL-1H-INDAZOL-5-YL)PYRIDIN-3-YL]OXY}PROPAN-2-AMINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.30 Å R-free 0.252
2UW9 STRUCTURE OF PKB-BETA (AKT2) COMPLEXED WITH 4-(4-chloro-phenyl)-4-(4-(1H-pyrazol-4-yl)-phenyl)-piperidine Deposited 2007-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 146–467（322 aa） Fragment：KINASE CATALYTIC DOMAIN, RESIDUES 146-467
Non-standard monomer：Yes (specific site not provided by mmCIF) GVP 4-(4-CHLOROPHENYL)-4-[4-(1H-PYRAZOL-4-YL)PHENYL]PIPERIDINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.10 Å R-free 0.305
2X39 Structure of 4-Amino-N-(4-chlorobenzyl)-1-(7H-pyrrolo(2,3-d)pyrimidin- 4-yl)piperidine-4-carboxamide bound to PKB Deposited 2010-01-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 146–467（322 aa） Fragment：KINASE CATALYTIC DOMAIN, RESIDUES 146-467
Non-standard monomer：Yes (specific site not provided by mmCIF) X39 4-AMINO-N-(4-CHLOROBENZYL)-1-(7H-PYRROLO[2,3-D]PYRIMIDIN-4-YL)PIPERIDINE-4-CARBOXAMIDE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.93 Å R-free 0.226
2XH5 Structure of 4-(4-tert-Butylbenzyl)-1-(7H-pyrrolo(2,3-d)pyrimidin-4- yl)piperidin-4-amine bound to PKB Deposited 2010-06-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 146–479（334 aa） Fragment：KINASE CATALYTIC DOMAIN, RESIDUES 146-467
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) X37 4-(4-tert-butylbenzyl)-1-(7H-pyrrolo[2,3-d]pyrimidin-4-yl)piperidin-4-aminium × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.72 Å R-free 0.305
3D0E Crystal structure of human Akt2 in complex with GSK690693 Deposited 2008-05-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 146–480（335 aa） Fragment：kinase domain
Chain B 146–480（335 aa） Fragment：kinase domain
Mutation：S474D Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：S474D Non-standard monomer：Yes (specific site not provided by mmCIF) G93 4-{2-(4-amino-1,2,5-oxadiazol-3-yl)-1-ethyl-7-[(3S)-piperidin-3-ylmethoxy]-1H-imidazo[4,5-c]pyridin-4-yl}-2-methylbut-3 -yn-2-ol × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；14% PEG 4K, 10% isopropanol, pH 8.0, vapor diffusion, temperature 298K
Resolution 2.00 Å R-free 0.246
3D0E Crystal structure of human Akt2 in complex with GSK690693 Deposited 2008-05-01 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 146–480（335 aa） Fragment：kinase domain
Mutation：S474D Non-standard monomer：Yes (specific site not provided by mmCIF) G93 4-{2-(4-amino-1,2,5-oxadiazol-3-yl)-1-ethyl-7-[(3S)-piperidin-3-ylmethoxy]-1H-imidazo[4,5-c]pyridin-4-yl}-2-methylbut-3 -yn-2-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；14% PEG 4K, 10% isopropanol, pH 8.0, vapor diffusion, temperature 298K
Resolution 2.00 Å R-free 0.246
3D0E Crystal structure of human Akt2 in complex with GSK690693 Deposited 2008-05-01 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 146–480（335 aa） Fragment：kinase domain
Mutation：S474D Non-standard monomer：Yes (specific site not provided by mmCIF) G93 4-{2-(4-amino-1,2,5-oxadiazol-3-yl)-1-ethyl-7-[(3S)-piperidin-3-ylmethoxy]-1H-imidazo[4,5-c]pyridin-4-yl}-2-methylbut-3 -yn-2-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；14% PEG 4K, 10% isopropanol, pH 8.0, vapor diffusion, temperature 298K
Resolution 2.00 Å R-free 0.246
3E87 Crystal structures of the kinase domain of AKT2 in complex with ATP-competitive inhibitors Deposited 2008-08-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 146–480（335 aa） Fragment：Akt2 kinase domain (146-480)
Mutation：S474D Non-standard monomer：Yes (specific site not provided by mmCIF) G95 N-[(1S)-2-amino-1-phenylethyl]-5-(1H-pyrrolo[2,3-b]pyridin-4-yl)thiophene-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；14% PEG 2KMME, 100 mM Tris pH 8.0 and 10% ethanol diffused in. Seeded., vapor diffusion, temperature 298K
Resolution 2.30 Å R-free 0.246
3E87 Crystal structures of the kinase domain of AKT2 in complex with ATP-competitive inhibitors Deposited 2008-08-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 146–480（335 aa） Fragment：Akt2 kinase domain (146-480)
Mutation：S474D Non-standard monomer：Yes (specific site not provided by mmCIF) G95 N-[(1S)-2-amino-1-phenylethyl]-5-(1H-pyrrolo[2,3-b]pyridin-4-yl)thiophene-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；14% PEG 2KMME, 100 mM Tris pH 8.0 and 10% ethanol diffused in. Seeded., vapor diffusion, temperature 298K
Resolution 2.30 Å R-free 0.246
3E88 Crystal structures of the kinase domain of AKT2 in complex with ATP-competitive inhibitors Deposited 2008-08-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 146–480（335 aa） Fragment：Akt2 kinase domain (146-480)
Mutation：S474D Non-standard monomer：Yes (specific site not provided by mmCIF) G96 4-[2-(4-amino-1,2,5-oxadiazol-3-yl)-6-{[(2R)-2-amino-3-phenylpropyl]oxy}-1-ethyl-1H-imidazo[4,5-c]pyridin-4-yl]-2-methylbut-3-yn-2-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；14% PEG 2KMME, 100 mM Tris pH 8.0 and 10% ethanol diffused in. Seeded., vapor diffusion, temperature 298K
Resolution 2.50 Å R-free 0.273
3E88 Crystal structures of the kinase domain of AKT2 in complex with ATP-competitive inhibitors Deposited 2008-08-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 146–480（335 aa） Fragment：Akt2 kinase domain (146-480)
Mutation：S474D Non-standard monomer：Yes (specific site not provided by mmCIF) G96 4-[2-(4-amino-1,2,5-oxadiazol-3-yl)-6-{[(2R)-2-amino-3-phenylpropyl]oxy}-1-ethyl-1H-imidazo[4,5-c]pyridin-4-yl]-2-methylbut-3-yn-2-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；14% PEG 2KMME, 100 mM Tris pH 8.0 and 10% ethanol diffused in. Seeded., vapor diffusion, temperature 298K
Resolution 2.50 Å R-free 0.273
3E8D Crystal structures of the kinase domain of AKT2 in complex with ATP-competitive inhibitors Deposited 2008-08-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 146–480（335 aa） Fragment：Akt2 kinase domain (UNP residues 146-480)
Mutation：S474D Non-standard monomer：Yes (specific site not provided by mmCIF) G98 4-[2-(4-amino-2,5-dihydro-1,2,5-oxadiazol-3-yl)-6-{[(1S)-3-amino-1-phenylpropyl]oxy}-1-ethyl-1H-imidazo[4,5-c]pyridin-4-yl]-2-methylbut-3-yn-2-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；14% PEG 2KMME, 100 mM Tris pH 8.0 and 10% ethanol diffused in. Seeded., vapor diffusion, temperature 298K
Resolution 2.70 Å R-free 0.268
3E8D Crystal structures of the kinase domain of AKT2 in complex with ATP-competitive inhibitors Deposited 2008-08-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 146–480（335 aa） Fragment：Akt2 kinase domain (UNP residues 146-480)
Mutation：S474D Non-standard monomer：Yes (specific site not provided by mmCIF) G98 4-[2-(4-amino-2,5-dihydro-1,2,5-oxadiazol-3-yl)-6-{[(1S)-3-amino-1-phenylpropyl]oxy}-1-ethyl-1H-imidazo[4,5-c]pyridin-4-yl]-2-methylbut-3-yn-2-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；14% PEG 2KMME, 100 mM Tris pH 8.0 and 10% ethanol diffused in. Seeded., vapor diffusion, temperature 298K
Resolution 2.70 Å R-free 0.268
8Q61 Co-crystal structure of human AKT2 with compound 3 Deposited 2023-08-10 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–481（481 aa）
Mutation：N2D K06 6-[4-(1-azanyl-3-methyl-3-oxidanyl-cyclobutyl)phenyl]-7-phenyl-1-propyl-pyrido[2,3-b][1,4]oxazin-2-one × 1 GOL GLYCEROL × 1 PO4 PHOSPHATE ION × 3 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1 M MES, 1.5 M NaH2PO4
Resolution 2.32 Å R-free 0.263
9C1W Structure of AKT2 with compound 3 Deposited 2024-05-29 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–447（446 aa）
Mutation：P115A, G116A XOO 4-{2-[({4-[(2P)-2-(2-aminopyridin-3-yl)-5-phenyl-3H-imidazo[4,5-b]pyridin-3-yl]phenyl}methyl)amino]ethyl}-2-hydroxybenzaldehyde × 1 EDO 1,2-ETHANEDIOL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M HEPES pH 7.5, 20 % w/v PEG 8000
Resolution 2.00 Å R-free 0.242

18 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name AKT2_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–111； UniProt 1–111

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1p6s

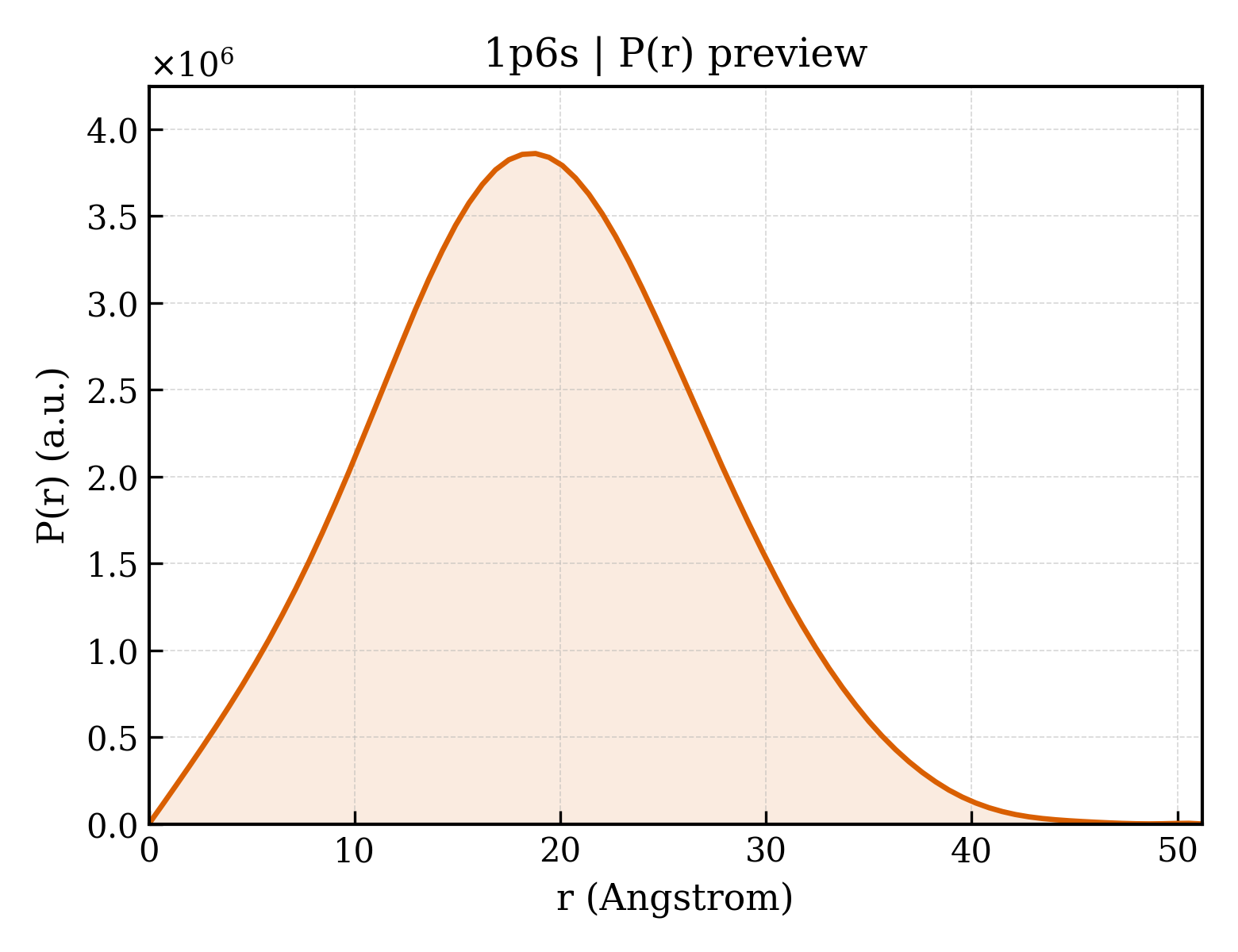

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1p6s
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1p6s
Deposition date deposition_date2003-04-30
Structure title titleSolution Structure of the Pleckstrin Homology Domain of Human Protein Kinase B beta (Pkb/Akt)
Keywords keywordsPLECKSTRIN HOMOLOGY DOMAIN, PKB, AKT, SIGNAL TRANSDUCTION, TRANSFERASE; TRANSFERASE
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier14.75 Å
Radius of gyration Rg (electron density) rg_electron14.45 Å
Forward intensity I(0) i0968924000.00
Molecular weight molecular_weight264320.0 kDa
Excluded volume excluded_volume330940 ų
Envelope volume envelope_volume37111 ų
Hydration-shell volume shell_volume17854 ų
Envelope diameter envelope_diameter55.6 Å
Shell Rg shell_rg23.66 Å
Envelope Rg envelope_rg17.61 Å
Shape Rg shape_rg14.39 Å
Total Rg total_rg14.83 Å
Total atoms total_atoms37020
Residues n_residues2220
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax51.2 Å
Rg (real space) rg_real14.67 Å
Rg uncertainty (real space) rg_real_error0.29 Å
I(0) (real space) i0_real9.6890e+08
I(0) uncertainty (real space) i0_real_error9.7900e+06
Rg (reciprocal space) rg_reciprocal14.68 Å
I(0) (reciprocal space) i0_reciprocal968900000.0000
Solution quality estimate total_estimate0.7128
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary18.8 Å
Skewness Skewness skewness0.173
Kurtosis Kurtosis kurtosis-0.281
Angular range angular_range— – 0.5000 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha345600.0000
Real-space data points n_real_points80
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.722; Stabil: 1.000; Sysdev: 0.368; Positv: 1.000; Valcen: 0.995; Smooth: 0.998
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd1p6sa_
Class classb — All beta proteins
Fold Fold foldb.55 — PH domain-like barrel
Superfamily Superfamily superfamilyb.55.1 — PH domain-like
Family Family familyb.55.1.1 — Pleckstrin-homology domain (PH domain)

CATH v4.4 (1 domains)

Domain ID domain_id1p6sA00
Class class2 — Mainly Beta
Architecture architecture30 — Roll
Topology topology29 — PH-domain like
Homologous superfamily homologous superfamily30 — Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB)
▶
