SAXSdb — 1p7d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Integrase

Enterobacteria phage lambda

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Monomer	Protein 1 DNA 2	5'-D(CPAPAPTPGPCPCPAPAPCPTPTP*T)-3' × 1 26-MER × 1	Consistent with all polymers
2	Protein–DNA	Monomer	Protein 1 DNA 2	5'-D(CPAPAPTPGPCPCPAPAPCPTPTP*T)-3' × 1 26-MER × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VINT_LAMBD
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–283； UniProt 74–356 Author chain B； PDBConstruct 1–283； UniProt 74–356

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1p7d
Deposition date deposition_date	2003-05-01
Structure title title	Crystal structure of the Lambda Integrase (residues 75-356) bound to DNA
Keywords keywords	PROTEIN-DNA COMPLEX, DNA Binding Protein-DNA COMPLEX; DNA Binding Protein/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1p7d__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1p7d__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

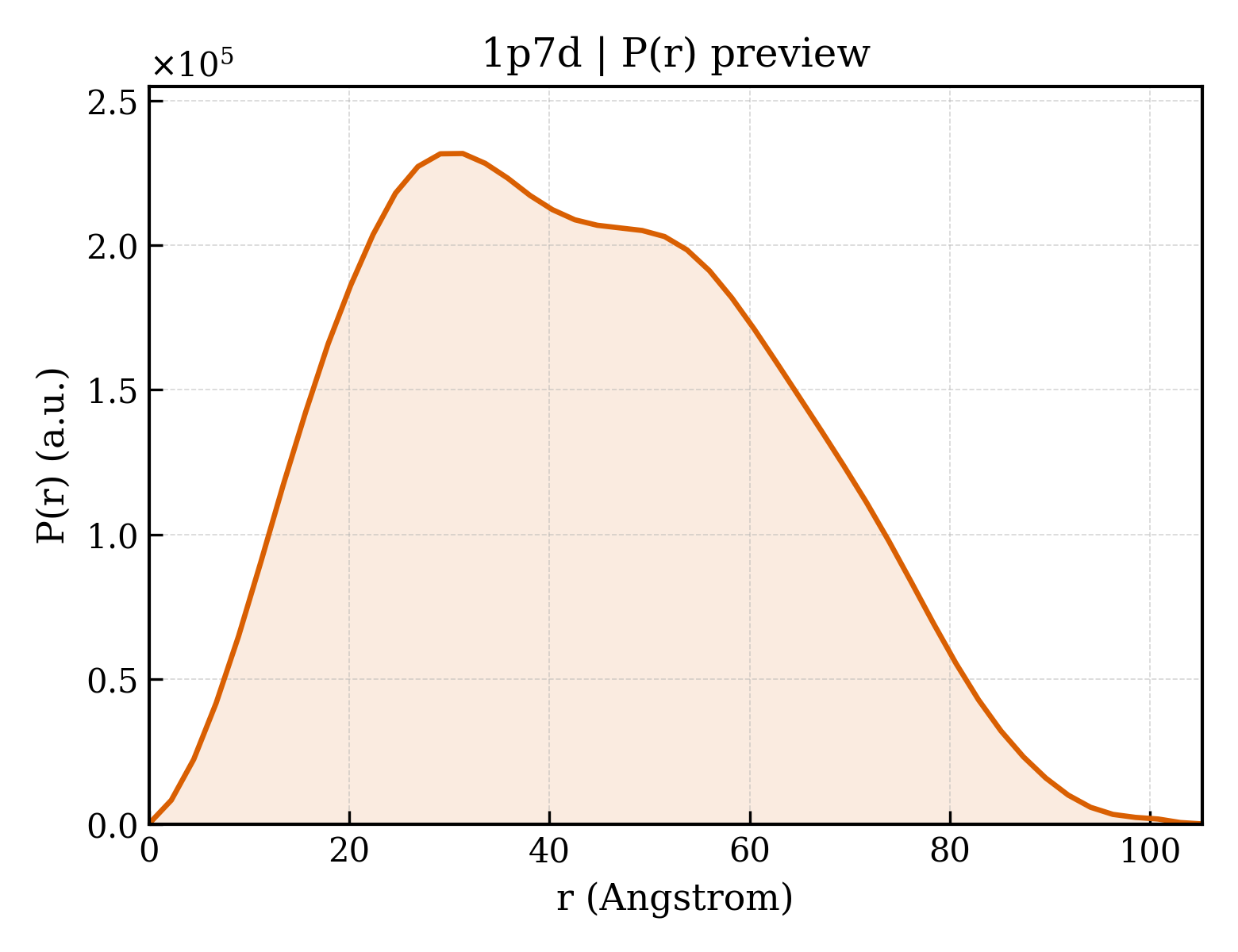

1p7d__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.40 Å
Rg (electron density)	21.96 Å
Total Rg	22.63 Å
Atom count	2961
Residues	318
Excluded volume	50193 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1p7d__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1p7d__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	5'-D(CPAPAPTPGPCPCPAPAPCPTPTP*T)-3'
Molecular weight formula_weight	3910.6 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C,E
Atom count atom_count	5884

CAATGCCAACTTT

Entity 2 Entity 2 polymer

Description description	26-MER
Molecular weight formula_weight	8075.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D,F

TTTGCGAAGCAAAAAAGTTGGCATTG

Entity 3 Entity 3 polymer

Description description	Integrase
Molecular weight formula_weight	31914.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B

MTLHSWLDRYEKILASRGIKQKTLINYMSKIKAIRRGLPDAPLEDITTKEIAAMLNGYIDEGKAASAKLIRSTLSDAFREAIAEGHITTNHVAATRAAKSEVRRSRLTADEYLKIYQAAESSPCWLRLAMELAVVTGQRVGDLCEMKWSDIVDGYLYVEQSKTGVKIAIPTALHIDALGISMKETLDKCKEILGGETIIASTRREPLSSGTVSRYFMRARKASGLSFEGDPPTFHELRSLSARLYEKQISDKFAQHLLGHKSDTMASQYRDDRGREWDKIEIK

Source Source

Source organism organism	Enterobacteria phage lambda
NCBI taxonomy ID ncbi_taxonomy_id	10710
Host organism host_organism	Escherichia coli

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1p7da_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.163 — DNA breaking-rejoining enzymes
Superfamily Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
Family Family family	d.163.1.1 — Lambda integrase-like, catalytic core

Domain ID domain_id	d1p7db_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.163 — DNA breaking-rejoining enzymes
Superfamily Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
Family Family family	d.163.1.1 — Lambda integrase-like, catalytic core

CATH v4.4 (4 domains)

Domain ID domain_id	1p7dA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	130 — Tyrosine recombinase, N-terminal domain

Domain ID domain_id	1p7dA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	443 — hpI Integrase; Chain A
Homologous superfamily homologous superfamily	10 — Intergrase catalytic core

Domain ID domain_id	1p7dB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	130 — Tyrosine recombinase, N-terminal domain

Domain ID domain_id	1p7dB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	443 — hpI Integrase; Chain A
Homologous superfamily homologous superfamily	10 — Intergrase catalytic core

▶

Unit-cell length a length_a	59.021 Å
Unit-cell length b length_b	106.161 Å
Unit-cell length c length_c	73.165 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.10 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.950 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.2310
R_free r_free	0.2590
