SAXSdb — 1z1b

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Integrase

Enterobacteria phage lambda

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 4 DNA 10	5'-D(CPTCPGPTPTPCPAPGPCPTPTPTPTPTPT)-3' × 2 5'-D(TPTPTPAPTPAPCPTPAPAPGPTPTPGPGPCPAPT)-3' × 2 29-MER DNA × 2 26-MER DNA × 2 26-MER DNA × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VINT_LAMBD
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain A； PDBConstruct 1–356； UniProt 1–356 Author chain B； PDBConstruct 1–356； UniProt 1–356

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1z1b
Deposition date deposition_date	2005-03-03
Structure title title	Crystal structure of a lambda integrase dimer bound to a COC' core site
Keywords keywords	PROTEIN-DNA COMPLEX, DNA BINDING PROTEIN-DNA COMPLEX; DNA BINDING PROTEIN/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1z1b__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1z1b__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

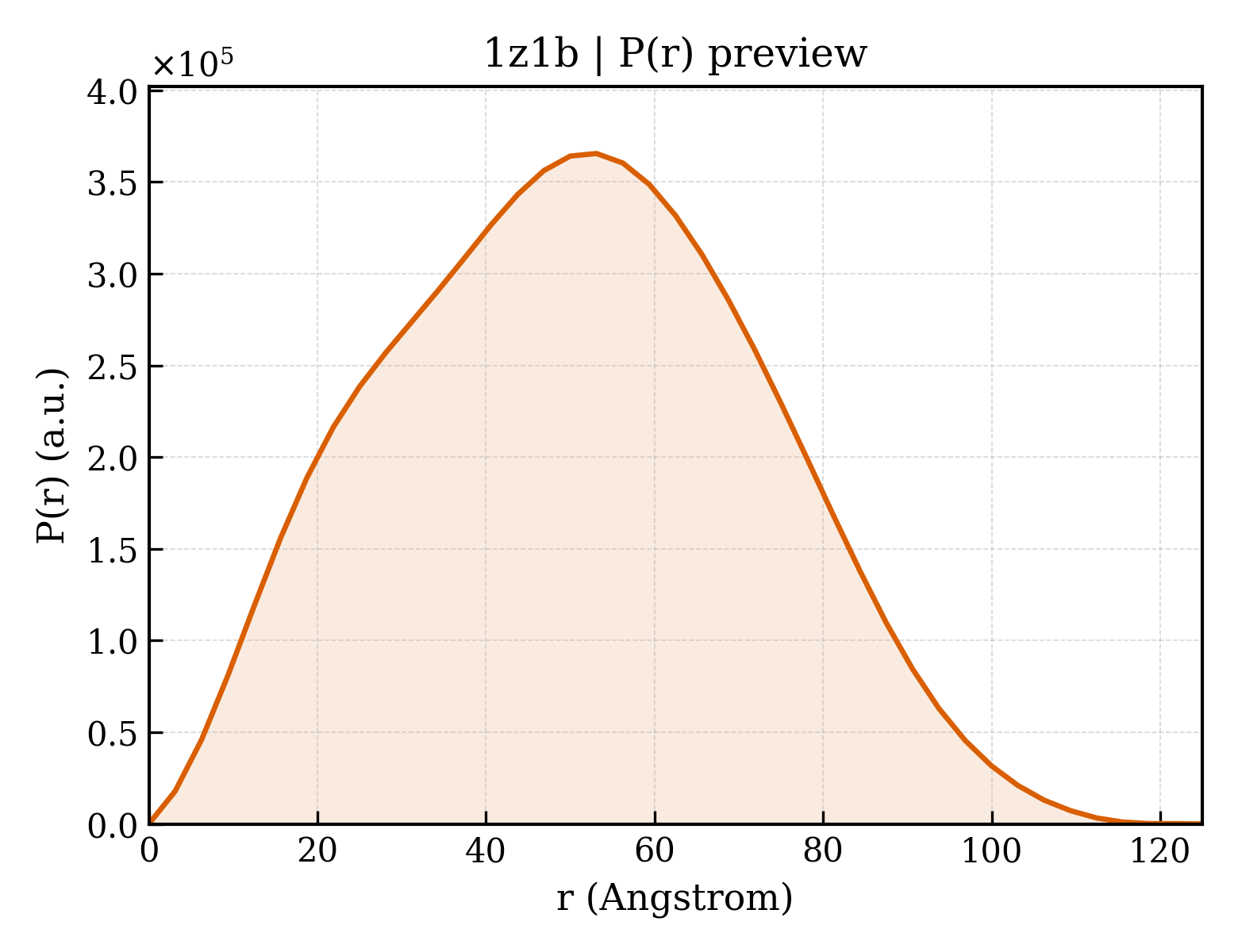

1z1b__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.68 Å
Rg (electron density)	41.68 Å
Total Rg	42.05 Å
Atom count	15306
Residues	1610
Excluded volume	258060 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1z1b__assembly_1__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	5'-D(CPTCPGPTPTPCPAPGPCPTPTPTPTPTPT)-3'
Molecular weight formula_weight	4227.7 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C
Atom count atom_count	7653

CGTTCAGCTTTTTT

Entity 2 Entity 2 polymer

Description description	5'-D(TPTPTPAPTPAPCPTPAPAPGPTPTPGPGPCPAPT)-3'
Molecular weight formula_weight	5520.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

TTTATACTAAGTTGGCAT

Entity 3 Entity 3 polymer

Description description	29-MER DNA
Molecular weight formula_weight	8943.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	E

ATGCCAACTTAGTATAAAAAAGCTGAACG

Entity 4 Entity 4 polymer

Description description	26-MER DNA
Molecular weight formula_weight	7949.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	F

ACAGGTCACTATCAGTCAAAATACCG

Entity 5 Entity 5 polymer

Description description	26-MER DNA
Molecular weight formula_weight	8024.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	G

CGGTATTTTGACTGATAGTGACCTGT

Entity 6 Entity 6 polymer

Description description	Integrase
Molecular weight formula_weight	40453.2 kDa
Mutation mutation	E174K
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B

MGRRRSHERRDLPPNLYIRNNGYYCYRDPRTGKEFGLGRDRRIAITEAIQANIELFSGHKHKPLTARINSDNSVTLHSWLDRYEKILASRGIKQKTLINYMSKIKAIRRGLPDAPLEDITTKEIAAMLNGYIDEGKAASAKLIRSTLSDAFREAIAEGHITTNHVAATRAAKSKVRRSRLTADEYLKIYQAAESSPCWLRLAMELAVVTGQRVGDLCEMKWSDIVDGYLYVEQSKTGVKIAIPTALHIDALGISMKETLDKCKEILGGETIIASTRREPLSSGTVSRYFMRARKASGLSFEGDPPTFHELRSLSARLYEKQISDKFAQHLLGHKSDTMASQYRDDRGREWDKIEIK

Source Source

Source organism organism	Enterobacteria phage lambda
NCBI taxonomy ID ncbi_taxonomy_id	10710
Host organism host_organism	Escherichia coli

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1z1ba1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.10 — DNA-binding domain
Superfamily Superfamily superfamily	d.10.1 — DNA-binding domain
Family Family family	d.10.1.4 — lambda integrase N-terminal domain

Domain ID domain_id	d1z1ba2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.163 — DNA breaking-rejoining enzymes
Superfamily Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
Family Family family	d.163.1.1 — Lambda integrase-like, catalytic core

Domain ID domain_id	d1z1bb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.10 — DNA-binding domain
Superfamily Superfamily superfamily	d.10.1 — DNA-binding domain
Family Family family	d.10.1.4 — lambda integrase N-terminal domain

Domain ID domain_id	d1z1bb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.163 — DNA breaking-rejoining enzymes
Superfamily Superfamily superfamily	d.163.1 — DNA breaking-rejoining enzymes
Family Family family	d.163.1.1 — Lambda integrase-like, catalytic core

CATH v4.4 (6 domains)

Domain ID domain_id	1z1bA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1z1bA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	130 — Tyrosine recombinase, N-terminal domain

Domain ID domain_id	1z1bA03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	443 — hpI Integrase; Chain A
Homologous superfamily homologous superfamily	10 — Intergrase catalytic core

Domain ID domain_id	1z1bB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1z1bB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	130 — Tyrosine recombinase, N-terminal domain

Domain ID domain_id	1z1bB03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	443 — hpI Integrase; Chain A
Homologous superfamily homologous superfamily	10 — Intergrase catalytic core

▶

Unit-cell length a length_a	97.599 Å
Unit-cell length b length_b	211.278 Å
Unit-cell length c length_c	191.704 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	3.800 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2480
R_work r_work	0.2480
R_free r_free	0.2960
