1pd5
Crystal structure of E.coli chloramphenicol acetyltransferase type I at 2.5 Angstrom resolution
SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1pd5 |
| 沉积日期 deposition_date | 2003-05-19 |
| 结构标题 title | Crystal structure of E.coli chloramphenicol acetyltransferase type I at 2.5 Angstrom resolution |
| 关键词 keywords | trimer, chloramphenicol, acetyltransferase, TRANSFERASE; TRANSFERASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 50.78 Å |
| 回转半径 Rg (电子) rg_electron | 50.41 Å |
| 零角强度 I(0) i0 | 1249890000.00 |
| 分子量 molecular_weight | 300020.0 kDa |
| 排除体积 excluded_volume | 375750 ų |
| 包络体积 envelope_volume | 519810 ų |
| 水化壳体积 shell_volume | 85080 ų |
| 包络直径 envelope_diameter | 170.8 Å |
| 壳层 Rg shell_rg | 55.46 Å |
| 包络 Rg envelope_rg | 48.91 Å |
| 形状 Rg shape_rg | 50.41 Å |
| 总 Rg total_rg | 50.59 Å |
| 总原子数 total_atoms | 21210 |
| 残基数 n_residues | 2558 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |

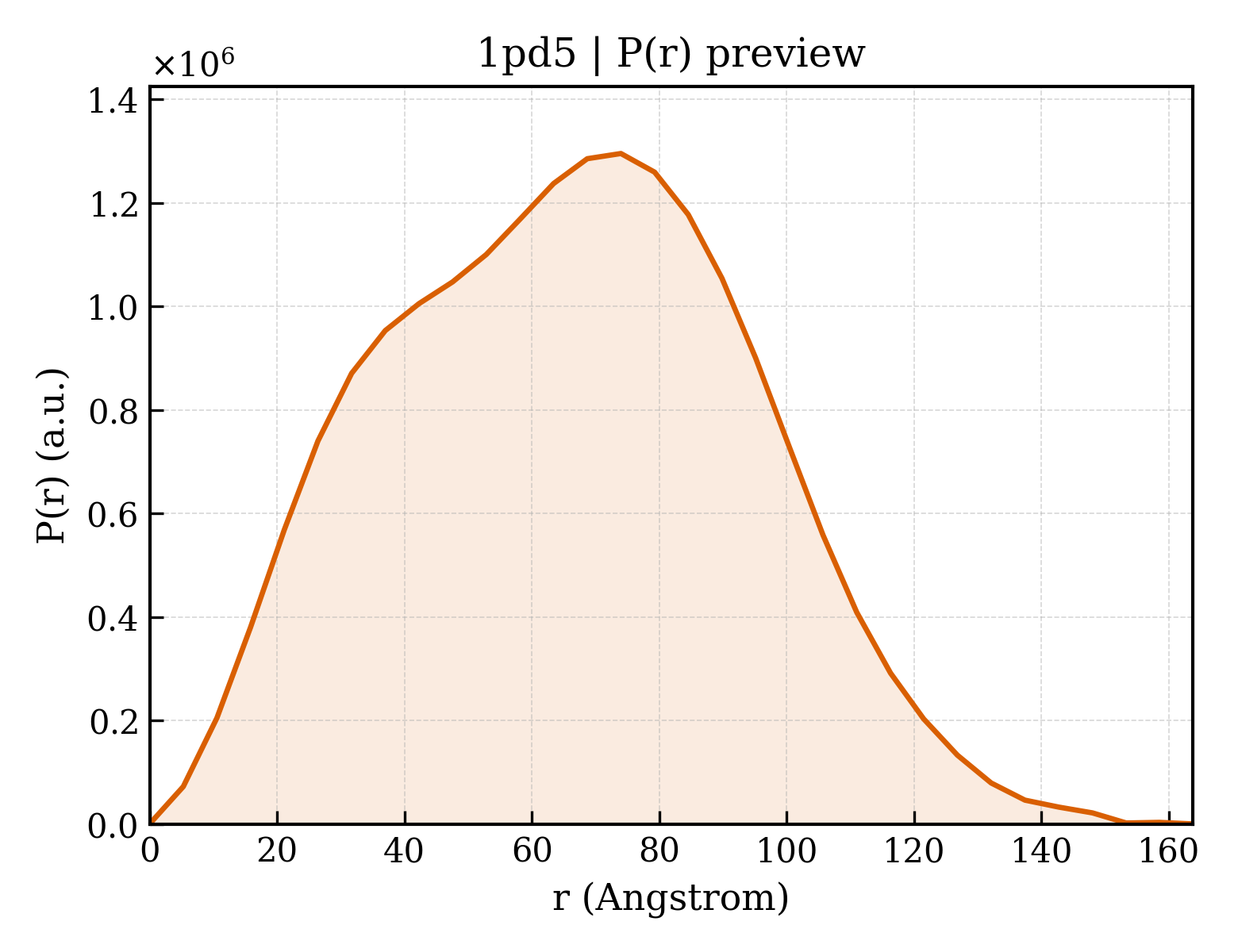

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 163.8 Å |
| Rg (实空间) rg_real | 50.64 Å |
| Rg 误差 (实空间) rg_real_error | 1.81 Å |
| I(0) (实空间) i0_real | 1.2500e+09 |
| I(0) 误差 (实空间) i0_real_error | 2.4680e+07 |
| Rg (倒空间) rg_reciprocal | 50.88 Å |
| I(0) (倒空间) i0_reciprocal | 1250000000.0000 |
| 解质量估计 total_estimate | 0.8829 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 74.0 Å |
| 偏度 Skewness skewness | 0.109 |
| 峰度 Kurtosis kurtosis | -0.557 |
| 角度范围 angular_range | — – 0.1550 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 192500000.0000 |
| 实空间数据点数 n_real_points | 32 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.890; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.806 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 24 domains
SCOP 2.08 (12 domains)
| 结构域编号 domain_id | d1pd5a_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.43 — CoA-dependent acyltransferases |
| 超家族 Superfamily superfamily | c.43.1 — CoA-dependent acyltransferases |
| 家族 Family family | c.43.1.1 — CAT-like |
| 结构域编号 domain_id | d1pd5b_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.43 — CoA-dependent acyltransferases |
| 超家族 Superfamily superfamily | c.43.1 — CoA-dependent acyltransferases |
| 家族 Family family | c.43.1.1 — CAT-like |
| 结构域编号 domain_id | d1pd5c_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.43 — CoA-dependent acyltransferases |
| 超家族 Superfamily superfamily | c.43.1 — CoA-dependent acyltransferases |
| 家族 Family family | c.43.1.1 — CAT-like |
| 结构域编号 domain_id | d1pd5d_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.43 — CoA-dependent acyltransferases |
| 超家族 Superfamily superfamily | c.43.1 — CoA-dependent acyltransferases |
| 家族 Family family | c.43.1.1 — CAT-like |
| 结构域编号 domain_id | d1pd5e_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.43 — CoA-dependent acyltransferases |
| 超家族 Superfamily superfamily | c.43.1 — CoA-dependent acyltransferases |
| 家族 Family family | c.43.1.1 — CAT-like |
| 结构域编号 domain_id | d1pd5f_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.43 — CoA-dependent acyltransferases |
| 超家族 Superfamily superfamily | c.43.1 — CoA-dependent acyltransferases |
| 家族 Family family | c.43.1.1 — CAT-like |
| 结构域编号 domain_id | d1pd5g_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.43 — CoA-dependent acyltransferases |
| 超家族 Superfamily superfamily | c.43.1 — CoA-dependent acyltransferases |
| 家族 Family family | c.43.1.1 — CAT-like |
| 结构域编号 domain_id | d1pd5h_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.43 — CoA-dependent acyltransferases |
| 超家族 Superfamily superfamily | c.43.1 — CoA-dependent acyltransferases |
| 家族 Family family | c.43.1.1 — CAT-like |
| 结构域编号 domain_id | d1pd5i_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.43 — CoA-dependent acyltransferases |
| 超家族 Superfamily superfamily | c.43.1 — CoA-dependent acyltransferases |
| 家族 Family family | c.43.1.1 — CAT-like |
| 结构域编号 domain_id | d1pd5j_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.43 — CoA-dependent acyltransferases |
| 超家族 Superfamily superfamily | c.43.1 — CoA-dependent acyltransferases |
| 家族 Family family | c.43.1.1 — CAT-like |
| 结构域编号 domain_id | d1pd5k_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.43 — CoA-dependent acyltransferases |
| 超家族 Superfamily superfamily | c.43.1 — CoA-dependent acyltransferases |
| 家族 Family family | c.43.1.1 — CAT-like |
| 结构域编号 domain_id | d1pd5l_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.43 — CoA-dependent acyltransferases |
| 超家族 Superfamily superfamily | c.43.1 — CoA-dependent acyltransferases |
| 家族 Family family | c.43.1.1 — CAT-like |
CATH v4.4 (12 domains)
| 结构域编号 domain_id | 1pd5A00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 559 — Chloramphenicol Acetyltransferase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Chloramphenicol acetyltransferase-like domain |
| 结构域编号 domain_id | 1pd5B00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 559 — Chloramphenicol Acetyltransferase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Chloramphenicol acetyltransferase-like domain |
| 结构域编号 domain_id | 1pd5C00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 559 — Chloramphenicol Acetyltransferase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Chloramphenicol acetyltransferase-like domain |
| 结构域编号 domain_id | 1pd5D00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 559 — Chloramphenicol Acetyltransferase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Chloramphenicol acetyltransferase-like domain |
| 结构域编号 domain_id | 1pd5E00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 559 — Chloramphenicol Acetyltransferase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Chloramphenicol acetyltransferase-like domain |
| 结构域编号 domain_id | 1pd5F00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 559 — Chloramphenicol Acetyltransferase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Chloramphenicol acetyltransferase-like domain |
| 结构域编号 domain_id | 1pd5G00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 559 — Chloramphenicol Acetyltransferase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Chloramphenicol acetyltransferase-like domain |
| 结构域编号 domain_id | 1pd5H00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 559 — Chloramphenicol Acetyltransferase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Chloramphenicol acetyltransferase-like domain |
| 结构域编号 domain_id | 1pd5I00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 559 — Chloramphenicol Acetyltransferase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Chloramphenicol acetyltransferase-like domain |
| 结构域编号 domain_id | 1pd5J00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 559 — Chloramphenicol Acetyltransferase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Chloramphenicol acetyltransferase-like domain |
| 结构域编号 domain_id | 1pd5K00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 559 — Chloramphenicol Acetyltransferase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Chloramphenicol acetyltransferase-like domain |
| 结构域编号 domain_id | 1pd5L00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 559 — Chloramphenicol Acetyltransferase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Chloramphenicol acetyltransferase-like domain |
