1q23

Crystal structure of Chloramphenicol acetyltransferase I complexed with Fusidic acid at 2.18 A resolution

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chloramphenicol acetyltransferase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	CALCIUM ION × 1 FUSIDIC ACID × 3 water × 3	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 3	FUSIDIC ACID × 3 water × 3	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 3	FUSIDIC ACID × 3 water × 3	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 3	FUSIDIC ACID × 3 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CAT_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–219； UniProt 1–219 Author chain B； PDBConstruct 1–219； UniProt 1–219 Author chain C； PDBConstruct 1–219； UniProt 1–219 Author chain D； PDBConstruct 1–219； UniProt 1–219 Author chain E； PDBConstruct 1–219； UniProt 1–219 Author chain F； PDBConstruct 1–219； UniProt 1–219 Author chain G； PDBConstruct 1–219； UniProt 1–219 Author chain H； PDBConstruct 1–219； UniProt 1–219 Author chain I； PDBConstruct 1–219； UniProt 1–219 Author chain J； PDBConstruct 1–219； UniProt 1–219 Author chain K； PDBConstruct 1–219； UniProt 1–219 Author chain L； PDBConstruct 1–219； UniProt 1–219

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1q23
Deposition date deposition_date	2003-07-23
Structure title title	Crystal structure of Chloramphenicol acetyltransferase I complexed with Fusidic acid at 2.18 A resolution
Keywords keywords	CAT I, trimer, Fusidic acid, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1q23__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1q23__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

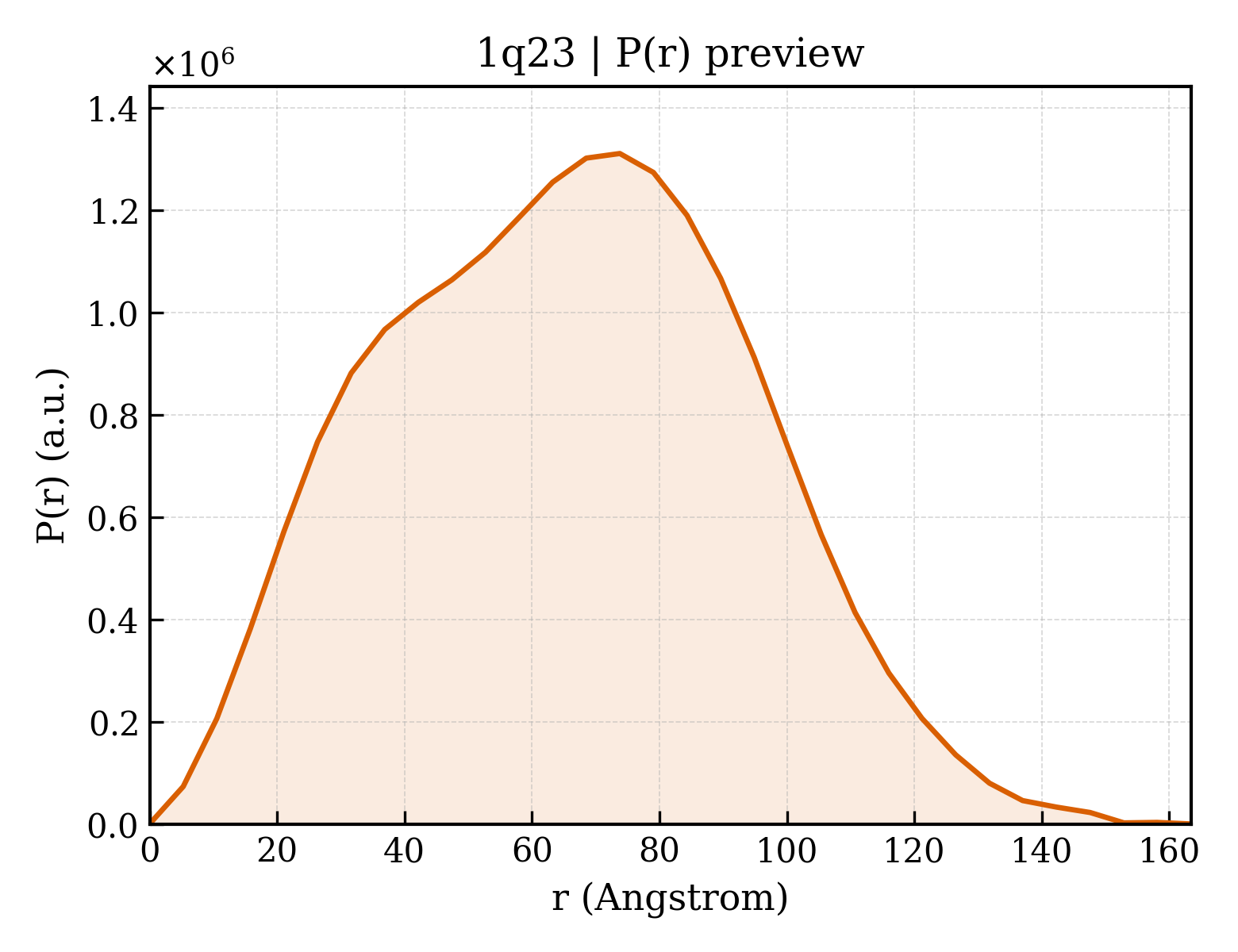

1q23__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.43 Å
Rg (electron density)	25.01 Å
Total Rg	25.98 Å
Atom count	5444
Residues	644
Excluded volume	96923 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1q23__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1q23__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1q23__assembly_3__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1q23__assembly_4__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Chloramphenicol acetyltransferase
Molecular weight formula_weight	25692.1 kDa
EC 编号 ec_number	2.3.1.28
Source method src_method	man
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	22280

MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAFLKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETFSSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNVANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGGA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	FUSIDIC ACID
Molecular weight formula_weight	516.7 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	582

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1q23a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.1 — CAT-like

Domain ID domain_id	d1q23b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.1 — CAT-like

Domain ID domain_id	d1q23c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.1 — CAT-like

Domain ID domain_id	d1q23d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.1 — CAT-like

Domain ID domain_id	d1q23e_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.1 — CAT-like

Domain ID domain_id	d1q23f_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.1 — CAT-like

Domain ID domain_id	d1q23g_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.1 — CAT-like

Domain ID domain_id	d1q23h_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.1 — CAT-like

Domain ID domain_id	d1q23i_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.1 — CAT-like

Domain ID domain_id	d1q23j_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.1 — CAT-like

Domain ID domain_id	d1q23k_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.1 — CAT-like

Domain ID domain_id	d1q23l_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.43 — CoA-dependent acyltransferases
Superfamily Superfamily superfamily	c.43.1 — CoA-dependent acyltransferases
Family Family family	c.43.1.1 — CAT-like

CATH v4.4 (12 domains)

Domain ID domain_id	1q23A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	1q23B00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	1q23C00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	1q23D00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	1q23E00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	1q23F00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	1q23G00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	1q23H00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	1q23I00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	1q23J00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	1q23K00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

Domain ID domain_id	1q23L00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	559 — Chloramphenicol Acetyltransferase
Homologous superfamily homologous superfamily	10 — Chloramphenicol acetyltransferase-like domain

▶

Unit-cell length a length_a	115.354 Å
Unit-cell length b length_b	129.198 Å
Unit-cell length c length_c	118.073 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	108.30 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.180 Å
Low-resolution limit resolution_low	111.800 Å
R factor r_factor	0.1951
R_work r_work	0.1915
R_free r_free	0.2632

Crystal structure of Chloramphenicol acetyltransferase I complexed with Fusidic acid at 2.18 A resolution

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chloramphenicol acetyltransferase

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1q23__assembly_1__model_1

1q23__assembly_1__model_1 | I(q)

1q23__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)

Crystal structure of Chloramphenicol acetyltransferase I complexed with Fusidic acid at 2.18 A resolution

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chloramphenicol acetyltransferase

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1q23__assembly_1__model_1

1q23__assembly_1__model_1 | I(q)

1q23__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)
