SAXSdb — 1pl5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Regulatory protein SIR4

Saccharomyces cerevisiae

UniProt P11978

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SIR4_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–142； UniProt 1217–1358 Author chain S； PDBConstruct 1–142； UniProt 1217–1358

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1pl5
Deposition date deposition_date	2003-06-06
Structure title title	Crystal Structure Analysis of the Sir4p C-terminal Coiled Coil
Keywords keywords	parallel coiled coil homodimer, DNA binding protein-Transcription COMPLEX; DNA binding protein/Transcription
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1pl5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

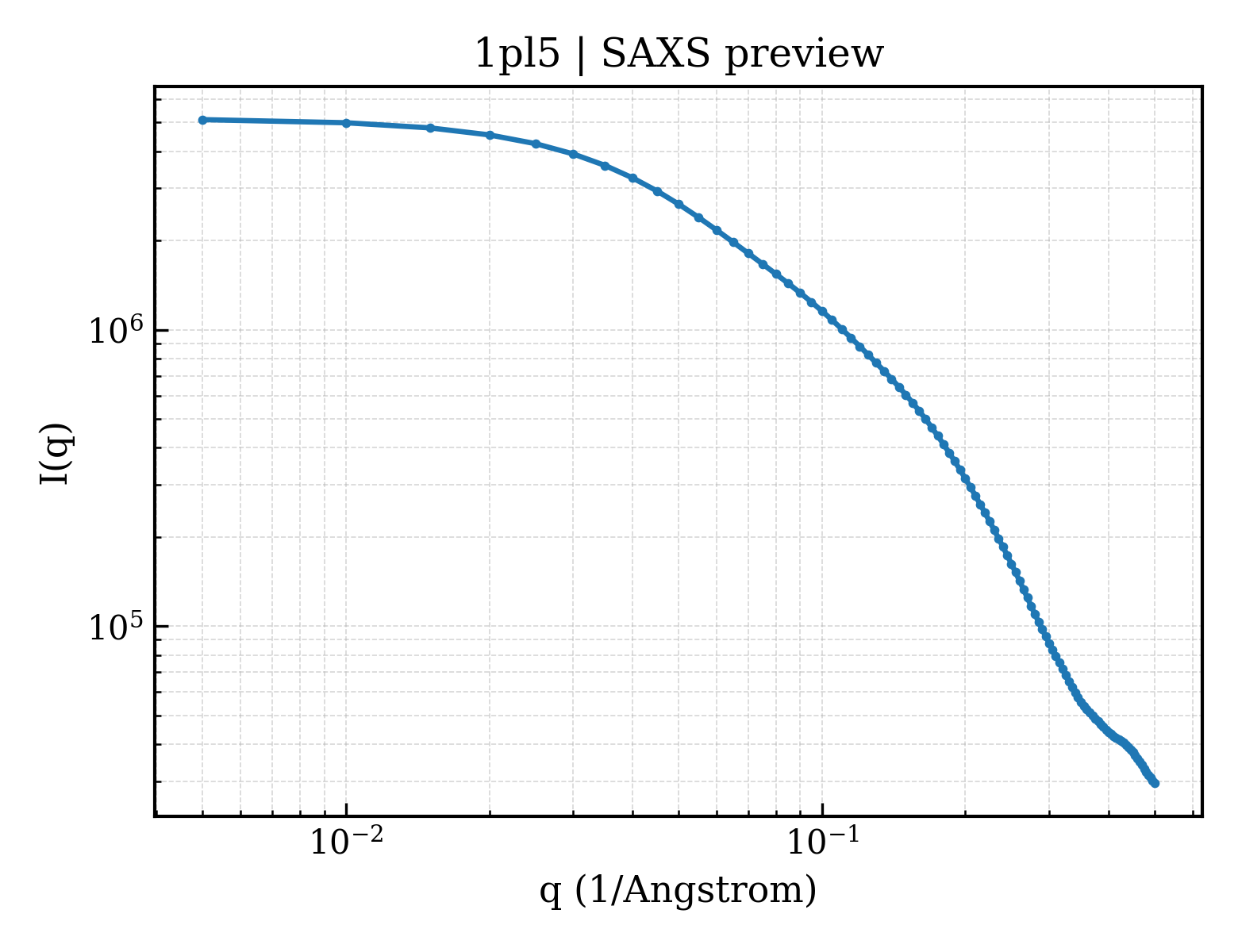

1pl5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

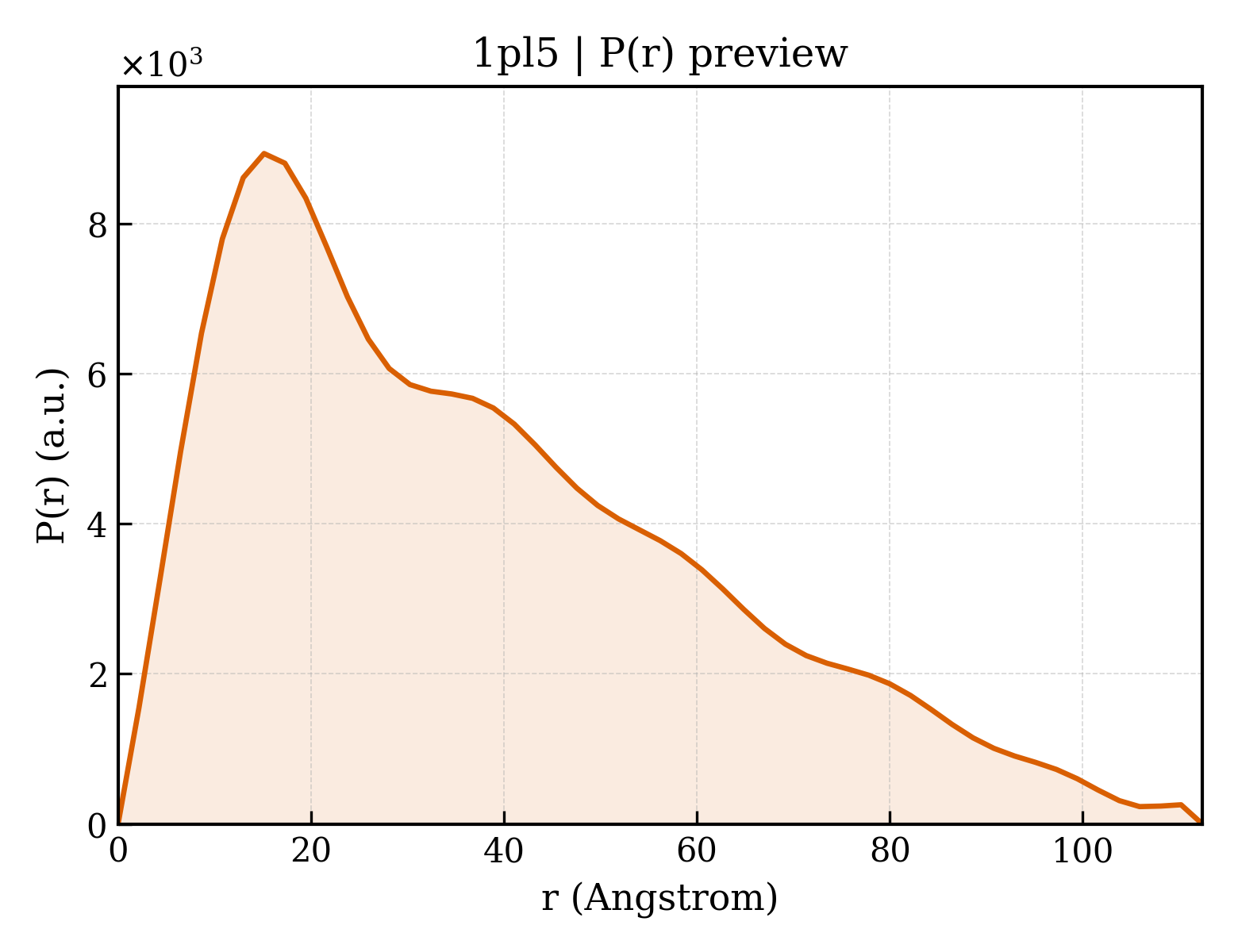

1pl5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.23 Å
Rg (electron density)	32.42 Å
Total Rg	31.89 Å
Atom count	1171
Residues	151
Excluded volume	20955 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1pl5__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1pl5a_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.23 — Dimerization motif of sir4
Family Family family	h.1.23.1 — Dimerization motif of sir4

Domain ID domain_id	d1pl5s_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.23 — Dimerization motif of sir4
Family Family family	h.1.23.1 — Dimerization motif of sir4

CATH v4.4 (2 domains)

Domain ID domain_id	1pl5A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	730 — Single helix bin

Domain ID domain_id	1pl5S00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	730 — Single helix bin

▶

Unit-cell length a length_a	108.884 Å
Unit-cell length b length_b	108.884 Å
Unit-cell length c length_c	75.342 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	26.150 Å
R factor r_factor	0.2610
R_work r_work	0.2610
R_free r_free	0.2880

Description description	Regulatory protein SIR4
Molecular weight formula_weight	15958.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,S
Atom count atom_count	1211
