1pma

PROTEASOME FROM THERMOPLASMA ACIDOPHILUM

Method: X-RAY DIFFRACTION D_max: 170.7 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

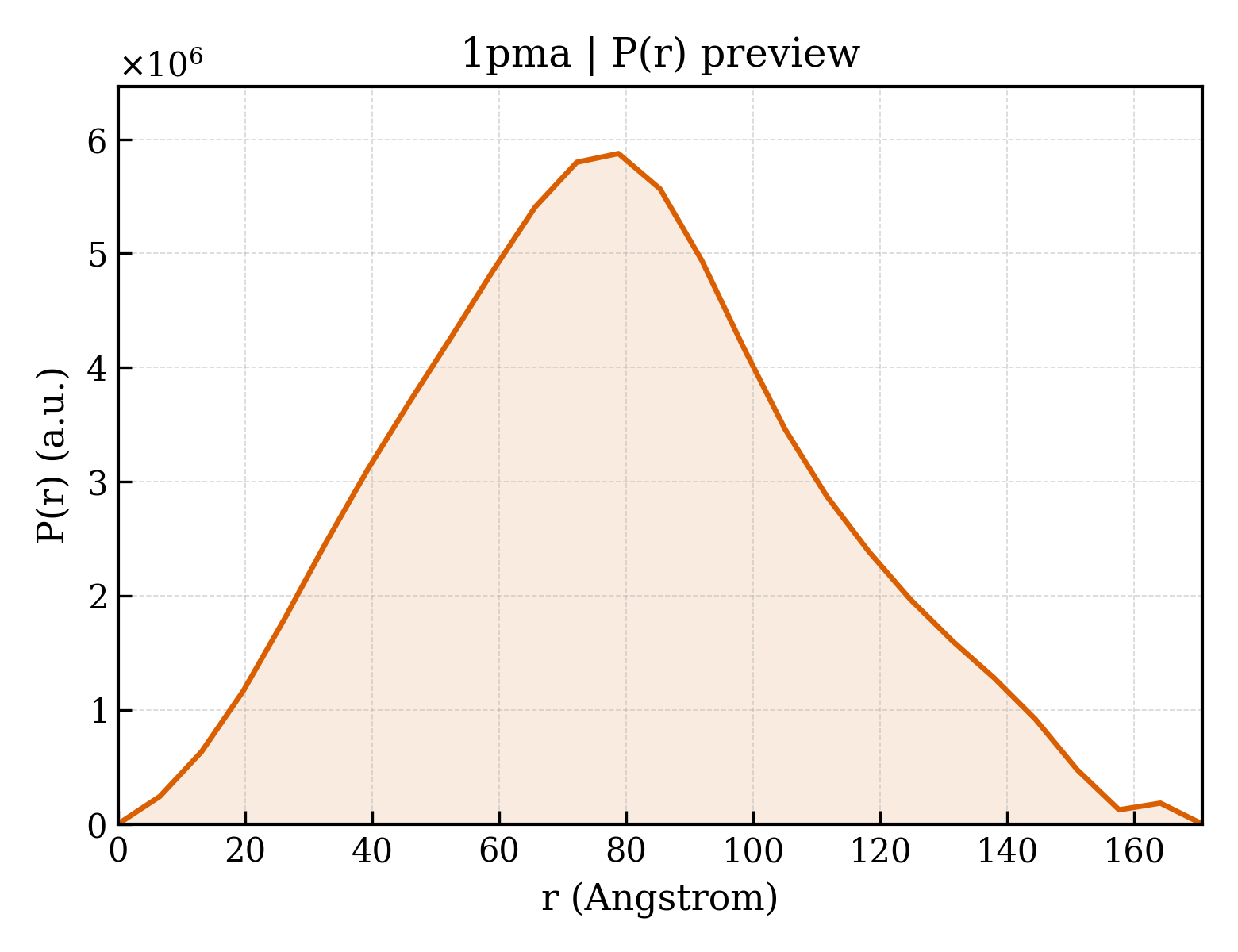

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1pma
沉积日期 deposition_date	1994-12-19
结构标题 title	PROTEASOME FROM THERMOPLASMA ACIDOPHILUM
关键词 keywords	PROTEASE, PROTEASOME, HYDROLASE; PROTEASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	59.56 Å
回转半径 Rg (电子) rg_electron	59.23 Å
零角强度 I(0) i0	5716450000.00
分子量 molecular_weight	653450.0 kDa
排除体积 excluded_volume	825430 Å³
包络体积 envelope_volume	1199800 Å³
水化壳体积 shell_volume	163300 Å³
包络直径 envelope_diameter	185.4 Å
壳层 Rg shell_rg	66.97 Å
包络 Rg envelope_rg	56.84 Å
形状 Rg shape_rg	59.26 Å
总 Rg total_rg	59.29 Å
总原子数 total_atoms	56294
残基数 n_residues	5936
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	170.7 Å
Rg (实空间) rg_real	59.25 Å
Rg 误差 (实空间) rg_real_error	1.00 Å
I(0) (实空间) i0_real	5.7160e+09
I(0) 误差 (实空间) i0_real_error	9.0110e+07
Rg (倒空间) rg_reciprocal	59.80 Å
I(0) (倒空间) i0_reciprocal	5721000000.0000
解质量估计 total_estimate	0.6090
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	78.8 Å
偏度 Skewness skewness	0.184
峰度 Kurtosis kurtosis	-0.406
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	701000000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.949; Stabil: 0.999; Sysdev: 0.025; Positv: 1.000; Valcen: 0.987; Smooth: 0.008

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	PROTEASOME
分子量 formula_weight	25829.4 kDa
EC 编号 ec_number	3.4.99.46
来源方法 src_method	man
拷贝数 entity_count	14

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,D,E,F,G,H,I,J,K,L,M,N,O
原子数 atom_count	56294

MQQGQMAYDRAITVFSPDGRLFQVEYAREAVKKGSTALGMKFANGVLLISDKKVRSRLIEQNSIEKIQLIDDYVAAVTSGLVADARVLVDFARISAQQEKVTYGSLVNIENLVKRVADQMQQYTQYGGVRPYGVSLIFAGIDQIGPRLFDCDPAGTINEYKATAIGSGKDAVVSFLEREYKENLPEKEAVTLGIKALKSSLEEGEELKAPEIASITVGNKYRIYDQEEVKKFL

来源 Source

来源生物 organism	Thermoplasma acidophilum
NCBI 分类编号 ncbi_taxonomy_id	2303
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	PROTEASOME
分子量 formula_weight	23169.8 kDa
EC 编号 ec_number	3.4.99.46
来源方法 src_method	man
拷贝数 entity_count	14

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,P,Q,R,S,T,U,V,W,X,Y,Z,1,2

MNQTLETGTTTVGITLKDAVIMATERRVTMENFIMHKNGKKLFQIDTYTGMTIAGLVGDAQVLVRYMKAELELYRLQRRVNMPIEAVATLLSNMLNQVKYMPYMVQLLVGGIDTAPHVFSIDAAGGSVEDIYASTGSGSPFVYGVLESQYSEKMTVDEGVDLVIRAISAAKQRDSASGGMIDVAVITRKDGYVQLPTDQIESRIRKLGLIL

来源 Source

来源生物 organism	Thermoplasma acidophilum
NCBI 分类编号 ncbi_taxonomy_id	2303
宿主生物 host_organism	Escherichia coli

▼

6. 折叠分类 (SCOP + CATH) 56 domains

SCOP 2.08 (28 domains)

结构域编号 domain_id	d1pma1_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pma2_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmaa_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmab_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmac_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmad_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmae_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmaf_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmag_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmah_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmai_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmaj_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmak_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmal_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmam_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pman_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmao_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmap_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmaq_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmar_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmas_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmat_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmau_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmav_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmaw_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmax_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmay_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1pmaz_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

CATH v4.4 (28 domains)

结构域编号 domain_id	1pma100
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pma200
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaE00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaF00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaG00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaH00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaI00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaJ00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaK00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaL00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaM00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaN00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaO00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaP00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaQ00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaR00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaS00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaT00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaU00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaV00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaW00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaX00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaY00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1pmaZ00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	311.900 Å
晶胞边长 b length_b	209.700 Å
晶胞边长 c length_c	117.200 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	56

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	3.400 Å
最低分辨率 resolution_low	10.000 Å
R 因子 r_factor	0.2210
R_work r_work	0.2210
R_free r_free	—

PROTEASOME FROM THERMOPLASMA ACIDOPHILUM

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

5. 实体与聚合体信息 (2)

Entity 1 polymer

聚合体 Polymer

来源 Source

Entity 2 polymer

聚合体 Polymer

来源 Source

6. 折叠分类 (SCOP + CATH) 56 domains

SCOP 2.08 (28 domains)

CATH v4.4 (28 domains)

7. 引用文献 (2)

8. 文件与曲线 (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/pm/1pma/1pma.fit
pddf	/app/data/pr_computation/pm/1pma/1pma.pr.out
profile	/app/data/saxs_computation/pm/1pma/1pma.dat
