1pst

CRYSTALLOGRAPHIC ANALYSES OF SITE-DIRECTED MUTANTS OF THE PHOTOSYNTHETIC REACTION CENTER FROM RHODOBACTER SPHAEROIDES

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PHOTOSYNTHETIC REACTION CENTER

Rhodobacter sphaeroides

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	PHOTOSYNTHETIC REACTION CENTER × 1 （P02953） PHOTOSYNTHETIC REACTION CENTER × 1 （P11846） BACTERIOCHLOROPHYLL A × 3 BACTERIOPHEOPHYTIN A × 3 UBIQUINONE-10 × 2 FE (III) ION × 1 SPIRILLOXANTHIN × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RCEL_RHOSH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain L； PDBConstruct 1–266； UniProt 5–270

PHOTOSYNTHETIC REACTION CENTER

Rhodobacter sphaeroides

UniProt P02953

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	PHOTOSYNTHETIC REACTION CENTER × 1 （P02954） PHOTOSYNTHETIC REACTION CENTER × 1 （P11846） BACTERIOCHLOROPHYLL A × 3 BACTERIOPHEOPHYTIN A × 3 UBIQUINONE-10 × 2 FE (III) ION × 1 SPIRILLOXANTHIN × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RCEM_RHOSH
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain M； PDBConstruct 1–296； UniProt 6–301

PHOTOSYNTHETIC REACTION CENTER

Rhodobacter sphaeroides

UniProt P11846

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	PHOTOSYNTHETIC REACTION CENTER × 1 （P02954） PHOTOSYNTHETIC REACTION CENTER × 1 （P02953） BACTERIOCHLOROPHYLL A × 3 BACTERIOPHEOPHYTIN A × 3 UBIQUINONE-10 × 2 FE (III) ION × 1 SPIRILLOXANTHIN × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RCEH_RHOSH
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain H； PDBConstruct 1–237； UniProt 12–248

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1pst
Deposition date deposition_date	1993-12-13
Structure title title	CRYSTALLOGRAPHIC ANALYSES OF SITE-DIRECTED MUTANTS OF THE PHOTOSYNTHETIC REACTION CENTER FROM RHODOBACTER SPHAEROIDES
Keywords keywords	PHOTOSYNTHETIC REACTION CENTER; PHOTOSYNTHETIC REACTION CENTER
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1pst__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1pst__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

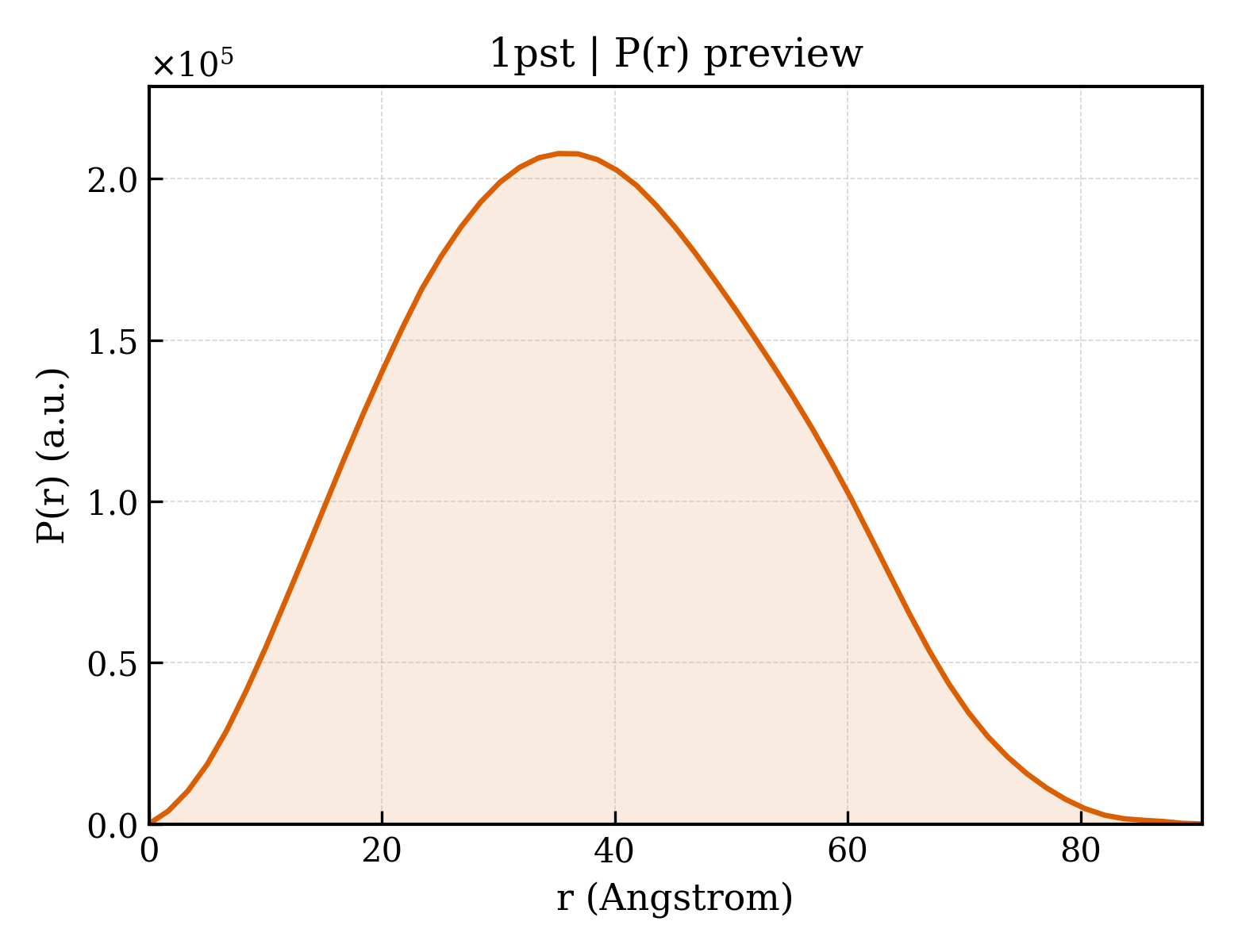

1pst__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.45 Å
Rg (electron density)	28.22 Å
Total Rg	29.13 Å
Atom count	6786
Residues	799
Excluded volume	123800 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1pst__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	PHOTOSYNTHETIC REACTION CENTER
Molecular weight formula_weight	29795.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	6786

FERKYRVPGGTLVGGNLFDFWVGPFYVGFFGVATFFFAALGIILIAWSAVLQGTWNPQLISVYPPALEYGLGGAPLAKGGLWQIITICATGAFVSWALREVEICRKLGIGYHIPFAFAFAILAYLTLVLFRPVMMGAWGYAFPYGIWTHLDWVSNTGYTYGNFHYNPAHMIAISFFFTNALALALHGALVLSAANPEKGKEMRTPDHEDTFFRDLVGYSIGTLGIHRLGLLLSLSAVFFSALCMIITGTIWFDQWVDWWQWWVKLP

Source Source

Source organism organism	Rhodobacter sphaeroides
NCBI taxonomy ID ncbi_taxonomy_id	1063

Entity 2 Entity 2 polymer

Description description	PHOTOSYNTHETIC REACTION CENTER
Molecular weight formula_weight	33184.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

IFSQVQVRGPADLGMTEDVNLANRSGVGPFSTLLGWFGNAQLGPIYLGSLGVLSLFSGLMWFFTIGIWFWYQAGWNPAVFLRDLFFFSLEPPAPEYGLSFAAPLKEGGLWLIASFFMFVAVWSWWGRTYLRAQALGMGKHTAWAFLSAIWLWMVLGFIRPILMGSWSEAVPYGIFSHLDWTNNFSLVHGNLFYNPFLGLSIAFLYGSALLFAMHGATILAVSRFGGERELEQIADRGTAAERAALFWRWTMGFNATMEGIHRWAIWMAVLVTLTGGIGILLSGTVVDNWYVWGQNH

Source Source

Source organism organism	Rhodobacter sphaeroides
NCBI taxonomy ID ncbi_taxonomy_id	1063

Entity 3 Entity 3 polymer

Description description	PHOTOSYNTHETIC REACTION CENTER
Molecular weight formula_weight	25691.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

LASLAIYSFWIFLAGLIYYLQTENMREGYPLENEDGTPAANQGPFPLPKPKTFILPHGRGTLTVPGPESEDRPIALARTAVSEGFPHAPTGDPMKDGVGPASWVARRDLPELDGHGHNKIKPMKAAAGFHVSAGKNPIGLPVRGCDLEIAGKVVDIWVDIPEQMARFLEVELKDGSTRLLPMQMVKVQSNRVHVNALSSDLFAGIPTIKSPTEVTLLEEDKICGYVAGGLMYAAPKR

Source Source

Source organism organism	Rhodobacter sphaeroides
NCBI taxonomy ID ncbi_taxonomy_id	1063

Entity 4 Entity 4 non-polymer

Description description	BACTERIOCHLOROPHYLL A
Molecular weight formula_weight	911.5 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	BACTERIOPHEOPHYTIN A
Molecular weight formula_weight	889.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 non-polymer

Description description	UBIQUINONE-10
Molecular weight formula_weight	863.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	FE (III) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	SPIRILLOXANTHIN
Molecular weight formula_weight	596.9 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1psth1
Class class	b — All beta proteins
Fold Fold fold	b.41 — PRC-barrel domain
Superfamily Superfamily superfamily	b.41.1 — PRC-barrel domain
Family Family family	b.41.1.1 — Photosynthetic reaction centre, H-chain, cytoplasmic domain

Domain ID domain_id	d1psth2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.23 — Single transmembrane helix
Superfamily Superfamily superfamily	f.23.10 — Photosystem II reaction centre subunit H, transmembrane region
Family Family family	f.23.10.1 — Photosystem II reaction centre subunit H, transmembrane region

Domain ID domain_id	d1pstl_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.26 — Bacterial photosystem II reaction centre, L and M subunits
Superfamily Superfamily superfamily	f.26.1 — Bacterial photosystem II reaction centre, L and M subunits
Family Family family	f.26.1.1 — Bacterial photosystem II reaction centre, L and M subunits

Domain ID domain_id	d1pstm_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.26 — Bacterial photosystem II reaction centre, L and M subunits
Superfamily Superfamily superfamily	f.26.1 — Bacterial photosystem II reaction centre, L and M subunits
Family Family family	f.26.1.1 — Bacterial photosystem II reaction centre, L and M subunits

CATH v4.4 (6 domains)

Domain ID domain_id	1pstH01
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	540 — Photosynthetic Reaction Center; Chain H, domain 1
Homologous superfamily homologous superfamily	10 — Photosynthetic reaction centre, H subunit, N-terminal domain

Domain ID domain_id	1pstH02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	50 — Photosynthetic Reaction Center; Chain H, domain 2
Homologous superfamily homologous superfamily	10 — Photosynthetic Reaction Center, subunit H, domain 2

Domain ID domain_id	1pstL01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	85 — Photosynthetic Reaction Center, subunit M; domain 1
Homologous superfamily homologous superfamily	10 — Photosystem II protein D1-like

Domain ID domain_id	1pstL02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	85 — Photosynthetic Reaction Center, subunit M; domain 1
Homologous superfamily homologous superfamily	10 — Photosystem II protein D1-like

Domain ID domain_id	1pstM01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	85 — Photosynthetic Reaction Center, subunit M; domain 1
Homologous superfamily homologous superfamily	10 — Photosystem II protein D1-like

Domain ID domain_id	1pstM02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	85 — Photosynthetic Reaction Center, subunit M; domain 1
Homologous superfamily homologous superfamily	10 — Photosystem II protein D1-like

▶

7. Citations (10)

Crystallographic analyses of site-directed mutants of the photosynthetic reaction center from Rhodobacter sphaeroides.

Biochemistry (1994)

PMID: 8161514 · DOI: 10.1021/bi00181a020 PRIMARY

The Bacterial Photosynthetic Reaction Center as a Model for Membrane Proteins

Annu.Rev.Biochem. (1989)

Structure and Function of Bacterial Photosynthetic Reaction Centers

Nature (1989)

;Structure of the Reaction Center from Rhodobacter Sphaeroides R-26 and 2.4.1:Protein-Cofactor (Bacteriochlorophyll,Bacteriopheophytin, and Carotenoid) Interactions ;

Proc.Natl.Acad.Sci.USA (1988)

;Structure of the Reaction Center from Rhodobacter Sphaeroides R-26 and 2.4.1: Symmetry Relations and Sequence Comparisons between Different Species ;

Proc.Natl.Acad.Sci.USA (1988)

Structure of the Reaction Center from Rhodobacter Sphaeroides R-26: Protein-Cofactor (Quinones and Fe2+) Interactions

Proc.Natl.Acad.Sci.USA (1988)

Structure of the Reaction Center from Rhodobacter Sphaeroides R-26: Membrane-Protein Interactions

Proc.Natl.Acad.Sci.USA (1987)

Structure of the Reaction Center from Rhodobacter Sphaeroides R-26: The Protein Subunits

Proc.Natl.Acad.Sci.USA (1987)

Structure of the Reaction Center from Rhodobacter Sphaeroides R-26: The Cofactors

Proc.Natl.Acad.Sci.USA (1987)

;Structure Homology of the Reaction Center from Rhodopseudomonas Sphaeroides and Rhodopseudomonas Viridis as Determined by X-Ray Diffraction ;

Proc.Natl.Acad.Sci.USA (1986)

Unit-cell length a length_a	138.000 Å
Unit-cell length b length_b	77.500 Å
Unit-cell length c length_c	141.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	0.2180
R_work r_work	0.2180
R_free r_free	—
