1pzg

T.gondii LDH1 complexed with APAD and sulfate at 1.6 Angstroms

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

lactate dehydrogenase

Toxoplasma gondii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	SULFATE ION × 4 3-ACETYLPYRIDINE ADENINE DINUCLEOTIDE × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	P90613_TOXGO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–331； UniProt 1–329 Author chain B； PDBConstruct 1–331； UniProt 1–329 Author chain C； PDBConstruct 1–331； UniProt 1–329 Author chain D； PDBConstruct 1–331； UniProt 1–329

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1pzg
Deposition date deposition_date	2003-07-10
Structure title title	T.gondii LDH1 complexed with APAD and sulfate at 1.6 Angstroms
Keywords keywords	apicomplexa, APAD, tetramer, Rossmann fold, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1pzg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1pzg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

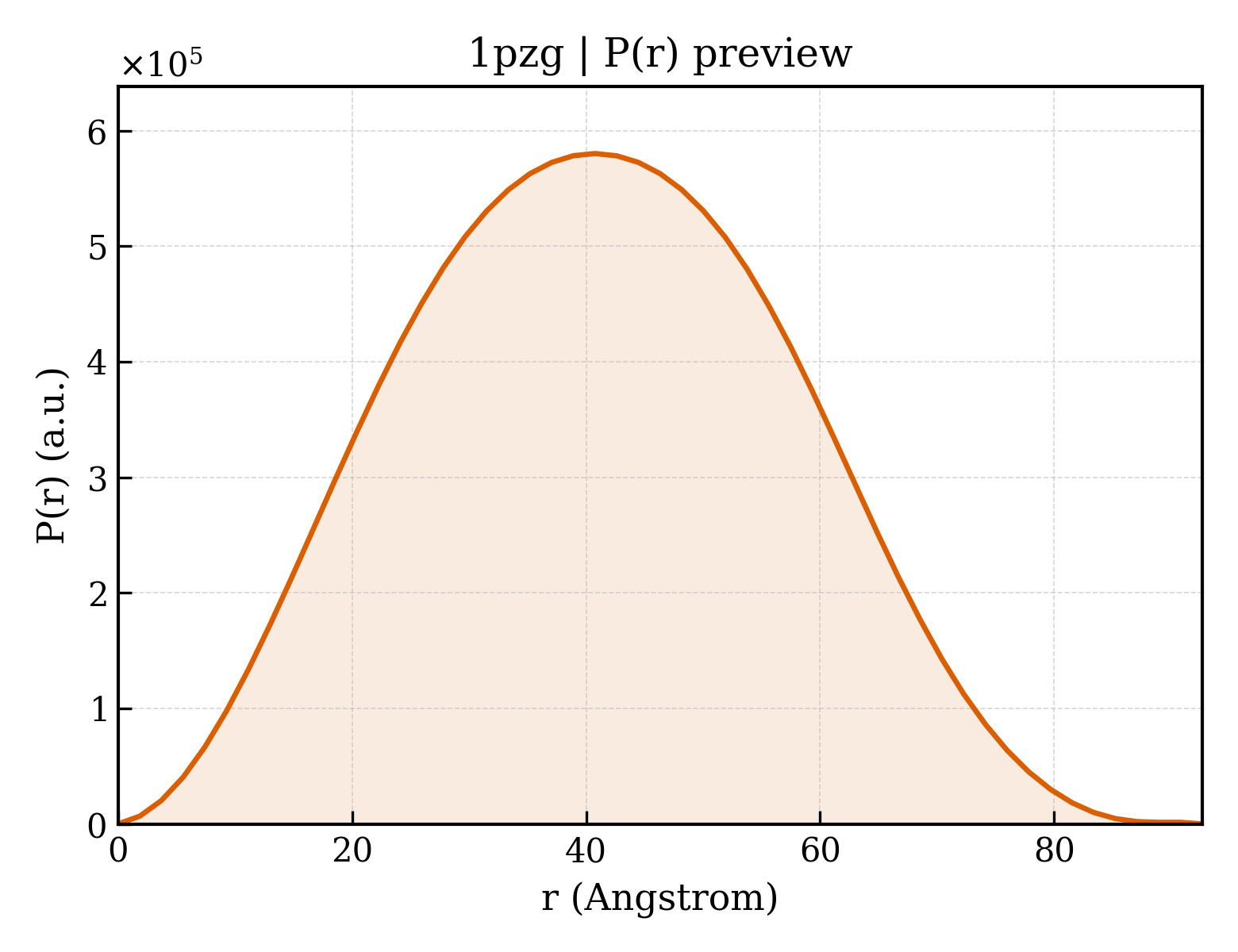

1pzg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.45 Å
Rg (electron density)	30.62 Å
Total Rg	31.34 Å
Atom count	10077
Residues	1303
Excluded volume	180960 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1pzg__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	lactate dehydrogenase
Molecular weight formula_weight	35816.6 kDa
EC 编号 ec_number	1.1.1.27
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	10639

MAPALVQRRKKVAMIGSGMIGGTMGYLCALRELADVVLYDVVKGMPEGKALDLSHVTSVVDTNVSVRAEYSYEAALTGADCVIVTAGLTKVPGKPDSEWSRNDLLPFNSKIIREIGQNIKKYCPKTFIIVVTNPLDCMVKVMCEASGVPTNMICGMACMLDSGRFRRYVADALSVSPRDVQATVIGTHGDCMVPLVRYITVNGYPIQKFIKDGVVTEKQLEEIAEHTKVSGGEIVRFLGQGSAYYAPAASAVAMATSFLNDEKRVIPCSVYCNGEYGLKDMFIGLPAVIGGAGIERVIELELNEEEKKQFQKSVDDVMALNKAVAALQAPG

Source Source

Source organism organism	Toxoplasma gondii
NCBI taxonomy ID ncbi_taxonomy_id	508771
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	3-ACETYLPYRIDINE ADENINE DINUCLEOTIDE
Molecular weight formula_weight	662.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	562

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (10 domains)

Domain ID domain_id	d1pzga1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.5 — LDH N-terminal domain-like

Domain ID domain_id	d1pzga2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.1 — Lactate & malate dehydrogenases, C-terminal domain

Domain ID domain_id	d1pzga3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1pzgb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.5 — LDH N-terminal domain-like

Domain ID domain_id	d1pzgb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.1 — Lactate & malate dehydrogenases, C-terminal domain

Domain ID domain_id	d1pzgb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1pzgc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.5 — LDH N-terminal domain-like

Domain ID domain_id	d1pzgc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.1 — Lactate & malate dehydrogenases, C-terminal domain

Domain ID domain_id	d1pzgd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.5 — LDH N-terminal domain-like

Domain ID domain_id	d1pzgd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.1 — Lactate & malate dehydrogenases, C-terminal domain

CATH v4.4 (8 domains)

Domain ID domain_id	1pzgA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1pzgA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	1pzgB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1pzgB02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	1pzgC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1pzgC02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	1pzgD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1pzgD02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

▶

Unit-cell length a length_a	67.935 Å
Unit-cell length b length_b	124.978 Å
Unit-cell length c length_c	86.388 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	105.94 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1760
R_work r_work	0.1760
R_free r_free	0.1980
